Volante Roof & Sunroof - Volante Roof Assembly of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

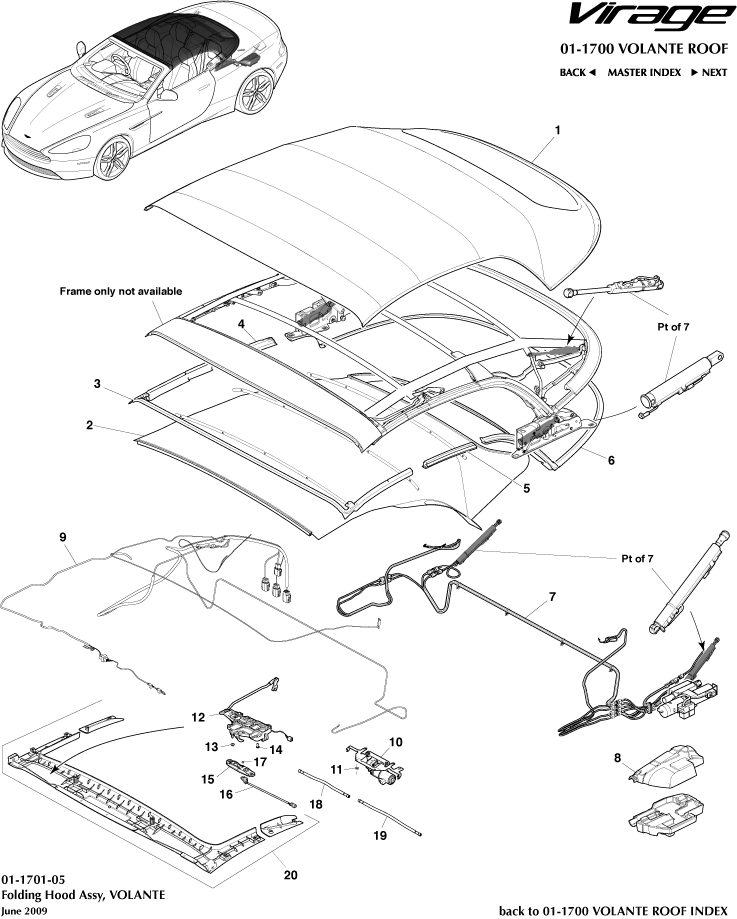

Aston Martin GT VIRAGE (2012-2013) - Volante Roof & Sunroof - Volante Roof Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G4370351BA	Canopy Cover Kit, Atlantic Blue	9G4370351BA Canopy Cover Kit, Atlantic Blue Atlantic Blue	-	1	Enquire
-	9G4370351CA	CANOPY COVER CG JAVA KIT	9G4370351CA CANOPY COVER CG JAVA KIT Java / Sandstone	-	1	Enquire
-	9G4370351DA	CANOPY COVER CG WESTMINSTER GREEN KIT	9G4370351DA CANOPY COVER CG WESTMINSTER GREEN KIT Westminster Green	-	1	Enquire
-	9G4370351EA	CANOPY COVER CG TITAN GREY KIT	9G4370351EA CANOPY COVER CG TITAN GREY KIT Titan Grey	-	1	Enquire
-	9G4370351FA	CANOPY COVER CG BURGUNDY KIT	9G4370351FA CANOPY COVER CG BURGUNDY KIT Burgundy	-	1	Enquire
-	9G4370351HA	CPY CVR CG GREN RED	9G4370351HA CPY CVR CG GREN RED Grenadine Red	-	1	Enquire
-	9G4370352BB	INNER LINING CG IVORY	9G4370352BB INNER LINING CG IVORY Ivory	-	1	Enquire
-	9G4370352CB	INNER LINING CG MOON SHADOW	9G4370352CB INNER LINING CG MOON SHADOW Moonshadow	-	1	Enquire
-	9G4370352DB	INNER LINING CG TAILORS GREY	9G4370352DB INNER LINING CG TAILORS GREY Tailors Grey	-	1	Enquire
-	9G4370352EB	Inner Lining, New Light Tan	9G4370352EB Inner Lining, New Light Tan New Light Tan	-	1	Enquire
-	4G43L51260AA	FULLY AUTOMATIC LATCHING LH KIT	4G43L51260AA FULLY AUTOMATIC LATCHING LH KIT -	-	1	Enquire
-	4G43765011AD	STRIKER HEADER LH	4G43765011AD STRIKER HEADER LH attached to BIW	-	1	Enquire
-	4G439310615	HEADER TRIM KIT DB9 VOLANTE MOONSHADOW	4G439310615 HEADER TRIM KIT DB9 VOLANTE MOONSHADOW Moonshadow	-	1	Enquire
-	4G439310616	HEADER TRIM KIT DB9 VOLANTE TAILORS GREY	4G439310616 HEADER TRIM KIT DB9 VOLANTE TAILORS GREY Tailors Grey	-	1	Enquire
-	4G439310617	HEADER TRIM KIT DB9 VOLANTE-BLACK	4G439310617 HEADER TRIM KIT DB9 VOLANTE-BLACK Obsidian Black	-	1	Enquire
2	9G4370352AB	Inner Lining, Obsidian Black	9G4370352AB Inner Lining, Obsidian Black Obsidian Black	-	1	Enquire
3	4G43L51210AA	FRT SL SPR PRT ASY K	4G43L51210AA FRT SL SPR PRT ASY K -	-	1	Enquire
4	4G43L51221AA	MIDDLE SEAL SPARE PART RH ASSY KID	4G43L51221AA MIDDLE SEAL SPARE PART RH ASSY KID -	-	1	Enquire
5	4G43L51220AA	MIDDLE SEAL SPARE PART LH ASSY KIT	4G43L51220AA MIDDLE SEAL SPARE PART LH ASSY KIT -	-	1	Enquire
6	4G43L51230AA	RR SL SPR PRT ASY KT	4G43L51230AA RR SL SPR PRT ASY KT -	-	1	Enquire
7	9G439G803AA	Hydraulic Pump Assy, Includes All Cylinders & Hoses	9G439G803AA Hydraulic Pump Assy, Includes All Cylinders & Hoses -	-	1	Enquire
8	9G439311486	HYDRAULIC PUMP CVR	9G439311486 HYDRAULIC PUMP CVR -	-	1	Enquire
10	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT	4G43L51240AA CONVERTIBLE ROOF LATCH MOTOR KIT -	-	1	Enquire
11	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 Latch Motor assy	-	4	Enquire
12	4G43L51270AA	FULLY AUTOMOTIVE LATCHING RH KIT	4G43L51270AA FULLY AUTOMOTIVE LATCHING RH KIT -	-	1	Enquire
13	4G4369832AA	HEXAGON NUT M6	4G4369832AA HEXAGON NUT M6 3 per Latch assy	-	6	Enquire
14	4G431003920AA	Screw, Self Cutting	4G431003920AA Screw, Self Cutting 1 Per Latch assy	-	2	Enquire
15	4G43765010AE	STRIKER HEADER RH	4G43765010AE STRIKER HEADER RH attached to BIW	-	1	Enquire
16	4G43765013AE	LATCH BRKT HARNESS	4G43765013AE LATCH BRKT HARNESS -	-	1	Enquire
17	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) -	-	1	Enquire
18	4G431012524AA	Flex Shaft, RH	4G431012524AA Flex Shaft, RH -	-	1	Enquire
19	4G431012525AA	Flex Shaft, LH	4G431012525AA Flex Shaft, LH -	-	1	Enquire
20	4G439310614	HEADER TRIM KIT DB9 VOLANTE-IVORY	4G439310614 HEADER TRIM KIT DB9 VOLANTE-IVORY Ivory	-	1	Enquire
