Body Structure - Body Rear End, Coupe of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Body Structure - Body Rear End, Coupe

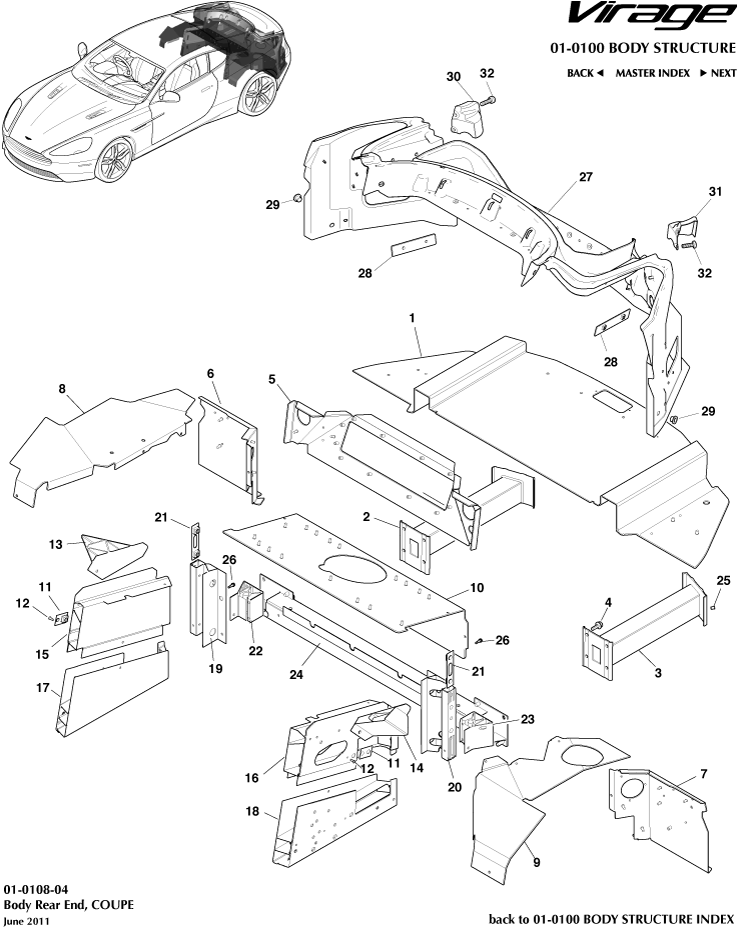

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG4347124AA	PNL FLOOR TRUNK	BG4347124AA PNL FLOOR TRUNK Structural Cat. A only	-	1	Enquire
2	9G4317F034AA	ABS ASY BMPR RR RH	9G4317F034AA ABS ASY BMPR RR RH Structural Cat. A only	-	1	Enquire
3	9G4317F035AA	ABS ASY BMPR RR LH	9G4317F035AA ABS ASY BMPR RR LH Structural Cat. A only	-	1	Enquire
4	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	8	Enquire
5	8G43C40334GA	Panel, Upper Back, Centre	8G43C40334GA Panel, Upper Back, Centre Structural Cat. A only	-	1	Enquire
6	8G43C10514AC	Panel, Rear Floor Outer Side, RH	8G43C10514AC Panel, Rear Floor Outer Side, RH Structural Cat. A only	-	1	Enquire
7	8G43C10515AA	Panel, Rear Floor Outer Side, LH	8G43C10515AA Panel, Rear Floor Outer Side, LH Structural Cat. A only	-	1	Enquire
8	BG43C279A54AA	Panel, Quarter Wheel Housing Inner Rear, RH	BG43C279A54AA Panel, Quarter Wheel Housing Inner Rear, RH Structural Cat. A only	-	1	Enquire
9	BG43C279A55AC	Panel, Quarter Wheel Housing Inner Rear, LH	BG43C279A55AC Panel, Quarter Wheel Housing Inner Rear, LH Structural Cat. A only	-	1	Enquire
10	22AB594GP	ASSY ELECTRIC HATCH LID	22AB594GP ASSY ELECTRIC HATCH LID Structural Cat. A only	-	1	Enquire
11	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front -	-	2	Enquire
12	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	2	Enquire
13	P08G43C513B96AA	REINF RF SD RL LWR R	P08G43C513B96AA REINF RF SD RL LWR R Structural Cat. A only	-	1	Enquire
14	22MA145GP	TAILGATE CLOSE SWITCH	22MA145GP TAILGATE CLOSE SWITCH Structural Cat. A only	-	1	Enquire
15	8G43C10282AC	MEMBER FLOOR SIDE UPPER RH	8G43C10282AC MEMBER FLOOR SIDE UPPER RH Structural Cat. A only	-	1	Enquire
16	P08G43C10283AC	MEMBER FLOOR SIDE UPPER LH	P08G43C10283AC MEMBER FLOOR SIDE UPPER LH Structural Cat. A only	-	1	Enquire
17	SY7Y13068AF	FENDER CARRIER RH	SY7Y13068AF FENDER CARRIER RH Structural Cat. A only	-	1	Enquire
18	22AB052GP	PNL FNDR FRT HEADLAMP MTG INR RH	22AB052GP PNL FNDR FRT HEADLAMP MTG INR RH Structural Cat. A only	-	1	Enquire
19	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
20	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	GOAG43101C85AA BRACKET SIDE MEMBER REAR LH Structural Cat. A only	-	1	Enquire
21	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear -	-	2	Enquire
22	GOAG335A355AA	SUPPORT SUBFRAME REAR RIGHT HAND	GOAG335A355AA SUPPORT SUBFRAME REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
23	GOAG335A356AA	SUPPORT SUBFRAME REAR LEFT HAND	GOAG335A356AA SUPPORT SUBFRAME REAR LEFT HAND Structural Cat. A only	-	1	Enquire
24	AG4340338AA	REINFORCED LOWER BACK CENTRE PANEL	AG4340338AA REINFORCED LOWER BACK CENTRE PANEL Structural Cat. A only	-	1	Enquire
25	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni -	-	4	Enquire
26	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head -	-	4	Enquire
27	8D33C45108AG	TRGH L/C DR OPG DRN LWR FRT	8D33C45108AG TRGH L/C DR OPG DRN LWR FRT Structural Cat. A only	-	1	Enquire
28	4G43C42764AG	Support Bracket, Decklid Hinge Mounting	4G43C42764AG Support Bracket, Decklid Hinge Mounting -	-	2	Enquire
29	4G43N804138AA	Rubber Plug, 18mm, Black Thermoplastic	4G43N804138AA Rubber Plug, 18mm, Black Thermoplastic -	-	2	Enquire
30	4G43C40738AE	FILL TL GT PNL LWR C	4G43C40738AE FILL TL GT PNL LWR C Structural Cat. A only	-	1	Enquire
31	4G43C40739AE	FILL TL GT PNL LWR C	4G43C40739AE FILL TL GT PNL LWR C Structural Cat. A only	-	1	Enquire
32	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD 2 per assy	-	4	Enquire
