Interior Trim & Ornamentation - Rear Quarter Trim Panel, 2+2 Volante of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Interior Trim & Ornamentation - Rear Quarter Trim Panel, 2+2 Volante

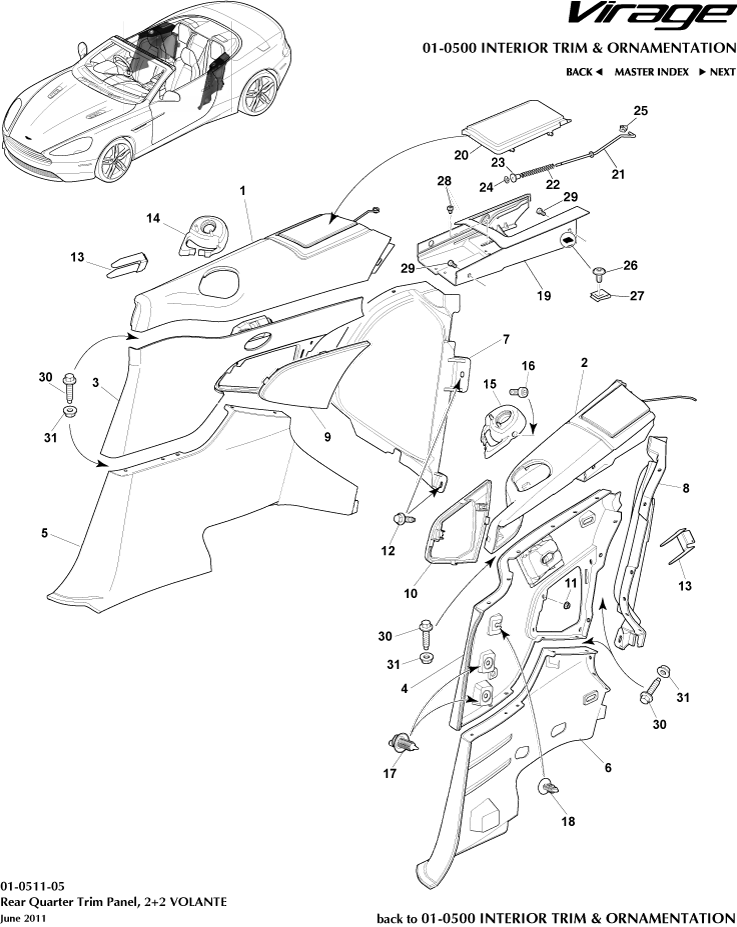

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	13A3861CP	Moulding - Door Pocket - LH	13A3861CP Moulding - Door Pocket - LH Alpine	$54.45	1
-	13A6371CP	Seal - Glass Guide	13A6371CP Seal - Glass Guide Alpine	$46.81	1
-	4G43LB605H21ADW	Frame and Finisher Assembly, C-Flap, LH	4G43LB605H21ADW Frame and Finisher Assembly, C-Flap, LH -	-	1	Enquire
-	4G43539A41ABW	Lid, Flap Finisher Top, LH	4G43539A41ABW Lid, Flap Finisher Top, LH -	-	1	Enquire
-	4G43L53297AA	Link Rod, Flap Top LH	4G43L53297AA Link Rod, Flap Top LH -	-	1	Enquire
-	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE -	-	A/R	Enquire
1	CG43L31112AAW	PNL BDY SD TR R RH	CG43L31112AAW PNL BDY SD TR R RH -	-	1	Enquire
2	CG43L31113AAW	PNL BDY SD TR RR LH	CG43L31113AAW PNL BDY SD TR RR LH -	-	1	Enquire
3	RY5315691AD	CONVERT ROOF SWITCH	RY5315691AD CONVERT ROOF SWITCH -	-	1	Enquire
4	SY63120609CB	DUP OWN GER 25MY	SY63120609CB DUP OWN GER 25MY -	-	1	Enquire
5	8G43L312A06ABW	Trim Panel, Body Side Lower, RH	8G43L312A06ABW Trim Panel, Body Side Lower, RH -	-	1	Enquire
6	8G43L312A07ABW	Trim Panel, Body Side Lower, LH	8G43L312A07ABW Trim Panel, Body Side Lower, LH -	-	1	Enquire
7	4G43L60594ADW	Seat Back Panel Assy, RH	4G43L60594ADW Seat Back Panel Assy, RH -	-	1	Enquire
8	4G43L60595ADW	PANEL ASY REAR ST BK LOWER	4G43L60595ADW PANEL ASY REAR ST BK LOWER -	-	1	Enquire
9	9G43L312A94BD	Speaker Grille, Rear Quarter, RH	9G43L312A94BD Speaker Grille, Rear Quarter, RH B&O	-	1	Enquire
10	9G43L312A95BD	Speaker Grille, Rear Quarter, LH	9G43L312A95BD Speaker Grille, Rear Quarter, LH B&O	-	1	Enquire
11	700986PK	Nut-M4 HEX FLG Pack of 20	700986PK Nut-M4 HEX FLG Pack of 20 3 per Speaker	-	6	Enquire
12	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head 2 per Panel	-	4	Enquire
14	4G43L24858AB	Bezel Assy, Seat Belt B Post Upper, RH	4G43L24858AB Bezel Assy, Seat Belt B Post Upper, RH -	-	1	Enquire
15	4G43L24859AB	Bezel Assy, Seat Belt B Post Upper, LH	4G43L24859AB Bezel Assy, Seat Belt B Post Upper, LH -	-	1	Enquire
18	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	701581PK FIRTREE-FLAT HEAD (PACK OF 20) 1 per Panel. 20 per Pack	-	2	Enquire
19	4G43LB605H20ADW	Frame and Finisher Assembly, C-Flap, RH	4G43LB605H20ADW Frame and Finisher Assembly, C-Flap, RH -	-	1	Enquire
20	4G43539A40ABW	Lid, Flap Finisher Top, RH	4G43539A40ABW Lid, Flap Finisher Top, RH -	-	1	Enquire
21	4G43L53296AA	Link Rod, Flap Top RH	4G43L53296AA Link Rod, Flap Top RH -	-	1	Enquire
22	4G4317431AA	SPRING	4G4317431AA SPRING 1 per Link	-	2	Enquire
23	4G43338013AA	PLUG BLANKING (M6)	4G43338013AA PLUG BLANKING (M6) 1 per Link	-	2	Enquire
24	13A1241CP	Moulding - Glass Guide - RH	13A1241CP Moulding - Glass Guide - RH 1 per Link	$154.15	2
25	4G431861AA	CLIP	4G431861AA CLIP 1 per Link	-	2	Enquire
26	701440	Screw Self Tapping Washer Head 4.2 x 9.5	701440 Screw Self Tapping Washer Head 4.2 x 9.5 1 per Frame	-	2	Enquire
28	702211	SCREW M5x8.0x0.80 PAN HEAD	702211 SCREW M5x8.0x0.80 PAN HEAD 1 per Frame	-	2	Enquire
29	703081	SCREW M5x10 PAN HEAD	703081 SCREW M5x10 PAN HEAD 2 per Frame	-	4	Enquire
30	703732	Screw, M5 x 20, Hex Flange Head	703732 Screw, M5 x 20, Hex Flange Head 11 per Side	-	22	Enquire
31	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head 11 per Side	-	22	Enquire
