Body Structure - Underbody, Rear, Coupe of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

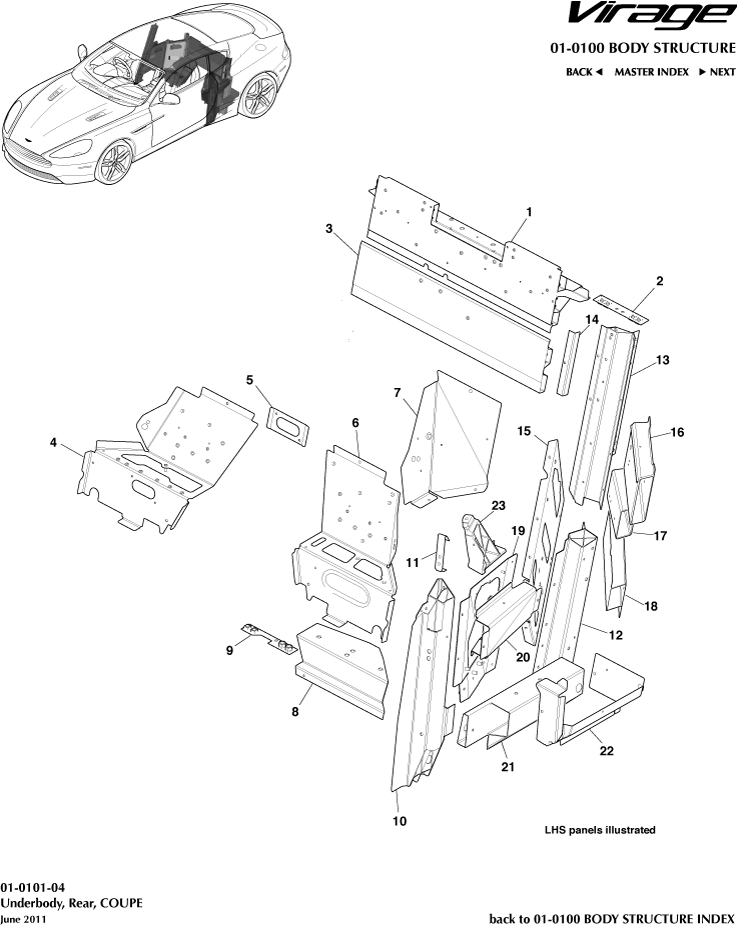

Aston Martin GT VIRAGE (2012-2013) - Body Structure - Underbody, Rear, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9Y69321BCW	SUNVISOR LH LEATHER	SY9Y69321BCW SUNVISOR LH LEATHER Structural Cat. A only	-	1	Enquire
-	13A7002CP	Insert - Gas Strut	13A7002CP Insert - Gas Strut Structural Cat. A only	$52.12	1
-	8G43347864AA	FRT RH NUTPLATE REAR SUBFRAME FRT RH	8G43347864AA FRT RH NUTPLATE REAR SUBFRAME FRT RH -	-	1	Enquire
-	8G43C24312AB	PILLAR CENTRE BODY RH	8G43C24312AB PILLAR CENTRE BODY RH Structural Cat. A only	-	1	Enquire
-	00RA591	Bolt - Hex Head - Flanged - M12x35	00RA591 Bolt - Hex Head - Flanged - M12x35 Structural Cat. A only	-	1	Enquire
-	00RC035	Washer - Plain - M10x28x2.5	00RC035 Washer - Plain - M10x28x2.5 Structural Cat. A only	-	1	Enquire
-	8G4327924AA	PANEL REAR QUARTER INSIDE RH	8G4327924AA PANEL REAR QUARTER INSIDE RH Structural Cat. A only	-	1	Enquire
-	00RC121	WASHER - PLAIN - M10X28X2.5	00RC121 WASHER - PLAIN - M10X28X2.5 Structural Cat. A only	-	1	Enquire
-	GOAG3310470AA	Member, Floor Side Inner Rear, RH	GOAG3310470AA Member, Floor Side Inner Rear, RH Structural Cat. A only	-	1	Enquire
-	22AA542GP	GAS STRUT DOOR RH	22AA542GP GAS STRUT DOOR RH Structural Cat. A only	-	1	Enquire
-	TY8320214BB	RR DOOR ASSY RH	TY8320214BB RR DOOR ASSY RH Structural Cat. A only	-	1	Enquire
-	P08G43C101D08AC	EXTENSION MEMBER REAR FLOOR SIDE UPPER RH	P08G43C101D08AC EXTENSION MEMBER REAR FLOOR SIDE UPPER RH Structural Cat. A only	-	1	Enquire
-	8G43101D06GC	EXTRUSION MEMBER REAR FLOOR SIDE LOWER RH	8G43101D06GC EXTRUSION MEMBER REAR FLOOR SIDE LOWER RH Structural Cat. A only	-	1	Enquire
-	P08G43C20414AC	Reinforcement, Door Opening Rear, RH	P08G43C20414AC Reinforcement, Door Opening Rear, RH Structural Cat. A only	-	1	Enquire
-	22AA539GP	GAS STRUT DOOR LH	22AA539GP GAS STRUT DOOR LH Structural Cat. A only	-	1	Enquire
1	8G43C103B44AC	MEMBER REAR CROSS UPPER	8G43C103B44AC MEMBER REAR CROSS UPPER Structural Cat. A only	-	1	Enquire
2	4G43501A0AB	NUTPALTE REAR RETACTOR UNF 7-16	4G43501A0AB NUTPALTE REAR RETACTOR UNF 7-16 -	-	1	Enquire
3	22AD321GP	FRT DOOR STONE CHIP PROTECTOR RH	22AD321GP FRT DOOR STONE CHIP PROTECTOR RH Structural Cat. A only	$33.38	1
4	SY9Y16005DC	FENDER FRONT RH	SY9Y16005DC FENDER FRONT RH Structural Cat. A only	-	1	Enquire
5	14AB009CP	SWITCH - DOOR OPEN	14AB009CP SWITCH - DOOR OPEN -	$126.00	1
6	13A4982CP	Cover - Door - Gas Strut - LH	13A4982CP Cover - Door - Gas Strut - LH Structural Cat. A only	$30.98	1
7	13A4984CP	Cover - Door - Gas Strut - RH	13A4984CP Cover - Door - Gas Strut - RH Structural Cat. A only	$30.98	1
8	00RA325	SCREW - M8X20 - BUTTON	00RA325 SCREW - M8X20 - BUTTON Structural Cat. A only	-	1	Enquire
9	8G43347863AA	FRT LH NUTPLATE REAR SUB- FRAME FRONT LH	8G43347863AA FRT LH NUTPLATE REAR SUB- FRAME FRONT LH -	-	1	Enquire
10	985874159	SUBFRAME	985874159 SUBFRAME Structural Cat. A only	-	1	Enquire
11	4G43C393126AE	NUTPLATE B POST M8	4G43C393126AE NUTPLATE B POST M8 -	-	2	Enquire
12	00RA590	BOLT - HEX HEAD - FLANGED - M10X35	00RA590 BOLT - HEX HEAD - FLANGED - M10X35 Structural Cat. A only	-	1	Enquire
13	00RC034	WASHER - PLAIN - M12X28X2.7	00RC034 WASHER - PLAIN - M12X28X2.7 Structural Cat. A only	-	1	Enquire
14	GOAG3324320AA	Reinforcement, Centre Body Pillar	GOAG3324320AA Reinforcement, Centre Body Pillar Structural Cat. A only	-	2	Enquire
15	8G4327925AA	PANEL REAR QUARTER INSIDE LH	8G4327925AA PANEL REAR QUARTER INSIDE LH Structural Cat. A only	-	1	Enquire
16	P08G43101K93AC	MEMBER FLOOR SIDE UPPER REAR LH	P08G43101K93AC MEMBER FLOOR SIDE UPPER REAR LH Structural Cat. A only	-	1	Enquire
17	GOAG3310471AA	Member, Floor Side Inner Rear, LH	GOAG3310471AA Member, Floor Side Inner Rear, LH Structural Cat. A only	-	1	Enquire
18	22AD507GP	ASSY HINGE DOOR LH	22AD507GP ASSY HINGE DOOR LH Structural Cat. A only	$1,588.82	1
19	986813	FERRARI SHIELD	986813 FERRARI SHIELD Structural Cat. A only	-	1	Enquire
20	P08G43C101D09AC	EXTENSION MEMBER REAR FLOOR SIDE UPPER LH	P08G43C101D09AC EXTENSION MEMBER REAR FLOOR SIDE UPPER LH Structural Cat. A only	-	1	Enquire
21	8G43101D07GC	EXTRUSION MEMBER REAR FLOOR SIDE LOWER LH	8G43101D07GC EXTRUSION MEMBER REAR FLOOR SIDE LOWER LH Structural Cat. A only	-	1	Enquire
22	P08G43C20415AC	Reinforcement, Door Opening Rear, LH	P08G43C20415AC Reinforcement, Door Opening Rear, LH Structural Cat. A only	-	1	Enquire
23	P08G43611D39AA	BRACKET ASSY FRONT SEAT BELT RETAINER LH	P08G43611D39AA BRACKET ASSY FRONT SEAT BELT RETAINER LH Structural Cat. A only	-	1	Enquire
