Body Structure - Anciliary Parts, Coupe, Page 2

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Body Structure - Anciliary Parts, Coupe, page 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

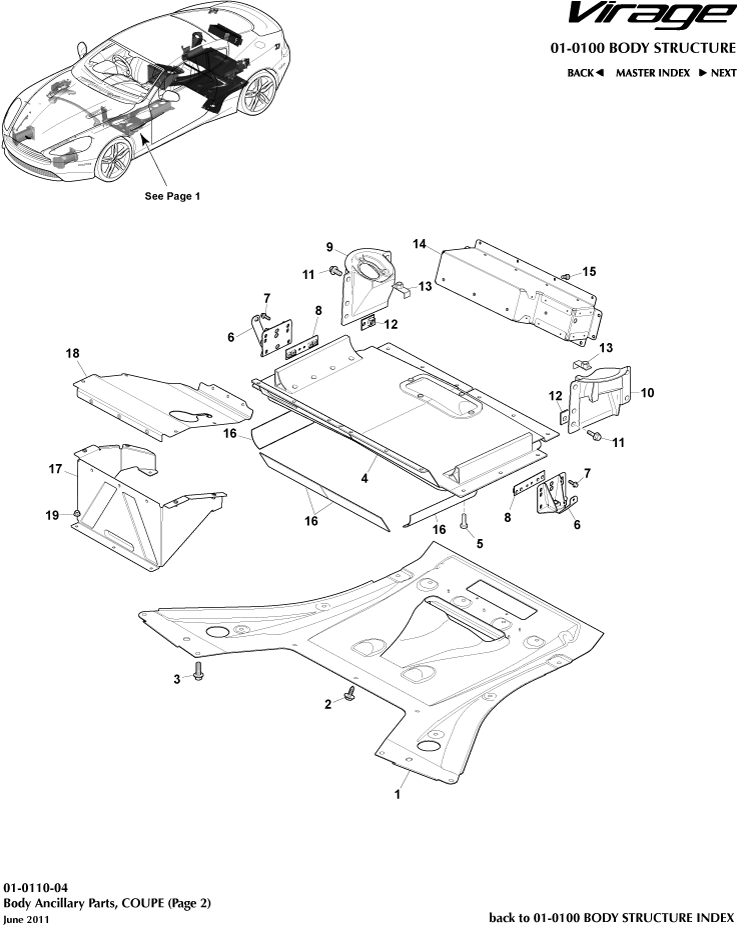

Body Structure - Anciliary Parts, Coupe, page 2 of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD33L17C857AC
SHIELD-RR BMPR OPG
- 		- 1 Enquire
2 00RB218
Clip - Finisher - Rear Quarter Glass
- 		- 17 Enquire
3 702210
BOLT-M10x30 HF ADH10
- 		- 2 Enquire
4 22AB527GP
FINISHER TAILGATE CENTRAL
- 		$66.56 1
5 703121
Screw, M8 x 25, Hex Flange Head
- 		- 18 Enquire
6 6G335D022AD
BRACKET REAR SUB FRAME STABILISER
- 		- 2 Enquire
7 703120
Screw M8-1.25-90 Hex Socket Head Shoulder
- 		- - Enquire
8 6G335N394AB
Nutplate Bracket, Rear Subframe Stabiliser, Upper
- 		- 2 Enquire
9 6G3318A000AC
MBR RR SHK ABS MTNG
- 		- 1 Enquire
10 6G3318A001AC
MBR RR SHK ABS MTNG
- 		- 1 Enquire
11 703185
M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE
- 		- 8 Enquire
12 6G3380997AA
Nutplate, M12, Rear Damper Mounting, Front
- 		- 2 Enquire
13 4G43501B0AC
NUT PLATE REAR SUB FRAME REAR M14
- 		- 2 Enquire
15 701553
Screw, M6 x 16, Pan Head
- 		- 12 Enquire
17 4G4367518AE
PANEL REAR SEAT HEEL BOARD RH
- 		- 1 Enquire
18 7G4310N660AC
PANEL BATTERY COVER RH
- 		- 1 Enquire
19 703163
Nut, M6, Hex Flange Head, Locking
- 		- 5 Enquire
