Body Structure - Anciliary Parts, Coupe, page 1 of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

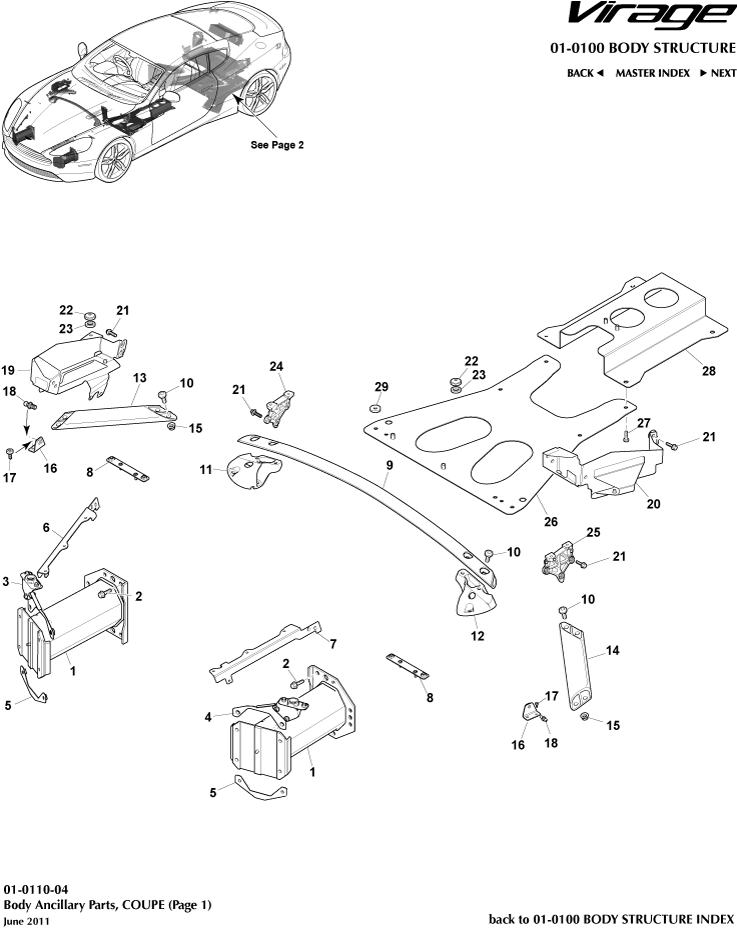

Aston Martin GT VIRAGE (2012-2013) - Body Structure - Anciliary Parts, Coupe, page 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	4	Enquire
1	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN Structural Cat. A only	-	2	Enquire
2	704495	Screw, M8 x 35, Hex Flange Head	704495 Screw, M8 x 35, Hex Flange Head -	-	12	Enquire
3	8D3313068AB	PNL HD/LP MTNG RH	8D3313068AB PNL HD/LP MTNG RH -	-	1	Enquire
4	8D3313069AB	PNL HD/LP MNTG LH	8D3313069AB PNL HD/LP MNTG LH -	-	1	Enquire
5	4G436367912AC	NUT PLT ASY FRT CRSH	4G436367912AC NUT PLT ASY FRT CRSH -	-	2	Enquire
6	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH -	-	1	Enquire
7	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH -	-	1	Enquire
8	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	8D33199901AA NUTPLATE HEAD LAMP BRACKET -	-	2	Enquire
9	22AA995GP	FINISHER TAILGATE LH	22AA995GP FINISHER TAILGATE LH -	$116.79	1
10	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive -	-	8	Enquire
11	8D33108A86AA	BRACKET FRONT CROSS BRACE RH	8D33108A86AA BRACKET FRONT CROSS BRACE RH -	-	1	Enquire
12	8D33108A87AA	BRACKET FRONT CROSS BRACE LH	8D33108A87AA BRACKET FRONT CROSS BRACE LH -	-	1	Enquire
13	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH -	-	1	Enquire
14	GOAG43F00199AA	Reinforcement, Body Front Cross Bar, LH	GOAG43F00199AA Reinforcement, Body Front Cross Bar, LH -	-	1	Enquire
15	703160	NUT M10 HEX FLANGE CHROME FREE	703160 NUT M10 HEX FLANGE CHROME FREE -	-	4	Enquire
17	701567	Screw, M6 x 16	701567 Screw, M6 x 16 -	-	4	Enquire
18	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT -	-	2	Enquire
19	4G435340AJ	BRACKET ECU MOUNTING RH	4G435340AJ BRACKET ECU MOUNTING RH -	-	1	Enquire
20	4G435341AJ	BRACKET ECU MOUNTING LH	4G435341AJ BRACKET ECU MOUNTING LH -	-	1	Enquire
21	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	18	Enquire
22	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER -	-	2	Enquire
23	4G4316740AB	PAD - HOOD ON COWL	4G4316740AB PAD - HOOD ON COWL -	-	2	Enquire
24	CG4316A681AB	RH REINF HOOD HINGE ON BODY RH	CG4316A681AB RH REINF HOOD HINGE ON BODY RH -	-	1	Enquire
25	CG4316A682AB	LH RNF HOOD HINGE ON BODY LH	CG4316A682AB LH RNF HOOD HINGE ON BODY LH -	-	1	Enquire
26	4G43111K36AF	TUNNEL REINFORCEMENT FRONT	4G43111K36AF TUNNEL REINFORCEMENT FRONT -	-	1	Enquire
27	703172	SCREW M8x25 PAN 8	703172 SCREW M8x25 PAN 8 -	-	8	Enquire
29	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER -	-	4	Enquire
