Aston Martin GT VIRAGE (2012-2013) - Body Structure - Anciliary Parts, Volante, page 1

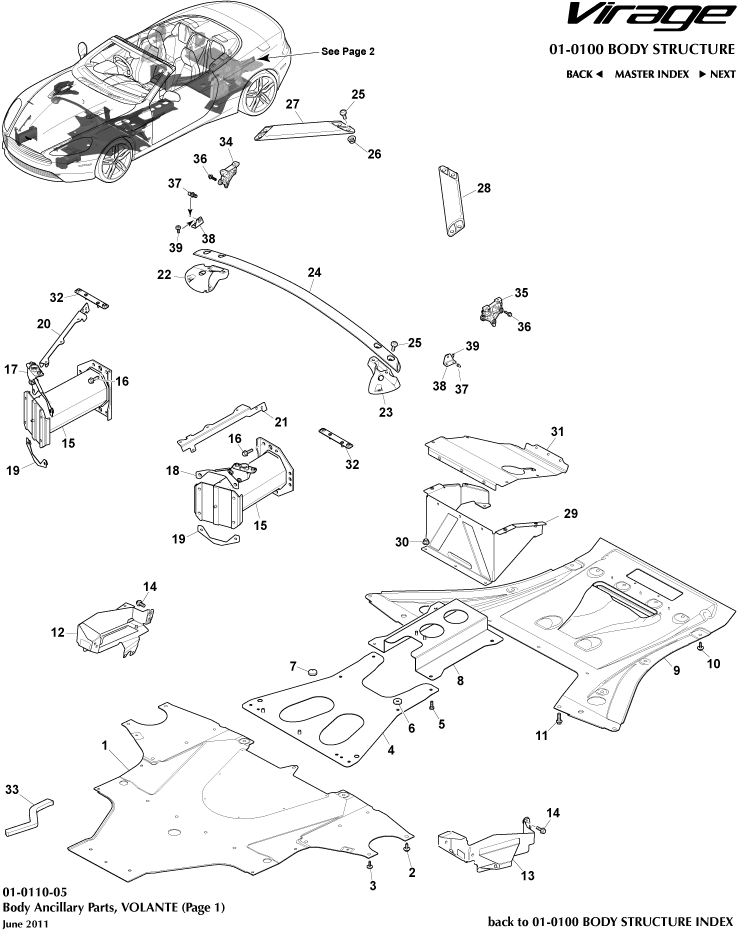

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G4311262AF	REINFORCED ASSEMBLY FRONT FLOOR PANEL	9G4311262AF REINFORCED ASSEMBLY FRONT FLOOR PANEL -	-	1	Enquire
2	703268	Screw and Washer, M8 x 21	703268 Screw and Washer, M8 x 21 -	-	14	Enquire
3	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) -	-	2	Enquire
4	4G43111K36AF	TUNNEL REINFORCEMENT FRONT	4G43111K36AF TUNNEL REINFORCEMENT FRONT -	-	-	Enquire
5	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10) -	-	8	Enquire
6	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER -	-	4	Enquire
7	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER -	-	2	Enquire
9	AD33L17C857AC	SHIELD-RR BMPR OPG	AD33L17C857AC SHIELD-RR BMPR OPG -	-	1	Enquire
10	7G33108256AA	Screw, M8 x 21mm, Hex Flange Head	7G33108256AA Screw, M8 x 21mm, Hex Flange Head -	-	17	Enquire
11	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) -	-	2	Enquire
12	4G435340AJ	BRACKET ECU MOUNTING RH	4G435340AJ BRACKET ECU MOUNTING RH -	-	1	Enquire
13	4G435341AJ	BRACKET ECU MOUNTING LH	4G435341AJ BRACKET ECU MOUNTING LH -	-	1	Enquire
14	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 6 per brkt	-	12	Enquire
15	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN Structural Cat. A only	-	2	Enquire
16	704495	Screw, M8 x 35, Hex Flange Head	704495 Screw, M8 x 35, Hex Flange Head 6 per crash can	-	12	Enquire
17	8D3313068AB	PNL HD/LP MTNG RH	8D3313068AB PNL HD/LP MTNG RH -	-	1	Enquire
18	8D3313069AB	PNL HD/LP MNTG LH	8D3313069AB PNL HD/LP MNTG LH -	-	1	Enquire
19	4G436367912AC	NUT PLT ASY FRT CRSH	4G436367912AC NUT PLT ASY FRT CRSH -	-	2	Enquire
20	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH -	-	1	Enquire
21	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH -	-	1	Enquire
22	8D33108A86AA	BRACKET FRONT CROSS BRACE RH	8D33108A86AA BRACKET FRONT CROSS BRACE RH -	-	1	Enquire
23	8D33108A87AA	BRACKET FRONT CROSS BRACE LH	8D33108A87AA BRACKET FRONT CROSS BRACE LH -	-	1	Enquire
24	4G43108A75AA	BRA FRT CS	4G43108A75AA BRA FRT CS -	-	1	Enquire
25	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive -	-	4	Enquire
27	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH -	-	1	Enquire
28	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH -	-	1	Enquire
32	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket -	-	2	Enquire
34	CG4316A681AB	RH REINF HOOD HINGE ON BODY RH	CG4316A681AB RH REINF HOOD HINGE ON BODY RH -	-	1	Enquire
35	CG4316A682AB	LH RNF HOOD HINGE ON BODY LH	CG4316A682AB LH RNF HOOD HINGE ON BODY LH -	-	1	Enquire
36	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	18	Enquire
37	1R12640101AA	Ball Stud	1R12640101AA Ball Stud -	-	2	Enquire
39	701567	Screw, M6 x 16	701567 Screw, M6 x 16 -	-	4	Enquire
