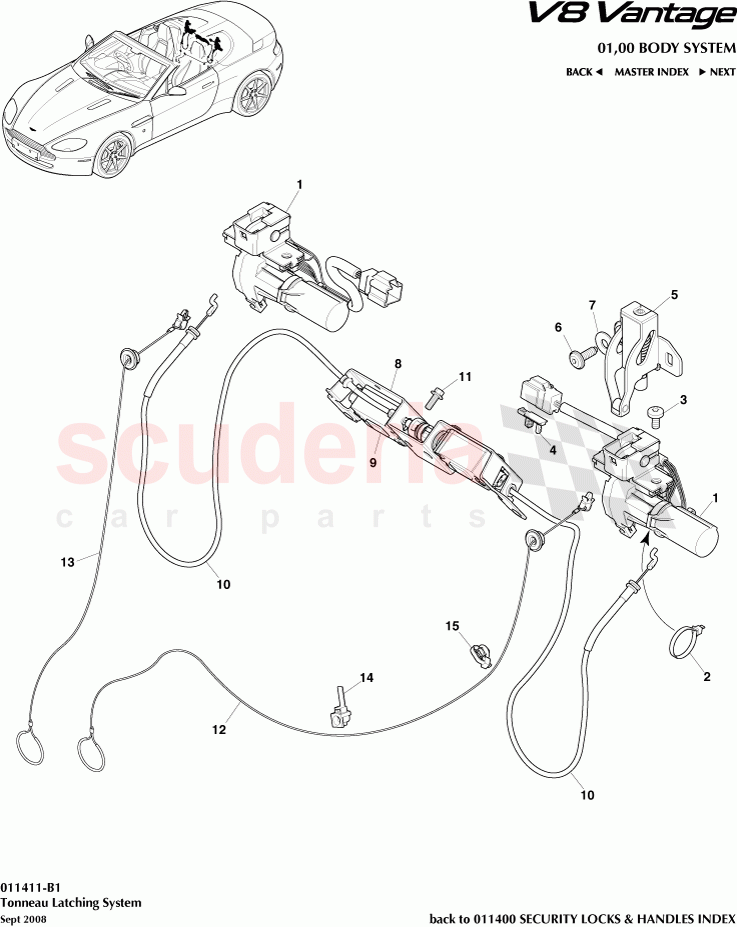

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G439310421	LATCH LCD (TONNEAU)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3790075	Cable Tie, 290mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703173	SCREW M8x16 PAN HD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430110042	Retainer, Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3353974BB	STRIKER ASSEMBLY TONNEAU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703071	SCREW M8x25 TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33507B36AB	ACTUATOR & BRACKET ASSY LATCH FLAT-TOP	Enquire	To Order
	697452	Washer, M8 x 24 x 1.8, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33507B02AA	Bracket actuator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33507B20AA	Actuator, Rear Liftglass Latch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33514B26AB	Cable assy, Rear Liftglass Latch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33432B19AB	TONNEAU RELEASE CORD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33432B18AB	TONNEAU RELEASE CORD RL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700423	STUD FIXING TYWRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43619B00AA	TIE WRAP - 200MM X 4.6MM WITH FIR TREE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G439310421	LATCH LCD (TONNEAU)	6G439310421 LATCH LCD (TONNEAU)	-	2	Enquire
2	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm	-	2	Enquire
3	703173	SCREW M8x16 PAN HD CHROME FREE	703173 SCREW M8x16 PAN HD CHROME FREE	-	4	Enquire
4	6G430110042	Retainer, Connector	6G430110042 Retainer, Connector	-	2	Enquire
5	6G3353974BB	STRIKER ASSEMBLY TONNEAU	6G3353974BB STRIKER ASSEMBLY TONNEAU	-	2	Enquire
6	703071	SCREW M8x25 TORX	703071 SCREW M8x25 TORX	-	4	Enquire
7	6G33507B36AB	ACTUATOR & BRACKET ASSY LATCH FLAT-TOP	6G33507B36AB ACTUATOR & BRACKET ASSY LATCH FLAT-TOP	-	1	Enquire
7	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black	-	4	Enquire
8	6G33507B02AA	Bracket actuator	6G33507B02AA Bracket actuator	-	1	Enquire
9	6G33507B20AA	Actuator, Rear Liftglass Latch	6G33507B20AA Actuator, Rear Liftglass Latch	-	2	Enquire
10	6G33514B26AB	Cable assy, Rear Liftglass Latch	6G33514B26AB Cable assy, Rear Liftglass Latch	-	2	Enquire
11	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
12	6G33432B19AB	TONNEAU RELEASE CORD LH	6G33432B19AB TONNEAU RELEASE CORD LH	-	1	Enquire
13	6G33432B18AB	TONNEAU RELEASE CORD RL	6G33432B18AB TONNEAU RELEASE CORD RL	-	1	Enquire
14	700423	STUD FIXING TYWRAP	700423 STUD FIXING TYWRAP	-	3	Enquire
15	4G43619B00AA	TIE WRAP - 200MM X 4.6MM WITH FIR TREE	4G43619B00AA TIE WRAP - 200MM X 4.6MM WITH FIR TREE	-	6	Enquire
