Body Rear End (Roadster) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

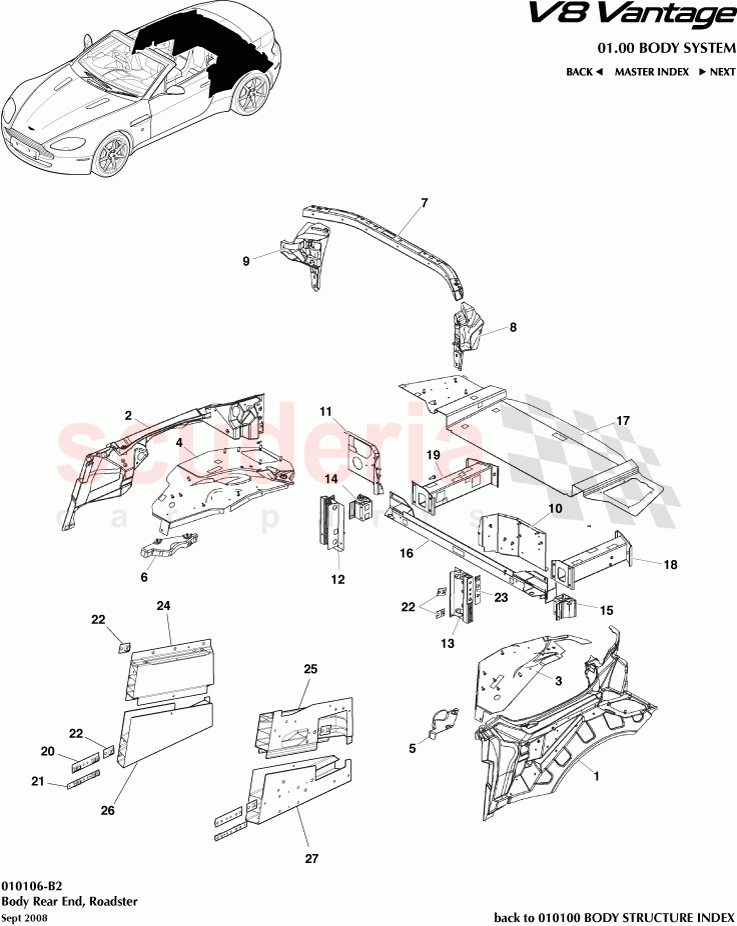

Aston Martin V8 Vantage (upto 2016) - Body Rear End (Roadster)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG33L41033AB	PLR ASSY RR CNR LH	Enquire	To Order
	6G33L41033AH	PILLAR ASSEMBLY REAR CORNER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L41038AL	PILLAR REAR CORNER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order
	BG33L279A55AB	PANEL QUARTER WHEEL HOUSE INNER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order
	6G33L279A54AG	PANEL QUARTER WHEEL HOUSE INNER REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L243A87AA	REAR QUARTER CLOSER PANEL LH	Enquire	To Order
	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L243A86AA	REAR QUARTER CLOSER PANEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L41623AF	REINFORCEMENT TAIL GATE SUPPORT BEAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L416W21AF	REINF TL/GT SUPT BEAM MTG BRKT LH	Enquire	To Order
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L416W20AF	Mounting bracket, RH	Enquire	To Order
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L10515AJ	PNL RR FLR SD OTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L10514AK	PNL RR FLR SD OTR RH	Enquire	To Order
	6G33L10514AG	PANEL REAR FLOOR SIDE OUTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33L101C85AA	BRACKET SIDE MEMBER REAR LH	Enquire	To Order
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33L101C84AA	BRACKET SIDE MEMBER REAR RH	Enquire	To Order
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG335A355AA	SUPPORT SUBFRAME REAR RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG335A356AA	SUPPORT SUBFRAME REAR LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33L40338AA	REINFORCEMENT LOWER BACK CENTRE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L47124AD	PANEL FLOOR TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3317F035BA	Absorber Assembly, Rear Bumper, LH	Enquire	To Order
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3317F034BA	Absorber Assembly, Rear Bumper, RH	Enquire	To Order
	AG3317F034BA	Absorber Assembly, Rear Bumper, RH	Enquire	To Order
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N393AB	Nutplate, Rear Sub frame Mounting Bracket, Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L13B452AA	PANEL REAR LAMP FINISHER RH	Enquire	To Order
	6G33L13B453AA	PANEL REAR LAMP FINISHER LH	Enquire	To Order
	8G33L45108AA	TRUNK LID SURROUND	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AG33C10282AA	Member, Rear Floor Side Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33C10283AA	Member Assy, Rear Floor Side Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310456AA	Member, Rear Floor Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310457AA	Member Assy, Rear Floor Side, LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG33L41033AB	PLR ASSY RR CNR LH	BG33L41033AB PLR ASSY RR CNR LH 11MY, Structural Cat. A only	-	1	Enquire
1	6G33L41033AH	PILLAR ASSEMBLY REAR CORNER LH	6G33L41033AH PILLAR ASSEMBLY REAR CORNER LH Structural Cat. A only	-	1	Enquire
2	6G33L41038AL	PILLAR REAR CORNER RH	6G33L41038AL PILLAR REAR CORNER RH Structural Cat. A only	-	1	Enquire
3	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head Structural Cat. A only	-	-	Enquire
3	BG33L279A55AB	PANEL QUARTER WHEEL HOUSE INNER REAR LH	BG33L279A55AB PANEL QUARTER WHEEL HOUSE INNER REAR LH Structural Cat. A only	-	1	Enquire
4	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head Structural Cat. A only	-	-	Enquire
4	6G33L279A54AG	PANEL QUARTER WHEEL HOUSE INNER REAR RH	6G33L279A54AG PANEL QUARTER WHEEL HOUSE INNER REAR RH Structural Cat. A only	-	1	Enquire
5	6G33L243A87AA	REAR QUARTER CLOSER PANEL LH	6G33L243A87AA REAR QUARTER CLOSER PANEL LH Structural Cat. A only	-	1	Enquire
5	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	-	4	Enquire
6	6G33L243A86AA	REAR QUARTER CLOSER PANEL RH	6G33L243A86AA REAR QUARTER CLOSER PANEL RH Structural Cat. A only	-	1	Enquire
7	6G33L41623AF	REINFORCEMENT TAIL GATE SUPPORT BEAM	6G33L41623AF REINFORCEMENT TAIL GATE SUPPORT BEAM Structural Cat. A only	-	1	Enquire
8	6G33L416W21AF	REINF TL/GT SUPT BEAM MTG BRKT LH	6G33L416W21AF REINF TL/GT SUPT BEAM MTG BRKT LH Structural Cat. A only	-	1	Enquire
8	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder Structural Cat. A only	-	1	Enquire
9	6G33L416W20AF	Mounting bracket, RH	6G33L416W20AF Mounting bracket, RH Structural Cat. A only	-	1	Enquire
9	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder Structural Cat. A only	-	1	Enquire
10	6G33L10515AJ	PNL RR FLR SD OTR LH	6G33L10515AJ PNL RR FLR SD OTR LH Structural Cat. A only	-	1	Enquire
11	6G33L10514AK	PNL RR FLR SD OTR RH	6G33L10514AK PNL RR FLR SD OTR RH 10.5MY, Structural Cat. A only	-	1	Enquire
11	6G33L10514AG	PANEL REAR FLOOR SIDE OUTER RH	6G33L10514AG PANEL REAR FLOOR SIDE OUTER RH Structural Cat. A only	-	1	Enquire
12	AG33L101C85AA	BRACKET SIDE MEMBER REAR LH	AG33L101C85AA BRACKET SIDE MEMBER REAR LH Structural Cat. A only	-	1	Enquire
12	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head Structural Cat. A only	-	2	Enquire
13	AG33L101C84AA	BRACKET SIDE MEMBER REAR RH	AG33L101C84AA BRACKET SIDE MEMBER REAR RH Structural Cat. A only	-	1	Enquire
13	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head Structural Cat. A only	-	2	Enquire
14	GOAG335A355AA	SUPPORT SUBFRAME REAR RIGHT HAND	GOAG335A355AA SUPPORT SUBFRAME REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
15	GOAG335A356AA	SUPPORT SUBFRAME REAR LEFT HAND	GOAG335A356AA SUPPORT SUBFRAME REAR LEFT HAND Structural Cat. A only	-	1	Enquire
16	AG33L40338AA	REINFORCEMENT LOWER BACK CENTRE PANEL	AG33L40338AA REINFORCEMENT LOWER BACK CENTRE PANEL Structural Cat. A only	-	1	Enquire
17	6G33L47124AD	PANEL FLOOR TRUNK	6G33L47124AD PANEL FLOOR TRUNK Structural Cat. A only	-	1	Enquire
18	AG3317F035BA	Absorber Assembly, Rear Bumper, LH	AG3317F035BA Absorber Assembly, Rear Bumper, LH Structural Cat. A only	-	1	Enquire
18	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder Structural Cat. A only	-	1	Enquire
19	AG3317F034BA	Absorber Assembly, Rear Bumper, RH	AG3317F034BA Absorber Assembly, Rear Bumper, RH 11MY, Structural Cat. A only	-	1	Enquire
19	AG3317F034BA	Absorber Assembly, Rear Bumper, RH	AG3317F034BA Absorber Assembly, Rear Bumper, RH Structural Cat. A only	-	1	Enquire
19	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder Structural Cat. A only	-	1	Enquire
20	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper Structural Cat. A only	-	1	Enquire
21	6G335N393AB	Nutplate, Rear Sub frame Mounting Bracket, Lower	6G335N393AB Nutplate, Rear Sub frame Mounting Bracket, Lower Structural Cat. A only	-	1	Enquire
22	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	4	Enquire
23	6G33L13B452AA	PANEL REAR LAMP FINISHER RH	6G33L13B452AA PANEL REAR LAMP FINISHER RH Structural Cat. A only	-	1	Enquire
23	6G33L13B453AA	PANEL REAR LAMP FINISHER LH	6G33L13B453AA PANEL REAR LAMP FINISHER LH Structural Cat. A only	-	1	Enquire
23	8G33L45108AA	TRUNK LID SURROUND	8G33L45108AA TRUNK LID SURROUND Structural Cat. A only	-	1	Enquire
23	6G33L549C071AC	TLS DRAIN ASSY	6G33L549C071AC TLS DRAIN ASSY Structural Cat. A only	-	2	Enquire
23	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
24	AG33C10282AA	Member, Rear Floor Side Upper, RH	AG33C10282AA Member, Rear Floor Side Upper, RH Structural Cat. A only	-	1	Enquire
25	AG33C10283AA	Member Assy, Rear Floor Side Upper, LH	AG33C10283AA Member Assy, Rear Floor Side Upper, LH Structural Cat. A only	-	1	Enquire
26	AG3310456AA	Member, Rear Floor Side, RH	AG3310456AA Member, Rear Floor Side, RH Structural Cat. A only	-	1	Enquire
27	AG3310457AA	Member Assy, Rear Floor Side, LH	AG3310457AA Member Assy, Rear Floor Side, LH Structural Cat. A only	-	1	Enquire
