Name: Hood Latching System
Rating: 5.0 (1 reviews)

Hood Latching System of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

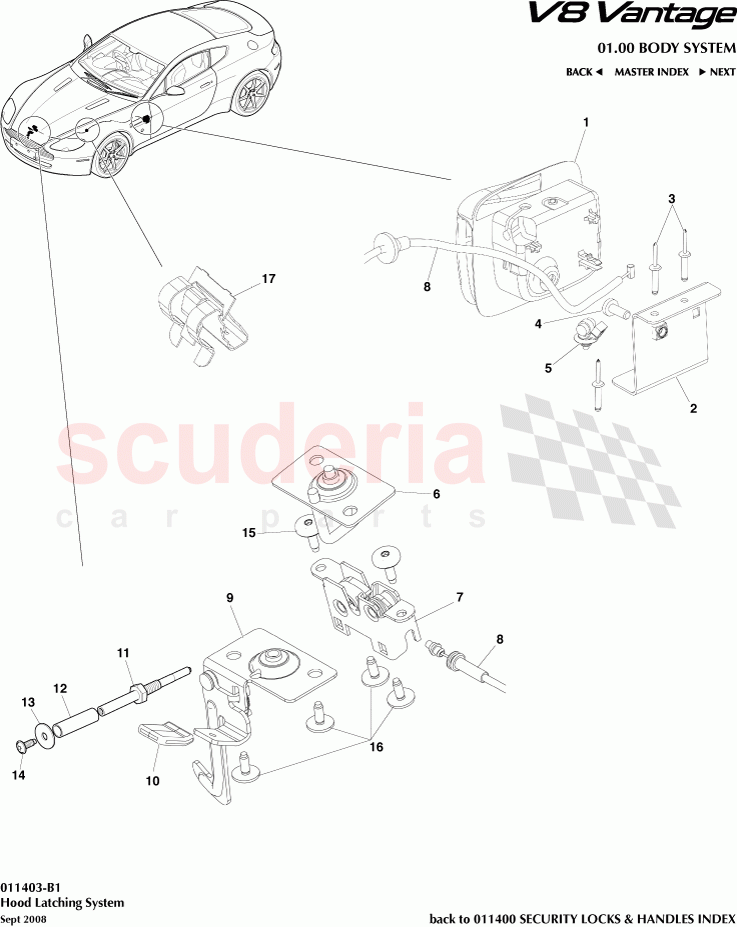

Aston Martin V8 Vantage (upto 2016) - Hood Latching System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G436411062	Lever, Bonnet Release	$194.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316C730AB	Bracket, Hood Release Handle Mounting	$15.73	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	$11.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	$69.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G436410121	STRIKER ASSEMBLY- BONNET	$157.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG336410613	LATCH HOOD RH	$26.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3316C656AD	CABLE ASSEMBLY, HOOD LATCH	$46.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock

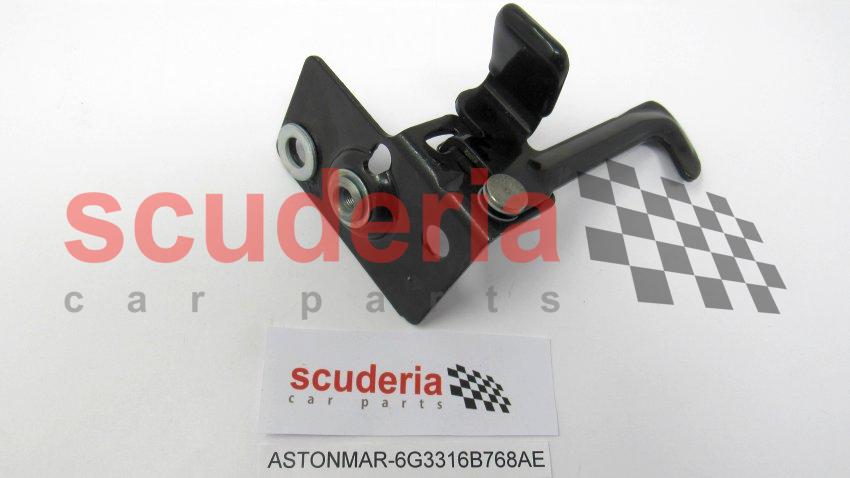

	6G3316B768AE	Latch Hood Secondary	$377.60	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316C774AB	Sleeve, Hood Latch Release	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316A788AC	Pin, Hood Striker	$32.72	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316C774A	Sleeve, hood latch striker pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3351756A	Washer, M5 x 19 x 1.5 thick	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702514	SCREW M6 x 14 PAN HEAD	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702515	CLIP CABLE	$0.59	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G436411062	Lever, Bonnet Release	9G436411062 Lever, Bonnet Release	$194.41	1
2	4G4316C730AB	Bracket, Hood Release Handle Mounting	4G4316C730AB Bracket, Hood Release Handle Mounting	$15.73	1
3	701580PK	Rivet Dome Head (Pack of 20) IN STOCK	701580PK Rivet Dome Head (Pack of 20) IN STOCK	$11.36	3
4	701553	Screw, M6 x 16, Pan Head IN STOCK	701553 Screw, M6 x 16, Pan Head IN STOCK	$0.21	1
5	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100) IN STOCK	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) IN STOCK	$69.55	5
6	6G436410121	STRIKER ASSEMBLY- BONNET IN STOCK	6G436410121 STRIKER ASSEMBLY- BONNET IN STOCK	$157.41	1
7	AG336410613	LATCH HOOD RH IN STOCK	AG336410613 LATCH HOOD RH IN STOCK	$26.74	1
8	6G3316C656AD	CABLE ASSEMBLY, HOOD LATCH IN STOCK	6G3316C656AD CABLE ASSEMBLY, HOOD LATCH IN STOCK	$46.89	1
9	6G3316B768AE	Latch Hood Secondary	6G3316B768AE Latch Hood Secondary	$377.60	1
10	4G4316C774AB	Sleeve, Hood Latch Release	4G4316C774AB Sleeve, Hood Latch Release	$1.55	1
11	6G3316A788AC	Pin, Hood Striker	6G3316A788AC Pin, Hood Striker	$32.72	1
12	6G3316C774A	Sleeve, hood latch striker pin	6G3316C774A Sleeve, hood latch striker pin	-	1	Enquire
13	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK IN STOCK	8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK IN STOCK	$0.41	1
14	6G3351756A	Washer, M5 x 19 x 1.5 thick	6G3351756A Washer, M5 x 19 x 1.5 thick	-	1	Enquire
15	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	$21.68	2
16	702514	SCREW M6 x 14 PAN HEAD IN STOCK	702514 SCREW M6 x 14 PAN HEAD IN STOCK	$1.68	4
17	702515	CLIP CABLE IN STOCK	702515 CLIP CABLE IN STOCK	$0.59	1
