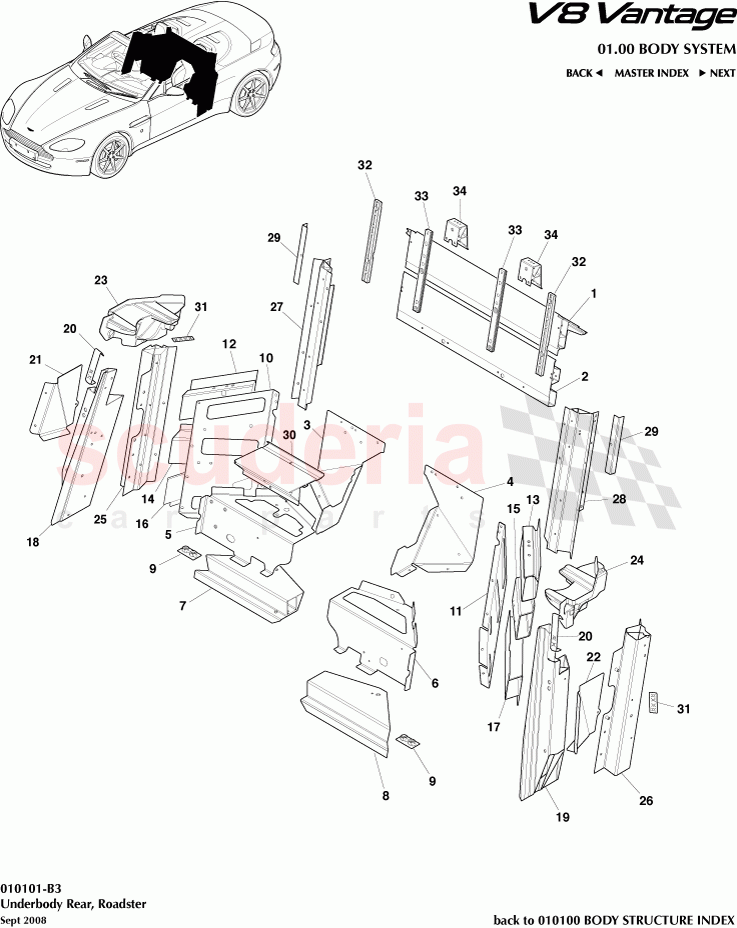

Aston Martin V8 Vantage (upto 2016) - Underbody Rear (Roadster)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG33L101B44AA	Member, rear, centre section, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L10786AK	Member, rear floor, centre section, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310798AJ	REINF FRONT FLOOR CROSS REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2310799AA	Reinforced front floor, centre section rear, LH	Enquire	To Order
	BG3310799AA	REINF FRONT FLOOR CROSS REAR	Enquire	To Order
	BG3310799AA	REINF FRONT FLOOR CROSS REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G33111B22AA	Reinforcement, Front Floor Pan to Side Member Rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G33111B23AC	REINF FRONT FLOOR PAN TO SIDEMEMBER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33109A68AB	MBR FRT FLR CS RR RH	Enquire	To Order
	6G33109A68AE	Member, front floor centre section, rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOBG33109A69BA	MBR FRT FLR CS RR LH	Enquire	To Order
	GOBG33109A69BA	MBR FRT FLR CS RR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33347863AC	Nutplate, Rear Subframe Front, M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3327924AG	Panel, Rear Quarter, Inner, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3327925AA	PANEL REAR QUARTER INSIDE LH	Enquire	To Order
	AD2327925AA	Panel, Rear Quarter, Inner, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L101K92AG	Member, floor side upper rear, RH	Enquire	To Order
	6G33L101K92AE	Member, floor side upper rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L101K93AG	Member, floor side upper rear, LH	Enquire	To Order
	6G33L101K93AE	Member, floor side upper rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310470AB	Member, floor side inner rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310471AB	Member, floor side inner rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310504AC	Member, extension floor side lower rear, RH (not illustrated)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310505AF	EXTRUSION FLOOR SIDE LOWER MEMBER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG2324312AA	Pillar, centre body, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG2324313AA	Pillar, centre body, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C393126AB	NUTPLATE B POST M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3324576AB	Panel, centre body plr, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3324577AB	Panel, centre body plr, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C243A60AE	Reinforced centre body, upper outer pillar, centre, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C243A61AE	Reinforced centre body, upper outer pillar, centre, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3324314AB	PILLAR CENTRE BODY OUTER REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2324315AA	Pillar, centre body outer rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L24326AH	Pillar, centre body inner rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L24327AH	Pillar, centre body inner rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3324320AB	Reinf, centre body pillar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310762AA	Support, Battery Tray	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33602A66AA	Plate, Front Seat Belt Attachment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L38559AB	Spacer plate, ROPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L38887AC	Spacer plate, centre, ROPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L403C66AE	Bracket, upper back panel brace	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AG33L101B44AA	Member, rear, centre section, upper	AG33L101B44AA Member, rear, centre section, upper Structural Cat. A only	-	1	Enquire
2	6G33L10786AK	Member, rear floor, centre section, front	6G33L10786AK Member, rear floor, centre section, front Structural Cat. A only	-	1	Enquire
3	6G3310798AJ	REINF FRONT FLOOR CROSS REAR	6G3310798AJ REINF FRONT FLOOR CROSS REAR Structural Cat. A only	-	1	Enquire
4	AD2310799AA	Reinforced front floor, centre section rear, LH	AD2310799AA Reinforced front floor, centre section rear, LH 09MY, Structural Cat. A only	-	1	Enquire
4	BG3310799AA	REINF FRONT FLOOR CROSS REAR	BG3310799AA REINF FRONT FLOOR CROSS REAR 11MY, Structural Cat. A only	-	1	Enquire
4	BG3310799AA	REINF FRONT FLOOR CROSS REAR	BG3310799AA REINF FRONT FLOOR CROSS REAR Structural Cat. A only	-	1	Enquire
5	7G33111B22AA	Reinforcement, Front Floor Pan to Side Member Rear, RH	7G33111B22AA Reinforcement, Front Floor Pan to Side Member Rear, RH Structural Cat. A only	-	1	Enquire
6	7G33111B23AC	REINF FRONT FLOOR PAN TO SIDEMEMBER REAR LH	7G33111B23AC REINF FRONT FLOOR PAN TO SIDEMEMBER REAR LH Structural Cat. A only	-	1	Enquire
7	AG33109A68AB	MBR FRT FLR CS RR RH	AG33109A68AB MBR FRT FLR CS RR RH 09MY, Structural Cat. A only	-	1	Enquire
7	6G33109A68AE	Member, front floor centre section, rear, RH	6G33109A68AE Member, front floor centre section, rear, RH Structural Cat. A only	-	1	Enquire
8	GOBG33109A69BA	MBR FRT FLR CS RR LH	GOBG33109A69BA MBR FRT FLR CS RR LH 11MY, Structural Cat. A only	-	1	Enquire
8	GOBG33109A69BA	MBR FRT FLR CS RR LH	GOBG33109A69BA MBR FRT FLR CS RR LH Structural Cat. A only	-	1	Enquire
9	6G33347863AC	Nutplate, Rear Subframe Front, M14	6G33347863AC Nutplate, Rear Subframe Front, M14 Structural Cat. A only	-	2	Enquire
10	6G3327924AG	Panel, Rear Quarter, Inner, RH	6G3327924AG Panel, Rear Quarter, Inner, RH Structural Cat. A only	-	1	Enquire
11	8G3327925AA	PANEL REAR QUARTER INSIDE LH	8G3327925AA PANEL REAR QUARTER INSIDE LH Structural Cat. A only	-	1	Enquire
11	AD2327925AA	Panel, Rear Quarter, Inner, LH	AD2327925AA Panel, Rear Quarter, Inner, LH Structural Cat. A only	-	1	Enquire
12	6G33L101K92AG	Member, floor side upper rear, RH	6G33L101K92AG Member, floor side upper rear, RH 11MY, Structural Cat. A only	-	1	Enquire
12	6G33L101K92AE	Member, floor side upper rear, RH	6G33L101K92AE Member, floor side upper rear, RH Structural Cat. A only	-	1	Enquire
13	6G33L101K93AG	Member, floor side upper rear, LH	6G33L101K93AG Member, floor side upper rear, LH 11MY, Structural Cat. A only	-	1	Enquire
13	6G33L101K93AE	Member, floor side upper rear, LH	6G33L101K93AE Member, floor side upper rear, LH Structural Cat. A only	-	1	Enquire
14	6G3310470AB	Member, floor side inner rear, RH	6G3310470AB Member, floor side inner rear, RH Structural Cat. A only	-	1	Enquire
15	6G3310471AB	Member, floor side inner rear, LH	6G3310471AB Member, floor side inner rear, LH Structural Cat. A only	-	1	Enquire
16	6G3310504AC	Member, extension floor side lower rear, RH (not illustrated)	6G3310504AC Member, extension floor side lower rear, RH (not illustrated) Structural Cat. A only	-	1	Enquire
17	6G3310505AF	EXTRUSION FLOOR SIDE LOWER MEMBER REAR LH	6G3310505AF EXTRUSION FLOOR SIDE LOWER MEMBER REAR LH Structural Cat. A only	-	1	Enquire
18	AG2324312AA	Pillar, centre body, RH	AG2324312AA Pillar, centre body, RH Structural Cat. A only	-	1	Enquire
19	AG2324313AA	Pillar, centre body, LH	AG2324313AA Pillar, centre body, LH Structural Cat. A only	-	1	Enquire
20	6G33C393126AB	NUTPLATE B POST M8	6G33C393126AB NUTPLATE B POST M8 Structural Cat. A only	-	2	Enquire
21	6G3324576AB	Panel, centre body plr, RH	6G3324576AB Panel, centre body plr, RH Structural Cat. A only	-	1	Enquire
22	6G3324577AB	Panel, centre body plr, LH	6G3324577AB Panel, centre body plr, LH Structural Cat. A only	-	1	Enquire
23	6G33C243A60AE	Reinforced centre body, upper outer pillar, centre, RH	6G33C243A60AE Reinforced centre body, upper outer pillar, centre, RH Structural Cat. A only	-	1	Enquire
24	6G33C243A61AE	Reinforced centre body, upper outer pillar, centre, LH	6G33C243A61AE Reinforced centre body, upper outer pillar, centre, LH Structural Cat. A only	-	1	Enquire
25	6G3324314AB	PILLAR CENTRE BODY OUTER REAR RH	6G3324314AB PILLAR CENTRE BODY OUTER REAR RH Structural Cat. A only	-	1	Enquire
26	AD2324315AA	Pillar, centre body outer rear, LH	AD2324315AA Pillar, centre body outer rear, LH Structural Cat. A only	-	1	Enquire
27	6G33L24326AH	Pillar, centre body inner rear, RH	6G33L24326AH Pillar, centre body inner rear, RH Structural Cat. A only	-	1	Enquire
28	6G33L24327AH	Pillar, centre body inner rear, LH	6G33L24327AH Pillar, centre body inner rear, LH Structural Cat. A only	-	1	Enquire
29	6G3324320AB	Reinf, centre body pillar	6G3324320AB Reinf, centre body pillar Structural Cat. A only	-	2	Enquire
30	AG3310762AA	Support, Battery Tray	AG3310762AA Support, Battery Tray Structural Cat. A only	-	1	Enquire
31	6G33602A66AA	Plate, Front Seat Belt Attachment	6G33602A66AA Plate, Front Seat Belt Attachment Structural Cat. A only	-	2	Enquire
32	6G33L38559AB	Spacer plate, ROPS	6G33L38559AB Spacer plate, ROPS Structural Cat. A only	-	2	Enquire
33	6G33L38887AC	Spacer plate, centre, ROPS	6G33L38887AC Spacer plate, centre, ROPS Structural Cat. A only	-	2	Enquire
34	6G33L403C66AE	Bracket, upper back panel brace	6G33L403C66AE Bracket, upper back panel brace Structural Cat. A only	-	2	Enquire
