Folding Hood Assembly

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Folding Hood Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3353391CB HYD PIPE MAIN CYL LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3353391BB HYD PIPE MAIN CYL LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3353390CB HYD PIPE MAIN CYL RH Enquire To Order
Photo Part No Description Price (each) Stock
6G3353390BB HYD PIPE MAIN CYL RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B05AB HYD PIPE ROOF CYL LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B05BB HYD PIPE ROOF CYL LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B04AB HYD PIPE ROOF CYL RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B04BB HYD PIPE ROOF CYL RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B07AB HYD PIPE TONN CYL LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B07BB HYD PIPE TON CYL LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B06AB HYD PIPE TON CYL RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33539B06BB HYD PIPE TON CYL RH Enquire To Order
Photo Part No Description Price (each) Stock
6G332442AE TONNEAU WELL LINER Enquire To Order
Photo Part No Description Price (each) Stock
4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
6G3376501B02AB HALF BEARING BRACKET SHIMM Enquire To Order
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE Enquire To Order
Photo Part No Description Price (each) Stock
FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
6G33130B14AA Bracket, Carpet/ Tonneau interface Enquire To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm Enquire To Order
Photo Part No Description Price (each) Stock

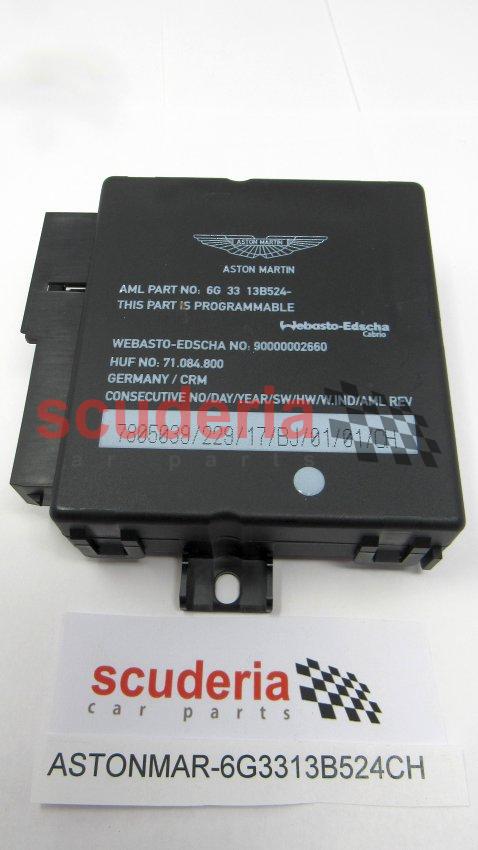

6G3313B524CH Convertible roof module Enquire To Order
Photo Part No Description Price (each) Stock
6G3313B524AD MODULE CONV Enquire To Order
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE Enquire To Order
Photo Part No Description Price (each) Stock
6G3376501B03AB 13 DIA BALL STUD M10 x 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
6G339G806AA HYDRAULIC LOCK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
6G3376501B04AB Bracket, Tension Bow Lock Valve Enquire To Order
Photo Part No Description Price (each) Stock
4G4310D916AA Control Strap, NSS part of tension belt Enquire To Order
4G4375999AA SHIM WASHER SEAL CARRIER Enquire To Order
4G431005038AAPK SPRING CLIP-PK OF 4 Enquire To Order
...and 10 more part variants. See table on right for more details.
View All

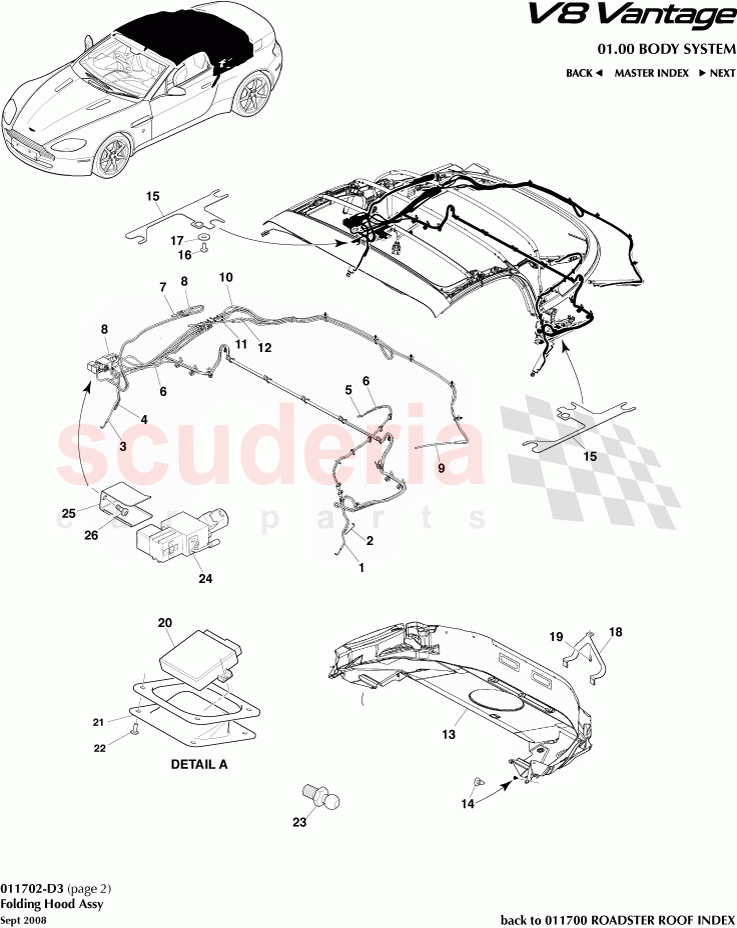

Folding Hood Assembly of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G3353391CB
HYD PIPE MAIN CYL LH 		- 1 Enquire
2 6G3353391BB
HYD PIPE MAIN CYL LH 		- 1 Enquire
3 6G3353390CB
HYD PIPE MAIN CYL RH 		- 1 Enquire
4 6G3353390BB
HYD PIPE MAIN CYL RH 		- 1 Enquire
5 6G33539B05AB
HYD PIPE ROOF CYL LH 		- 1 Enquire
6 6G33539B05BB
HYD PIPE ROOF CYL LH 		- 1 Enquire
7 6G33539B04AB
HYD PIPE ROOF CYL RH 		- 1 Enquire
8 6G33539B04BB
HYD PIPE ROOF CYL RH 		- 1 Enquire
9 6G33539B07AB
HYD PIPE TONN CYL LH 		- 1 Enquire
10 6G33539B07BB
HYD PIPE TON CYL LH 		- 1 Enquire
11 6G33539B06AB
HYD PIPE TON CYL RH 		- 1 Enquire
12 6G33539B06BB
HYD PIPE TON CYL RH 		- 1 Enquire
13 6G332442AE
TONNEAU WELL LINER 		- 1 Enquire
14 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 		- 18 Enquire
15 6G3376501B02AB
HALF BEARING BRACKET SHIMM 		- 2 Enquire
16 703149
SCREW M6x16 PAN FLG TORX CHROME FRE 		- 4 Enquire
17 FD43E830667AAPK
Washer 25mm x 6.4mm (Pack of 10) 		- 4 Enquire
18 6G33130B14AA
Bracket, Carpet/ Tonneau interface 		- 1 Enquire
19 700607
Screw Hex Flange Head M6 x 16mm 		- 1 Enquire
20 6G3313B524CH
Convertible roof module 		- 1 Enquire
21 6G3313B524AD
MODULE CONV 		- 1 Enquire
22 703149
SCREW M6x16 PAN FLG TORX CHROME FRE 		- 4 Enquire
23 6G3376501B03AB
13 DIA BALL STUD M10 x 1.5 		- 4 Enquire
24 6G339G806AA
HYDRAULIC LOCK VALVE 		- 1 Enquire
25 6G3376501B04AB
Bracket, Tension Bow Lock Valve 		- 1 Enquire
26 4G4310D916AA
Control Strap, NSS part of tension belt
hyd pipe protection 		- 2 Enquire
26 4G4375999AA
SHIM WASHER SEAL CARRIER
seal carrier 		- 6 Enquire
26 4G431005038AAPK
SPRING CLIP-PK OF 4
tie rod 		- 4 Enquire
26 6G33F502D41AA
Belt, tension CG LH incl screws 		- 1 Enquire
26 6G33F502D42AA
Belt, tension CG RH incl screws 		- 1 Enquire
26 6G33A502D41AA
TENSION CABLE 		- 1 Enquire
26 4G4350641AA
OVER CENTER PIN 		- 1 Enquire
26 704701
Screw, M6 x 20, Socket Head Button 		- 2 Enquire
26 4G431003920AA
Screw, Self Cutting 		- 2 Enquire
26 4G4378380AA
SELF CUTTING SCREW FH 		- 2 Enquire
26 4G431013271AAPK
SCREW-PIVOT HOOK (8) 		- 2 Enquire
26 4G431016033AA
Screw, Self Cutting 		- 8 Enquire
26 4G431004355AA
SELF CUTTING SCREW FH 		- 8 Enquire
