Front Structure

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Front Structure

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G33LSA01AA VOLANTE SUB ASSY 01 Enquire To Order
9G33CSA01AA Front Crush Structure, Sub Assy Enquire To Order
Photo Part No Description Price (each) Stock
703184 Screw M12 x 40 Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
6G3310594AA Bracket, Front Side Member to Front Suspension Housing, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G3310595AA Bracket, Front Side Member to Front Suspension Housing, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33130A32AB BRACKET FRONT SIDE MEMBER RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33130A33AB BRACKET FRONT SIDE MEMBER LH Enquire To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
4G4371480AC Nutplate, Front Crush Structure, Outer Enquire To Order
View All

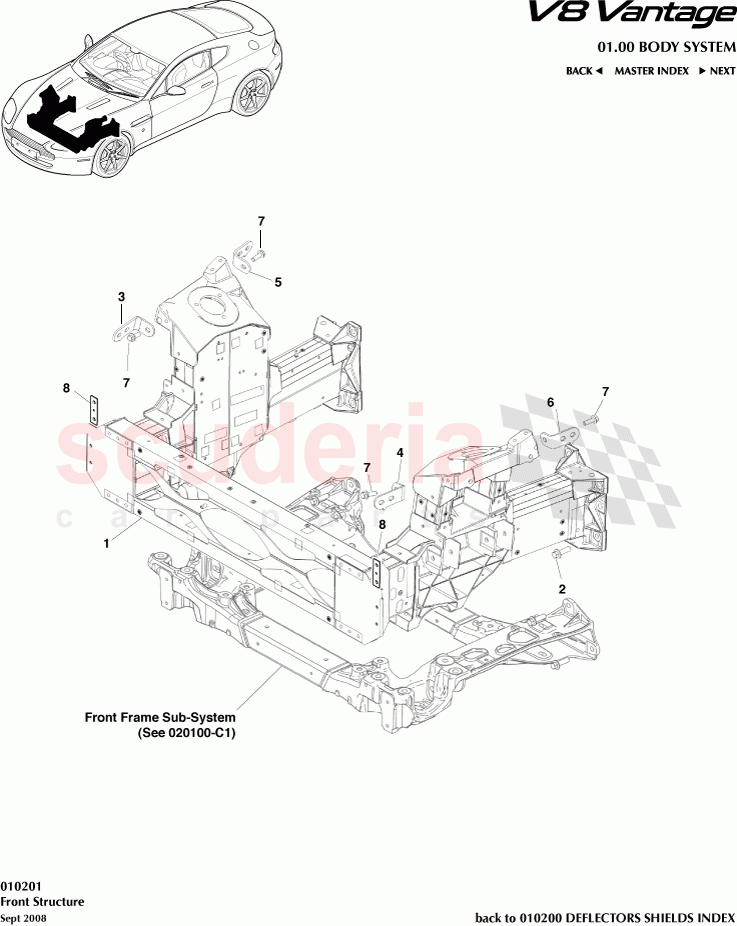

Front Structure of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G33LSA01AA
VOLANTE SUB ASSY 01
6.5MY 0nwards-Chassis plate required, Structural Cat. A only 		- 1 Enquire
1 9G33CSA01AA
Front Crush Structure, Sub Assy
6.5MY 0nwards-Chassis plate required, Structural Cat. A only 		- 1 Enquire
2 703184
Screw M12 x 40 Hex Flange Head 		- 20 Enquire
3 6G3310594AA
Bracket, Front Side Member to Front Suspension Housing, RH
Front S/M to HSG RH 		- 1 Enquire
4 6G3310595AA
Bracket, Front Side Member to Front Suspension Housing, LH
Front S/M to HSG LH 		- 1 Enquire
5 6G33130A32AB
BRACKET FRONT SIDE MEMBER RH
Front S/M 		- 1 Enquire
6 6G33130A33AB
BRACKET FRONT SIDE MEMBER LH
Front S/M 		- 1 Enquire
7 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) 		- 8 Enquire
8 4G4371480AC
Nutplate, Front Crush Structure, Outer 		- 2 Enquire
