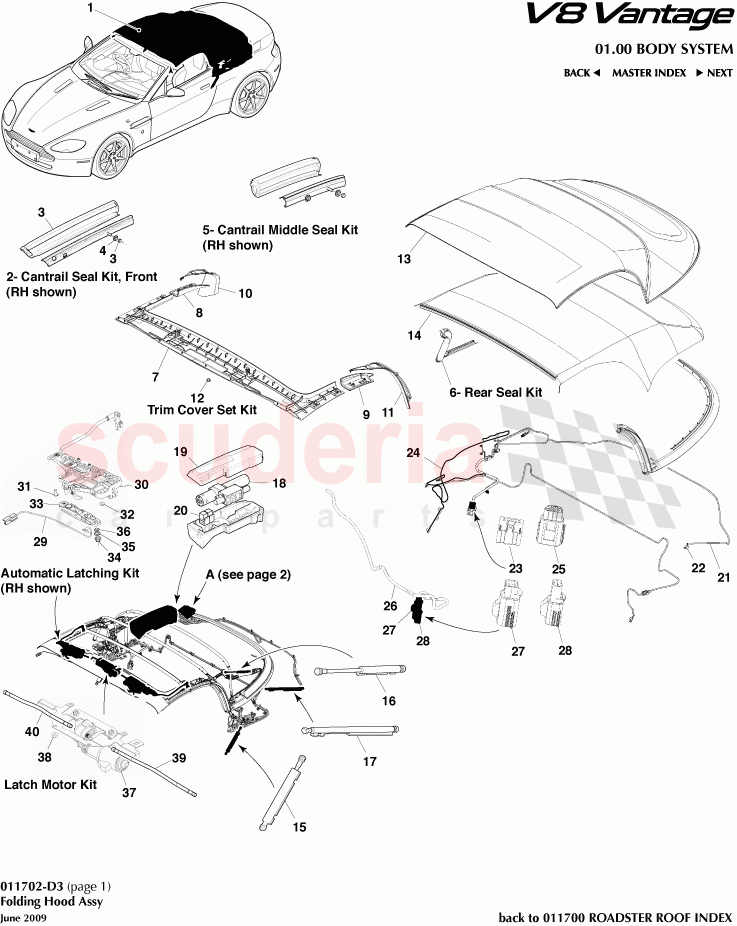

Aston Martin V8 Vantage (upto 2016) - Folding Hood Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3376501B10AK	VH230 CONVERTIBLE ROOF ASSEMBLY BITTER CHOCOLATE	Enquire	To Order
	6G3376501B10AJ	VH230 CONVERTIBLE ROOF ASSEMBLY SINGE BROWN	Enquire	To Order
	6G3376501B00BB	TOP ASSEMBLY FOLDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431001991AA	Nut & Washer, M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4375999AA	SHIM WASHER SEAL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3303508AB	TRIM COVER SET BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3303508BB	TRIM COVER SET IVORY	Enquire	To Order
	6G3303508CA	COMPLETE INTERIOR HARD TRIMS MOON SHADOW	Enquire	To Order
	6G3303508DB	TRIM COVER SET TGREY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4356051AA	Hole Cover Plug, Black	Enquire	To Order
	4G4356051BA	Hole Cover Plug, Ivory	Enquire	To Order
	4G4356051CA	Hole Cover Plug, Moon Shadow	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3370351DB	CANPY KIT WEST GREEN	Enquire	To Order
	6G3370351BB	CANOPY KIT ATL BLUE	Enquire	To Order
	6G3370351EB	CANOPY KIT TITAN GRE	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3370352EA	INNERLINING CG CHANCELLOR RED	Enquire	To Order
	6G3370352DA	INNERLINING CG TAILORS GREY	Enquire	To Order
	6G3370352AA	INNERLINING CG OBSIDIAN BLACK	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3350639AA	MAIN HYD CYLINDER LH	Enquire	To Order
	6G3350638AA	MAIN HYD CYLINDER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33539A79AA	TENSION BOW CYL LH	Enquire	To Order
	6G33539A78AA	TENSION BOW CYL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3353391AA	TONNEAU CYLINDER LH	Enquire	To Order
	6G3353390AA	TONNEAU CYLINDER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339G803AA	HYDRAULIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L31123AA	PUMP COVER	Enquire	To Order
	4G439310506	ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339G805AA	Relays, Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339G804AB	HYDRAULIC PUMP HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	97BG14A459VR	Connector, Electrical- 14 pin Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G331007571AA	Harness, Roof Cylinder wiring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XW4T14A624AC	Connector, Electrical- 8 way Roof	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431007570AA	Harness, Header latch wiring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XW4T14A624CA	Connector, Electrical- 6 way Roof	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	98AG14A624ZB	Connector, Electrical- 2 way H/Screen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43765013AF	LATCH BRKT HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L51270AA	FULLY AUTOMATIC LATCHING RH KIT	Enquire	To Order
	6G33L51260AA	FULLY AUTOMATIC LATCHING LH KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69832	Nut, hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43765011BA	STRIKER HEADER LH	Enquire	To Order
	4G43765010BA	STRIKER HEADER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703131	WASHER PLAIN FORM A M8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4376501B03AB	SHIM LATCHING BRACKET 0.5mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4369832AA	HEXAGON NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431012525AA	Flex Shaft, LH	Enquire	To Order
	4G431012524AA	Flex Shaft, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33011702BB	HARNESS& HYD FIX KIT	Enquire	To Order
	9G339310533	REPAIR KIT-LOWERING LEVER	Enquire	To Order
	9G339310534	CANOPY PATCH-BLACK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G3376501B10AK	VH230 CONVERTIBLE ROOF ASSEMBLY BITTER CHOCOLATE	6G3376501B10AK VH230 CONVERTIBLE ROOF ASSEMBLY BITTER CHOCOLATE V8 Roadster	-	1	Enquire
1	6G3376501B10AJ	VH230 CONVERTIBLE ROOF ASSEMBLY SINGE BROWN	6G3376501B10AJ VH230 CONVERTIBLE ROOF ASSEMBLY SINGE BROWN V8 Roadster	-	1	Enquire
1	6G3376501B00BB	TOP ASSEMBLY FOLDING	6G3376501B00BB TOP ASSEMBLY FOLDING V8 Roadster	-	1	Enquire
2	6G33L51210AB	RHS CANTRAIL 1 SEAL KIT	6G33L51210AB RHS CANTRAIL 1 SEAL KIT Non Flocked	-	1	Enquire
2	6G33L51211AB	LHS CANTRAIL 1 SEAL KIT	6G33L51211AB LHS CANTRAIL 1 SEAL KIT Non Flocked	-	1	Enquire
2	6G33L51210AB	RHS CANTRAIL 1 SEAL KIT	6G33L51210AB RHS CANTRAIL 1 SEAL KIT Flocked	-	1	Enquire
2	6G33L51211AB	LHS CANTRAIL 1 SEAL KIT	6G33L51211AB LHS CANTRAIL 1 SEAL KIT Flocked	-	1	Enquire
3	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 Seal Kit attach	-	2	Enquire
4	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER Seal Kit attach	-	6	Enquire
5	6G33L51220AB	RH CANTRAIL 2 SEAL KIT	6G33L51220AB RH CANTRAIL 2 SEAL KIT Non Flocked	-	1	Enquire
5	6G33L51221AB	LH CANTRAIL 2 SEAL KIT	6G33L51221AB LH CANTRAIL 2 SEAL KIT Non Flocked	-	1	Enquire
5	6G33L51220AB	RH CANTRAIL 2 SEAL KIT	6G33L51220AB RH CANTRAIL 2 SEAL KIT Flocked	-	1	Enquire
5	6G33L51221AB	LH CANTRAIL 2 SEAL KIT	6G33L51221AB LH CANTRAIL 2 SEAL KIT Flocked	-	1	Enquire
6	Partofitem6	Screw, Self cutting tb & rivets	Partofitem6 Screw, Self cutting tb & rivets Rear Seal Kit attach	-	23	Enquire
6	6G33L51230AB	TENSION BOW SEAL ASSEMBLY UN-FLOCKED	6G33L51230AB TENSION BOW SEAL ASSEMBLY UN-FLOCKED Non-Flocked	-	1	Enquire
6	6G33L51230AB	TENSION BOW SEAL ASSEMBLY UN-FLOCKED	6G33L51230AB TENSION BOW SEAL ASSEMBLY UN-FLOCKED Flocked	-	1	Enquire
6	4G4374480AA	Rivet, Blind	4G4374480AA Rivet, Blind	-	8	Enquire
7	6G3303508AB	TRIM COVER SET BLACK	6G3303508AB TRIM COVER SET BLACK Black incl. fixings	-	1	Enquire
11	6G3303508BB	TRIM COVER SET IVORY	6G3303508BB TRIM COVER SET IVORY Ivory incl. fixings	-	1	Enquire
11	6G3303508CA	COMPLETE INTERIOR HARD TRIMS MOON SHADOW	6G3303508CA COMPLETE INTERIOR HARD TRIMS MOON SHADOW Moon incl. fixings	-	1	Enquire
11	6G3303508DB	TRIM COVER SET TGREY	6G3303508DB TRIM COVER SET TGREY Grey incl. fixings	-	1	Enquire
11	6G3303508EB	TRIM COVER SET C RED	6G3303508EB TRIM COVER SET C RED Red incl. fixings	-	1	Enquire
12	4G4356051AA	Hole Cover Plug, Black	4G4356051AA Hole Cover Plug, Black Black	-	1	Enquire
12	4G4356051BA	Hole Cover Plug, Ivory	4G4356051BA Hole Cover Plug, Ivory Ivory	-	1	Enquire
12	4G4356051CA	Hole Cover Plug, Moon Shadow	4G4356051CA Hole Cover Plug, Moon Shadow Moon	-	1	Enquire
12	4G4356051DA	Hole Cover Plug, Tailor Grey	4G4356051DA Hole Cover Plug, Tailor Grey Grey	-	1	Enquire
12	4G4356051EA	Cover, Plug hole	4G4356051EA Cover, Plug hole Red	-	1	Enquire
13	6G3370351DB	CANPY KIT WEST GREEN	6G3370351DB CANPY KIT WEST GREEN Westminster Green	-	1	Enquire
13	6G3370351BB	CANOPY KIT ATL BLUE	6G3370351BB CANOPY KIT ATL BLUE Atlantic Blue	-	1	Enquire
13	6G3370351EB	CANOPY KIT TITAN GRE	6G3370351EB CANOPY KIT TITAN GRE Titan Grey	-	1	Enquire
13	6G3370351CB	CANOPY KIT SANDSTORM	6G3370351CB CANOPY KIT SANDSTORM Sandstorm	-	1	Enquire
13	6G3370351GB	CANOPY KIT GREN. RED	6G3370351GB CANOPY KIT GREN. RED Grenadine	-	1	Enquire
13	6G3370351FB	CANOPY KIT BURGUNDY	6G3370351FB CANOPY KIT BURGUNDY Burgundy	-	1	Enquire
13	4G431005038AAPK	SPRING CLIP-PK OF 4	4G431005038AAPK SPRING CLIP-PK OF 4 per kit	-	4	Enquire
13	4G4374480AA	Rivet, Blind	4G4374480AA Rivet, Blind per kit	-	8	Enquire
13	6G3370351AB	CANOPY COVER KIT CG BLACK	6G3370351AB CANOPY COVER KIT CG BLACK Black	-	1	Enquire
14	6G3370352EA	INNERLINING CG CHANCELLOR RED	6G3370352EA INNERLINING CG CHANCELLOR RED Chancellors Red	-	1	Enquire
14	6G3370352DA	INNERLINING CG TAILORS GREY	6G3370352DA INNERLINING CG TAILORS GREY Tailor Grey	-	1	Enquire
14	6G3370352AA	INNERLINING CG OBSIDIAN BLACK	6G3370352AA INNERLINING CG OBSIDIAN BLACK Obsidian	-	1	Enquire
14	6G3370352CA	INNERLINING CG MOONSHADOW	6G3370352CA INNERLINING CG MOONSHADOW Moonish	-	1	Enquire
14	6G3370352BA	INNERLINING CG IVORY	6G3370352BA INNERLINING CG IVORY Ivory	-	1	Enquire
15	6G3350639AA	MAIN HYD CYLINDER LH	6G3350639AA MAIN HYD CYLINDER LH	-	1	Enquire
15	6G3350638AA	MAIN HYD CYLINDER RH	6G3350638AA MAIN HYD CYLINDER RH	-	1	Enquire
16	6G33539A79AA	TENSION BOW CYL LH	6G33539A79AA TENSION BOW CYL LH	-	1	Enquire
16	6G33539A78AA	TENSION BOW CYL RH	6G33539A78AA TENSION BOW CYL RH	-	1	Enquire
17	6G3353391AA	TONNEAU CYLINDER LH	6G3353391AA TONNEAU CYLINDER LH	-	1	Enquire
17	6G3353390AA	TONNEAU CYLINDER RH	6G3353390AA TONNEAU CYLINDER RH	-	1	Enquire
18	6G339G803AA	HYDRAULIC PUMP	6G339G803AA HYDRAULIC PUMP	-	1	Enquire
19	6G33L31123AA	PUMP COVER	6G33L31123AA PUMP COVER	-	1	Enquire
19	4G439310506	ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	4G439310506 ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	-	-	Enquire
20	6G339G805AA	Relays, Pump	6G339G805AA Relays, Pump	-	-	Enquire
21	6G339G804AB	HYDRAULIC PUMP HARNESS	6G339G804AB HYDRAULIC PUMP HARNESS	-	1	Enquire
23	97BG14A459VR	Connector, Electrical- 14 pin Pump	97BG14A459VR Connector, Electrical- 14 pin Pump	-	1	Enquire
24	6G331007571AA	Harness, Roof Cylinder wiring	6G331007571AA Harness, Roof Cylinder wiring	-	1	Enquire
25	XW4T14A624AC	Connector, Electrical- 8 way Roof	XW4T14A624AC Connector, Electrical- 8 way Roof	-	1	Enquire
26	4G431007570AA	Harness, Header latch wiring	4G431007570AA Harness, Header latch wiring	-	1	Enquire
27	XW4T14A624CA	Connector, Electrical- 6 way Roof	XW4T14A624CA Connector, Electrical- 6 way Roof	-	1	Enquire
28	98AG14A624ZB	Connector, Electrical- 2 way H/Screen	98AG14A624ZB Connector, Electrical- 2 way H/Screen	-	1	Enquire
29	4G43765013AF	LATCH BRKT HARNESS	4G43765013AF LATCH BRKT HARNESS	-	1	Enquire
30	6G33L51270AA	FULLY AUTOMATIC LATCHING RH KIT	6G33L51270AA FULLY AUTOMATIC LATCHING RH KIT	-	1	Enquire
30	6G33L51260AA	FULLY AUTOMATIC LATCHING LH KIT	6G33L51260AA FULLY AUTOMATIC LATCHING LH KIT	-	1	Enquire
32	69832	Nut, hex	69832 Nut, hex latching kit attach	-	3	Enquire
33	4G43765011BA	STRIKER HEADER LH	4G43765011BA STRIKER HEADER LH	-	1	Enquire
33	4G43765010BA	STRIKER HEADER RH	4G43765010BA STRIKER HEADER RH	-	1	Enquire
34	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE per latching bracket	-	2	Enquire
35	703131	WASHER PLAIN FORM A M8 CHROME FREE	703131 WASHER PLAIN FORM A M8 CHROME FREE per latching bracket	-	2	Enquire
36	4G4376501B03AB	SHIM LATCHING BRACKET 0.5mm	4G4376501B03AB SHIM LATCHING BRACKET 0.5mm	-	-	Enquire
37	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT	4G43L51240AA CONVERTIBLE ROOF LATCH MOTOR KIT	-	1	Enquire
38	4G4369832AA	HEXAGON NUT M6	4G4369832AA HEXAGON NUT M6 motor kit attach	-	4	Enquire
39	4G431012525AA	Flex Shaft, LH	4G431012525AA Flex Shaft, LH	-	1	Enquire
39	4G431012524AA	Flex Shaft, RH	4G431012524AA Flex Shaft, RH	-	1	Enquire
40	6G33011702BB	HARNESS& HYD FIX KIT	6G33011702BB HARNESS& HYD FIX KIT	-	-	Enquire
40	9G339310533	REPAIR KIT-LOWERING LEVER	9G339310533 REPAIR KIT-LOWERING LEVER	-	-	Enquire
40	9G339310534	CANOPY PATCH-BLACK	9G339310534 CANOPY PATCH-BLACK	-	-	Enquire
