Front Door Latching System of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

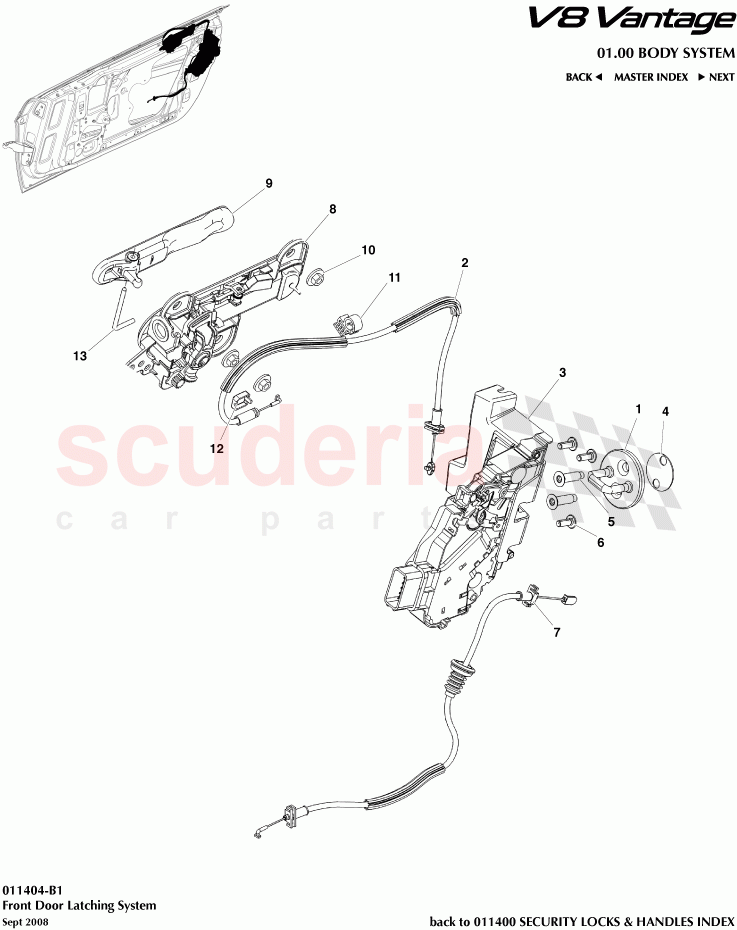

Aston Martin V8 Vantage (upto 2016) - Front Door Latching System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D33F21982BA	SIDE DR LTCH STRK USE WHEN ADJUST REQ OUTSIDE NORM RAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33221A00DA	Cable Assembly, Outside Handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EG436511396	DOOR LOCK FRONT RH	Enquire	To Order
	EG436511397	FRONT DOOR LATCH SYSTEM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4322058AB	SHIM FOR ADJUSTMENT OF DOOR STRIKER IN X USED AS REQUIRED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F218A01DA	Cable, Front Door Inner Handle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43226A28AH	HANDLE DOOR EXT FRT	Enquire	To Order
	4G436511059	HANDLE-DOOR EXTR FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4322404AG	HANDLE BLADE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702516	CLIP 5-8.5 X M6 PIPE STUD NYL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43224A72AH	DUMMY LIGHT LENS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43224A68AA	Pivot Pin, Outside Handle	Enquire	To Order
	7G43226A60AA	Strap, cable handle tie	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D33F21982BA	SIDE DR LTCH STRK USE WHEN ADJUST REQ OUTSIDE NORM RAN	8D33F21982BA SIDE DR LTCH STRK USE WHEN ADJUST REQ OUTSIDE NORM RAN	-	2	Enquire
2	6G33221A00DA	Cable Assembly, Outside Handle	6G33221A00DA Cable Assembly, Outside Handle	-	2	Enquire
3	EG436511396	DOOR LOCK FRONT RH	EG436511396 DOOR LOCK FRONT RH	-	1	Enquire
3	EG436511397	FRONT DOOR LATCH SYSTEM LH	EG436511397 FRONT DOOR LATCH SYSTEM LH	-	1	Enquire
4	4G4322058AB	SHIM FOR ADJUSTMENT OF DOOR STRIKER IN X USED AS REQUIRED	4G4322058AB SHIM FOR ADJUSTMENT OF DOOR STRIKER IN X USED AS REQUIRED	-	2	Enquire
5	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	703147 SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	-	4	Enquire
6	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	6	Enquire
7	4G43F218A01DA	Cable, Front Door Inner Handle	4G43F218A01DA Cable, Front Door Inner Handle	-	2	Enquire
8	7G43226A28AH	HANDLE DOOR EXT FRT	7G43226A28AH HANDLE DOOR EXT FRT 07MY/08MY	-	2	Enquire
8	4G436511059	HANDLE-DOOR EXTR FRT	4G436511059 HANDLE-DOOR EXTR FRT	-	2	Enquire
9	4G4322404AG	HANDLE BLADE ASSY	4G4322404AG HANDLE BLADE ASSY	-	2	Enquire
10	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	6	Enquire
11	702516	CLIP 5-8.5 X M6 PIPE STUD NYL	702516 CLIP 5-8.5 X M6 PIPE STUD NYL	-	2	Enquire
12	4G43224A72AH	DUMMY LIGHT LENS	4G43224A72AH DUMMY LIGHT LENS	-	2	Enquire
13	4G43224A68AA	Pivot Pin, Outside Handle	4G43224A68AA Pivot Pin, Outside Handle	-	2	Enquire
13	7G43226A60AA	Strap, cable handle tie	7G43226A60AA Strap, cable handle tie	-	6	Enquire
