Body Rear End Trim and Ornamentation of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Body Rear End Trim and Ornamentation

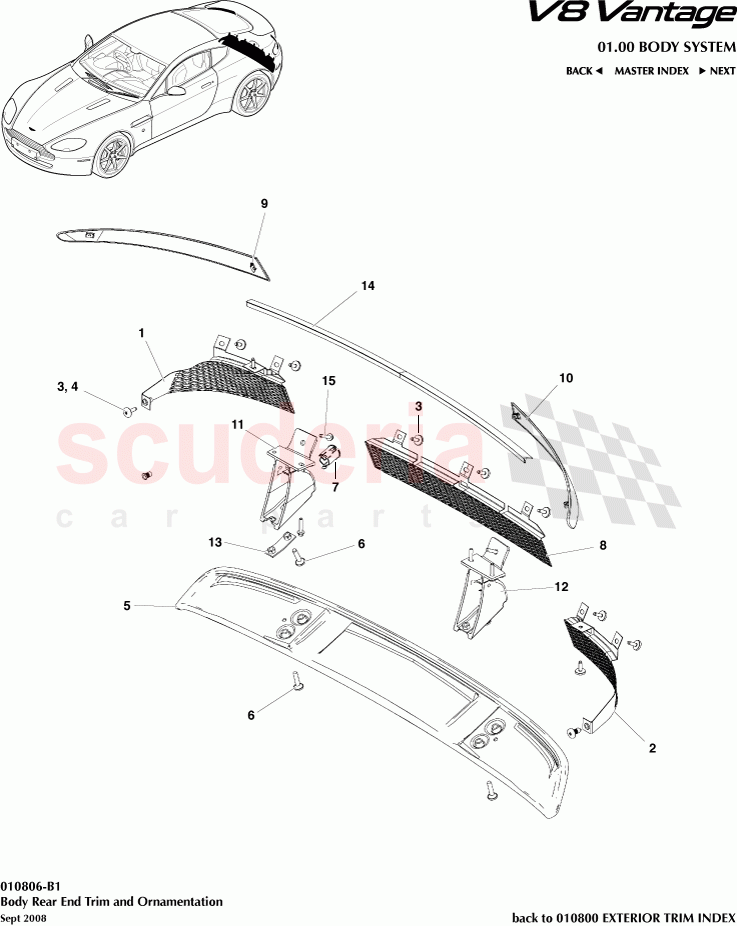

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3301948AE	LOWER REAR MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3301949AE	REAR MESH LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3354428AA	RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2333612AD	DIFFUSER REAR BLADE	Enquire	To Order
	6G337810514	Diffuser grille, rear carbon fibre	Enquire	To Order
	6G3333612BA	DIFFUSER REAR ASSEMBLY SPECIAL EDITION	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3333622AB	SCREW M8 x 39.5 RC SPL CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430110012	COLLAR- PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3301950AE	REAR MESH CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3313A538AA	REAR LAMP TRIM FINISHER RH CARBON	Enquire	To Order
	4G4313A538BA	REAR LAMP TRIM FINISHER RH	Enquire	To Order
	4G4313A538CB	RR LMP Trim Fin RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3313A539AA	REAR LAMP TRIM FINISHER LH CARBON	Enquire	To Order
	4G4313A539BA	REAR LAMP TRIM FINISHER LH	Enquire	To Order
	4G4313A539CB	RR LMP Trim Fin LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333614CA	DIFFUSER BRACKET RH PDC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333615CA	DIFFUSER BRACKET LH PDC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333612EB	NUT PLATE BRACKET DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F20556AA	W/STRIP FIN RR BMPR LUGG COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704411R	NEOPRENE SEALING FOAM 2mmx15mmx10M ROLL	Enquire	To Order
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G3301948AE	LOWER REAR MESH	6G3301948AE LOWER REAR MESH	-	1	Enquire
2	6G3301949AE	REAR MESH LH	6G3301949AE REAR MESH LH	-	1	Enquire
3	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	1	Enquire
4	6G3354428AA	RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni	6G3354428AA RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni	-	2	Enquire
5	AD2333612AD	DIFFUSER REAR BLADE	AD2333612AD DIFFUSER REAR BLADE V8S/ 12.25MY	-	1	Enquire
5	6G337810514	Diffuser grille, rear carbon fibre	6G337810514 Diffuser grille, rear carbon fibre N420	-	1	Enquire
5	6G3333612BA	DIFFUSER REAR ASSEMBLY SPECIAL EDITION	6G3333612BA DIFFUSER REAR ASSEMBLY SPECIAL EDITION N400	-	1	Enquire
5	6G337810647	DIFFUSER REAR-C/FBRE	6G337810647 DIFFUSER REAR-C/FBRE N420	-	1	Enquire
5	6G3333612AD	Diffuser, rear	6G3333612AD Diffuser, rear	-	1	Enquire
6	6G3333622AB	SCREW M8 x 39.5 RC SPL CHROME	6G3333622AB SCREW M8 x 39.5 RC SPL CHROME	-	4	Enquire
7	6G430110012	COLLAR- PARKING SENSOR	6G430110012 COLLAR- PARKING SENSOR	-	2	Enquire
8	6G3301950AE	REAR MESH CENTRE	6G3301950AE REAR MESH CENTRE	-	1	Enquire
9	CD3313A538AA	REAR LAMP TRIM FINISHER RH CARBON	CD3313A538AA REAR LAMP TRIM FINISHER RH CARBON V8 s 12.25MY Carbon Edition	-	1	Enquire
9	4G4313A538BA	REAR LAMP TRIM FINISHER RH	4G4313A538BA REAR LAMP TRIM FINISHER RH N400	-	1	Enquire
9	4G4313A538CB	RR LMP Trim Fin RH	4G4313A538CB RR LMP Trim Fin RH	-	1	Enquire
10	CD3313A539AA	REAR LAMP TRIM FINISHER LH CARBON	CD3313A539AA REAR LAMP TRIM FINISHER LH CARBON V8S/ 12.25MY Carbon Edition	-	1	Enquire
10	4G4313A539BA	REAR LAMP TRIM FINISHER LH	4G4313A539BA REAR LAMP TRIM FINISHER LH N400	-	1	Enquire
10	4G4313A539CB	RR LMP Trim Fin LH	4G4313A539CB RR LMP Trim Fin LH	-	1	Enquire
11	6G3333614CA	DIFFUSER BRACKET RH PDC	6G3333614CA DIFFUSER BRACKET RH PDC	-	1	Enquire
12	6G3333615CA	DIFFUSER BRACKET LH PDC	6G3333615CA DIFFUSER BRACKET LH PDC	-	1	Enquire
13	6G3333612EB	NUT PLATE BRACKET DIFFUSER	6G3333612EB NUT PLATE BRACKET DIFFUSER	-	2	Enquire
14	6G33F20556AA	W/STRIP FIN RR BMPR LUGG COMP	6G33F20556AA W/STRIP FIN RR BMPR LUGG COMP	-	1	Enquire
15	704411R	NEOPRENE SEALING FOAM 2mmx15mmx10M ROLL	704411R NEOPRENE SEALING FOAM 2mmx15mmx10M ROLL N420	-	-	Enquire
15	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	-	Enquire
15	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	6	Enquire
