Body Components (Coupe) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

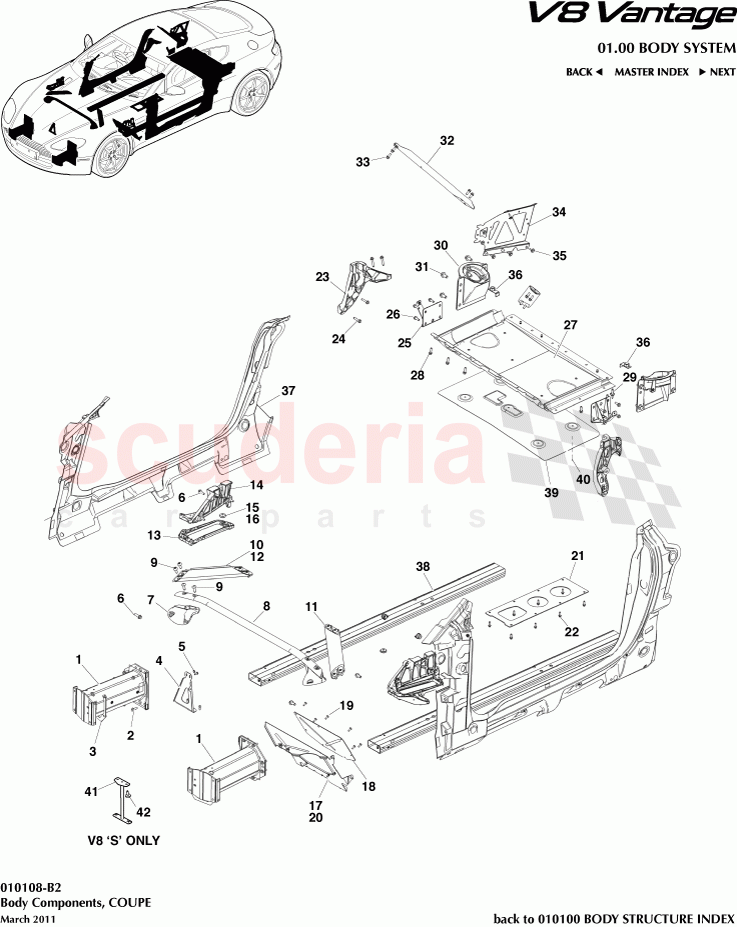

Aston Martin V8 Vantage (upto 2016) - Body Components (Coupe)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G33V17N800BA	BUMPER FR CRUSH CAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336367912AB	Nutplate Assy, Crush Can, Lower, RH	Enquire	To Order
	6G336367913AB	Nutplate Assy, Crush Can, Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33108A74AC	BRACE FRONT CROSS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43108A86CA	Bracket, Front Cross Brace, RH	Enquire	To Order
	4G43108A87CA	Bracket, Front Cross Brace, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33108A75AB	BRACE FRONT CROSS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702209	Bolt, M10 x 25, Torque Drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43F00199AA	Reinforcement, Body Front Cross Bar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703160PK	Nut M10 HEX Flange (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335340BA	Bracket, ECU Mounting, RH	Enquire	To Order
	6G335341BA	Bracket, ECU Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316798BA	BRACKET HOOD HINGE SUPPORT RIGHT HAND	Enquire	To Order
	6G3316799BA	BRACKET HOOD HINGE SUPPORT LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43061B70AA	CAP DUST COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316740AB	PAD - HOOD ON COWL	Enquire	To Order
	4G4316740AA	PAD - HOOD ON COWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111C61AE	Panel, Dummy Floor Front, RHD	Enquire	To Order
	9G43111C60GF	Panel, Dummy Floor Front, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111B48AB	Panel, Dummy Floor Cover, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700116	NUT M6 HEX FLG NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23111K37CA	REINF CTR TNL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33611D38BA	Bracket Assembly, Front Seat Belt Retainer, RH	Enquire	To Order
	6G33611D39BA	Bracket Assembly, Front Seat Belt Retainer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703142	Bolt, M8 x 38, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339N172AE	ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP	Enquire	To Order
	ED239N172BA	ASSY PNL FU/TNK COM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702509	STUD M8x23 + M6x14 HEX FLANGE PILOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	Enquire	To Order
	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG3328442AB	BRCE BDY RR CNR PNL	Enquire	To Order
	GOAG3328443AB	BRCE BDY RR CNR PNL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310N873AE	Panel, amplifier mount	Enquire	To Order
	6G3310N873AE	AMPLIFIER MOUNTING PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320412AL	REINF DOOR OPENING FRAME CENTRE RH	Enquire	To Order
	6G3320413AL	REINF DOOR OPENING FRAME CENTRE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310120AA	MEMBER FLOOR SIDE FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339A032AE	Heatshield, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W710409S300	Rivet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G33V17N800BA	BUMPER FR CRUSH CAN	6G33V17N800BA BUMPER FR CRUSH CAN	-	2	Enquire
2	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	14	Enquire
3	6G336367912AB	Nutplate Assy, Crush Can, Lower, RH	6G336367912AB Nutplate Assy, Crush Can, Lower, RH	-	2	Enquire
3	6G336367913AB	Nutplate Assy, Crush Can, Lower, LH	6G336367913AB Nutplate Assy, Crush Can, Lower, LH	-	2	Enquire
4	6G33108A74AC	BRACE FRONT CROSS	6G33108A74AC BRACE FRONT CROSS	-	1	Enquire
5	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	4	Enquire
6	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	-	4	Enquire
7	4G43108A86CA	Bracket, Front Cross Brace, RH	4G43108A86CA Bracket, Front Cross Brace, RH	-	1	Enquire
7	4G43108A87CA	Bracket, Front Cross Brace, LH	4G43108A87CA Bracket, Front Cross Brace, LH	-	1	Enquire
8	6G33108A75AB	BRACE FRONT CROSS	6G33108A75AB BRACE FRONT CROSS	-	1	Enquire
9	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive	-	12	Enquire
10	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH Order in pairs	-	1	Enquire
11	GOAG43F00199AA	Reinforcement, Body Front Cross Bar, LH	GOAG43F00199AA Reinforcement, Body Front Cross Bar, LH Order in pairs	-	1	Enquire
12	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10)	-	4	Enquire
13	6G335340BA	Bracket, ECU Mounting, RH	6G335340BA Bracket, ECU Mounting, RH	-	1	Enquire
13	6G335341BA	Bracket, ECU Mounting, LH	6G335341BA Bracket, ECU Mounting, LH	-	1	Enquire
14	6G3316798BA	BRACKET HOOD HINGE SUPPORT RIGHT HAND	6G3316798BA BRACKET HOOD HINGE SUPPORT RIGHT HAND	-	1	Enquire
14	6G3316799BA	BRACKET HOOD HINGE SUPPORT LEFT HAND	6G3316799BA BRACKET HOOD HINGE SUPPORT LEFT HAND	-	1	Enquire
15	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER	-	2	Enquire
16	4G4316740AB	PAD - HOOD ON COWL	4G4316740AB PAD - HOOD ON COWL 08MY	-	2	Enquire
16	4G4316740AA	PAD - HOOD ON COWL	4G4316740AA PAD - HOOD ON COWL	-	2	Enquire
17	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD RHD	-	1	Enquire
17	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD LHD	-	1	Enquire
18	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front	-	1	Enquire
19	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	6	Enquire
20	700116	NUT M6 HEX FLG NYLOC	700116 NUT M6 HEX FLG NYLOC	-	2	Enquire
21	AD23111K37CA	REINF CTR TNL	AD23111K37CA REINF CTR TNL	-	1	Enquire
22	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	8	Enquire
23	6G33611D38BA	Bracket Assembly, Front Seat Belt Retainer, RH	6G33611D38BA Bracket Assembly, Front Seat Belt Retainer, RH	-	1	Enquire
23	6G33611D39BA	Bracket Assembly, Front Seat Belt Retainer, LH	6G33611D39BA Bracket Assembly, Front Seat Belt Retainer, LH	-	1	Enquire
24	703142	Bolt, M8 x 38, Hex Flange Head	703142 Bolt, M8 x 38, Hex Flange Head	-	8	Enquire
25	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER	-	1	Enquire
26	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	8	Enquire
27	6G339N172AE	ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP	6G339N172AE ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP 10.5MY	-	1	Enquire
27	ED239N172BA	ASSY PNL FU/TNK COM	ED239N172BA ASSY PNL FU/TNK COM	-	1	Enquire
28	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	12	Enquire
29	702509	STUD M8x23 + M6x14 HEX FLANGE PILOT	702509 STUD M8x23 + M6x14 HEX FLANGE PILOT	-	4	Enquire
30	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH	-	1	Enquire
30	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH	-	1	Enquire
31	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	-	8	Enquire
32	GOAG3328442AB	BRCE BDY RR CNR PNL	GOAG3328442AB BRCE BDY RR CNR PNL Order in pairs	-	1	Enquire
32	GOAG3328443AB	BRCE BDY RR CNR PNL	GOAG3328443AB BRCE BDY RR CNR PNL Order in pairs	-	1	Enquire
33	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	8	Enquire
34	AG3310N873AE	Panel, amplifier mount	AG3310N873AE Panel, amplifier mount 10.5MY	-	1	Enquire
34	6G3310N873AE	AMPLIFIER MOUNTING PANEL	6G3310N873AE AMPLIFIER MOUNTING PANEL	-	1	Enquire
35	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10)	-	6	Enquire
36	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14	-	2	Enquire
37	6G3320412AL	REINF DOOR OPENING FRAME CENTRE RH	6G3320412AL REINF DOOR OPENING FRAME CENTRE RH Structural Cat. A only	-	1	Enquire
37	6G3320413AL	REINF DOOR OPENING FRAME CENTRE LH	6G3320413AL REINF DOOR OPENING FRAME CENTRE LH Structural Cat. A only	-	1	Enquire
38	AG3310120AA	MEMBER FLOOR SIDE FRONT	AG3310120AA MEMBER FLOOR SIDE FRONT Structural Cat. A only	-	2	Enquire
39	6G339A032AE	Heatshield, fuel tank	6G339A032AE Heatshield, fuel tank	-	1	Enquire
40	W710409S300	Rivet	W710409S300 Rivet	-	5	Enquire
