Aerodynamic Undershield

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Aerodynamic Undershield

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G335E209AH UnderTray - Front Enquire To Order
Photo Part No Description Price (each) Stock
9G335E209AA UNDERTRAY - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
BG335E209BA UNDERTRAY FRONT Enquire To Order
703172PK Screw M8 x 25 Pan Head (Pack of 10) Enquire To Order
702514 SCREW M6 x 14 PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
703141 SCREW M8 x 16 CHROME FREE Enquire To Order
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Enquire To Order
702510PK Screw & Washer 4.8 x 19 Pan Head (Pack of 5) Enquire To Order
View All

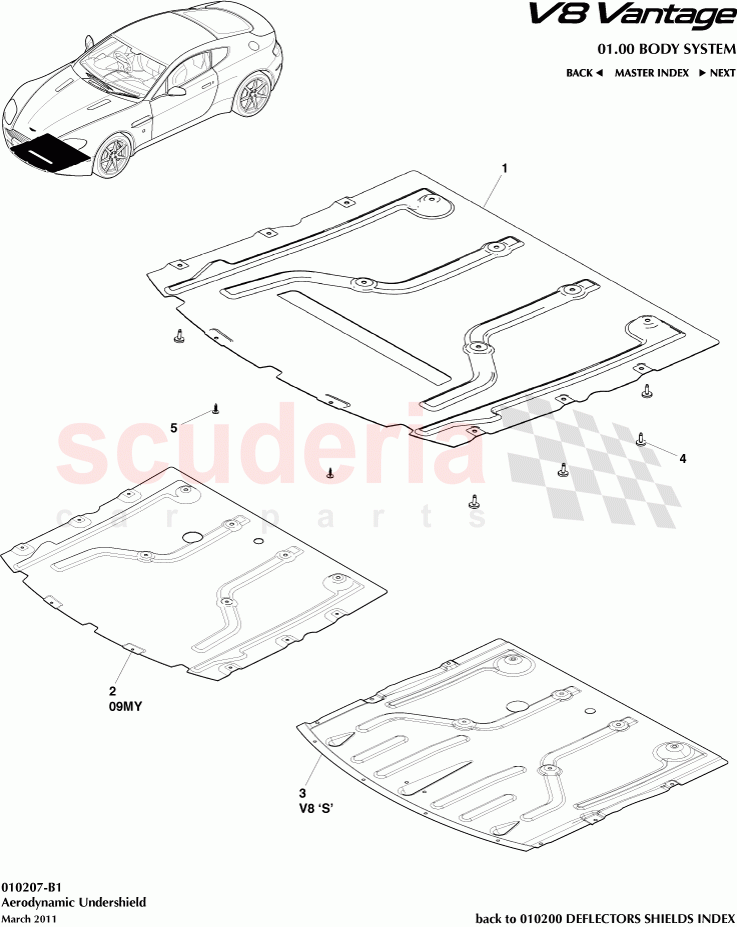

Aerodynamic Undershield of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G335E209AH
UnderTray - Front
08MY 		- 1 Enquire
2 9G335E209AA
UNDERTRAY - FRONT
09MY 		- 1 Enquire
3 BG335E209BA
UNDERTRAY FRONT
V8 S / 12.25MY 		- 1 Enquire
3 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
V8 S / 12.25MY 		- 2 Enquire
3 702514
SCREW M6 x 14 PAN HEAD
V8 S / 12.25MY 		- 4 Enquire
4 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
V8 S / 12.25MY 		- 10 Enquire
4 703141
SCREW M8 x 16 CHROME FREE
6.5MY on 		- 4 Enquire
4 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
6.5MY on 		- 8 Enquire
4 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
06MY 		- 12 Enquire
5 702511PK
Nut J SPG 4.8 x 0.70 (PACK OF 10) 		- 2 Enquire
5 702510PK
Screw & Washer 4.8 x 19 Pan Head (Pack of 5) 		- 4 Enquire
