Aston Martin V8 Vantage (upto 2016) - Body Components (Roadster)

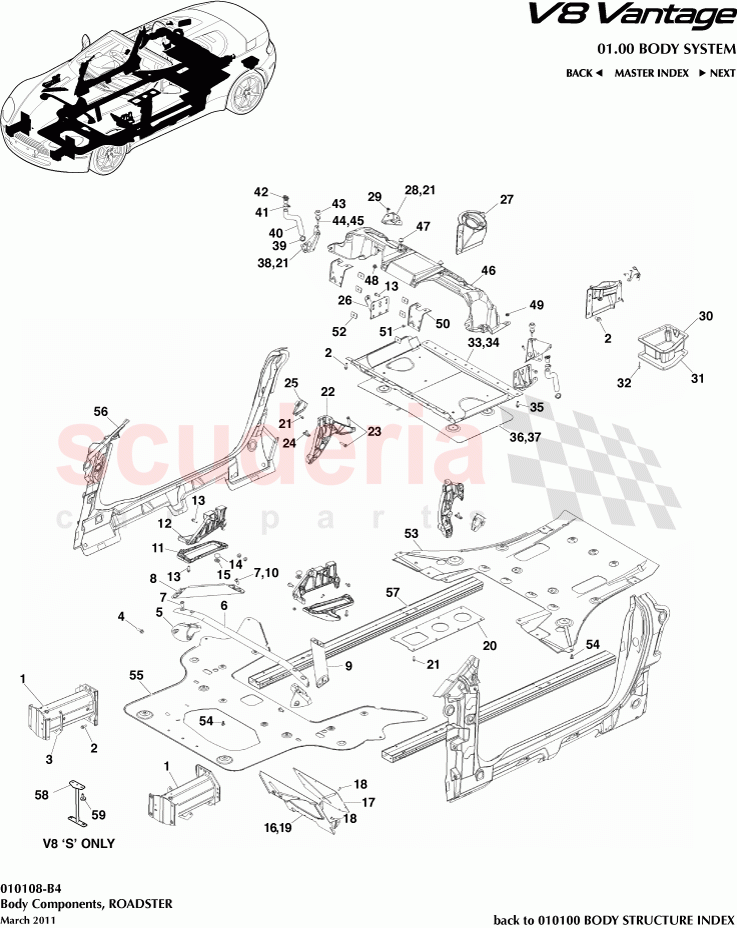

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G33V17N800BA	BUMPER FR CRUSH CAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336367912AB	Nutplate Assy, Crush Can, Lower, RH	Enquire	To Order
	6G336367913AB	Nutplate Assy, Crush Can, Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43108A86AE	BRACKET FRONT CROSS BRACE RH	Enquire	To Order
	4G43108A87AE	BRACKET FRONT CROSS BRACE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33108A75AB	BRACE FRONT CROSS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702209	Bolt, M10 x 25, Torque Drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43F00199AA	Reinforcement, Body Front Cross Bar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703160PK	Nut M10 HEX Flange (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335340BA	Bracket, ECU Mounting, RH	Enquire	To Order
	6G335341BA	Bracket, ECU Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316798BA	BRACKET HOOD HINGE SUPPORT RIGHT HAND	Enquire	To Order
	6G3316799BA	BRACKET HOOD HINGE SUPPORT LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43061B70AB	Cap, dust cover	Enquire	To Order
	4G43061B70AA	CAP DUST COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316740AA	PAD - HOOD ON COWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111C61AE	Panel, Dummy Floor Front, RHD	Enquire	To Order
	9G43111C60AD	Panel, dummy, front floor, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111B48AB	Panel, Dummy Floor Cover, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700116	NUT M6 HEX FLG NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23111K37CA	REINF CTR TNL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33611D38BA	Bracket Assembly, Front Seat Belt Retainer, RH	Enquire	To Order
	6G33611D39BA	Bracket Assembly, Front Seat Belt Retainer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703142	Bolt, M8 x 38, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L243A70AA	Alignment Pin, Main Bearing Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	G06G33L53948AE	Bracket, act pivot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	Enquire	To Order
	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L46302AC	Actuator, tonneau, reinf body, RH	Enquire	To Order
	6G33L46303AC	TONNEAU ACTUATOR REINFORCEMENT BODY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703141	SCREW M8 x 16 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L14C445AF	FUSEBOX VAC FORM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L41400AB	FUSEBOX VAC FORM GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703754	RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339N172AE	ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP	Enquire	To Order
	ED239N172BA	ASSY PNL FU/TNK COM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702509	STUD M8x23 + M6x14 HEX FLANGE PILOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339A032AE	Heatshield, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703754	RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33N17K902AF	Bracket, bump stop, RH	Enquire	To Order
	6G33N17K903AF	Bracket, bump stop, LH	Enquire	To Order
	6G33N17K902AF	Bracket, bump stop, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3358500W04AB	Grommet, Drain Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L82844AB	REAR QUARTER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699094	Clip, Hose, Spring Loaded, 16-25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L80840AD	Drain Plug, Rear Quarter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG33L21327AA	ROOF STOWAGE COVER FRONT	Enquire	To Order
	6G33L21327BB	ROOF STOWAGE COVER FRONT NON-MMM	Enquire	To Order
	6G33L21327AD	ROOF STOWAGE COVER FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L43218AE	TONNEAU LATCH BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L111C98AB	NUTPLATE M8 ROPS MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33L17C857AA	SHIELD REAR BUMPER OPENING	Enquire	To Order
	6G33L17C857AE	SHIELD REAR BUMPER OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703141	SCREW M8 x 16 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33L11270BA	REINF FLR PAN FRT	Enquire	To Order
	BG33L11270BA	REINF FLR PAN FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L20412AD	Reinforcement, door, RH, body	Enquire	To Order
	6G33L20413AD	REINF DR OPG FRT CTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310120AA	MEMBER FLOOR SIDE FRONT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G33V17N800BA	BUMPER FR CRUSH CAN	6G33V17N800BA BUMPER FR CRUSH CAN	-	2	Enquire
2	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	14	Enquire
3	6G336367912AB	Nutplate Assy, Crush Can, Lower, RH	6G336367912AB Nutplate Assy, Crush Can, Lower, RH	-	2	Enquire
3	6G336367913AB	Nutplate Assy, Crush Can, Lower, LH	6G336367913AB Nutplate Assy, Crush Can, Lower, LH	-	2	Enquire
4	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	-	4	Enquire
5	4G43108A86AE	BRACKET FRONT CROSS BRACE RH	4G43108A86AE BRACKET FRONT CROSS BRACE RH	-	1	Enquire
5	4G43108A87AE	BRACKET FRONT CROSS BRACE LH	4G43108A87AE BRACKET FRONT CROSS BRACE LH	-	1	Enquire
6	6G33108A75AB	BRACE FRONT CROSS	6G33108A75AB BRACE FRONT CROSS	-	1	Enquire
7	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive	-	12	Enquire
8	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH Order in pairs	-	1	Enquire
9	GOAG43F00199AA	Reinforcement, Body Front Cross Bar, LH	GOAG43F00199AA Reinforcement, Body Front Cross Bar, LH Order in pairs	-	1	Enquire
10	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10)	-	4	Enquire
11	6G335340BA	Bracket, ECU Mounting, RH	6G335340BA Bracket, ECU Mounting, RH	-	1	Enquire
11	6G335341BA	Bracket, ECU Mounting, LH	6G335341BA Bracket, ECU Mounting, LH	-	1	Enquire
12	6G3316798BA	BRACKET HOOD HINGE SUPPORT RIGHT HAND	6G3316798BA BRACKET HOOD HINGE SUPPORT RIGHT HAND	-	1	Enquire
12	6G3316799BA	BRACKET HOOD HINGE SUPPORT LEFT HAND	6G3316799BA BRACKET HOOD HINGE SUPPORT LEFT HAND	-	1	Enquire
13	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	12	Enquire
14	4G43061B70AB	Cap, dust cover	4G43061B70AB Cap, dust cover -08MY	-	2	Enquire
14	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER	-	2	Enquire
15	4G4316740AA	PAD - HOOD ON COWL	4G4316740AA PAD - HOOD ON COWL	-	2	Enquire
16	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD	-	1	Enquire
16	9G43111C60AD	Panel, dummy, front floor, LHD	9G43111C60AD Panel, dummy, front floor, LHD	-	1	Enquire
17	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front	-	1	Enquire
18	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	6	Enquire
19	700116	NUT M6 HEX FLG NYLOC	700116 NUT M6 HEX FLG NYLOC	-	2	Enquire
20	AD23111K37CA	REINF CTR TNL	AD23111K37CA REINF CTR TNL	-	1	Enquire
21	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	8	Enquire
22	6G33611D38BA	Bracket Assembly, Front Seat Belt Retainer, RH	6G33611D38BA Bracket Assembly, Front Seat Belt Retainer, RH	-	1	Enquire
22	6G33611D39BA	Bracket Assembly, Front Seat Belt Retainer, LH	6G33611D39BA Bracket Assembly, Front Seat Belt Retainer, LH	-	1	Enquire
23	703142	Bolt, M8 x 38, Hex Flange Head	703142 Bolt, M8 x 38, Hex Flange Head	-	8	Enquire
24	4G43L243A70AA	Alignment Pin, Main Bearing Bracket	4G43L243A70AA Alignment Pin, Main Bearing Bracket	-	2	Enquire
25	G06G33L53948AE	Bracket, act pivot	G06G33L53948AE Bracket, act pivot -Includes ball stud (item 23, page 011702-D3)	-	2	Enquire
26	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER	-	2	Enquire
27	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH	-	1	Enquire
27	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH	-	1	Enquire
28	6G33L46302AC	Actuator, tonneau, reinf body, RH	6G33L46302AC Actuator, tonneau, reinf body, RH	-	1	Enquire
28	6G33L46303AC	TONNEAU ACTUATOR REINFORCEMENT BODY LH	6G33L46303AC TONNEAU ACTUATOR REINFORCEMENT BODY LH	-	1	Enquire
29	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE	-	2	Enquire
30	6G33L14C445AF	FUSEBOX VAC FORM	6G33L14C445AF FUSEBOX VAC FORM	-	1	Enquire
31	6G33L41400AB	FUSEBOX VAC FORM GASKET	6G33L41400AB FUSEBOX VAC FORM GASKET NSS Pt of item 30	-	1	Enquire
32	703754	RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL	703754 RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL	-	4	Enquire
33	6G339N172AE	ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP	6G339N172AE ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP 10.5MY	-	1	Enquire
33	ED239N172BA	ASSY PNL FU/TNK COM	ED239N172BA ASSY PNL FU/TNK COM	-	1	Enquire
34	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14	-	2	Enquire
35	702509	STUD M8x23 + M6x14 HEX FLANGE PILOT	702509 STUD M8x23 + M6x14 HEX FLANGE PILOT	-	4	Enquire
36	6G339A032AE	Heatshield, fuel tank	6G339A032AE Heatshield, fuel tank	-	1	Enquire
37	703754	RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL	703754 RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL	-	5	Enquire
38	6G33N17K902AF	Bracket, bump stop, RH	6G33N17K902AF Bracket, bump stop, RH 09MY	-	1	Enquire
38	6G33N17K903AF	Bracket, bump stop, LH	6G33N17K903AF Bracket, bump stop, LH 09MY	-	1	Enquire
38	6G33N17K902AF	Bracket, bump stop, RH	6G33N17K902AF Bracket, bump stop, RH	-	1	Enquire
38	6G33N17K903AF	Bracket, bump stop, LH	6G33N17K903AF Bracket, bump stop, LH	-	1	Enquire
39	6G3358500W04AB	Grommet, Drain Hose	6G3358500W04AB Grommet, Drain Hose	-	2	Enquire
40	6G33L82844AB	REAR QUARTER DRAIN PIPE	6G33L82844AB REAR QUARTER DRAIN PIPE	-	2	Enquire
41	699094	Clip, Hose, Spring Loaded, 16-25	699094 Clip, Hose, Spring Loaded, 16-25	-	2	Enquire
42	6G33L80840AD	Drain Plug, Rear Quarter	6G33L80840AD Drain Plug, Rear Quarter	-	2	Enquire
43	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER	-	2	Enquire
44	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top	-	2	Enquire
45	702994	Nut, M6, Hex Head Thin	702994 Nut, M6, Hex Head Thin	-	2	Enquire
46	CG33L21327AA	ROOF STOWAGE COVER FRONT	CG33L21327AA ROOF STOWAGE COVER FRONT 12MY	-	1	Enquire
46	6G33L21327BB	ROOF STOWAGE COVER FRONT NON-MMM	6G33L21327BB ROOF STOWAGE COVER FRONT NON-MMM	-	1	Enquire
46	6G33L21327AD	ROOF STOWAGE COVER FRONT	6G33L21327AD ROOF STOWAGE COVER FRONT	-	1	Enquire
47	6G333633038AB	CONICAL BUMP STOP M6x20	6G333633038AB CONICAL BUMP STOP M6x20	-	2	Enquire
48	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	2	Enquire
49	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
50	6G33L43218AE	TONNEAU LATCH BRACKET LH	6G33L43218AE TONNEAU LATCH BRACKET LH	-	2	Enquire
51	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	8	Enquire
52	6G33L111C98AB	NUTPLATE M8 ROPS MOUNTING	6G33L111C98AB NUTPLATE M8 ROPS MOUNTING	-	6	Enquire
53	BG33L17C857AA	SHIELD REAR BUMPER OPENING	BG33L17C857AA SHIELD REAR BUMPER OPENING 11MY	-	1	Enquire
53	6G33L17C857AE	SHIELD REAR BUMPER OPENING	6G33L17C857AE SHIELD REAR BUMPER OPENING	-	1	Enquire
54	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE	-	-	Enquire
55	BG33L11270BA	REINF FLR PAN FRT	BG33L11270BA REINF FLR PAN FRT 08MY	-	1	Enquire
55	BG33L11270BA	REINF FLR PAN FRT	BG33L11270BA REINF FLR PAN FRT 09MY	-	1	Enquire
56	6G33L20412AD	Reinforcement, door, RH, body	6G33L20412AD Reinforcement, door, RH, body Structural Cat. A only	-	1	Enquire
56	6G33L20413AD	REINF DR OPG FRT CTR LH	6G33L20413AD REINF DR OPG FRT CTR LH Structural Cat. A only	-	1	Enquire
57	AG3310120AA	MEMBER FLOOR SIDE FRONT	AG3310120AA MEMBER FLOOR SIDE FRONT Structural Cat. A only	-	2	Enquire
