Body Side Quarter Trim and Ornamentation (Roadster) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

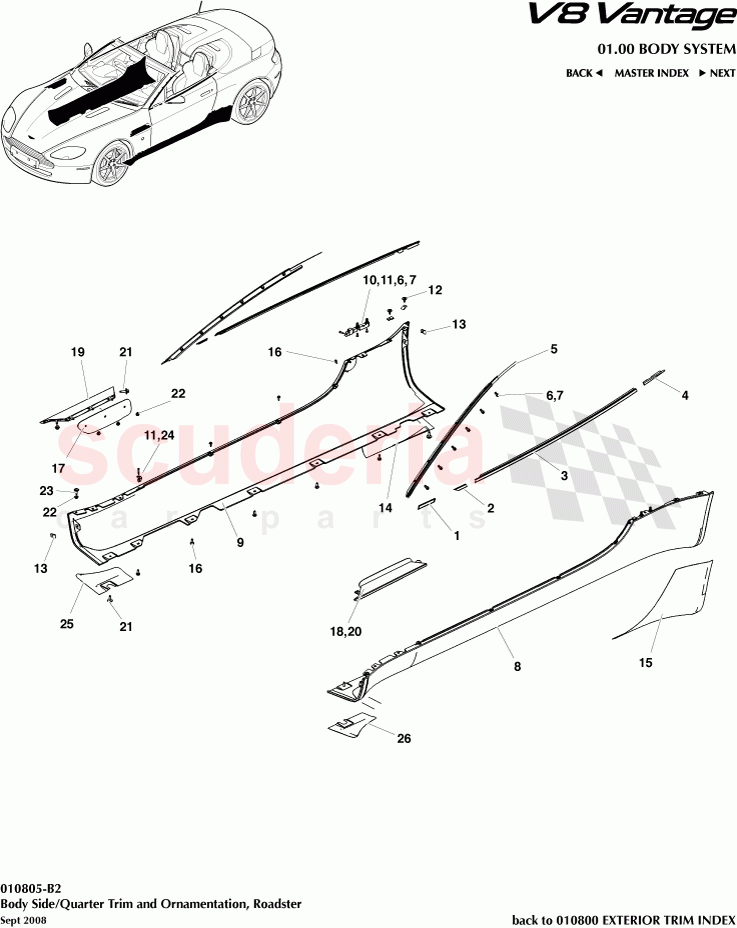

Aston Martin V8 Vantage (upto 2016) - Body Side Quarter Trim and Ornamentation (Roadster)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3320567CA	FINISHER, MIRROR WAIST, FRONT DOOR OUTER, FRONT, LH	Enquire	To Order
	6G3320566CA	FIN MIR WST FRT DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320565CB	FIN MIR WST FRT DR	Enquire	To Order
	6G3320564CB	FIN MIR WST FRT DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320563CA	DOOR WAIST SEAL OTR	Enquire	To Order
	6G3320562CA	DOOR WAIST SEAL OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G331228497CA	SCLP RR QTR GLS SL L	Enquire	To Order
	6G331228496BC	FINISHER SCALP REAR QTR GLASS SEAL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33L519A37CA	RF FNSHR SD GLSS LH	Enquire	To Order
	6G33L519A36CA	RF FNSHR SD GLSS RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756BB	M5 HEX CLOSED RIVNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3310609AC	SILL PANEL LH	Enquire	To Order
	6G3310609AK	SILL PANEL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3310608AC	SILL PANEL RH	Enquire	To Order
	6G3310608AK	SILL PANEL RH	Enquire	To Order
	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699123	Screw, No.6 x 9.5 Countersunk Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310624AD	SILL REAR TAPE	Enquire	To Order
	6G3310624AD	SILL REAR TAPE	Enquire	To Order
	8G3310624BB	SILL REAR TAPE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310625AD	SILL REAR TAPE	Enquire	To Order
	6G3310625AD	SILL REAR TAPE	Enquire	To Order
	8G3310625BB	SILL REAR TAPE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701567	Screw, M6 x 16	Enquire	To Order
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23280B83AA	MESH SIDE STRAKE RH BLACK	Enquire	To Order
	6G33280B83AA	MESH SIDE STRAKE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23280B84AA	MESH SIDE STRAKE LH BLACK	Enquire	To Order
	6G33280B84AA	Mesh Side Strake LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337810530	SIDE STRAKE KIT-C/FB	Enquire	To Order
	6G33280B62AE	SIDE STRAKE FNDR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337810530	SIDE STRAKE KIT-C/FB	Enquire	To Order
	6G33280B63AE	SIDE STRAKE FNDR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310614AA	SILL APPLIQUE BRACKET FRONT RIGHT HAND	Enquire	To Order
	6G3310615AA	SILL APPLIQUE BRACKET FRONT LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310626AA	SILL FRT LWR TAPE HELICOPTER RH 147 X 187MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310628AC	Helicopter Tape	Enquire	To Order
	6G3310629AC	Helicopter Tape	Enquire	To Order
	6G33L10630AB	TONNEAU PNL PPF	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G3320567CA	FINISHER, MIRROR WAIST, FRONT DOOR OUTER, FRONT, LH	6G3320567CA FINISHER, MIRROR WAIST, FRONT DOOR OUTER, FRONT, LH Bright stainless	-	1	Enquire
1	6G3320566CA	FIN MIR WST FRT DR	6G3320566CA FIN MIR WST FRT DR Bright stainless	-	1	Enquire
2	6G3320565CB	FIN MIR WST FRT DR	6G3320565CB FIN MIR WST FRT DR Bright stainless	-	1	Enquire
2	6G3320564CB	FIN MIR WST FRT DR	6G3320564CB FIN MIR WST FRT DR Bright stainless	-	1	Enquire
3	6G3320563CA	DOOR WAIST SEAL OTR	6G3320563CA DOOR WAIST SEAL OTR Bright stainless	-	1	Enquire
3	6G3320562CA	DOOR WAIST SEAL OUTER	6G3320562CA DOOR WAIST SEAL OUTER Bright stainless	-	1	Enquire
4	6G331228497CA	SCLP RR QTR GLS SL L	6G331228497CA SCLP RR QTR GLS SL L	-	1	Enquire
4	6G331228496BC	FINISHER SCALP REAR QTR GLASS SEAL RH	6G331228496BC FINISHER SCALP REAR QTR GLASS SEAL RH	-	1	Enquire
5	6G33L519A37CA	RF FNSHR SD GLSS LH	6G33L519A37CA RF FNSHR SD GLSS LH	-	1	Enquire
5	6G33L519A36CA	RF FNSHR SD GLSS RH	6G33L519A36CA RF FNSHR SD GLSS RH	-	1	Enquire
6	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10)	-	16	Enquire
7	6G3351756BB	M5 HEX CLOSED RIVNUT	6G3351756BB M5 HEX CLOSED RIVNUT	-	16	Enquire
8	8G3310609AC	SILL PANEL LH	8G3310609AC SILL PANEL LH N400	-	1	Enquire
8	6G3310609AK	SILL PANEL LH	6G3310609AK SILL PANEL LH	-	1	Enquire
9	8G3310608AC	SILL PANEL RH	8G3310608AC SILL PANEL RH N400	-	1	Enquire
9	6G3310608AK	SILL PANEL RH	6G3310608AK SILL PANEL RH	-	1	Enquire
9	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	-	2	Enquire
10	6G3310610AC	Bracket, Sill Applique, RH	6G3310610AC Bracket, Sill Applique, RH	-	1	Enquire
10	6G3310611AC	Bracket, Sill Applique, LH	6G3310611AC Bracket, Sill Applique, LH	-	1	Enquire
11	699123	Screw, No.6 x 9.5 Countersunk Head	699123 Screw, No.6 x 9.5 Countersunk Head	-	2	Enquire
12	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	4	Enquire
13	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10)	-	8	Enquire
14	6G3310624AD	SILL REAR TAPE	6G3310624AD SILL REAR TAPE Up to (V)	-	1	Enquire
14	6G3310624AD	SILL REAR TAPE	6G3310624AD SILL REAR TAPE From (V)	-	1	Enquire
14	8G3310624BB	SILL REAR TAPE RH	8G3310624BB SILL REAR TAPE RH N400	-	1	Enquire
15	6G3310625AD	SILL REAR TAPE	6G3310625AD SILL REAR TAPE Up to (V)	-	1	Enquire
15	6G3310625AD	SILL REAR TAPE	6G3310625AD SILL REAR TAPE From (V)	-	1	Enquire
15	8G3310625BB	SILL REAR TAPE LH	8G3310625BB SILL REAR TAPE LH N400	-	1	Enquire
16	701567	Screw, M6 x 16	701567 Screw, M6 x 16	-	18	Enquire
16	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	6	Enquire
17	AD23280B83AA	MESH SIDE STRAKE RH BLACK	AD23280B83AA MESH SIDE STRAKE RH BLACK -N420	-	1	Enquire
17	6G33280B83AA	MESH SIDE STRAKE RH	6G33280B83AA MESH SIDE STRAKE RH	-	1	Enquire
18	AD23280B84AA	MESH SIDE STRAKE LH BLACK	AD23280B84AA MESH SIDE STRAKE LH BLACK -N420	-	1	Enquire
18	6G33280B84AA	Mesh Side Strake LH	6G33280B84AA Mesh Side Strake LH	-	1	Enquire
19	6G337810530	SIDE STRAKE KIT-C/FB	6G337810530 SIDE STRAKE KIT-C/FB Carbon Black edition, Carbon fibre-N420, Carbon Edition	-	1	Enquire
19	6G33280B62AE	SIDE STRAKE FNDR RH	6G33280B62AE SIDE STRAKE FNDR RH	-	1	Enquire
20	6G337810530	SIDE STRAKE KIT-C/FB	6G337810530 SIDE STRAKE KIT-C/FB Carbon Black edition, Carbon fibre-N420, Carbon Edition	-	1	Enquire
20	6G33280B63AE	SIDE STRAKE FNDR LH	6G33280B63AE SIDE STRAKE FNDR LH	-	1	Enquire
21	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	2	Enquire
22	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	10	Enquire
23	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	-	2	Enquire
24	6G3310614AA	SILL APPLIQUE BRACKET FRONT RIGHT HAND	6G3310614AA SILL APPLIQUE BRACKET FRONT RIGHT HAND	-	1	Enquire
24	6G3310615AA	SILL APPLIQUE BRACKET FRONT LEFT HAND	6G3310615AA SILL APPLIQUE BRACKET FRONT LEFT HAND	-	1	Enquire
25	6G3310626AA	SILL FRT LWR TAPE HELICOPTER RH 147 X 187MM	6G3310626AA SILL FRT LWR TAPE HELICOPTER RH 147 X 187MM	-	1	Enquire
26	6G3310628AC	Helicopter Tape	6G3310628AC Helicopter Tape	-	1	Enquire
26	6G3310629AC	Helicopter Tape	6G3310629AC Helicopter Tape	-	1	Enquire
26	6G33L10630AB	TONNEAU PNL PPF	6G33L10630AB TONNEAU PNL PPF	-	1	Enquire
26	6G3310627AA	SILL FRT LWR TAPE HELICOPTER LH 147 x 187mm	6G3310627AA SILL FRT LWR TAPE HELICOPTER LH 147 x 187mm	-	1	Enquire
