Lock Set and Keys (RHD)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Lock Set and Keys (RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G33F21990ABN DR LOCK RH-TO NUMBER $333.47 To Order
6G33F21991ABN DR LOCK LH-TO NUMBER $333.47 To Order
Photo Part No Description Price (each) Stock
8D33654024AA/N KEY ASSY-TO NUMBER DBS Enquire To Order
8D33654024AA/B DBS KEY ASSY BLANK Enquire To Order
4G43654024AA/N KEY ASSY-TO NUMBER BLACK Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G432510226N IGN BARREL-TO NUMBER $718.15 To Order
Photo Part No Description Price (each) Stock
4G4343183AB Extended Nut, Key Cylinder Fastening $2.91 To Order
View All

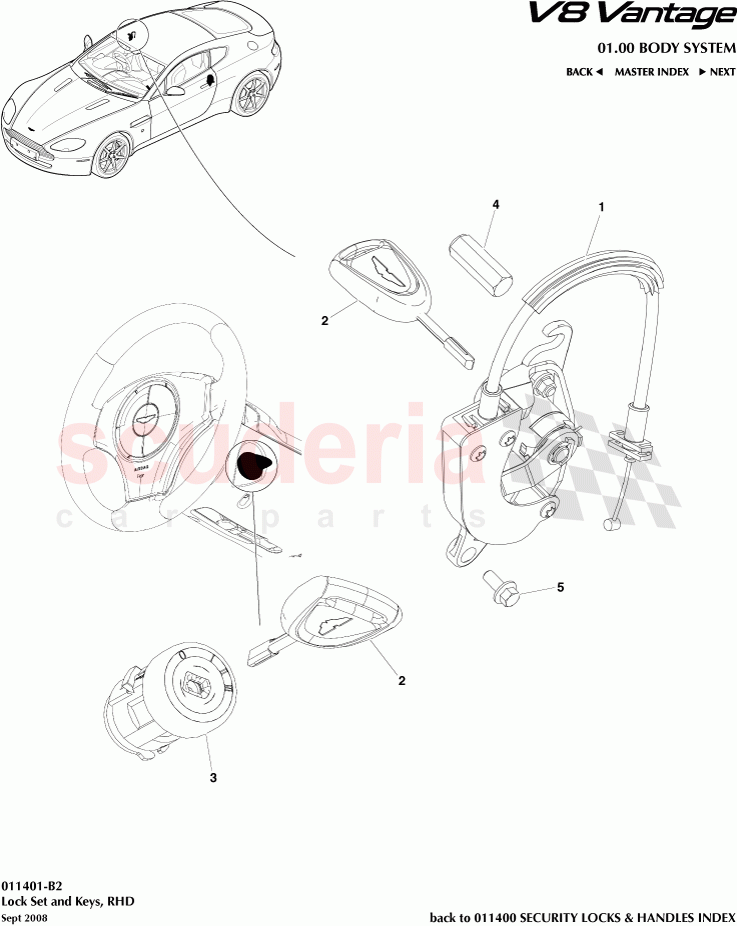

Lock Set and Keys (RHD) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G336510528
DR LOCK SET & 1 KEY
09MY 		$839.04 1
- 6G336510527
LOCK SET & 2 KEYS 		$1,150.35 1
1 6G33F21990ABN
DR LOCK RH-TO NUMBER 		$333.47 1
1 6G33F21991ABN
DR LOCK LH-TO NUMBER 		$333.47 1
2 8D33654024AA/N
KEY ASSY-TO NUMBER DBS
-09MY 		- 3 Enquire
2 8D33654024AA/B
DBS KEY ASSY BLANK
-09MY 		- 3 Enquire
2 4G43654024AA/N
KEY ASSY-TO NUMBER BLACK 		- 3 Enquire
2 4G43654024AAN
KEY ASSY-TO NUMBR 		$209.22 3
2 4G43654024AA/B
KEY ASSY-BLANK 		- 3 Enquire
3 4G432510226N
IGN BARREL-TO NUMBER 		$718.15 1
4 4G4343183AB
Extended Nut, Key Cylinder Fastening 		$2.91 1
