Front Bumper - (V8S) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Front Bumper - (V8S)

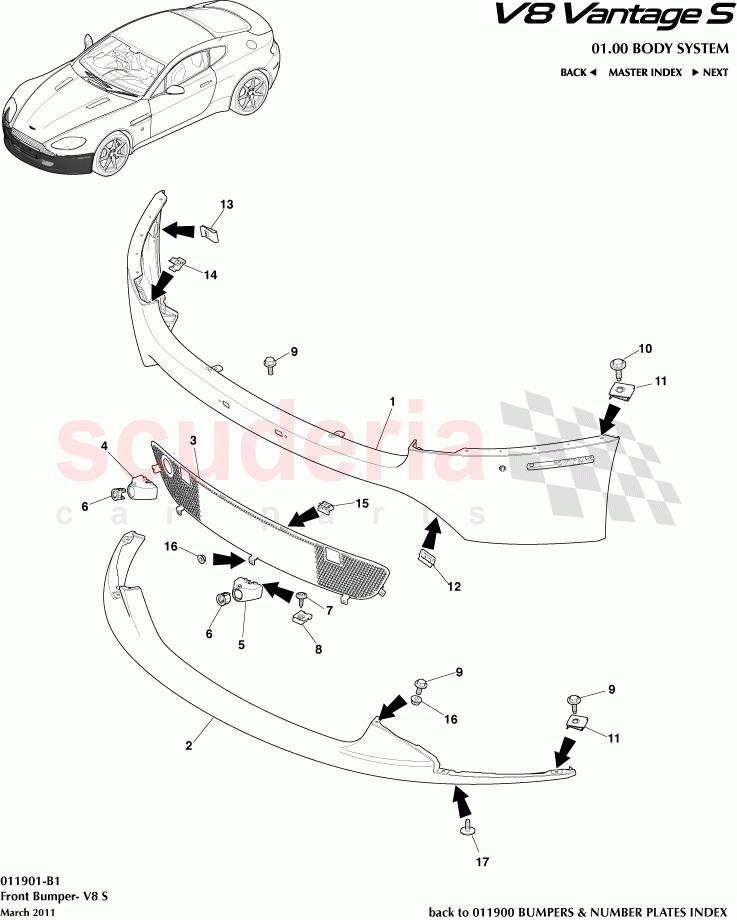

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD2317D957DF	CVR ASY FRT BUMP PDC	Enquire	To Order
	AD2317D957BF	CVR ASY FRT BUMPER	Enquire	To Order

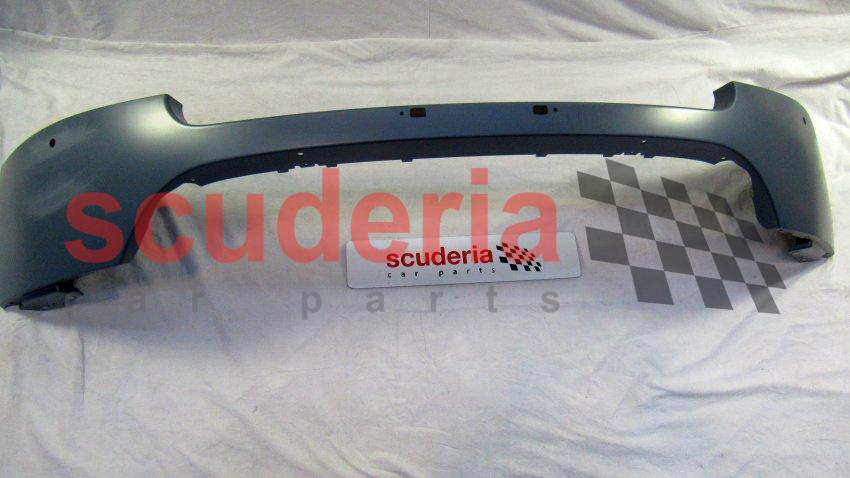

	AD2317D957CF	COVER ASSY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

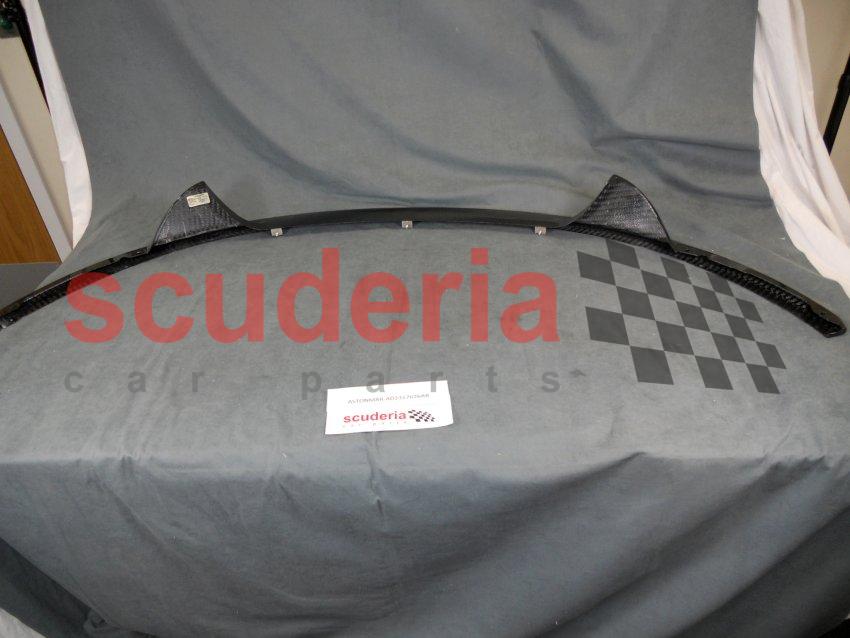

	AD2317626AB	Carbon Front Spoiler	Enquire	To Order
	CG3317626AA	Panel, front valance assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

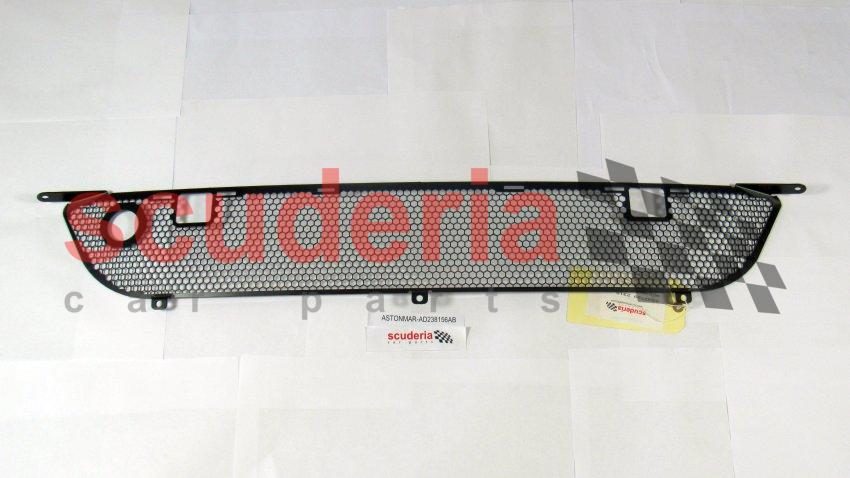

	AD238156AB	Mesh Lower Front Grille	Enquire	To Order
	AD238156BB	MESH LOWER FRONT GRILLE NON PDC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

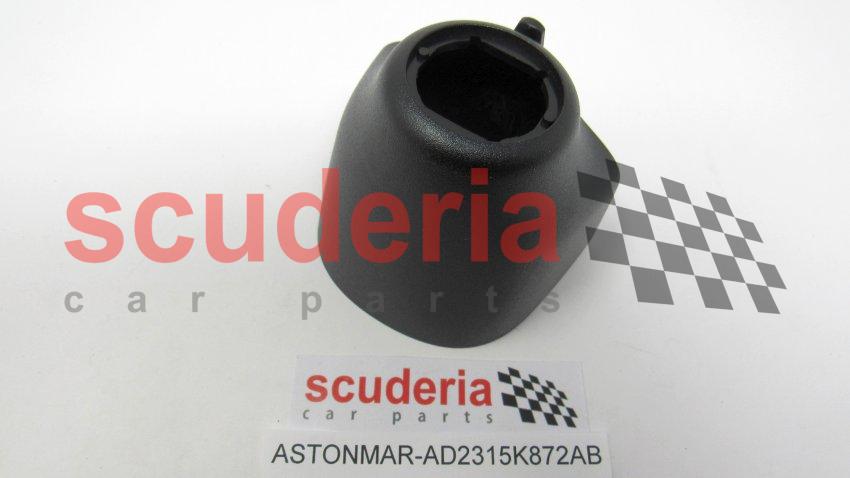

	AD2315K872AB	Brkt Park Sensor Inn	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

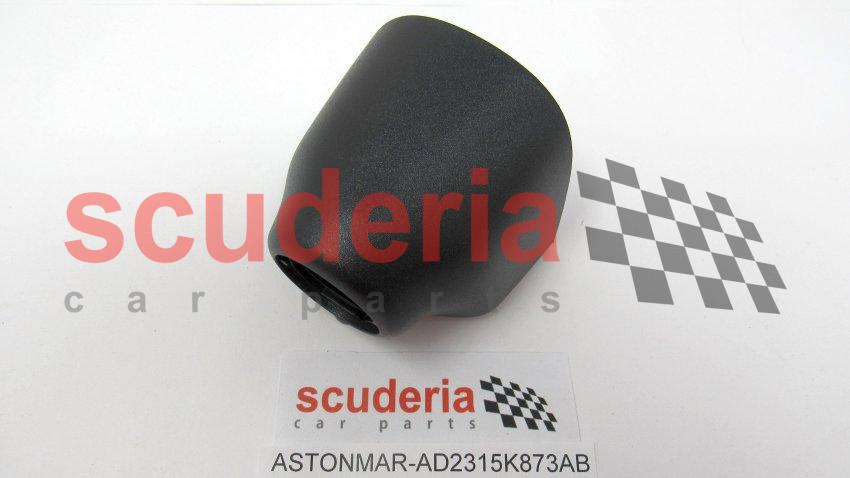

	AD2315K873AB	Brkt Park Sensor Inn	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333710004	Bracket, Park Aid Sensor Inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

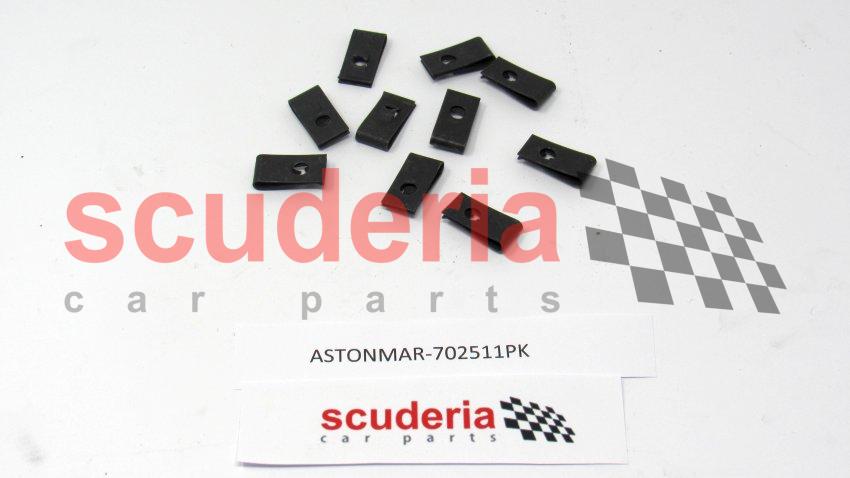

	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2317627AC	FRONT SPLITTER LOWER TAPE RH	Enquire	To Order
	AD2317628AC	FRONT SPLITTER LOWER TAPE LH	Enquire	To Order
	702514	SCREW M6 x 14 PAN HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD2317D957DF	CVR ASY FRT BUMP PDC	AD2317D957DF CVR ASY FRT BUMP PDC Federal, V8S/12, 25MY	-	1	Enquire
1	AD2317D957BF	CVR ASY FRT BUMPER	AD2317D957BF CVR ASY FRT BUMPER Federal, V8S/12, 25MY	-	1	Enquire
1	AD2317D957CF	COVER ASSY	AD2317D957CF COVER ASSY ROW, V8S/12, 25MY	-	1	Enquire

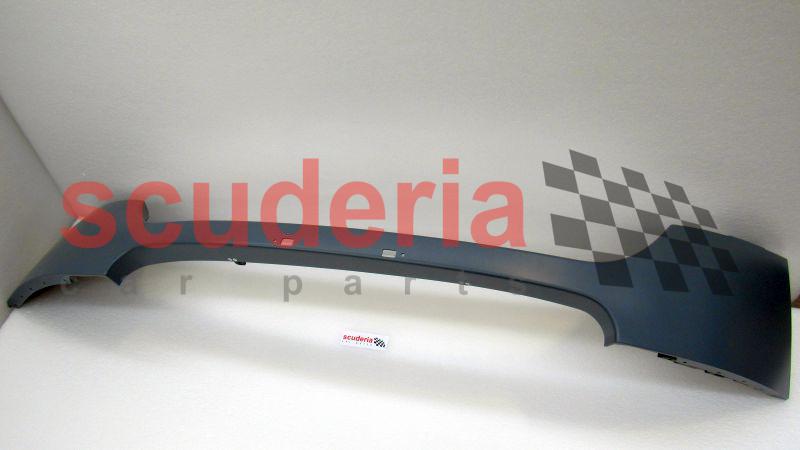

1	AD2317D957AG	COVER ASSY	AD2317D957AG COVER ASSY ROW, V8S/12, 25MY	-	1	Enquire
2	AD2317626AB	Carbon Front Spoiler	AD2317626AB Carbon Front Spoiler V8S/ 12.25MY Carbon Edition	-	1	Enquire
2	CG3317626AA	Panel, front valance assy	CG3317626AA Panel, front valance assy 12.25MY	-	1	Enquire
3	AD238156AB	Mesh Lower Front Grille	AD238156AB Mesh Lower Front Grille V8S/ 12.25MY	-	1	Enquire
3	AD238156BB	MESH LOWER FRONT GRILLE NON PDC	AD238156BB MESH LOWER FRONT GRILLE NON PDC V8S/ 12.25MY	-	1	Enquire
4	AD2315K872AB	Brkt Park Sensor Inn	AD2315K872AB Brkt Park Sensor Inn V8S/ 12.25MY	-	1	Enquire
5	AD2315K873AB	Brkt Park Sensor Inn	AD2315K873AB Brkt Park Sensor Inn V8S/ 12.25MY	-	1	Enquire
6	8D333710004	Bracket, Park Aid Sensor Inner	8D333710004 Bracket, Park Aid Sensor Inner	-	2	Enquire
7	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	2	Enquire
8	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	2	Enquire
9	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	8	Enquire
10	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	6	Enquire
11	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	-	13	Enquire
12	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	4G438191AAPK Clip Bumper Grille (Pack Of 10)	-	8	Enquire
13	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10)	-	6	Enquire
14	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	2	Enquire
15	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10)	-	6	Enquire
16	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	5	Enquire
17	AD2317627AC	FRONT SPLITTER LOWER TAPE RH	AD2317627AC FRONT SPLITTER LOWER TAPE RH V8S/ 12.25MY	-	1	Enquire
17	AD2317628AC	FRONT SPLITTER LOWER TAPE LH	AD2317628AC FRONT SPLITTER LOWER TAPE LH V8S/ 12.25MY	-	1	Enquire
17	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	-	8	Enquire
