Rear Bumper of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

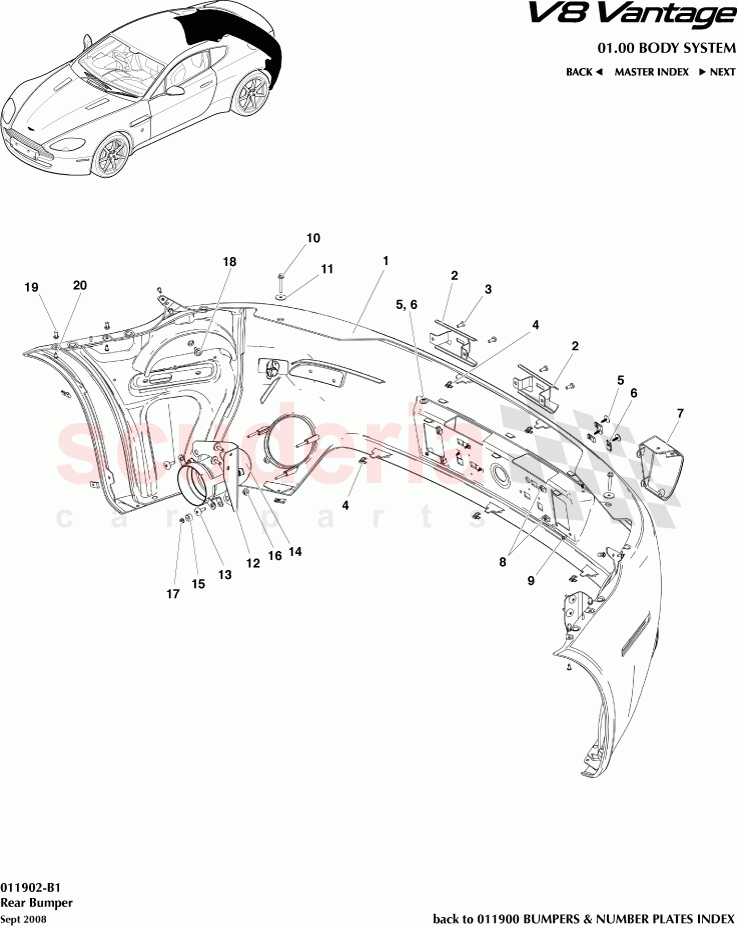

Aston Martin V8 Vantage (upto 2016) - Rear Bumper

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3317K835BL	ROW COVER ASSY REAR BUMPER	Enquire	To Order
	6G3317K835DL	FED COVER ASSY REAR BUMPER	Enquire	To Order
	6G3317K835DL	FED COVER ASSY REAR BUMPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FG3317B681AA	RR BMPR BRKT CTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702510PK	Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3317C773AC	MOULDING REAR BUMPER LH	Enquire	To Order
	6G3317C772AC	MOULDING REAR BUMPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G437210059	RET.FRT.BMP.MLDG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701440	Screw Self Tapping Washer Head 4.2 x 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N201KD	Bracket, Exhaust Trim Mounting, RH	Enquire	To Order
	6G335N202KD	Bracket, Exhaust Trim Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335K238BB	EXHAUST FINISHER ASY	Enquire	To Order
	6G335K238AC	TAIL PIPE & EMBELISHER	Enquire	To Order
	6G335K238BB	EXHAUST FINISHER ASY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756BB	M5 HEX CLOSED RIVNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G3317K835BL	ROW COVER ASSY REAR BUMPER	6G3317K835BL ROW COVER ASSY REAR BUMPER Gulf Up to 08MY	-	1	Enquire
1	6G3317K835DL	FED COVER ASSY REAR BUMPER	6G3317K835DL FED COVER ASSY REAR BUMPER Gulf From 08MY	-	1	Enquire
1	6G3317K835DL	FED COVER ASSY REAR BUMPER	6G3317K835DL FED COVER ASSY REAR BUMPER Federal	-	1	Enquire
1	6G3317K835BL	ROW COVER ASSY REAR BUMPER	6G3317K835BL ROW COVER ASSY REAR BUMPER ROW	-	1	Enquire
2	FG3317B681AA	RR BMPR BRKT CTR	FG3317B681AA RR BMPR BRKT CTR	-	1	Enquire
3	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	4	Enquire
4	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	5	Enquire
5	702510PK	Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	702510PK Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	-	8	Enquire
6	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10)	-	18	Enquire
7	6G3317C773AC	MOULDING REAR BUMPER LH	6G3317C773AC MOULDING REAR BUMPER LH	-	1	Enquire
7	6G3317C772AC	MOULDING REAR BUMPER RH	6G3317C772AC MOULDING REAR BUMPER RH	-	1	Enquire
8	6G437210059	RET.FRT.BMP.MLDG	6G437210059 RET.FRT.BMP.MLDG	-	4	Enquire
9	701440	Screw Self Tapping Washer Head 4.2 x 9.5	701440 Screw Self Tapping Washer Head 4.2 x 9.5	-	2	Enquire
10	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	-	2	Enquire
11	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	2	Enquire
12	6G335N201KD	Bracket, Exhaust Trim Mounting, RH	6G335N201KD Bracket, Exhaust Trim Mounting, RH	-	1	Enquire
12	6G335N202KD	Bracket, Exhaust Trim Mounting, LH	6G335N202KD Bracket, Exhaust Trim Mounting, LH	-	1	Enquire
13	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	8	Enquire
14	6G335K238BB	EXHAUST FINISHER ASY	6G335K238BB EXHAUST FINISHER ASY Roadster	-	2	Enquire
14	6G335K238AC	TAIL PIPE & EMBELISHER	6G335K238AC TAIL PIPE & EMBELISHER Coupe	-	2	Enquire
14	6G335K238BB	EXHAUST FINISHER ASY	6G335K238BB EXHAUST FINISHER ASY N400	-	2	Enquire
14	6G333510535	EXHAUST TAILPIPE FINISHER-CERAMIC COATED-V8 VANTAGE	6G333510535 EXHAUST TAILPIPE FINISHER-CERAMIC COATED-V8 VANTAGE N420	-	2	Enquire
15	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	-	6	Enquire
16	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	-	6	Enquire
17	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	6	Enquire
18	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	2	Enquire
19	6G3351756BB	M5 HEX CLOSED RIVNUT	6G3351756BB M5 HEX CLOSED RIVNUT	-	6	Enquire
20	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10)	-	6	Enquire
