Aston Martin V8 Vantage (upto 2016) - Body Sound Insulation (LHD) (Coupe)

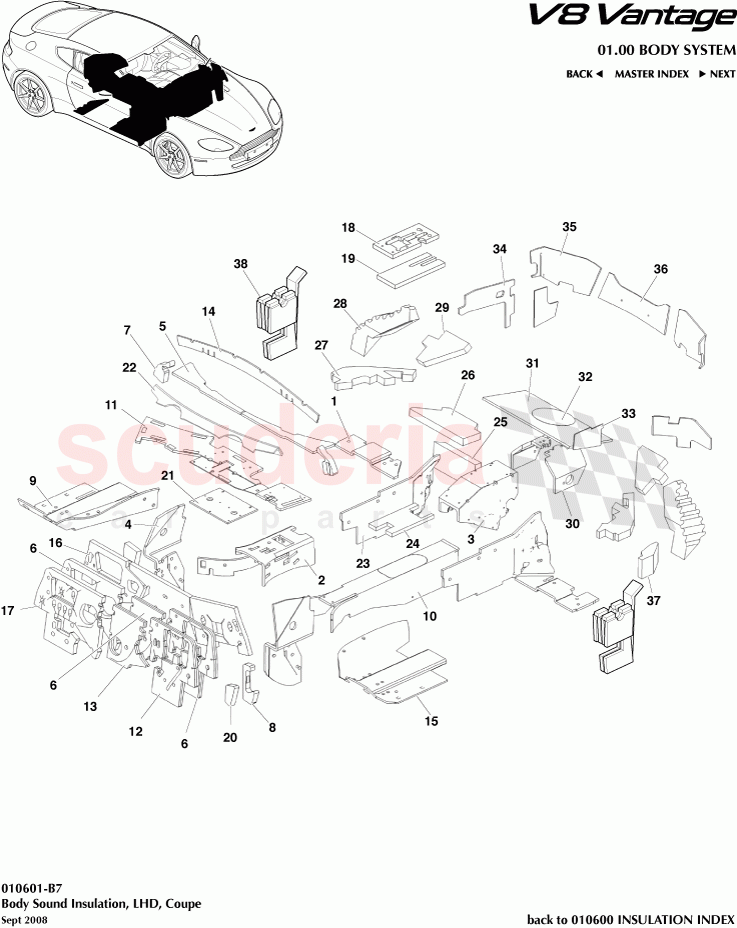

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G3311204AB	NVH, Rear Floor Pan, RH	Enquire	To Order
	6G3311204AB	REAR FLOOR PAN NVH R H	Enquire	To Order
	6G3311205AB	NVH, Rear Floor Pan, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	Enquire	To Order
	4G4311446AE	Insulation, floor, pan, gearshift cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337Z309AC	Insulation, transmission cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43310A58AB	Insulation, Body Side Front, RH	Enquire	To Order
	8G43310A57AC	Insulation, Body Side Front, LH	Enquire	To Order
	4G43310A58AC	A-PILLAR LOWER NVH RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	Enquire	To Order
	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43017B50AB	Insltn & pad, DH & cowl, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3328112AA	NVH Foam Pad Assy, Fender Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3328111AA	NVH Foam Pad Assy, Fender Lower, LH	Enquire	To Order
	6G3328110AA	NVH Foam Pad Assy, Fender Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354571AF	Baffle, Floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43114B26AF	Insulation, tunnel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HG3300152AA	INS BDY TO FR LHD	Enquire	To Order
	4G4300152AG	LHD UNDER WIPER MOTOR NVH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	Enquire	To Order
	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43021A59AA	Baffle, Body Front Panel, Centre	Enquire	To Order
	4G43021A59AD	Baffle, body, front, LHD, centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302139AB	BAFFLE COWL TOP IN END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354572AE	Baffle, Floor, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33102B00AE	INS ENG HSG SND LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43002K05AD	Insulation, panel, body front, RH, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33218060AB	NVH GEAR SHIFTER UPPER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33218061AB	NVH GEAR SHIFTER LOWER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3328121AA	NVH Foam Pad Assy, Fender Centre, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3384959AB	NVH FOAM PAD MIDDLE DASY ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	Enquire	To Order
	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	Enquire	To Order
	6G3324926AE	Insulation, tunnel, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3313082AA	NVH, Tunnel Top Arm Rest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33199229AB	NVH, Battery Compartment, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313032AB	NVH, Battery Compartment, Top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3324562AA	Pad, Centre Body Pillar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C27746AC	Insulation Rear Quarter Panel, RH	Enquire	To Order
	6G33C27747AC	Insulation Rear Quarter Panel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3331181AA	INS RR QTR NVH ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335416AD	NVH TUNNEL REAR INNER COMPARTMENT FLEECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C56157AB	Fleece, Fuel Tank Top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33405A32AA	NVH, Fuel Tank Door Cover Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3356152AA	Fleece, luggage compartment door, LH	Enquire	To Order
	6G3356151AA	Fleece, luggage compartment door, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3350106AA	LUGGAGE COMPARTMENT SIDE FLEECE RH	Enquire	To Order
	6G3350107AA	Fleece, Luggage Compartment, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F46402AB	Fleece, Rear Side, RH	Enquire	To Order
	6G33N46402AB	Fleece, Rear Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33A46402AB	Fleece, Luggage Compartment, Rear Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3331338AA	Pad, Rear Wheel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33L313A28AA	REAR QTR STUFFER NVH	Enquire	To Order
	697564	Retainer, Push On	Enquire	To Order
	697648	Fastener, Fir Tree	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G3311204AB	NVH, Rear Floor Pan, RH	8G3311204AB NVH, Rear Floor Pan, RH 08MY	-	1	Enquire
1	6G3311204AB	REAR FLOOR PAN NVH R H	6G3311204AB REAR FLOOR PAN NVH R H	-	1	Enquire
1	6G3311205AB	NVH, Rear Floor Pan, LH	6G3311205AB NVH, Rear Floor Pan, LH	-	1	Enquire
2	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	8G4311446AB Insulation, Sound, Floor Pan Gear Shift Cover 08MY	-	1	Enquire
2	4G4311446AE	Insulation, floor, pan, gearshift cover	4G4311446AE Insulation, floor, pan, gearshift cover	-	1	Enquire
3	6G337Z309AC	Insulation, transmission cover	6G337Z309AC Insulation, transmission cover	-	1	Enquire
4	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH 08MY	-	1	Enquire
4	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH 08MY	-	1	Enquire
4	4G43310A58AC	A-PILLAR LOWER NVH RH	4G43310A58AC A-PILLAR LOWER NVH RH	-	1	Enquire
4	4G43310A57AC	A-PILLAR LOWER NVH LH	4G43310A57AC A-PILLAR LOWER NVH LH	-	1	Enquire
5	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH	-	1	Enquire
5	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH	-	1	Enquire
6	4G43017B50AB	Insltn & pad, DH & cowl, LHD	4G43017B50AB Insltn & pad, DH & cowl, LHD	-	1	Enquire
7	6G3328112AA	NVH Foam Pad Assy, Fender Upper	6G3328112AA NVH Foam Pad Assy, Fender Upper	-	2	Enquire
8	6G3328111AA	NVH Foam Pad Assy, Fender Lower, LH	6G3328111AA NVH Foam Pad Assy, Fender Lower, LH	-	1	Enquire
8	6G3328110AA	NVH Foam Pad Assy, Fender Lower, RH	6G3328110AA NVH Foam Pad Assy, Fender Lower, RH	-	1	Enquire
9	4G4354571AF	Baffle, Floor, RH	4G4354571AF Baffle, Floor, RH	-	1	Enquire
10	4G43114B26AF	Insulation, tunnel	4G43114B26AF Insulation, tunnel	-	1	Enquire
11	HG3300152AA	INS BDY TO FR LHD	HG3300152AA INS BDY TO FR LHD 07MY	-	1	Enquire
11	4G4300152AG	LHD UNDER WIPER MOTOR NVH	4G4300152AG LHD UNDER WIPER MOTOR NVH	-	1	Enquire
12	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	8G43015A23AA BAFFLE BODY FRONT PANEL LHD LH 08MY	-	1	Enquire
12	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	8G43015A23AA BAFFLE BODY FRONT PANEL LHD LH	-	1	Enquire
13	8G43021A59AA	Baffle, Body Front Panel, Centre	8G43021A59AA Baffle, Body Front Panel, Centre 08MY	-	1	Enquire
13	4G43021A59AD	Baffle, body, front, LHD, centre	4G43021A59AD Baffle, body, front, LHD, centre	-	1	Enquire
14	4G4302139AB	BAFFLE COWL TOP IN END	4G4302139AB BAFFLE COWL TOP IN END	-	1	Enquire
15	4G4354572AE	Baffle, Floor, LH	4G4354572AE Baffle, Floor, LH	-	1	Enquire
16	6G33102B00AE	INS ENG HSG SND LHD	6G33102B00AE INS ENG HSG SND LHD	-	1	Enquire
17	4G43002K05AD	Insulation, panel, body front, RH, LHD	4G43002K05AD Insulation, panel, body front, RH, LHD	-	1	Enquire
18	6G33218060AB	NVH GEAR SHIFTER UPPER ASSEMBLY	6G33218060AB NVH GEAR SHIFTER UPPER ASSEMBLY	-	1	Enquire
19	6G33218061AB	NVH GEAR SHIFTER LOWER ASSEMBLY	6G33218061AB NVH GEAR SHIFTER LOWER ASSEMBLY	-	1	Enquire
20	6G3328121AA	NVH Foam Pad Assy, Fender Centre, LH	6G3328121AA NVH Foam Pad Assy, Fender Centre, LH	-	1	Enquire
21	6G3384959AB	NVH FOAM PAD MIDDLE DASY ASSEMBLY	6G3384959AB NVH FOAM PAD MIDDLE DASY ASSEMBLY	-	1	Enquire
22	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	6G3368066AC NVH DASH FOAM UNDER SIDE CAVITY ASSY	-	1	Enquire
23	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	8G3324926AB PAD TUNNEL SIDE RIGHT HAND 08MY	-	1	Enquire
23	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	8G3324927AB PAD TUNNEL SIDE LEFT HAND 08MY	-	1	Enquire
23	6G3324926AE	Insulation, tunnel, RH	6G3324926AE Insulation, tunnel, RH	-	1	Enquire
23	6G3324927AE	Insulation, tunnel, LH	6G3324927AE Insulation, tunnel, LH	-	1	Enquire
24	6G3313082AA	NVH, Tunnel Top Arm Rest	6G3313082AA NVH, Tunnel Top Arm Rest	-	1	Enquire
25	6G33199229AB	NVH, Battery Compartment, Rear	6G33199229AB NVH, Battery Compartment, Rear	-	1	Enquire
26	6G3313032AB	NVH, Battery Compartment, Top	6G3313032AB NVH, Battery Compartment, Top	-	1	Enquire
27	6G3324562AA	Pad, Centre Body Pillar	6G3324562AA Pad, Centre Body Pillar	-	2	Enquire
28	6G33C27746AC	Insulation Rear Quarter Panel, RH	6G33C27746AC Insulation Rear Quarter Panel, RH	-	1	Enquire
28	6G33C27747AC	Insulation Rear Quarter Panel, LH	6G33C27747AC Insulation Rear Quarter Panel, LH	-	1	Enquire
29	6G3331181AA	INS RR QTR NVH ASSY	6G3331181AA INS RR QTR NVH ASSY	-	2	Enquire
30	6G335416AD	NVH TUNNEL REAR INNER COMPARTMENT FLEECE	6G335416AD NVH TUNNEL REAR INNER COMPARTMENT FLEECE	-	1	Enquire
31	6G33C56157AB	Fleece, Fuel Tank Top	6G33C56157AB Fleece, Fuel Tank Top	-	1	Enquire
32	6G33405A32AA	NVH, Fuel Tank Door Cover Assembly	6G33405A32AA NVH, Fuel Tank Door Cover Assembly	-	1	Enquire
33	6G3356152AA	Fleece, luggage compartment door, LH	6G3356152AA Fleece, luggage compartment door, LH	-	1	Enquire
33	6G3356151AA	Fleece, luggage compartment door, RH	6G3356151AA Fleece, luggage compartment door, RH	-	1	Enquire
34	6G3350106AA	LUGGAGE COMPARTMENT SIDE FLEECE RH	6G3350106AA LUGGAGE COMPARTMENT SIDE FLEECE RH	-	1	Enquire
34	6G3350107AA	Fleece, Luggage Compartment, LH	6G3350107AA Fleece, Luggage Compartment, LH	-	1	Enquire
35	6G33F46402AB	Fleece, Rear Side, RH	6G33F46402AB Fleece, Rear Side, RH	-	1	Enquire
35	6G33N46402AB	Fleece, Rear Side, LH	6G33N46402AB Fleece, Rear Side, LH	-	1	Enquire
36	6G33A46402AB	Fleece, Luggage Compartment, Rear Centre	6G33A46402AB Fleece, Luggage Compartment, Rear Centre	-	1	Enquire
37	6G3331338AA	Pad, Rear Wheel	6G3331338AA Pad, Rear Wheel	-	2	Enquire
38	BG33L313A28AA	REAR QTR STUFFER NVH	BG33L313A28AA REAR QTR STUFFER NVH V8S/12.25MY ASM only	-	2	Enquire
38	697564	Retainer, Push On	697564 Retainer, Push On	-	12	Enquire
38	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree	-	15	Enquire
38	6G33WE600041AB	WASHER STAR LOCK	6G33WE600041AB WASHER STAR LOCK	-	2	Enquire
38	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic	-	9	Enquire
