Rear Frame Sub System

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Rear Frame Sub System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BG335R003AF REAR FRAME $19,538.86 To Order
BG335R003AF REAR FRAME $19,538.86 To Order
Photo Part No Description Price (each) Stock
703146 BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE $15.69 IN STOCK
Photo Part No Description Price (each) Stock
6G335F0222AA REAR SUBFRAME ASSEMBLY CROSS MEMBER $264.95 To Order
6R835A076AA Bolt, M14 x 200mm, Hex Flange Hd $22.25 To Order
View All

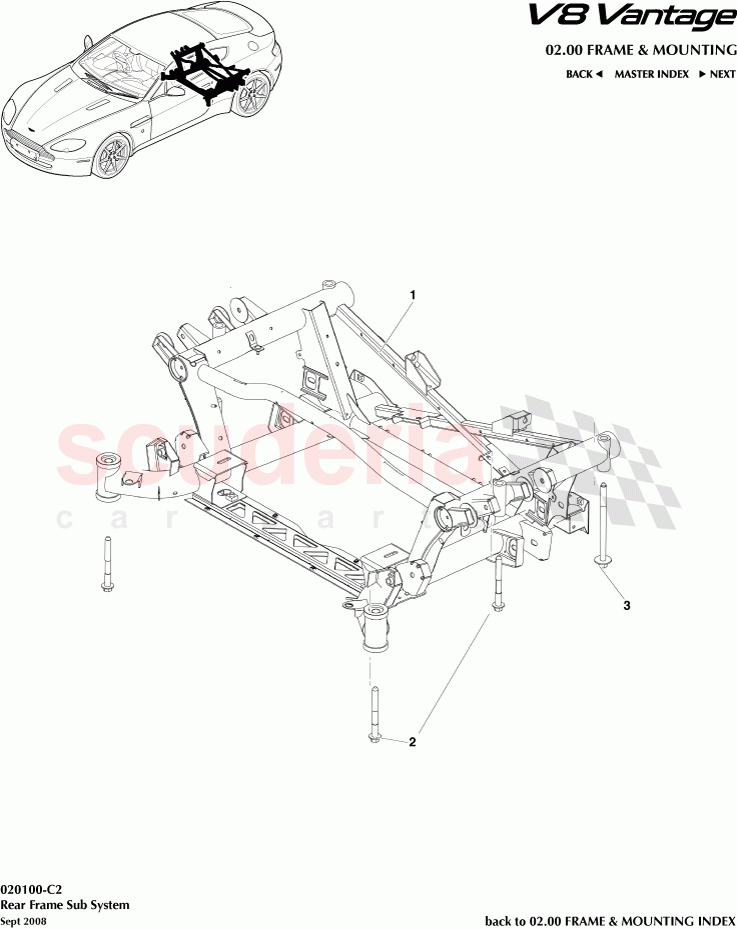

Rear Frame Sub System of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BG335R003AF
REAR FRAME
08MY From (V) D07649 		$19,538.86 1
1 BG335R003AF
REAR FRAME
Up to (V) D07648 		$19,538.86 1
2 703146
BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE
IN STOCK 		$15.69 2
3 6G335F0222AA
REAR SUBFRAME ASSEMBLY CROSS MEMBER 		$264.95 2
3 6R835A076AA
Bolt, M14 x 200mm, Hex Flange Hd 		$22.25 2
