Tailgate (Coupe)

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Tailgate (Coupe)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G3340110AA ASSY DECKLID Enquire To Order
AD2340110AA ASSY DECKLID Enquire To Order
GD2Y40110AA ASSY DECKLID Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G33200B10AA PROT PNT - BUMPSTOP DECKLID Enquire To Order
6G33N40452AB Bump Stop Assembly, Deck Lid Enquire To Order
Photo Part No Description Price (each) Stock
6G33C42701AH TAILGATE HINGE LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33C42700AH TAILGATE HINGE RH Enquire To Order
Photo Part No Description Price (each) Stock
HD43711387AA BOLT-M8x25.5 PN TITE SPL8 Enquire To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 Enquire To Order
Photo Part No Description Price (each) Stock

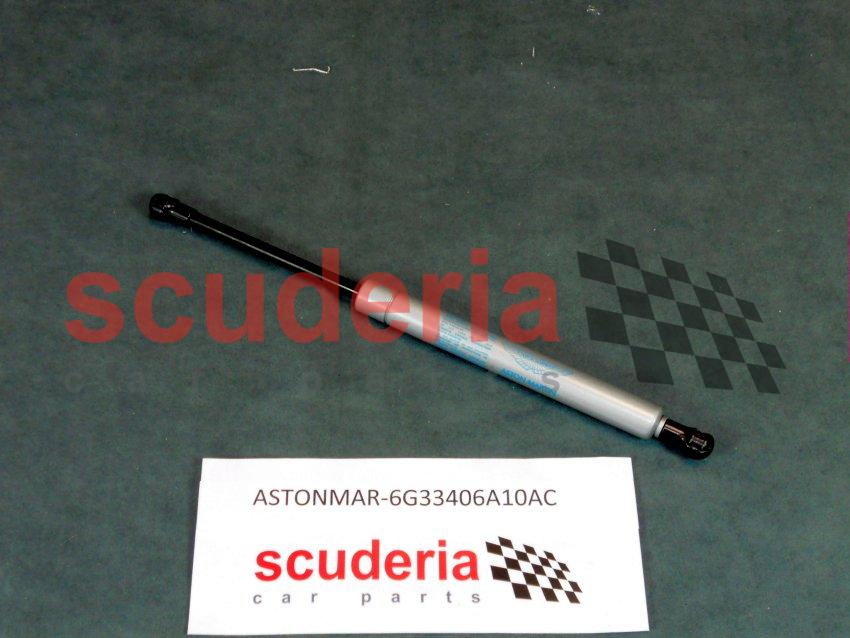

6G33406A10AC Gas Strut Trunk Enquire To Order
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud Enquire To Order
View All

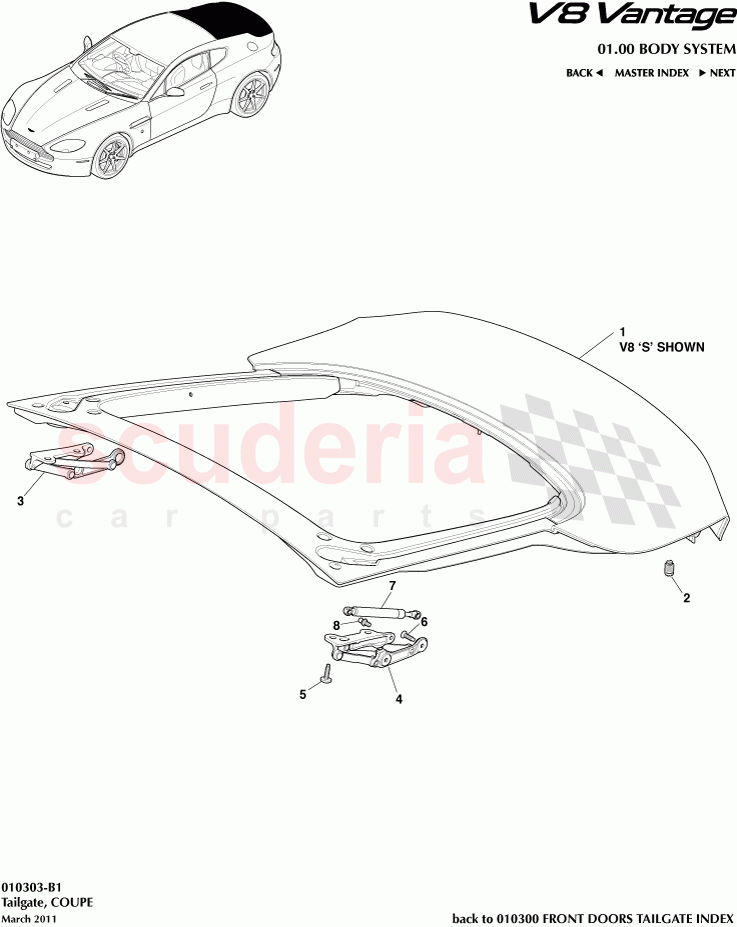

Tailgate (Coupe) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G3340110AA
ASSY DECKLID
V8 Up To VIN C16310 		- 1 Enquire
1 AD2340110AA
ASSY DECKLID
V8S Up To VIN C16310, All From D16311 		- 1 Enquire
1 GD2Y40110AA
ASSY DECKLID
GT8, Aluminium, With Rear Wing 		- 1 Enquire
1 GD2Y40110BA
ASSY DECKLID GLSS LA
GT8, Gloss Carbon, With Rear Wing 		- 1 Enquire
2 6G33200B10AA
PROT PNT - BUMPSTOP DECKLID 		- 2 Enquire
2 6G33N40452AB
Bump Stop Assembly, Deck Lid 		- 2 Enquire
3 6G33C42701AH
TAILGATE HINGE LH 		- 1 Enquire
4 6G33C42700AH
TAILGATE HINGE RH 		- 1 Enquire
5 HD43711387AA
BOLT-M8x25.5 PN TITE SPL8 		- 4 Enquire
6 703268
Screw and Washer, M8 x 21 		- 6 Enquire
7 6G33406A10AC
Gas Strut Trunk 		- 2 Enquire
8 1R12640101AA
Ball Stud 		- 4 Enquire
9 DG3319H207AA
ANTI-SQUEAK TAPE LH
Not Illustrated 		- 1 Enquire
9 DG3319H207BA
ANTI-SQUEAK TAPE RH
Not Illustrated 		- 1 Enquire

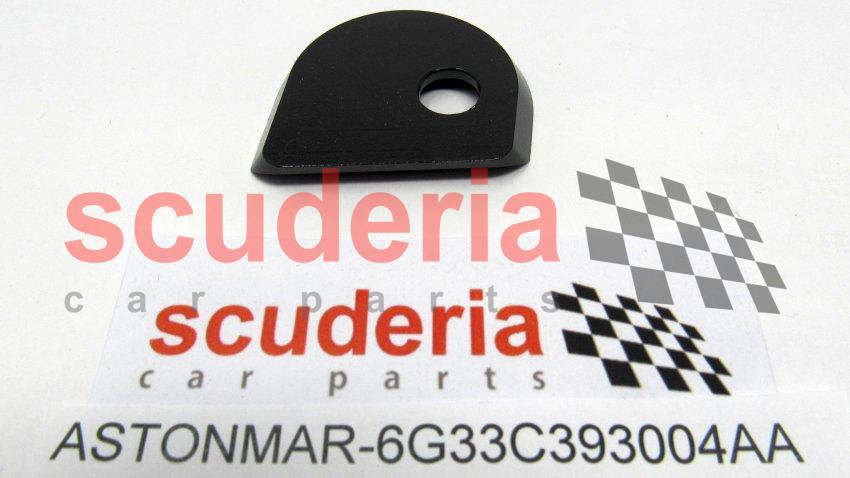

9 6G33C393004AA
Ball Stud Mount Clamp Plate RH 		- 1 Enquire

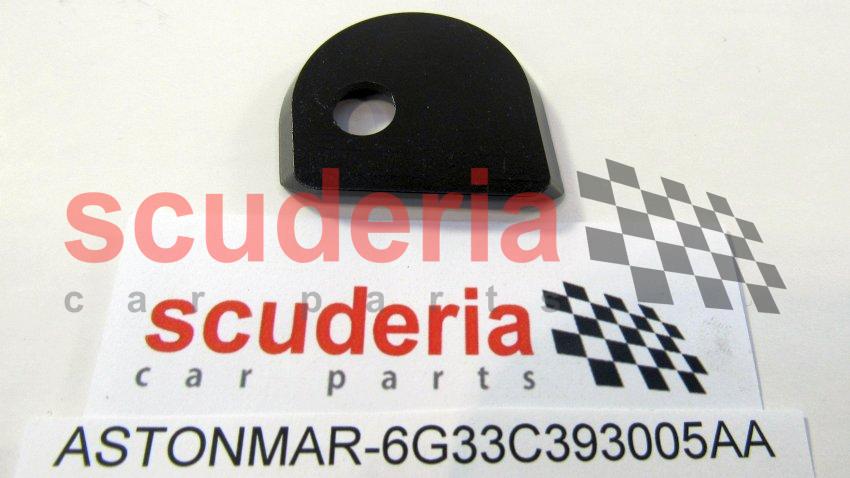

9 6G33C393005AA
Ball Stud Mount Clamp Plate LH 		- 1 Enquire
