Grille Opening Panel

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

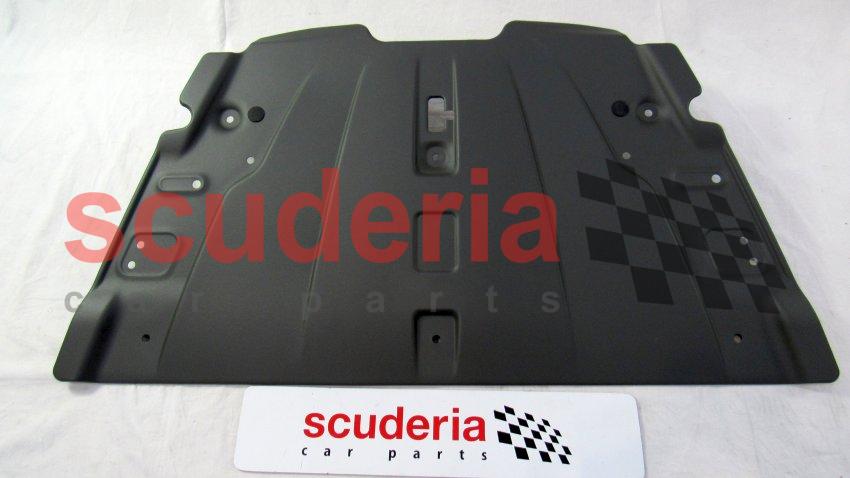

6G338136BA Cover Engine Bay Centre Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock

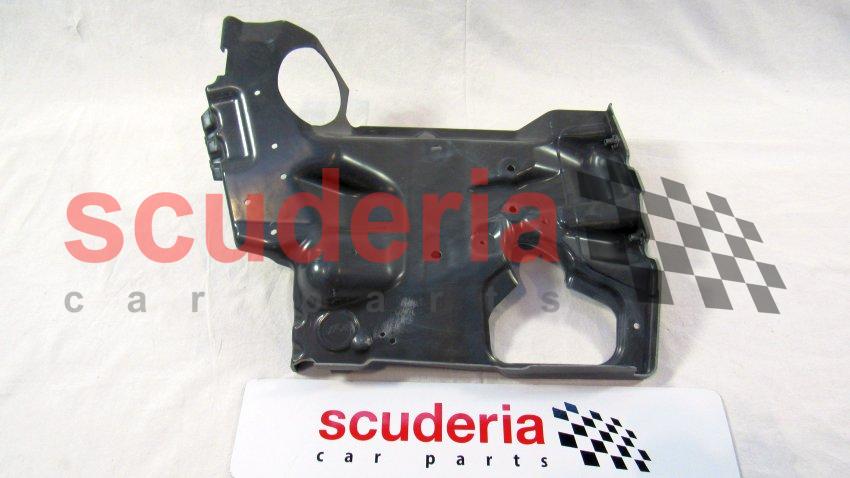

9G33F01991AC PANEL VENT LH Enquire To Order
9G33F01991AC PANEL VENT LH Enquire To Order
Photo Part No Description Price (each) Stock

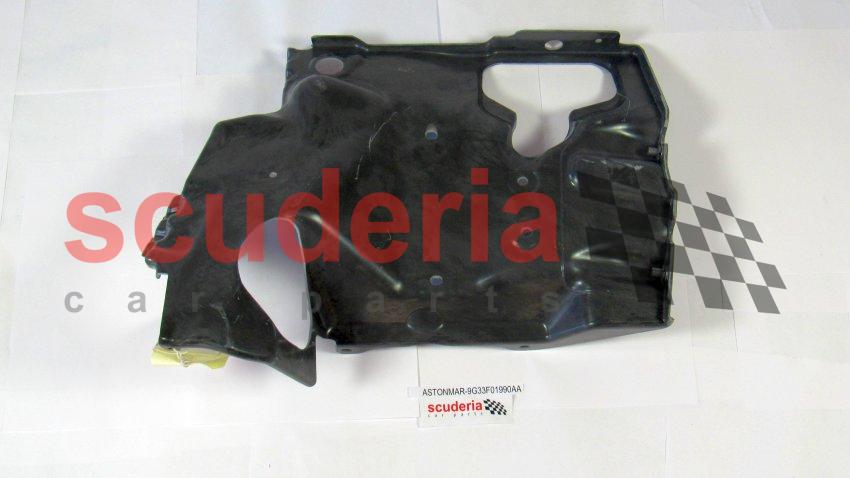

9G33F01990AA PANEL VENT RH Enquire To Order
9G33F01990AA PANEL VENT RH Enquire To Order
Photo Part No Description Price (each) Stock
4G433710932 Sensor Occupant Restraint System UPR Front Enquire To Order
Photo Part No Description Price (each) Stock

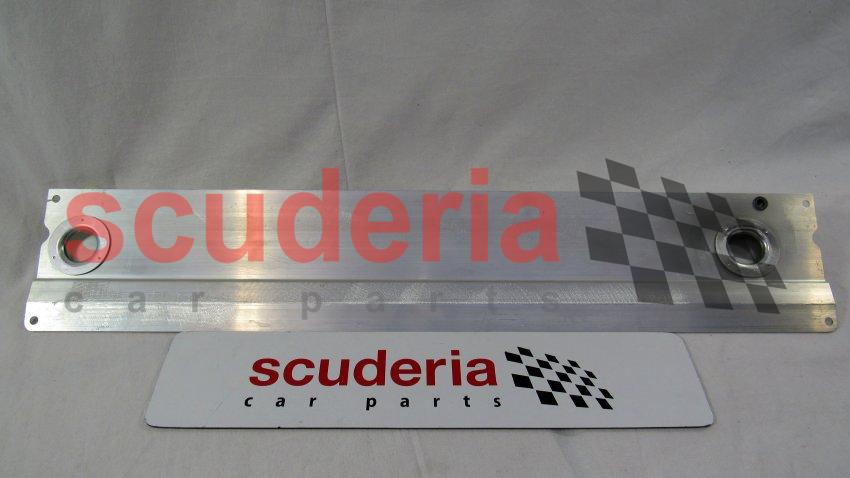

AG338052CA Rad Support Lower Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
703172PK Screw M8 x 25 Pan Head (Pack of 10) Enquire To Order
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
BG3316F558AA FOAM BAFFLE 20 x 20 mm NITTO Enquire To Order
View All

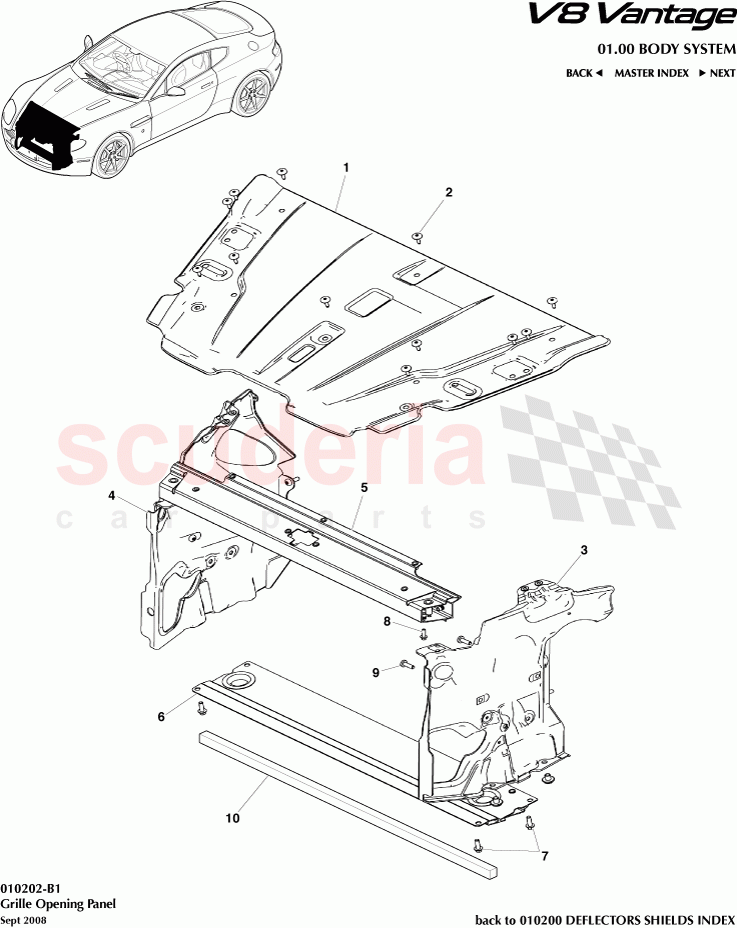

Grille Opening Panel of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G338136BA
Cover Engine Bay Centre 		- 1 Enquire
2 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		- 12 Enquire
3 9G33F01991AC
PANEL VENT LH
upto 08MY 		- 1 Enquire
3 9G33F01991AC
PANEL VENT LH 		- 1 Enquire
4 9G33F01990AA
PANEL VENT RH
upto 08MY 		- 1 Enquire
4 9G33F01990AA
PANEL VENT RH 		- 1 Enquire
5 4G433710932
Sensor Occupant Restraint System UPR Front
upto 08MY 		- 1 Enquire
6 AG338052CA
Rad Support Lower 		- 1 Enquire
7 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 2 Enquire
8 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 2 Enquire
9 703172PK
Screw M8 x 25 Pan Head (Pack of 10) 		- 4 Enquire
9 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) 		- 8 Enquire
10 BG3316F558AA
FOAM BAFFLE 20 x 20 mm NITTO
V8 s / 12.25MY 		- 1 Enquire
