Front Suspension - Shock Absorber and Brake Disc of Ferrari Ferrari 288 GTO

View All

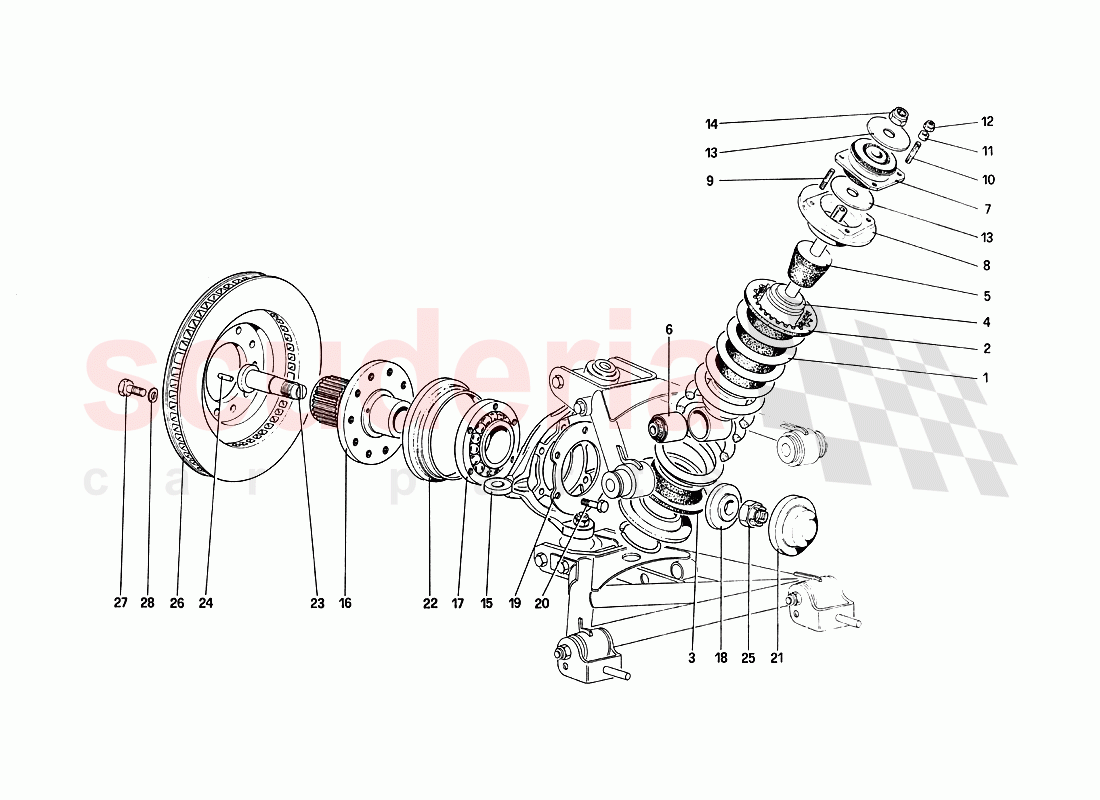

Ferrari 288 GTO - Front Suspension - Shock Absorber and Brake Disc

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	124457	Suspension spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113582	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113581	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125048	Shock absorber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116358	Pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100809	Estendblock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600109	Hyperblock with 4 -	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151547	SPRING RETAINING CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13606011	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114815	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116722	Stub axle, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125724	Front wheel hub, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112799	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124510	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118522	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14238731	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124511	Bearing cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120066	Bearing cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125725	Stay bolt for bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13909870	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124642	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125734	Front brake disc	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125736	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	125723	Front wheel hub, left	125723 Front wheel hub, left	-	1	Enquire
-	116721	Stub axle, left	116721 Stub axle, left	-	1	Enquire
1	124457	Suspension spring	124457 Suspension spring	-	2	Enquire
2	113582	UPPER SPACER	113582 UPPER SPACER	-	2	Enquire
3	113581	LOWER SPACER	113581 LOWER SPACER	-	2	Enquire
4	125048	Shock absorber	125048 Shock absorber	-	2	Enquire
5	116358	Pad	116358 Pad	-	2	Enquire
6	100809	Estendblock	100809 Estendblock	-	2	Enquire
7	386600109	Hyperblock with 4 -	386600109 Hyperblock with 4 -	-	2	Enquire
8	151547	SPRING RETAINING CUP	151547 SPRING RETAINING CUP	-	2	Enquire
9	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	-	4	Enquire
10	13543824	STUD BOLT	13543824 STUD BOLT	-	4	Enquire
11	13606011	SPACER	13606011 SPACER	-	4	Enquire
12	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
13	114815	WASHER	114815 WASHER	-	4	Enquire
14	148020	NUT	148020 NUT	-	2	Enquire
15	116722	Stub axle, right	116722 Stub axle, right	-	1	Enquire
16	125724	Front wheel hub, right	125724 Front wheel hub, right	-	1	Enquire
17	112799	BEARING	112799 BEARING	-	2	Enquire
18	124510	Washer	124510 Washer	-	2	Enquire
19	118522	Washer	118522 Washer	-	2	Enquire
20	14238731	Screw	14238731 Screw	-	2	Enquire
21	124511	Bearing cover	124511 Bearing cover	-	2	Enquire
22	120066	Bearing cover	120066 Bearing cover	-	2	Enquire
23	125725	Stay bolt for bearing	125725 Stay bolt for bearing	-	2	Enquire
24	13909870	PIN	13909870 PIN	-	2	Enquire
25	124642	NUT	124642 NUT	-	2	Enquire
26	125734	Front brake disc	125734 Front brake disc	-	2	Enquire
27	125736	Screw	125736 Screw	-	20	Enquire
28	127497	WASHER	127497 WASHER	-	20	Enquire
