Turbocharging System

Ferrari 288 GTO

Find Your Part

Ferrari 288 GTO - Turbocharging System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
115743 Air filter Enquire To Order
Photo Part No Description Price (each) Stock
120799 Air inlet, left Enquire To Order
120798 Air inlet, right Enquire To Order
Photo Part No Description Price (each) Stock
10376017 Screw Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13550277 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
125024 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
123384 Right turbocharger Enquire To Order
Photo Part No Description Price (each) Stock
122814 Left turbocharger Enquire To Order
Photo Part No Description Price (each) Stock
123636 Right mounting for turbo Enquire To Order
Photo Part No Description Price (each) Stock
123685 Left mounting for turbo Enquire To Order
Photo Part No Description Price (each) Stock
138855 Right oil drain pipe Enquire To Order
Photo Part No Description Price (each) Stock
143196 Tube Enquire To Order
Photo Part No Description Price (each) Stock
144494 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
10902221 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14499370 Washer Enquire To Order
Photo Part No Description Price (each) Stock
123860 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
105622 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
122946 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
10298360 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
123004 Oil delivery pipe to right turbo Enquire To Order
Photo Part No Description Price (each) Stock
123385 Metallic ring Enquire To Order
Photo Part No Description Price (each) Stock
123306 Riahtpipe Enquire To Order
Photo Part No Description Price (each) Stock
123307 Left pipe Enquire To Order
Photo Part No Description Price (each) Stock
123311 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
12177190 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
123505 Left air intake hose Enquire To Order
123504 Right air intake hose Enquire To Order
Photo Part No Description Price (each) Stock
123312 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
12177190 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
124449 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
122890 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
13541024 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
15890211 Nut Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
291502 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
124503 Right pipe to balance hose Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
124955 Left pipe to balance hose Enquire To Order
Photo Part No Description Price (each) Stock
103755 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
124454 Left air outlet hose Enquire To Order
124453 Right air outlet hose Enquire To Order
Photo Part No Description Price (each) Stock
12180090 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
120748 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
120737 WASTEGATE valve Enquire To Order
120750 Westgate membrane Enquire To Order
Photo Part No Description Price (each) Stock
121098 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
122386 Pipe for valve control Enquire To Order
Photo Part No Description Price (each) Stock
122668 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
10978321 Screw Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
124455 Front cover Enquire To Order
Photo Part No Description Price (each) Stock
124456 Rear cover Enquire To Order
Photo Part No Description Price (each) Stock
117623 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
118373 Piston Enquire To Order
Photo Part No Description Price (each) Stock
117625 Internal guide Enquire To Order
Photo Part No Description Price (each) Stock
118116 Spring Enquire To Order
Photo Part No Description Price (each) Stock
126021 Oil delivery pipe to left turbo Enquire To Order
View All

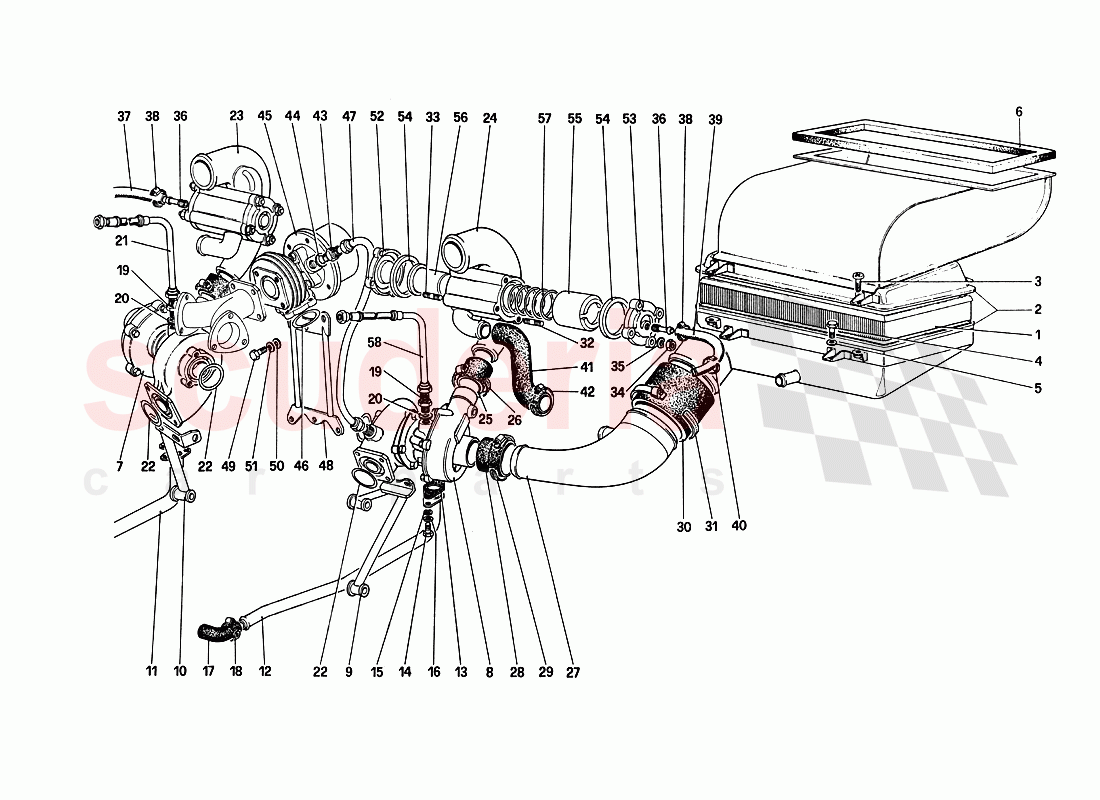

Turbocharging System of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 115743
Air filter 		- 2 Enquire
2 120799
Air inlet, left 		- 1 Enquire
2 120798
Air inlet, right 		- 1 Enquire
3 10376017
Screw 		- 8 Enquire
4 10977524
SCREW 		- 6 Enquire
5 13550277
WASHER 		- 6 Enquire
6 125024
Gasket 		- 2 Enquire
7 123384
Right turbocharger 		- 1 Enquire
8 122814
Left turbocharger 		- 1 Enquire
9 123636
Right mounting for turbo 		- 1 Enquire
10 123685
Left mounting for turbo 		- 1 Enquire
11 138855
Right oil drain pipe 		- 1 Enquire
12 143196
Tube 		- 1 Enquire
13 144494
Gasket 		- 2 Enquire
14 10902221
SCREW 		- 4 Enquire
15 127494
WASHER 		- 4 Enquire
16 14499370
Washer 		- 4 Enquire
17 123860
Sleeve 		- 2 Enquire
18 105622
Clamp 		- 4 Enquire
19 122946
Fitting 		- 2 Enquire
20 10298360
Gasket 		- 2 Enquire
21 123004
Oil delivery pipe to right turbo 		- 1 Enquire
22 123385
Metallic ring 		- 4 Enquire
23 123306
Riahtpipe 		- 1 Enquire
24 123307
Left pipe 		- 1 Enquire
25 123311
Sleeve 		- 2 Enquire
26 12177190
Clamp 		- 4 Enquire
27 123505
Left air intake hose 		- 1 Enquire
27 123504
Right air intake hose 		- 1 Enquire
28 123312
Sleeve 		- 2 Enquire
29 12177190
Clamp 		- 4 Enquire
30 124449
Sleeve 		- 2 Enquire
31 122890
Clamp 		- 4 Enquire
32 13541024
STUD BOLT 		- 2 Enquire
33 13541224
STUD BOLT 		- 4 Enquire
34 15890211
Nut 		- 16 Enquire
35 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 16 Enquire
36 291502
CONNECTOR 		- 2 Enquire
37 124503
Right pipe to balance hose 		- 1 Enquire
38 13432070
HOSE COLLAR 		- 4 Enquire
39 124955
Left pipe to balance hose 		- 1 Enquire
40 103755
Clamp 		- 5 Enquire
41 124454
Left air outlet hose 		- 1 Enquire
41 124453
Right air outlet hose 		- 1 Enquire
42 12180090
Clamp 		- 4 Enquire
43 120748
Fitting 		- 1 Enquire
44 10280060
WASHER COPPER D14. 20 X 1.5 		- 1 Enquire
45 120737
WASTEGATE valve 		- 1 Enquire
45 120750
Westgate membrane 		- 1 Enquire
46 121098
Gasket 		- 1 Enquire
47 122386
Pipe for valve control 		- 1 Enquire
48 122668
Bracket 		- 1 Enquire
49 10978321
Screw 		- 3 Enquire
50 62769800
WASHER 		- 3 Enquire
51 127493
WASHER 		- 3 Enquire
52 124455
Front cover 		- 2 Enquire
53 124456
Rear cover 		- 2 Enquire
54 117623
Gasket 		- 4 Enquire
55 118373
Piston 		- 2 Enquire
56 117625
Internal guide 		- 2 Enquire
57 118116
Spring 		- 2 Enquire
58 126021
Oil delivery pipe to left turbo 		- 1 Enquire
