Ferrari 288 GTO - Cylinder Head (Left)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
120678 Left cylinder head Enquire To Order
120677 Left cylinder head, complete Enquire To Order
Photo Part No Description Price (each) Stock
10269750 THREADED PLUG - Ø 18 mm Enquire To Order
Photo Part No Description Price (each) Stock
102735 Stud for intermediate caps Enquire To Order
Photo Part No Description Price (each) Stock
102754 Stud for outer caps Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
100044 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
121907 Dowel Enquire To Order
Photo Part No Description Price (each) Stock
14326150 CAP Enquire To Order
Photo Part No Description Price (each) Stock
11500324 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
121364 Stud securing exhaust manifold Enquire To Order
Photo Part No Description Price (each) Stock
114748 Nut Enquire To Order
Photo Part No Description Price (each) Stock
13526070 Heli-coil securing cover Enquire To Order
Photo Part No Description Price (each) Stock
13541624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12354524 Stud Securing Exhaust Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13543724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
10269750 THREADED PLUG - Ø 18 mm Enquire To Order
Photo Part No Description Price (each) Stock
117931 Left intake camshaft Enquire To Order
122742 Left intake camshaft, complete Enquire To Order
Photo Part No Description Price (each) Stock
117236 Left exhaust camshaft, complete Enquire To Order
117236 Left exhaust camshaft, complete Enquire To Order
Photo Part No Description Price (each) Stock
117045 Rear cap exhaust side Enquire To Order
Photo Part No Description Price (each) Stock
121959 Left head cover Enquire To Order
121896 Left head cover, complete Enquire To Order
Photo Part No Description Price (each) Stock
103796 REAR SMALL COVER Enquire To Order
Photo Part No Description Price (each) Stock
150084 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
150075 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
120711 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
144973 SMALL COVER Enquire To Order
Photo Part No Description Price (each) Stock
163987 Camshaft Oil Seal Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
117275 Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
117042 Front cap inlet side Enquire To Order
Photo Part No Description Price (each) Stock
117041 Front cap exhaust side Enquire To Order
Photo Part No Description Price (each) Stock
126811 Intermediate cap -With compl. Enquire To Order
Photo Part No Description Price (each) Stock
117644 Rear cap inlet side Enquire To Order
View All

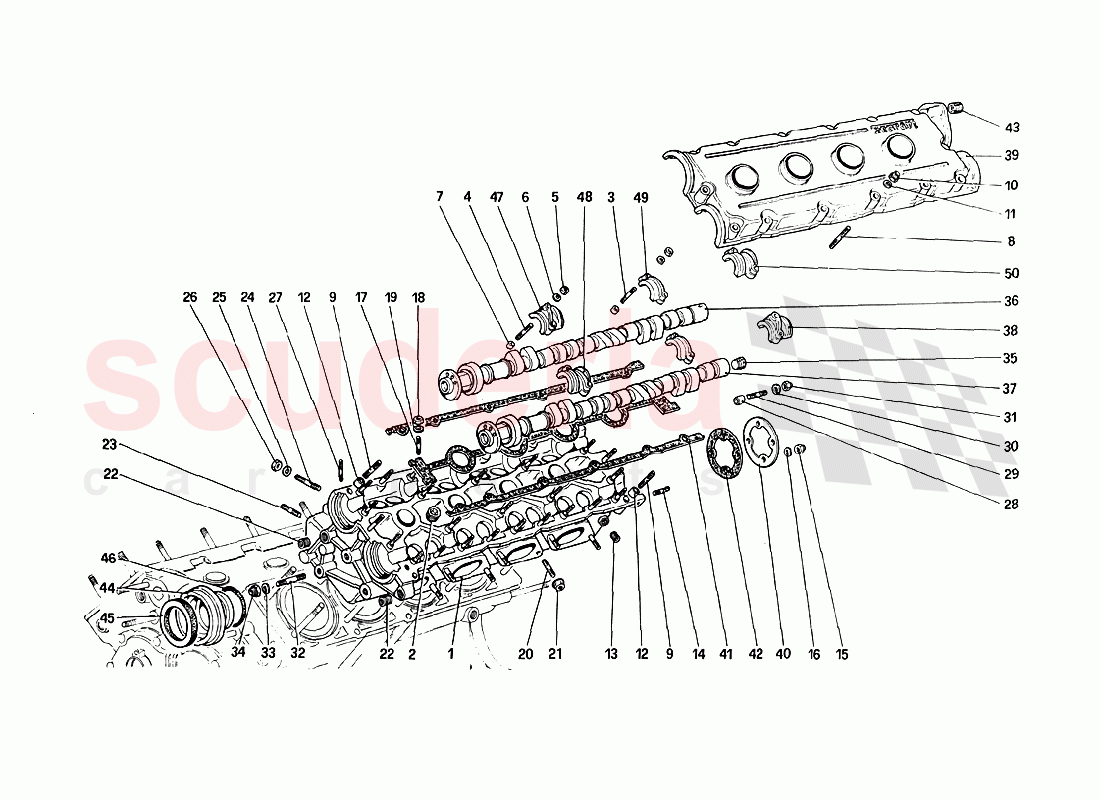

Cylinder Head (Left) of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 120678
Left cylinder head
With assembly no. 120677 		- 1 Enquire
1 120677
Left cylinder head, complete 		- 1 Enquire
2 10269750
THREADED PLUG - Ø 18 mm 		- 5 Enquire
3 102735
Stud for intermediate caps 		- 12 Enquire
4 102754
Stud for outer caps 		- 8 Enquire
5 14059290
FLANGED NUT M6 		- 20 Enquire
6 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 20 Enquire
7 102725
CENTERING DOWEL 		- 20 Enquire
8 13541624
STUD BOLT 		- 13 Enquire
9 13541724
STUD BOLT 		- 2 Enquire
10 100044
Selflocking nut 		- 14 Enquire
11 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 14 Enquire
12 121907
Dowel 		- 2 Enquire
13 14326150
CAP 		- 3 Enquire
14 11500324
STUD BOLT 		- 4 Enquire
15 14059290
FLANGED NUT M6 		- 4 Enquire
16 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
17 13543324
Stud -Valid for gearbox 		- 8 Enquire
18 14040711
NUT M8 FLANGED 		- 10 Enquire
19 986899
WASHER 		- 10 Enquire
20 121364
Stud securing exhaust manifold 		- 8 Enquire
21 114748
Nut 		- 8 Enquire
22 13526070
Heli-coil securing cover 		- 2 Enquire
23 13541624
STUD BOLT 		- 3 Enquire
24 13541724
STUD BOLT 		- 5 Enquire
25 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 8 Enquire
26 14059290
FLANGED NUT M6 		- 8 Enquire
27 12354524
Stud Securing Exhaust
Front part 		- 2 Enquire
28 102725
CENTERING DOWEL 		- 2 Enquire
29 11500524
STUD BOLT 		- 2 Enquire
30 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
31 14059290
FLANGED NUT M6 		- 2 Enquire
32 13543724
STUD BOLT 		- 3 Enquire
33 12601374
WASHER 		- 3 Enquire
34 16104411
Selflocking nut 		- 3 Enquire
35 10269750
THREADED PLUG - Ø 18 mm 		- 1 Enquire
36 117931
Left intake camshaft
With assembly no. 122742 		- 1 Enquire
36 122742
Left intake camshaft, complete 		- 1 Enquire
37 117236
Left exhaust camshaft, complete
With assembly no 117236 		- 1 Enquire
37 117236
Left exhaust camshaft, complete 		- 1 Enquire
38 117045
Rear cap exhaust side
With complete cylinder head 		- 1 Enquire
39 121959
Left head cover
With complete head cover 		- 1 Enquire
39 121896
Left head cover, complete
With complete cylinder head 		- 1 Enquire
40 103796
REAR SMALL COVER 		- 1 Enquire
41 150084
Gasket
Alternative use - FCCG001 Cam cover set 		- 1 Enquire
42 150075
GASKET 		- 1 Enquire
43 120711
THREADED BUSHING 		- 1 Enquire
44 144973
SMALL COVER 		- 2 Enquire
45 163987
Camshaft Oil Seal
ARRIVING SOON 		- 2 Enquire
46 117275
Oil Sealing Ring 		- 2 Enquire
47 117042
Front cap inlet side
With complete cylinder head 		- 1 Enquire
48 117041
Front cap exhaust side
With complete cylinder head 		- 1 Enquire
49 126811
Intermediate cap -With compl.
With complete cylinder head 		- 6 Enquire
50 117644
Rear cap inlet side
With complete cylinder head 		- 1 Enquire
