Ferrari 288 GTO - Brake Hydraulic System

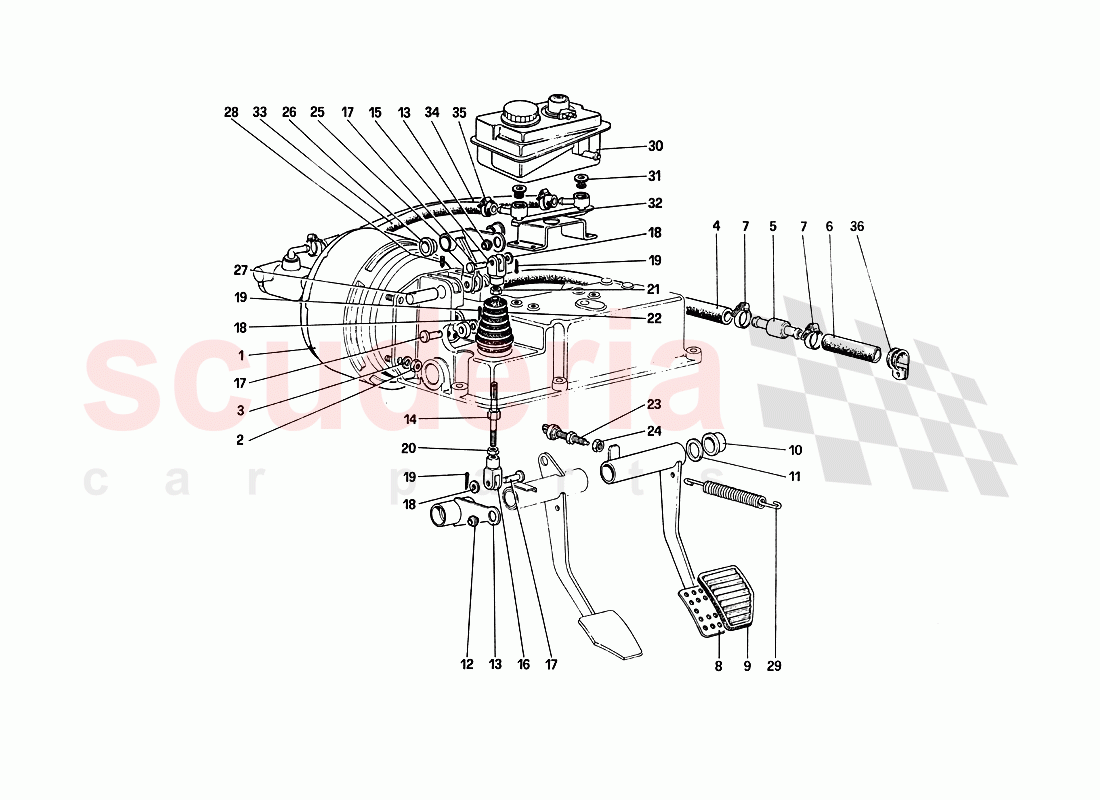

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	124468	Brake booster	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110749	Hose from brake booster to valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128435	Non return valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110746	Pipe from valve to engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	119528	Brake pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106950	Pedal protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124686	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112127	DITTO THICKNESS mm. 0.9	Enquire	To Order
	112128	DITTO THICKNESS mm. 1.0	Enquire	To Order
	112129	DITTO THICKNESS mm. 1.1	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	121217	Brake relay lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100424	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	119164	Tie rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104910	Fork, R.H. thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104911	Fork, L.H. thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10033414	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103167	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10788711	Nut, R.H. thread	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112157	Bellows	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

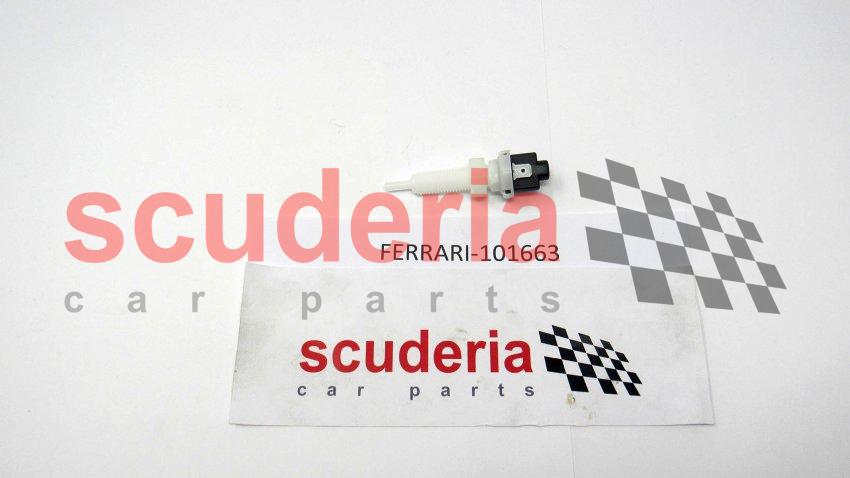

	101663	Stop light switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101662	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121219	Brake booster lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124586	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124714	Relay lever supporting pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13736911	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133579	Oil reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175189	SEAT RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123259	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136376	RUBBER HOSE -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123265	RUBBER HOSE -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	124468	Brake booster	124468 Brake booster	-	1	Enquire
2	16104411	Selflocking nut	16104411 Selflocking nut	-	4	Enquire
3	12601374	WASHER	12601374 WASHER	-	4	Enquire
4	110749	Hose from brake booster to valve	110749 Hose from brake booster to valve	-	1	Enquire
5	128435	Non return valve	128435 Non return valve	-	1	Enquire
6	110746	Pipe from valve to engine	110746 Pipe from valve to engine	-	1	Enquire
7	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
8	119528	Brake pedal	119528 Brake pedal	-	1	Enquire
9	106950	Pedal protection	106950 Pedal protection	-	1	Enquire
10	124686	Bush	124686 Bush	-	2	Enquire
11	112127	DITTO THICKNESS mm. 0.9	112127 DITTO THICKNESS mm. 0.9 Possible fitting	-	2	Enquire
11	112128	DITTO THICKNESS mm. 1.0	112128 DITTO THICKNESS mm. 1.0 Possible fitting	-	2	Enquire
11	112129	DITTO THICKNESS mm. 1.1	112129 DITTO THICKNESS mm. 1.1 Possible fitting	-	2	Enquire
11	112130	DITTO THICKNESS mm. 1.2	112130 DITTO THICKNESS mm. 1.2 Possible fitting	-	2	Enquire
11	112131	DITTO THICKNESS mm. 1.3	112131 DITTO THICKNESS mm. 1.3 Possible fitting	-	2	Enquire
12	121217	Brake relay lever	121217 Brake relay lever	-	1	Enquire
13	100424	BALL JOINT	100424 BALL JOINT	-	2	Enquire
14	119164	Tie rod	119164 Tie rod	-	1	Enquire
15	104910	Fork, R.H. thread	104910 Fork, R.H. thread	-	1	Enquire
16	104911	Fork, L.H. thread	104911 Fork, L.H. thread	-	1	Enquire
17	10033414	Pin	10033414 Pin	-	3	Enquire
18	103167	WASHER	103167 WASHER	-	3	Enquire
19	264555	SPLIT PIN	264555 SPLIT PIN	-	3	Enquire
20	10788711	Nut, R.H. thread	10788711 Nut, R.H. thread On exhaustion use no. 10788711	-	1	Enquire
21	11690911	L.H. THREADED NUT	11690911 L.H. THREADED NUT On exhaustion use no. 11690911	-	1	Enquire
22	112157	Bellows	112157 Bellows	-	1	Enquire
23	101663	Stop light switch	101663 Stop light switch	-	1	Enquire
24	101662	Nut	101662 Nut	-	1	Enquire
25	121219	Brake booster lever	121219 Brake booster lever	-	1	Enquire
26	124586	Bush	124586 Bush	-	2	Enquire
27	124714	Relay lever supporting pin	124714 Relay lever supporting pin	-	1	Enquire
28	13736911	Screw	13736911 Screw	-	1	Enquire
29	104895	SPRING	104895 SPRING	-	1	Enquire
30	133579	Oil reservoir	133579 Oil reservoir	-	1	Enquire
31	175189	SEAT RING	175189 SEAT RING	-	2	Enquire
32	123259	Bracket	123259 Bracket	-	1	Enquire
33	136376	RUBBER HOSE -Valid for GD-	136376 RUBBER HOSE -Valid for GD-	-	1	Enquire
34	123265	RUBBER HOSE -Not for GD-	123265 RUBBER HOSE -Not for GD-	-	1	Enquire
35	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
36	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH	-	1	Enquire
