Lubrication System of Ferrari Ferrari 288 GTO

View All

Ferrari 288 GTO - Lubrication System

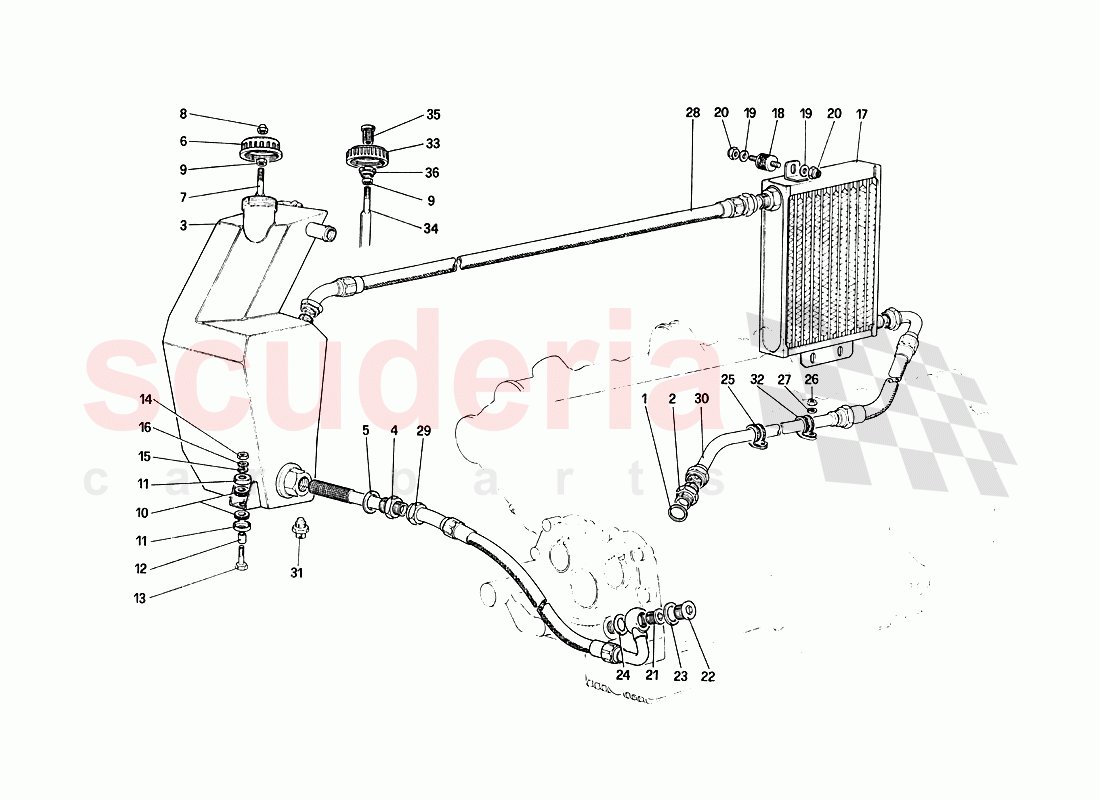

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	10265060	Gasket Copper D32. 38 x 1.5	$1.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121967	Fitting	$26.13	To Order

Photo	Part No	Description	Price (each)	Stock
	122926	Oil tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122887	Filter on tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10303460	Gasket	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126142	Plug for oil tank	$34.17	To Order

Photo	Part No	Description	Price (each)	Stock
	126156	Dipstick	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100044	Selflocking nut	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	107978	VIBRATION DAMPER	$13.47	To Order

Photo	Part No	Description	Price (each)	Stock
	107979	STOP CAP	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	107980	SHIM	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	16043436	SCREW	$0.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	121963	Oil radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	$17.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122319	UNION	$158.40	To Order

Photo	Part No	Description	Price (each)	Stock
	122318	THREADED PLUG	$51.49	To Order

Photo	Part No	Description	Price (each)	Stock
	10265060	Gasket Copper D32. 38 x 1.5	$1.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	907923	DOWTY WASHER	$38.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10450890	Bracket	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	12674211	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496501	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	122434	Pipe from tank to radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138791	Pipe from suction filter to oil pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122385	Pipe from oil sump to radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	107576A	OIL THERMISTOR -Not for AUS-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106195	BRACKET WITH SHEATH	$57.49	To Order

Photo	Part No	Description	Price (each)	Stock
	126141	Oil tank	$25.62	To Order

Photo	Part No	Description	Price (each)	Stock
	126156	Dipstick	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126142	Plug for oil tank	$34.17	To Order

Photo	Part No	Description	Price (each)	Stock
	101242	Ring nut	$2.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	10265060	Gasket Copper D32. 38 x 1.5 IN STOCK	10265060 Gasket Copper D32. 38 x 1.5 IN STOCK	$1.85	1
2	121967	Fitting	121967 Fitting	$26.13	1
3	122926	Oil tank	122926 Oil tank	-	1	Enquire
4	122887	Filter on tank	122887 Filter on tank	-	1	Enquire
5	10303460	Gasket IN STOCK	10303460 Gasket IN STOCK	$1.64 MSRP: ~~2.10~~ (21.9% off)	1
6	126142	Plug for oil tank	126142 Plug for oil tank (Reqs 101242 & 126142)	$34.17	1
7	126156	Dipstick	126156 Dipstick With plug no. 109719	-	1	Enquire
8	100044	Selflocking nut IN STOCK	100044 Selflocking nut With plug no. 109719 IN STOCK	$0.60 MSRP: ~~1.19~~ (49.6% off)	1
9	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	1
10	107978	VIBRATION DAMPER	107978 VIBRATION DAMPER	$13.47	6
11	107979	STOP CAP	107979 STOP CAP	$10.89 MSRP: ~~11.98~~ (9.1% off)	6
12	107980	SHIM	107980 SHIM	$5.75 MSRP: ~~6.25~~ (8% off)	3
13	16043436	SCREW IN STOCK	16043436 SCREW IN STOCK	$0.47	3
14	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.42	3
15	12646704	WASHER	12646704 WASHER	$0.11	3
16	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
17	121963	Oil radiator	121963 Oil radiator	-	1	Enquire
18	102947	VIBRATION DAMPER IN STOCK	102947 VIBRATION DAMPER IN STOCK	$17.63 MSRP: ~~19.52~~ (9.7% off)	3
19	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	6
20	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	6
21	122319	UNION	122319 UNION	$158.40	1
22	122318	THREADED PLUG	122318 THREADED PLUG	$51.49	1
23	10265060	Gasket Copper D32. 38 x 1.5 IN STOCK	10265060 Gasket Copper D32. 38 x 1.5 IN STOCK	$1.85	1
24	907923	DOWTY WASHER IN STOCK	907923 DOWTY WASHER IN STOCK	$38.75	1
25	10450890	Bracket	10450890 Bracket	$0.60	1
26	12674211	Nut	12674211 Nut	-	1	Enquire
27	14496501	WASHER	14496501 WASHER	$0.16	1
28	122434	Pipe from tank to radiator	122434 Pipe from tank to radiator	-	1	Enquire
29	138791	Pipe from suction filter to oil pump	138791 Pipe from suction filter to oil pump	-	1	Enquire
30	122385	Pipe from oil sump to radiator	122385 Pipe from oil sump to radiator	-	1	Enquire
31	107576A	OIL THERMISTOR -Not for AUS-	107576A OIL THERMISTOR -Not for AUS-	-	1	Enquire
32	106195	BRACKET WITH SHEATH	106195 BRACKET WITH SHEATH	$57.49	1
33	126141	Oil tank	126141 Oil tank On exhaustion no. 109719	$25.62 MSRP: ~~63.72~~ (59.8% off)	1
34	126156	Dipstick	126156 Dipstick With plug no. 126141	-	1	Enquire
35	126142	Plug for oil tank	126142 Plug for oil tank (Reqs 101242 & 126142)	$34.17	1
36	101242	Ring nut	101242 Ring nut (Reqs 101242 & 126142)	$2.27 MSRP: ~~9.30~~ (75.6% off)	1
