Ferrari 288 GTO - Exhaust Manifolds and Heat Exchangers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
122728 Air pressure sensor Enquire To Order
Photo Part No Description Price (each) Stock
122194 Intake manifold complete Enquire To Order
Photo Part No Description Price (each) Stock
122196 L.H. cover intake manifold complete Enquire To Order
122195 R.H. cover, intake manifold complete Enquire To Order
Photo Part No Description Price (each) Stock
122196 L.H. cover intake manifold complete Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
13540824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
10902521 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
122845 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
120788 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
120789 Fitting Enquire To Order
Photo Part No Description Price (each) Stock
120790 Fitting for fuel pressure regulator Enquire To Order
Photo Part No Description Price (each) Stock
124954 Balance hose Enquire To Order
Photo Part No Description Price (each) Stock
122192 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
147755 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
120663 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
120664 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
124791 RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
13541024 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
125545 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
125546 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
122618 L.H. heat exchangers Enquire To Order
122617 R.H. heat exchangers Enquire To Order
Photo Part No Description Price (each) Stock
123879 L.H. air inlet Enquire To Order
123878 R.H. air inlet Enquire To Order
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13274021 Screw Enquire To Order
Photo Part No Description Price (each) Stock
107103 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
126295A Clamp Enquire To Order
Photo Part No Description Price (each) Stock
61733400 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
122310 Sleeve Enquire To Order
Photo Part No Description Price (each) Stock
12177190 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
View All

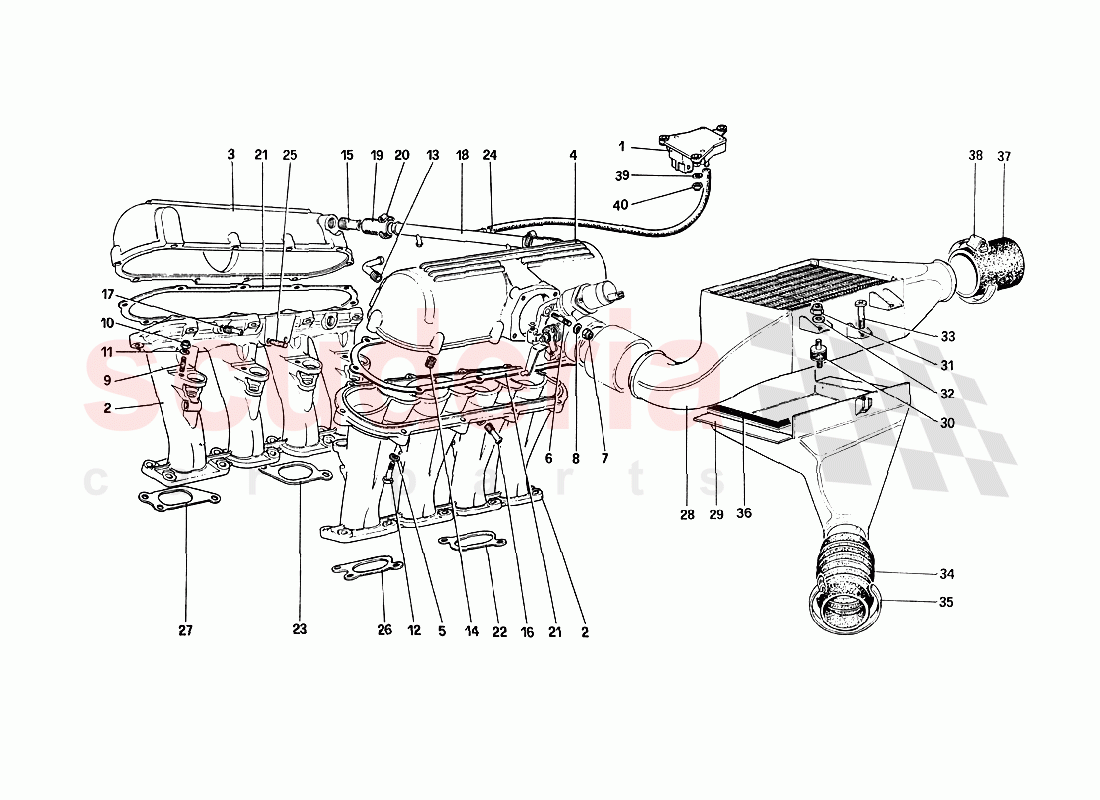

Exhaust Manifolds and Heat Exchangers of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 122728
Air pressure sensor 		- 1 Enquire
2 122194
Intake manifold complete 		- 2 Enquire
3 122196
L.H. cover intake manifold complete 		- 2 Enquire
3 122195
R.H. cover, intake manifold complete 		- 2 Enquire
4 122196
L.H. cover intake manifold complete 		- 2 Enquire
5 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 20 Enquire
6 13541224
STUD BOLT 		- 8 Enquire
7 14059290
FLANGED NUT M6 		- 8 Enquire
8 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 8 Enquire
9 13540824
STUD BOLT 		- 8 Enquire
10 14059290
FLANGED NUT M6 		- 8 Enquire
11 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 8 Enquire
12 10902521
SCREW 		- 20 Enquire
13 122845
Fitting 		- 1 Enquire
14 120711
THREADED BUSHING 		- 20 Enquire
15 120788
Fitting 		- 2 Enquire
16 120789
Fitting 		- 2 Enquire
17 120790
Fitting for fuel pressure regulator 		- 2 Enquire
18 124954
Balance hose 		- 1 Enquire
19 122192
Sleeve 		- 2 Enquire
20 262111
JUBILEE CLAMP 		- 4 Enquire
21 147755
Gasket 		- 2 Enquire
22 120663
Gasket 		- 2 Enquire
23 120664
Gasket 		- 2 Enquire
24 124791
RUBBER HOSE 		- 1 Enquire
25 13541024
STUD BOLT 		- 4 Enquire
26 125545
Gasket 		- 2 Enquire
27 125546
Gasket 		- 2 Enquire
28 122618
L.H. heat exchangers 		- 1 Enquire
28 122617
R.H. heat exchangers 		- 1 Enquire
29 123879
L.H. air inlet 		- 1 Enquire
29 123878
R.H. air inlet 		- 1 Enquire
30 102947
VIBRATION DAMPER 		- 6 Enquire
31 14059290
FLANGED NUT M6 		- 6 Enquire
32 12643724
WASHER 		- 6 Enquire
33 13274021
Screw 		- 6 Enquire
34 107103
Sleeve 		- 2 Enquire
35 126295A
Clamp 		- 4 Enquire
36 61733400
Gasket 		- 2 Enquire
37 122310
Sleeve 		- 2 Enquire
38 12177190
Clamp 		- 4 Enquire
39 10519424
WASHER 		- 3 Enquire
40 14059290
FLANGED NUT M6 		- 3 Enquire
