Ferrari 288 GTO - Cylinder Head (Right)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
120676 Right cylinder head Enquire To Order
Photo Part No Description Price (each) Stock
10269750 THREADED PLUG - Ø 18 mm Enquire To Order
Photo Part No Description Price (each) Stock
13526070 Heli-coil securing cover Enquire To Order
Photo Part No Description Price (each) Stock
102735 Stud for intermediate caps Enquire To Order
Photo Part No Description Price (each) Stock
102754 Stud for outer caps Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
100044 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
121907 Dowel Enquire To Order
Photo Part No Description Price (each) Stock
14326150 CAP Enquire To Order
Photo Part No Description Price (each) Stock
11500624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
9162535 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
121364 Stud securing exhaust manifold Enquire To Order
Photo Part No Description Price (each) Stock
114748 Nut Enquire To Order
Photo Part No Description Price (each) Stock
10902221 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13541624 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541724 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13541824 STUD Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12354524 Stud Securing Exhaust Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
120795 Head cover, complete Enquire To Order
16104411 Selflocking nut Enquire To Order
Photo Part No Description Price (each) Stock
120794 Right head cover -With Enquire To Order
Photo Part No Description Price (each) Stock
103808 End cover with blow-by inlet Enquire To Order
Photo Part No Description Price (each) Stock
150078 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
151342 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
120711 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
144973 SMALL COVER Enquire To Order
Photo Part No Description Price (each) Stock
163987 Camshaft Oil Seal Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
117275 Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
117039 Front cap inlet side Enquire To Order
Photo Part No Description Price (each) Stock
117040 Front cap exhaust side Enquire To Order
Photo Part No Description Price (each) Stock
126811 Intermediate cap -With compl. Enquire To Order
Photo Part No Description Price (each) Stock
117044 Rear cap inlet side Enquire To Order
Photo Part No Description Price (each) Stock
117045 Rear cap exhaust side Enquire To Order
117235 Right exhaust camshaft complete Enquire To Order
Photo Part No Description Price (each) Stock
117933 Riqht intake camshaft Enquire To Order
Photo Part No Description Price (each) Stock
10269750 THREADED PLUG - Ø 18 mm Enquire To Order
View All

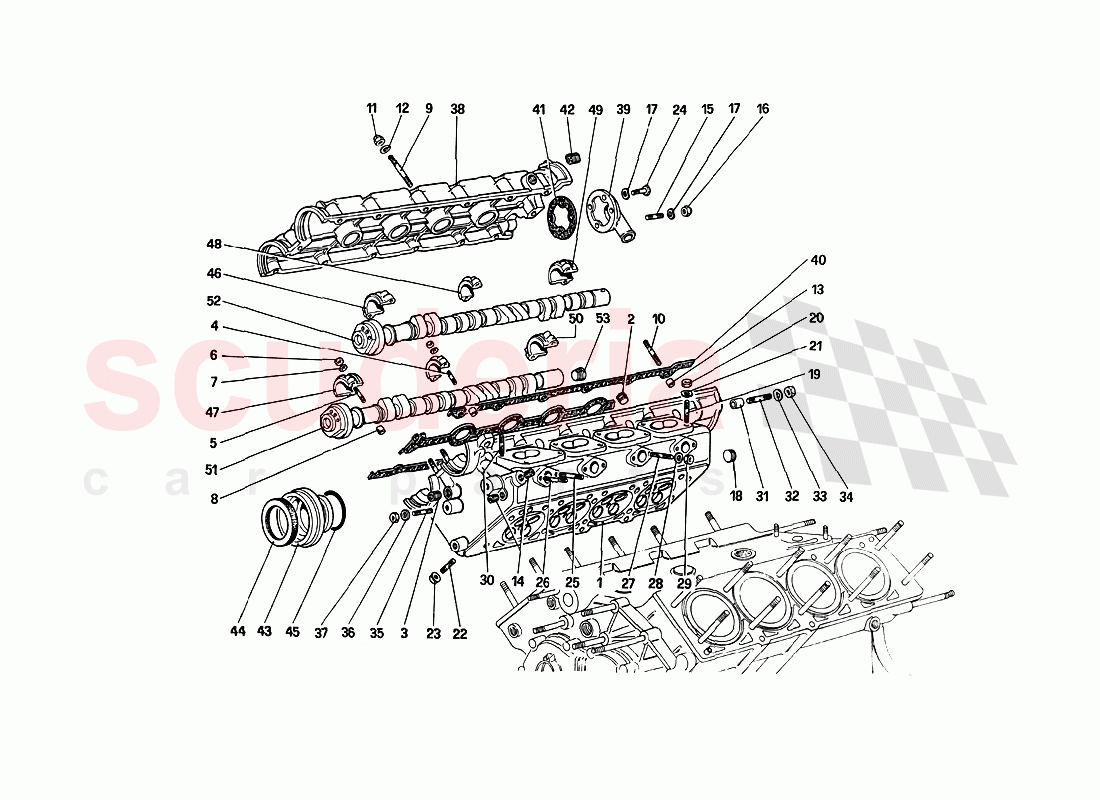

Cylinder Head (Right) of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 120675
Right cylinder head, complete 		- 1 Enquire
1 120676
Right cylinder head
With assembly no. 120675 		- 1 Enquire
2 10269750
THREADED PLUG - Ø 18 mm 		- 5 Enquire
3 13526070
Heli-coil securing cover 		- 1 Enquire
4 102735
Stud for intermediate caps 		- 12 Enquire
5 102754
Stud for outer caps 		- 8 Enquire
6 14059290
FLANGED NUT M6 		- 20 Enquire
7 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 20 Enquire
8 102725
CENTERING DOWEL 		- 20 Enquire
9 13541624
STUD BOLT 		- 12 Enquire
10 13541724
STUD BOLT 		- 2 Enquire
11 100044
Selflocking nut 		- 14 Enquire
12 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 14 Enquire
13 121907
Dowel 		- 2 Enquire
14 14326150
CAP 		- 3 Enquire
15 11500624
STUD BOLT 		- 2 Enquire
16 14059290
FLANGED NUT M6 		- 2 Enquire
17 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
18 9162535
THREADED PLUG 		- 1 Enquire
19 13543324
Stud -Valid for gearbox 		- 8 Enquire
20 14040711
NUT M8 FLANGED 		- 10 Enquire
21 986899
WASHER 		- 10 Enquire
22 121364
Stud securing exhaust manifold 		- 8 Enquire
23 114748
Nut 		- 8 Enquire
24 10902221
SCREW 		- 2 Enquire
25 13541624
STUD BOLT 		- 3 Enquire
26 13541724
STUD BOLT 		- 4 Enquire
27 13541824
STUD 		- 1 Enquire
28 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 8 Enquire
29 14059290
FLANGED NUT M6 		- 8 Enquire
30 12354524
Stud Securing Exhaust 		- 2 Enquire
31 102725
CENTERING DOWEL 		- 2 Enquire
32 11500524
STUD BOLT 		- 2 Enquire
33 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
34 14059290
FLANGED NUT M6 		- 2 Enquire
35 13543324
Stud -Valid for gearbox 		- 3 Enquire
36 12601374
WASHER 		- 3 Enquire
37 120795
Head cover, complete
With complete cylinder 		- 1 Enquire
37 16104411
Selflocking nut 		- 3 Enquire
38 120794
Right head cover -With
With complete cover 		- 1 Enquire
39 103808
End cover with blow-by inlet 		- 1 Enquire
40 150078
Gasket
Alternative use - FCCG001 Cam cover set 		- 1 Enquire
41 151342
Gasket 		- 1 Enquire
42 120711
THREADED BUSHING 		- 3 Enquire
43 144973
SMALL COVER 		- 2 Enquire
44 163987
Camshaft Oil Seal
ARRIVING SOON 		- 2 Enquire
45 117275
Oil Sealing Ring 		- 2 Enquire
46 117039
Front cap inlet side
With complete cylinder head 		- 1 Enquire
47 117040
Front cap exhaust side
With complete cylinder head 		- 1 Enquire
48 126811
Intermediate cap -With compl.
With complete cylinder head 		- 6 Enquire
49 117044
Rear cap inlet side
With complete cylinder head 		- 1 Enquire
50 117045
Rear cap exhaust side
With complete cylinder head 		- 1 Enquire
50 117235
Right exhaust camshaft complete 		- 1 Enquire
51 117235
Right exhaust camshaft complete
With assembly no. 117235 		- 1 Enquire
51 122741
Right intake camshaft, complete 		- 1 Enquire
52 117933
Riqht intake camshaft
With assembly no. 122741 		- 1 Enquire
53 10269750
THREADED PLUG - Ø 18 mm 		- 1 Enquire
