Ferrari 288 GTO - Steering Box and Linkage

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
123917 Steering box assembly Enquire To Order
Photo Part No Description Price (each) Stock
108241 Support, pinion side Enquire To Order
Photo Part No Description Price (each) Stock
115493 Support, opposite side of pinion Enquire To Order
Photo Part No Description Price (each) Stock
103592 Ball joint with nut $92.27 To Order
Photo Part No Description Price (each) Stock
115990 Right bellows $33.50 To Order
Photo Part No Description Price (each) Stock
115989 Left bellows Enquire To Order
Photo Part No Description Price (each) Stock
108293 Spacer $2.76 To Order
Photo Part No Description Price (each) Stock
125061 Grommet $4.55 To Order
Photo Part No Description Price (each) Stock
108294 Spacer pipe $92.95 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
16044321 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
116413 WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
13543824 STUD BOLT $3.45 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
View All

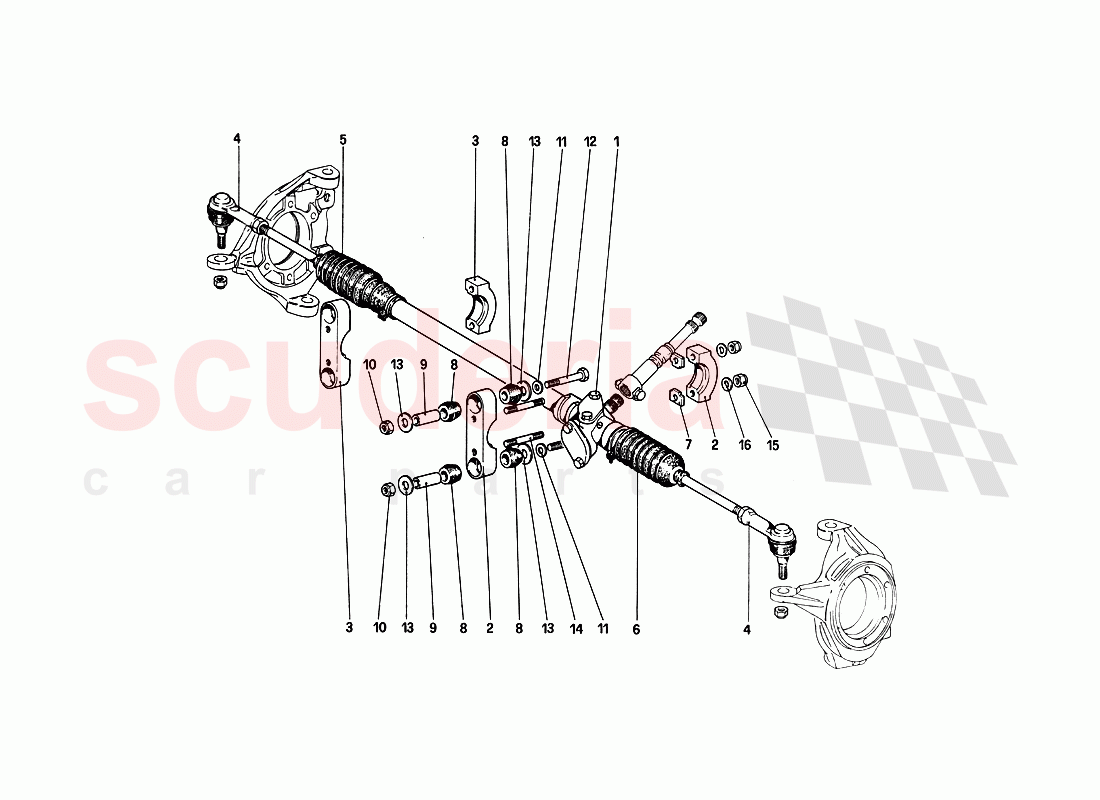

Steering Box and Linkage of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 123917
Steering box assembly 		- 1 Enquire
2 108241
Support, pinion side 		- 1 Enquire
3 115493
Support, opposite side of pinion 		- 1 Enquire
4 103592
Ball joint with nut 		$92.27 (47% off) 2
5 115990
Right bellows 		$33.50 1
6 115989
Left bellows 		- 1 Enquire
7 108293
Spacer 		$2.76 (51.5% off) 2
8 125061
Grommet 		$4.55 (60.1% off) 8
9 108294
Spacer pipe 		$92.95 (7.5% off) 4
10 104030
NUT 		$0.26 (74% off) 4
11 84653800
WASHER 		$5.75 4
12 16044321
SCREW 		$0.58 (57% off) 4
13 116413
WASHER 		$1.09 8
14 13543824
STUD BOLT 		$3.45 4
15 104030
NUT 		$0.26 (74% off) 4
16 84653800
WASHER 		$5.75 4
