F Ront Suspension - Wishbones

Ferrari 288 GTO

Find Your Part

Ferrari 288 GTO - F Ront Suspension - Wishbones

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
114691 SHACKLE FOR STABILISER BAR $489.26 To Order
Photo Part No Description Price (each) Stock
16103621 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
127498 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
100984 Grommet $21.67 To Order
Photo Part No Description Price (each) Stock
100985 Spacer tube $50.94 To Order
Photo Part No Description Price (each) Stock
117730 Washer $5.59 To Order
Photo Part No Description Price (each) Stock
148020 NUT $4.30 IN STOCK
Photo Part No Description Price (each) Stock
121679 Pin $74.98 To Order
Photo Part No Description Price (each) Stock
125396 Screw $44.82 To Order
Photo Part No Description Price (each) Stock
121393 Upper lever, left $1,946.52 To Order
121392 Upper lever, right $1,946.52 To Order
Photo Part No Description Price (each) Stock
121391 Lower lever, left Enquire To Order
121390 Lower lever, right $1,919.33 To Order
Photo Part No Description Price (each) Stock
154537 SUSPENSION BUSH UPPER LEVER $91.79 To Order
Photo Part No Description Price (each) Stock
124161 Lower fork Enquire To Order
Photo Part No Description Price (each) Stock
127849 Screw Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT $4.30 IN STOCK
Photo Part No Description Price (each) Stock
107338 SPACER WASHER mm. 1,5 $21.80 To Order
107339 Ditto, thickness 2 mm. $2.01 IN STOCK
107340 Ditto, thickness 2,5 mm $2.14 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
150238 NYLON STOP HEX. NUT M14X1.5X14 $0.28 IN STOCK
Photo Part No Description Price (each) Stock
101041 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
115072 Upper adjusting plate for caster angle Enquire To Order
Photo Part No Description Price (each) Stock
124365 Lower adjusting plate for caster angle $5.06 To Order
Photo Part No Description Price (each) Stock
103256 Upper adjusting plate $6.11 To Order
Photo Part No Description Price (each) Stock
125397 Lower adjusting plate $0.66 To Order
Photo Part No Description Price (each) Stock
109013 Screw Enquire To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 IN STOCK
Photo Part No Description Price (each) Stock
15971621 Screw $0.44 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 IN STOCK
Photo Part No Description Price (each) Stock
112441 Screw $78.40 To Order
Photo Part No Description Price (each) Stock
148020 NUT $4.30 IN STOCK
Photo Part No Description Price (each) Stock
114818 SCREW $41.96 To Order
Photo Part No Description Price (each) Stock
118118 Stabilizer rod Enquire To Order
Photo Part No Description Price (each) Stock
114703 Pad for rod Enquire To Order
Photo Part No Description Price (each) Stock
138389 Support -Valid after $61.53 To Order
Photo Part No Description Price (each) Stock
13543124 STUD BOLT $6.63 IN STOCK
Photo Part No Description Price (each) Stock
16104411 Selflocking nut $0.21 IN STOCK
Photo Part No Description Price (each) Stock
116280 Upper ball joint $1,417.07 To Order
Photo Part No Description Price (each) Stock
133944 LOWER BALL JOINT $217.43 To Order
Photo Part No Description Price (each) Stock
101445 Washer $0.81 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
View All

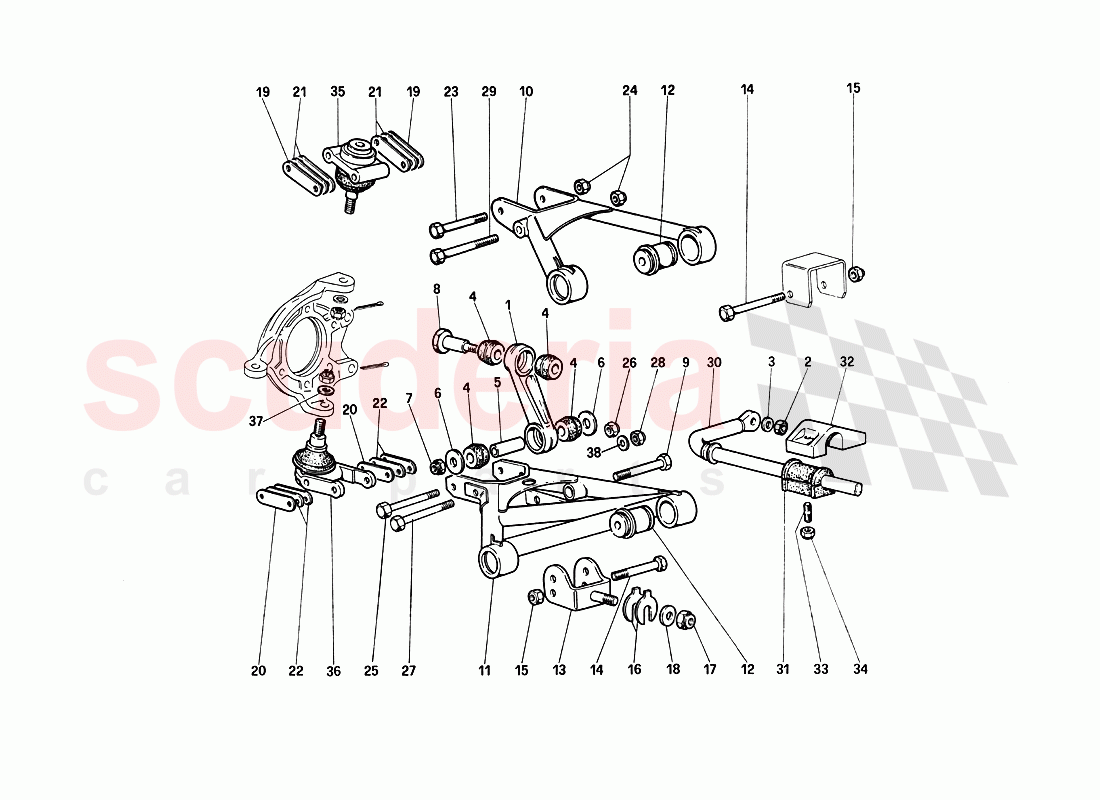

F Ront Suspension - Wishbones of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 114691
SHACKLE FOR STABILISER BAR 		$489.26 2
2 16103621
NUT 		$0.41 2
3 127498
WASHER
IN STOCK 		$0.15 (75% off) 2
4 100984
Grommet 		$21.67 8
5 100985
Spacer tube 		$50.94 (64.6% off) 2
6 117730
Washer 		$5.59 4
7 148020
NUT
IN STOCK 		$4.30 2
8 121679
Pin 		$74.98 2
9 125396
Screw 		$44.82 2
10 121393
Upper lever, left 		$1,946.52 (25.2% off) 2
10 121392
Upper lever, right 		$1,946.52 2
11 121391
Lower lever, left 		- 2 Enquire
11 121390
Lower lever, right 		$1,919.33 (34% off) 2
12 154537
SUSPENSION BUSH UPPER LEVER 		$91.79 8
13 124161
Lower fork 		- 4 Enquire
14 127849
Screw 		- 8 Enquire
15 148020
NUT
IN STOCK 		$4.30 8
16 107338
SPACER WASHER mm. 1,5 		$21.80 8
16 107339
Ditto, thickness 2 mm.
IN STOCK 		$2.01 (33% off) 8
16 107340
Ditto, thickness 2,5 mm 		$2.14 (29.8% off) 8
16 107341
Ditto, thickness 3 mm. 		$8.82 (41.5% off) 8
16 107342
Ditto, thickness 3,25 mm. 		$0.92 (69.8% off) 8
16 101039
Ditto, thickness 1 mm.
Possible fitting 		$0.70 (90% off) 8
17 150238
NYLON STOP HEX. NUT M14X1.5X14
IN STOCK 		$0.28 (81.6% off) 4
18 101041
WASHER 		$0.23 (81.6% off) 4
19 115072
Upper adjusting plate for caster angle
Possible fitting 		- 1 Enquire
20 124365
Lower adjusting plate for caster angle
Possible fitting 		$5.06 1
21 103256
Upper adjusting plate 		$6.11 (64.1% off) 8
22 125397
Lower adjusting plate 		$0.66 8
23 109013
Screw 		- 2 Enquire
24 12574521
Nyloc Nut
IN STOCK 		$0.92 (54% off) 4
25 15971621
Screw 		$0.44 2
26 12574521
Nyloc Nut
IN STOCK 		$0.92 (54% off) 2
27 112441
Screw 		$78.40 (56.2% off) 2
28 148020
NUT
IN STOCK 		$4.30 2
29 114818
SCREW 		$41.96 2
30 118118
Stabilizer rod 		- 1 Enquire
31 114703
Pad for rod 		- 2 Enquire
32 138389
Support -Valid after 		$61.53 2
33 13543124
STUD BOLT
IN STOCK 		$6.63 4
34 16104411
Selflocking nut
IN STOCK 		$0.21 (77.2% off) 4
35 116280
Upper ball joint 		$1,417.07 2
36 133944
LOWER BALL JOINT 		$217.43 (14.7% off) 2
37 101445
Washer 		$0.81 2
38 84653800
WASHER
IN STOCK 		$5.53 2
