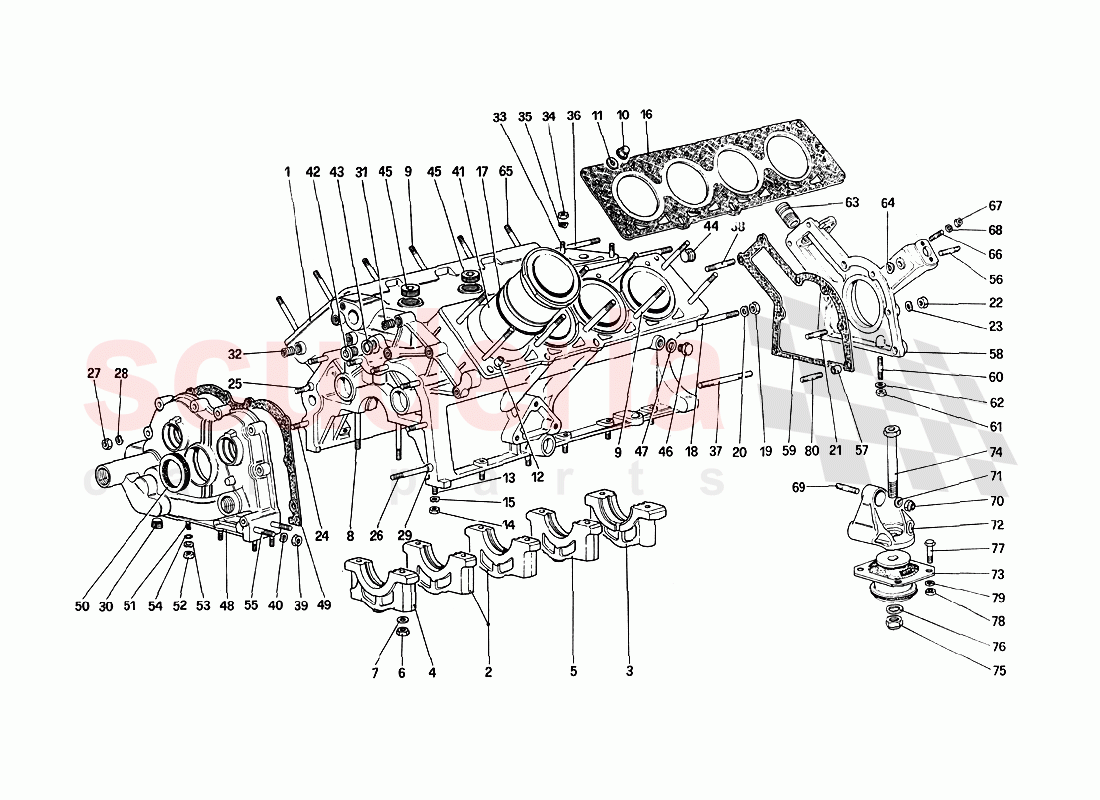

Ferrari 288 GTO - Crankcase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	123145	Crankcase	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103764	Cap for intermediate support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103765	Cap for rear support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109293	Cap for front support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122739	Cap for rear intermediate support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6103841	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6103842	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104075	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137507	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100101	Cap nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100100	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121978	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120679	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110021	Sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546824	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541324	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517321	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517421	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13518221	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14326150	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13526070	Heli-coil securing cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13517224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13547021	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13547721	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120662	Cylinder liner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1027500	Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10269950	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103948	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124110	Front cover -For complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135089	Gasket -Valid after	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	108224	Seal ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103039	Sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103038	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123315	Rear cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136102	Gasket -Valid after	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12354524	Stud Securing Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102705	Connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144252	Gasket -Valid after	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	111755	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13539024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546424	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121845	Front support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177755	Rubber mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121856	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12575915	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10520224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541524	STUD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	120660	Crankcase, complete	120660 Crankcase, complete	-	1	Enquire
1	123145	Crankcase	123145 Crankcase With assembly no. 120660	-	1	Enquire
2	103764	Cap for intermediate support	103764 Cap for intermediate support With crankcase complete	-	2	Enquire
3	103765	Cap for rear support	103765 Cap for rear support With crankcase complete	-	1	Enquire
4	109293	Cap for front support	109293 Cap for front support With crankcase complete	-	1	Enquire
5	122739	Cap for rear intermediate support	122739 Cap for rear intermediate support With crankcase complete	-	1	Enquire
6	6103841	NUT	6103841 NUT	-	10	Enquire
7	6103842	WASHER	6103842 WASHER	-	10	Enquire
8	104075	STUD	104075 STUD	-	10	Enquire
9	137507	STUD	137507 STUD	-	18	Enquire
10	100101	Cap nut	100101 Cap nut	-	20	Enquire
11	100100	Washer	100100 Washer	-	20	Enquire
12	121978	Dowel	121978 Dowel	-	4	Enquire
13	12354524	Stud Securing Exhaust	12354524 Stud Securing Exhaust	-	12	Enquire
14	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	12	Enquire
15	12601374	WASHER	12601374 WASHER	-	12	Enquire
16	120679	Gasket	120679 Gasket	-	2	Enquire
17	110021	Sealing ring	110021 Sealing ring	-	8	Enquire
18	13546824	Stud	13546824 Stud	-	4	Enquire
19	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	6	Enquire
20	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	6	Enquire
21	13541324	STUD BOLT	13541324 STUD BOLT	-	4	Enquire
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	9	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	9	Enquire
24	13517321	Stud	13517321 Stud	-	6	Enquire
25	13517421	Stud	13517421 Stud	-	1	Enquire
26	13518221	Stud	13518221 Stud	-	1	Enquire
27	16104411	Selflocking nut	16104411 Selflocking nut	-	8	Enquire
28	12601374	WASHER	12601374 WASHER	-	8	Enquire
29	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	2	Enquire
30	14326150	CAP	14326150 CAP	-	1	Enquire
31	13525770	THREADED INSERT	13525770 THREADED INSERT	-	4	Enquire
32	13526070	Heli-coil securing cover	13526070 Heli-coil securing cover	-	4	Enquire
33	13517224	STUD BOLT	13517224 STUD BOLT	-	3	Enquire
34	16104411	Selflocking nut	16104411 Selflocking nut	-	3	Enquire
35	12601374	WASHER	12601374 WASHER	-	3	Enquire
36	13547021	Stud	13547021 Stud	-	1	Enquire
37	13547721	Stud	13547721 Stud	-	1	Enquire
38	13541624	STUD BOLT	13541624 STUD BOLT	-	1	Enquire
39	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	2	Enquire
40	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
41	120662	Cylinder liner	120662 Cylinder liner	-	8	Enquire
42	1027500	Cap	1027500 Cap	-	2	Enquire
43	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	2	Enquire
44	282753	THREADED PLUG	282753 THREADED PLUG	-	2	Enquire
45	10269950	THREADED PLUG	10269950 THREADED PLUG	-	3	Enquire
46	103948	Plug	103948 Plug	-	1	Enquire
47	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	1	Enquire
48	124110	Front cover -For complete	124110 Front cover -For complete	-	1	Enquire
49	135089	Gasket -Valid after	135089 Gasket -Valid after	-	1	Enquire
50	108224	Seal ring	108224 Seal ring	-	1	Enquire
51	12354524	Stud Securing Exhaust	12354524 Stud Securing Exhaust	-	6	Enquire
52	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	6	Enquire
53	12601374	WASHER	12601374 WASHER	-	6	Enquire
54	103039	Sealing ring	103039 Sealing ring	-	2	Enquire
55	13546224	STUD BOLT	13546224 STUD BOLT	-	2	Enquire
56	13540924	STUD BOLT	13540924 STUD BOLT	-	2	Enquire
57	103038	DOWEL	103038 DOWEL	-	2	Enquire
58	123315	Rear cover	123315 Rear cover	-	1	Enquire
59	136102	Gasket -Valid after	136102 Gasket -Valid after	-	1	Enquire
60	12354524	Stud Securing Exhaust	12354524 Stud Securing Exhaust	-	2	Enquire
61	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
62	12601374	WASHER	12601374 WASHER	-	2	Enquire
63	102705	Connection	102705 Connection	-	1	Enquire
64	144252	Gasket -Valid after	144252 Gasket -Valid after	-	1	Enquire
65	111755	Stud	111755 Stud	-	2	Enquire
66	13539024	STUD BOLT	13539024 STUD BOLT	-	4	Enquire
67	14059114	NUT	14059114 NUT	-	4	Enquire
68	127493	WASHER	127493 WASHER	-	4	Enquire
69	13546424	Stud	13546424 Stud	-	6	Enquire
70	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	6	Enquire
71	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	6	Enquire
72	121845	Front support	121845 Front support	-	2	Enquire
73	177755	Rubber mounting	177755 Rubber mounting	-	2	Enquire
74	121856	Screw	121856 Screw	-	2	Enquire
75	12575915	NUT	12575915 NUT	-	2	Enquire
76	10520224	WASHER	10520224 WASHER	-	2	Enquire
77	15970624	SCREW	15970624 SCREW	-	8	Enquire
78	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	8	Enquire
79	127497	WASHER	127497 WASHER	-	8	Enquire
80	13541524	STUD BOLT	13541524 STUD BOLT	-	2	Enquire
