Ferrari 288 GTO - Air Conditioning Compressor and Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
121966 Compressor (SANKYO 507) $2,558.39 To Order
Photo Part No Description Price (each) Stock
122448 Lower bracket $323.53 To Order
Photo Part No Description Price (each) Stock
146914 Upper mounting $564.83 To Order
Photo Part No Description Price (each) Stock
122418 SCREW $16.24 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 IN STOCK
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
121928 Silentblock $104.59 To Order
Photo Part No Description Price (each) Stock
102695 WASHER $2.25 To Order
Photo Part No Description Price (each) Stock
11343821 SCREW $1.09 IN STOCK
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.41 IN STOCK
Photo Part No Description Price (each) Stock
15970921 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
122947 Bush $58.19 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 IN STOCK
Photo Part No Description Price (each) Stock
14496624675000766 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
124333 Fitting for intake $288.50 To Order
Photo Part No Description Price (each) Stock
124334 Fitting for outlet $288.50 To Order
Photo Part No Description Price (each) Stock
122422 Clutch - clock wise rotation $609.93 To Order
Photo Part No Description Price (each) Stock
122973A A.C. compressor control belt Enquire To Order
Photo Part No Description Price (each) Stock
61470800 Pipe receiver drier to evaporator Enquire To Order
Photo Part No Description Price (each) Stock
61470900 Pipe evaporator to compressor Enquire To Order
Photo Part No Description Price (each) Stock
61471000 Pipe compressor to condenser Enquire To Order
Photo Part No Description Price (each) Stock
61400000 A.C. assembly Enquire To Order
Photo Part No Description Price (each) Stock
60870300 Conveyor Enquire To Order
Photo Part No Description Price (each) Stock
11087876 FLEXIBLE RING $0.13 To Order
Photo Part No Description Price (each) Stock
117546 Fan motor Enquire To Order
Photo Part No Description Price (each) Stock
61701500 Lower gasket Enquire To Order
Photo Part No Description Price (each) Stock
123298 SCREW $0.39 To Order
Photo Part No Description Price (each) Stock
61742600 Expansion valve $160.18 To Order
Photo Part No Description Price (each) Stock
60649100 Condenser $687.16 To Order
Photo Part No Description Price (each) Stock
61358300 Front housing Enquire To Order
Photo Part No Description Price (each) Stock
61047900 Thermo - switch Enquire To Order
Photo Part No Description Price (each) Stock
60815000 Spring $1.91 To Order
Photo Part No Description Price (each) Stock
122953 4 blade fan $17.02 To Order
Photo Part No Description Price (each) Stock
61701400 Upper gasket Enquire To Order
Photo Part No Description Price (each) Stock
61701300 Lateral gasket Enquire To Order
Photo Part No Description Price (each) Stock
10902511 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.67 To Order
Photo Part No Description Price (each) Stock
103550 Spacer bush -Only for $2.03 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
122449 Spacer $3.70 To Order
View All

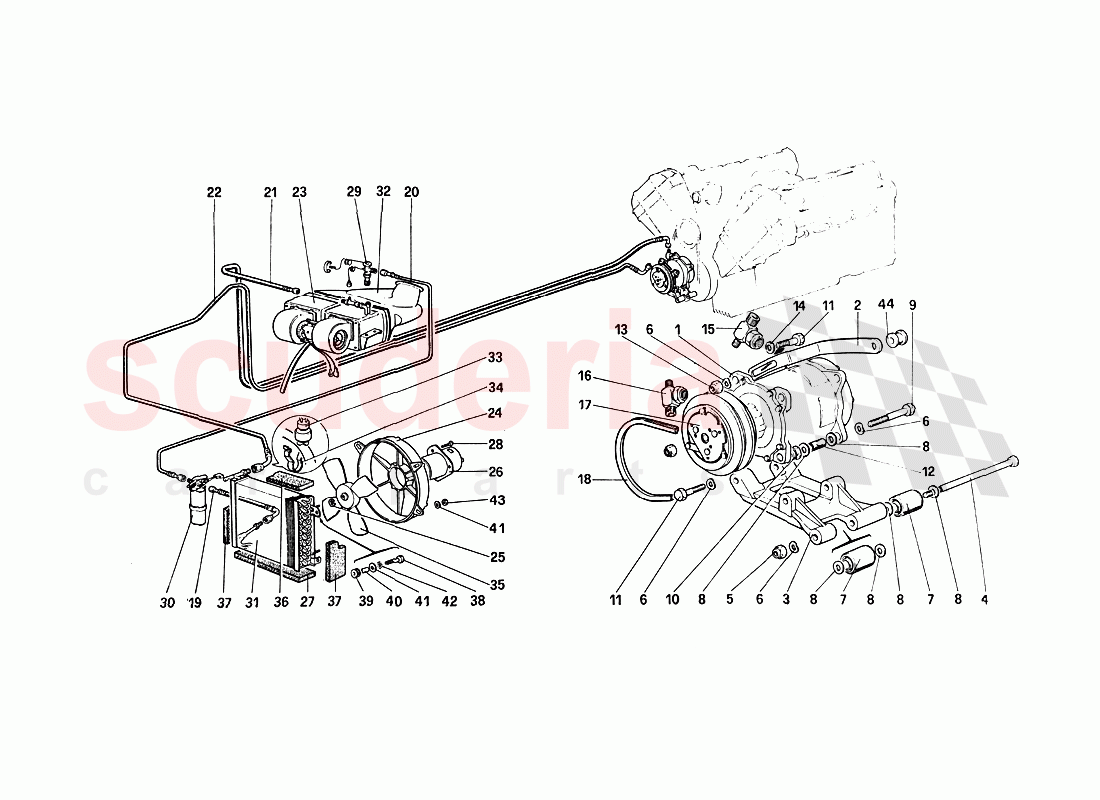

Air Conditioning Compressor and Controls of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 121966
Compressor (SANKYO 507) 		$2,558.39 1
2 122448
Lower bracket 		$323.53 1
3 146914
Upper mounting 		$564.83 1
4 122418
SCREW 		$16.24 1
5 12574521
Nyloc Nut
IN STOCK 		$0.92 (54% off) 1
6 12601474
WASHER
IN STOCK 		$0.03 6
7 121928
Silentblock 		$104.59 (30.7% off) 2
8 102695
WASHER 		$2.25 (30.8% off) 8
9 11343821
SCREW
IN STOCK 		$1.09 2
10 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.41 (87.4% off) 2
11 15970921
SCREW
IN STOCK 		$0.36 (82% off) 3
12 122947
Bush 		$58.19 2
13 12574521
Nyloc Nut
IN STOCK 		$0.92 (54% off) 1
14 14496624675000766
WASHER 		- 1 Enquire
15 124333
Fitting for intake 		$288.50 1
16 124334
Fitting for outlet 		$288.50 1
17 122422
Clutch - clock wise rotation 		$609.93 1
18 122973A
A.C. compressor control belt 		- 1 Enquire
19 61470700
Pipe condenser to receiver drier 		- 1 Enquire
20 61470800
Pipe receiver drier to evaporator 		- 1 Enquire
21 61470900
Pipe evaporator to compressor 		- 1 Enquire
22 61471000
Pipe compressor to condenser 		- 1 Enquire
23 61400000
A.C. assembly 		- 1 Enquire
24 60870300
Conveyor 		- 1 Enquire
25 11087876
FLEXIBLE RING 		$0.13 (82.7% off) 1
26 117546
Fan motor 		- 1 Enquire
27 61701500
Lower gasket 		- 1 Enquire
28 123298
SCREW 		$0.39 3
29 61742600
Expansion valve 		$160.18 1
30 61989500
FILTER 		$158.81 1
31 60649100
Condenser 		$687.16 1
32 61358300
Front housing 		- 1 Enquire
33 61047900
Thermo - switch 		- 1 Enquire
34 60815000
Spring 		$1.91 1
35 122953
4 blade fan 		$17.02 (68.8% off) 1
36 61701400
Upper gasket 		- 1 Enquire
37 61701300
Lateral gasket 		- 1 Enquire
38 10902511
SCREW 		$0.21 3
39 812273
CABLE GROMMET 		$1.67 3
40 103550
Spacer bush -Only for
IN STOCK 		$2.03 (37.5% off) 3
41 12643724
WASHER
IN STOCK 		$0.06 (88% off) 7
42 12601374
WASHER
IN STOCK 		$0.02 (92% off) 3
43 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
44 122449
Spacer 		$3.70 1
