Clutch and Controls of Ferrari Ferrari 288 GTO

View All

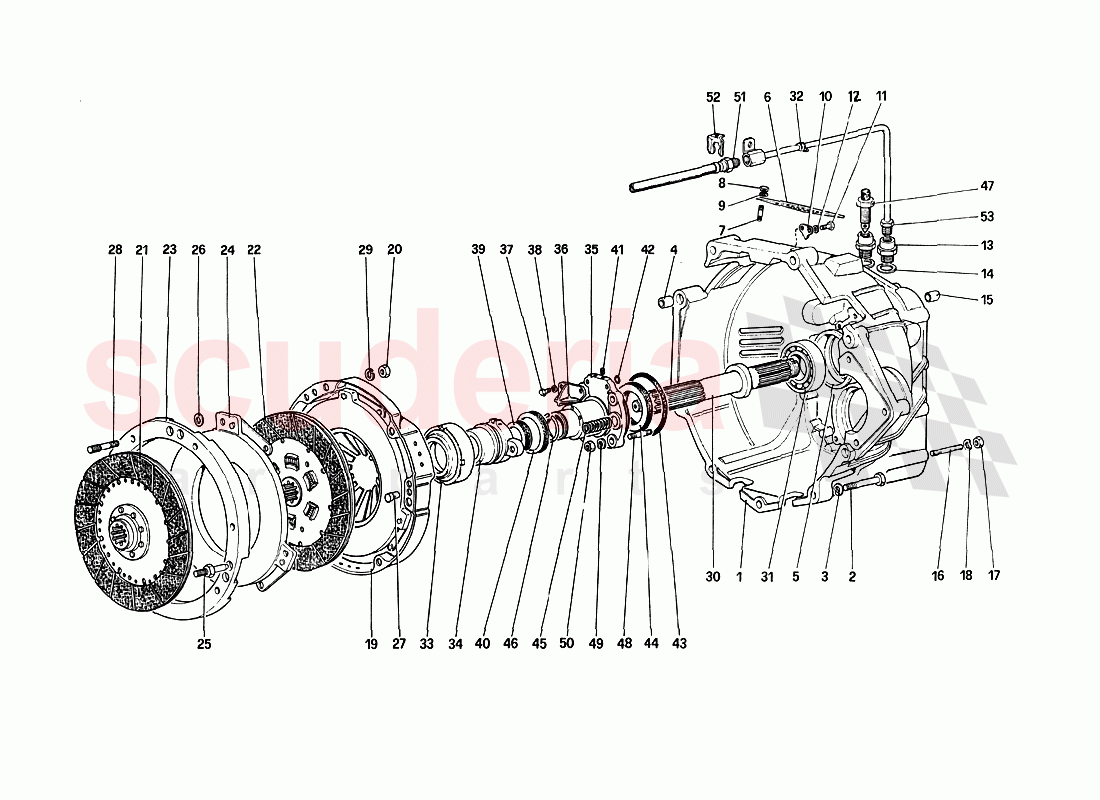

Ferrari 288 GTO - Clutch and Controls

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	125456	Clutch housing, complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125537	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121797	Bush for bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121806	Inspection cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11000824	Stud -Q.ty 4 for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114603	Timing reference bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148604	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123885	Exhaust valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120016	Clutch Ã˜ 8''''Â½ complete	Enquire	To Order
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109460	FRIZIONE DOPPIO DISCO D. 8 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	119496	Rigid driven plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	119495	Spring hub driven plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	108515	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109464	Intermediate plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109465	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109466	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109880	Dowel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110019	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123689	Clutch shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126223	Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125458	Thrust bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123359	Bush for bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123360	Sleeve for bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123696	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977521	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139440	Sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139439	Sealing ring -Valid after	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65928500	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233118	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121814	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138680	Sealing ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121717	Pre load spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123110	Safety ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16108811	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123309	Flexible hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110810	Pipe securing plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123308	Pipe	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	125456	Clutch housing, complete	125456 Clutch housing, complete	-	1	Enquire
2	16044024	SCREW	16044024 SCREW	-	3	Enquire
3	12601374	WASHER	12601374 WASHER	-	3	Enquire
4	125537	Dowel	125537 Dowel	-	2	Enquire
5	121797	Bush for bearing	121797 Bush for bearing	-	1	Enquire
6	121806	Inspection cover	121806 Inspection cover	-	1	Enquire
7	11000824	Stud -Q.ty 4 for USA-	11000824 Stud -Q.ty 4 for USA-	-	4	Enquire
8	14059114	NUT	14059114 NUT	-	4	Enquire
9	12604178	Washer	12604178 Washer	-	4	Enquire
10	114603	Timing reference bracket	114603 Timing reference bracket	-	1	Enquire
11	10977824	SCREW	10977824 SCREW	-	2	Enquire
12	127493	WASHER	127493 WASHER	-	2	Enquire
13	148604	THREADED UNION	148604 THREADED UNION	-	2	Enquire
14	10261460	GASKET	10261460 GASKET	-	2	Enquire
15	123885	Exhaust valve	123885 Exhaust valve	-	2	Enquire
16	13543424	STUD BOLT	13543424 STUD BOLT	-	12	Enquire
17	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	12	Enquire
18	120016	Clutch Ã˜ 8''''Â½ complete	120016 Clutch Ã˜ 8''''Â½ complete	-	1	Enquire
18	12601374	WASHER	12601374 WASHER	-	12	Enquire
19	109460	FRIZIONE DOPPIO DISCO D. 8 1	109460 FRIZIONE DOPPIO DISCO D. 8 1	-	1	Enquire
20	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	6	Enquire
21	119496	Rigid driven plate	119496 Rigid driven plate	-	1	Enquire
22	119495	Spring hub driven plate	119495 Spring hub driven plate	-	1	Enquire
23	108515	Spacer	108515 Spacer	-	1	Enquire
24	109464	Intermediate plate	109464 Intermediate plate	-	1	Enquire
25	109465	Stud	109465 Stud	-	3	Enquire
26	109466	Washer	109466 Washer	-	6	Enquire
27	109880	Dowel	109880 Dowel	-	3	Enquire
28	110019	Stud	110019 Stud	-	6	Enquire
29	127496	WASHER	127496 WASHER	-	6	Enquire
30	123689	Clutch shaft	123689 Clutch shaft	-	1	Enquire
31	126223	Bearing	126223 Bearing	-	1	Enquire
32	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH	-	2	Enquire
33	125458	Thrust bearing	125458 Thrust bearing	-	1	Enquire
34	123359	Bush for bearing	123359 Bush for bearing	-	1	Enquire
35	123360	Sleeve for bush	123360 Sleeve for bush	-	1	Enquire
36	123696	Plate	123696 Plate	-	1	Enquire
37	10977521	SCREW	10977521 SCREW	-	1	Enquire
38	127493	WASHER	127493 WASHER	-	1	Enquire
39	139440	Sealing ring	139440 Sealing ring	-	1	Enquire
40	139439	Sealing ring -Valid after	139439 Sealing ring -Valid after	-	1	Enquire
41	65928500	THREADED PLUG	65928500 THREADED PLUG	-	2	Enquire
42	233118	O-RING	233118 O-RING	-	2	Enquire
43	121814	O-Ring	121814 O-Ring	-	1	Enquire
44	138680	Sealing ring	138680 Sealing ring	-	1	Enquire
45	121717	Pre load spring	121717 Pre load spring	-	2	Enquire
46	123110	Safety ring	123110 Safety ring	-	1	Enquire
47	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	-	1	Enquire
48	13516624	STUD BOLT	13516624 STUD BOLT	-	4	Enquire
49	127496	WASHER	127496 WASHER	-	4	Enquire
50	16108811	Nut	16108811 Nut	-	4	Enquire
51	123309	Flexible hose	123309 Flexible hose	-	1	Enquire
52	110810	Pipe securing plate	110810 Pipe securing plate	-	1	Enquire
53	123308	Pipe	123308 Pipe	-	1	Enquire
