Name: Steering Culumn
Rating: 4.2 (1 reviews)

Steering Culumn of Ferrari Ferrari 288 GTO

View All

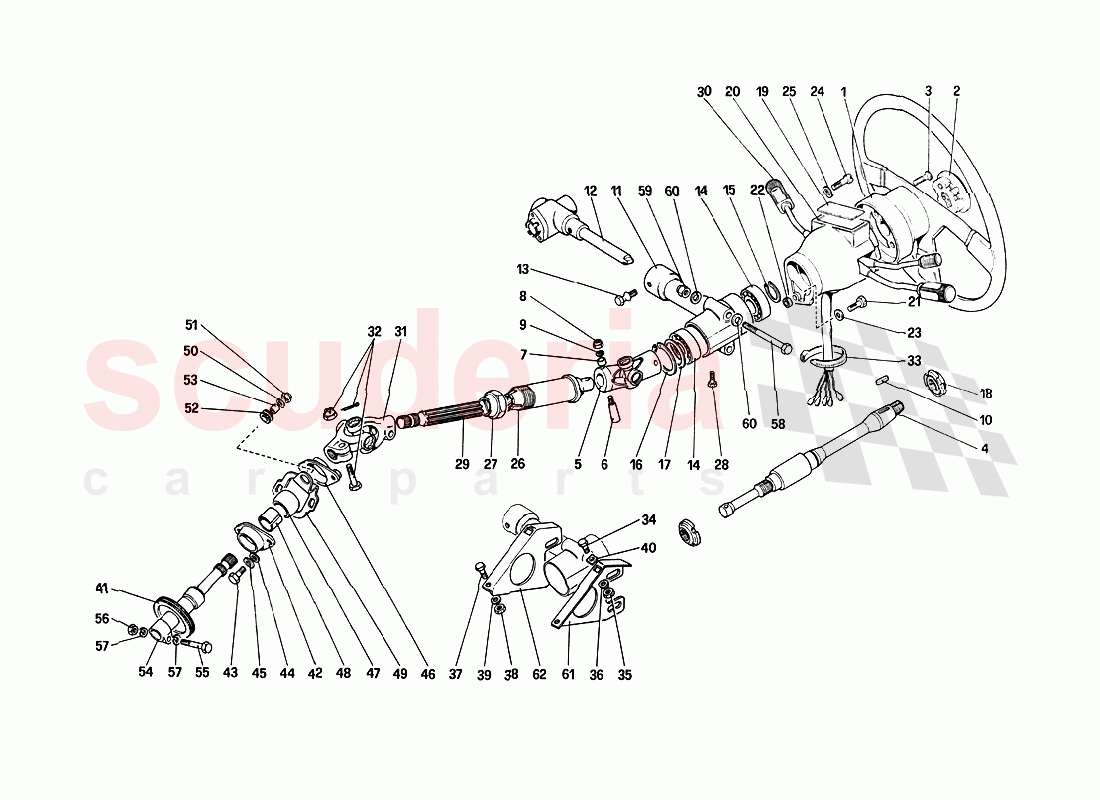

Ferrari 288 GTO - Steering Culumn

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	136549	Steering wheel complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130899	Horn button and retainer	$8.56	To Order

Photo	Part No	Description	Price (each)	Stock
	111189	SCREW	$5.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	108413	Upper steering shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112572	Universal joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112573	Pin	$28.54	To Order

Photo	Part No	Description	Price (each)	Stock
	108417	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	112571	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101106	Tongue	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	168785	COMPLETE ANTI THEFT DEVICE	$2,835.31	To Order

Photo	Part No	Description	Price (each)	Stock
	168045	SCREW	$75.34	To Order

Photo	Part No	Description	Price (each)	Stock
	101104	Bearing	$15.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	11060576	SNAP RING	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	107489	Ditto, thickness 0,3 mm.	$10.60	To Order
	107488	Ditto, thickness 0,4 mm.	Enquire	To Order
	101101	Ditto, thickness 0,5 mm.	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	121360	Car identification plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120429	Main switch housing	$92.65	To Order

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10389901	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12544179	Washer	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	124215	Guide tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106870	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10979421	Screw	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	106869	Lower Steering Shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124460	Mainswitch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103343	Universal Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105032	Fixing Items for Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103755	Clamp	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16043221	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	106425	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103292	Lower Flange	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123683	Upper flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103297	Ball	$8.38	To Order

Photo	Part No	Description	Price (each)	Stock
	103370	Bush	$10.66	To Order

Photo	Part No	Description	Price (each)	Stock
	123682	Mounting for Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	103550	Spacer bush -Only for	$2.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123522	Pinion Extenstion	$110.26	To Order

Photo	Part No	Description	Price (each)	Stock
	125518	SCREW	$1.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	103576	Screw	$16.66	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124129	Left Mounting for Steering Column	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124130	Right Mounting for Steering Column	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	136549	Steering wheel complete	136549 Steering wheel complete	-	1	Enquire
2	130899	Horn button and retainer	130899 Horn button and retainer	$8.56 MSRP: ~~96.63~~ (91.1% off)	1
3	111189	SCREW IN STOCK	111189 SCREW IN STOCK	$5.12 MSRP: ~~6.60~~ (22.4% off)	6
4	108413	Upper steering shaft	108413 Upper steering shaft	-	1	Enquire
5	112572	Universal joint	112572 Universal joint	-	1	Enquire
6	112573	Pin	112573 Pin	$28.54 MSRP: ~~65.80~~ (56.6% off)	2
7	108417	Spacer	108417 Spacer	-	2	Enquire
8	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	2
9	112571	Washer	112571 Washer	-	2	Enquire
10	101106	Tongue	101106 Tongue	$0.57 MSRP: ~~1.00~~ (43% off)	1
11	106611	Mounting, steering column and	106611 Mounting, steering column and	$930.65	1
12	168785	COMPLETE ANTI THEFT DEVICE	168785 COMPLETE ANTI THEFT DEVICE	$2,835.31 MSRP: ~~3,899.24~~ (27.3% off)	1
13	168045	SCREW	168045 SCREW	$75.34	1
14	101104	Bearing	101104 Bearing	$15.40 MSRP: ~~18.00~~ (14.4% off)	2
15	11067376	SEEGER RING	11067376 SEEGER RING	$1.33	1
16	11060576	SNAP RING	11060576 SNAP RING	$1.15 MSRP: ~~2.50~~ (54% off)	1
17	107489	Ditto, thickness 0,3 mm.	107489 Ditto, thickness 0,3 mm. Possible fitting	$10.60	1
17	107488	Ditto, thickness 0,4 mm.	107488 Ditto, thickness 0,4 mm. Possible fitting	-	1	Enquire
17	101101	Ditto, thickness 0,5 mm.	101101 Ditto, thickness 0,5 mm. Possible fitting	-	1	Enquire
17	107490	Shim, thickness 0,2 mm.	107490 Shim, thickness 0,2 mm. Possible fitting	$10.60	1
18	106610	Ring nut	106610 Ring nut	$17.41 MSRP: ~~30.25~~ (42.4% off)	2
19	121360	Car identification plate	121360 Car identification plate	-	1	Enquire
20	120429	Main switch housing	120429 Main switch housing	$92.65	1
21	10902221	SCREW	10902221 SCREW	$0.97 MSRP: ~~3.25~~ (70.2% off)	1
22	14499370	Washer	14499370 Washer	$0.28	1
23	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	1
24	10389901	Screw	10389901 Screw	-	2	Enquire
25	12544179	Washer	12544179 Washer	$0.55	2
26	124215	Guide tube	124215 Guide tube	-	1	Enquire
27	106870	Nut	106870 Nut	-	1	Enquire
28	10979421	Screw	10979421 Screw	$0.05	1
29	106869	Lower Steering Shaft	106869 Lower Steering Shaft	-	1	Enquire
30	124460	Mainswitch	124460 Mainswitch	-	1	Enquire
31	103343	Universal Joint	103343 Universal Joint	-	1	Enquire
32	105032	Fixing Items for Joint	105032 Fixing Items for Joint	-	1	Enquire
33	103755	Clamp	103755 Clamp	$0.42	1
34	81591700	SCREW	81591700 SCREW	$2.24	2
35	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	2
36	127494	WASHER IN STOCK	127494 WASHER IN STOCK	$0.08 MSRP: ~~0.68~~ (88.2% off)	2
37	16043221	SCREW	16043221 SCREW	$0.10 MSRP: ~~0.50~~ (80% off)	2
38	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.42	2
39	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
40	106425	Plate	106425 Plate	-	2	Enquire
41	112466	Guiding Bush	112466 Guiding Bush	$17.88 MSRP: ~~37.87~~ (52.8% off)	1
42	103292	Lower Flange	103292 Lower Flange	$8.04 MSRP: ~~20.95~~ (61.6% off)	1
43	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.15 MSRP: ~~0.70~~ (78.6% off)	2
44	127494	WASHER IN STOCK	127494 WASHER IN STOCK	$0.08 MSRP: ~~0.68~~ (88.2% off)	2
45	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
46	123683	Upper flange	123683 Upper flange	-	1	Enquire
47	103297	Ball	103297 Ball	$8.38 MSRP: ~~76.55~~ (89.1% off)	1
48	103370	Bush	103370 Bush	$10.66 MSRP: ~~25.16~~ (57.6% off)	1
49	123682	Mounting for Joint	123682 Mounting for Joint	-	1	Enquire
50	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
51	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	2
52	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.67	2
53	103550	Spacer bush -Only for IN STOCK	103550 Spacer bush -Only for IN STOCK	$2.03 MSRP: ~~3.25~~ (37.5% off)	2
54	123522	Pinion Extenstion	123522 Pinion Extenstion	$110.26	1
55	125518	SCREW IN STOCK	125518 SCREW IN STOCK	$1.78 MSRP: ~~2.25~~ (20.9% off)	1
56	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	1
57	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
58	103576	Screw	103576 Screw	$16.66	2
59	147985	NUT IN STOCK	147985 NUT IN STOCK	$0.15 MSRP: ~~0.50~~ (70% off)	2
60	84653800	WASHER IN STOCK	84653800 WASHER IN STOCK	$5.53	4
61	124129	Left Mounting for Steering Column	124129 Left Mounting for Steering Column	-	1	Enquire
62	124130	Right Mounting for Steering Column	124130 Right Mounting for Steering Column	-	1	Enquire
