Exhaust System of Ferrari Ferrari 288 GTO

View All

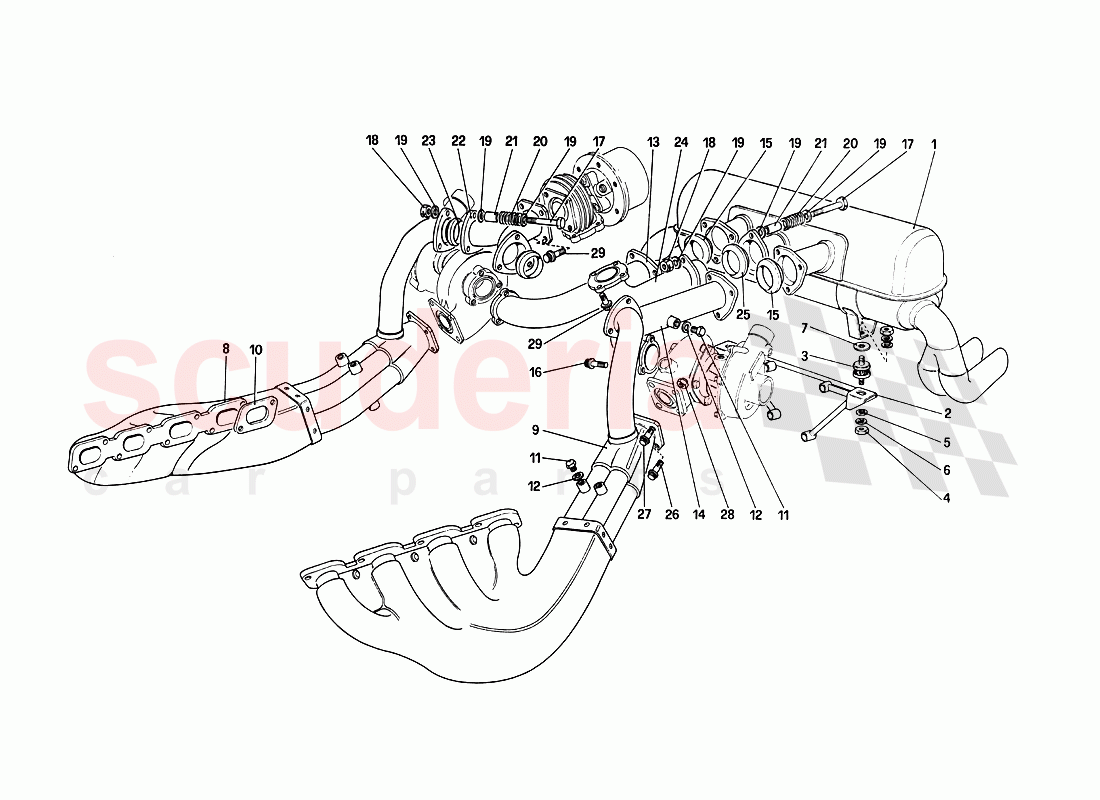

Ferrari 288 GTO - Exhaust System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	123426	Exhaust silencer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123715	Mounting for silencer	$240.04	To Order

Photo	Part No	Description	Price (each)	Stock
	118223	Insulating mounting	$13.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	146700	Gasket	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	123392	Right exhaust manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122934	Left exhaust manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146694	Gasket	$11.22	To Order

Photo	Part No	Description	Price (each)	Stock
	110860	THREADED PLUG	$15.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123387	Right turbo outlet hose	$303.24	To Order

Photo	Part No	Description	Price (each)	Stock
	123388	Left turbo outlet hose	$303.24	To Order

Photo	Part No	Description	Price (each)	Stock

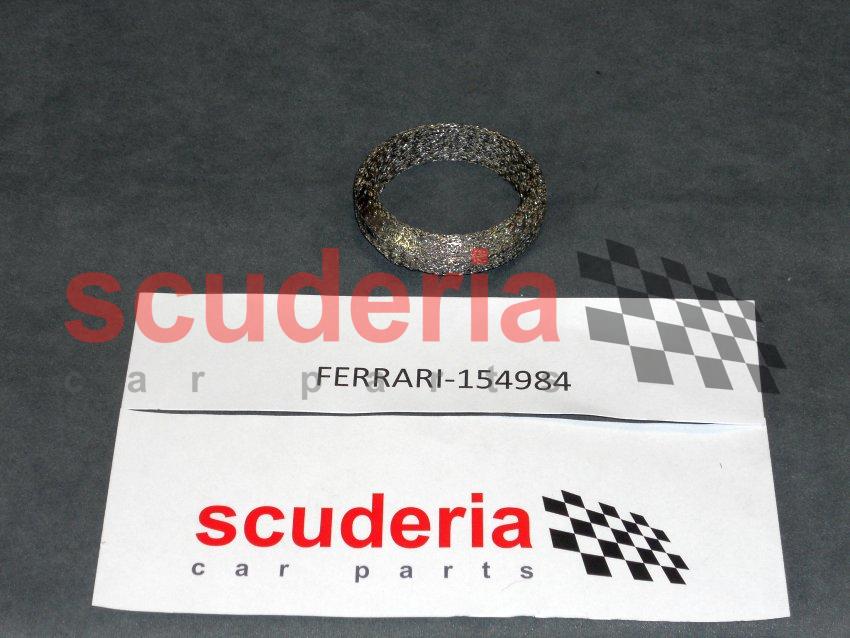

	154984	Exhaust Ring Gasket	$21.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122461	Screw	$105.11	To Order

Photo	Part No	Description	Price (each)	Stock
	128009	Screw	$19.30	To Order

Photo	Part No	Description	Price (each)	Stock
	118251	Selflocking nut	$19.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	128010	Washer	$2.50	To Order

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	$41.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	$3.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122561	Pipe from manifolds to W.G.	$915.69	To Order

Photo	Part No	Description	Price (each)	Stock
	154979	Gasket	$15.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123421	Outlet pipe from WASTEGATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154984	Exhaust Ring Gasket	$21.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123003	Screw	$71.46	To Order

Photo	Part No	Description	Price (each)	Stock
	123002	Screw	$29.77	To Order

Photo	Part No	Description	Price (each)	Stock
	118251	Selflocking nut	$19.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122461	Screw	$105.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	123426	Exhaust silencer	123426 Exhaust silencer	-	1	Enquire
2	123715	Mounting for silencer	123715 Mounting for silencer	$240.04	1
3	118223	Insulating mounting	118223 Insulating mounting	$13.57 MSRP: ~~33.99~~ (60.1% off)	2
4	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.42	4
5	12646704	WASHER	12646704 WASHER	$0.11	4
6	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
7	146700	Gasket	146700 Gasket	$1.05 MSRP: ~~1.55~~ (32.3% off)	2
8	123392	Right exhaust manifold	123392 Right exhaust manifold	-	1	Enquire
9	122934	Left exhaust manifold	122934 Left exhaust manifold	-	1	Enquire
10	146694	Gasket	146694 Gasket	$11.22 MSRP: ~~18.90~~ (40.6% off)	8
11	110860	THREADED PLUG IN STOCK	110860 THREADED PLUG IN STOCK	$15.48 MSRP: ~~18.00~~ (14% off)	10
12	10298460	GASKET IN STOCK	10298460 GASKET IN STOCK	$0.15 MSRP: ~~1.25~~ (88% off)	10
13	123387	Right turbo outlet hose	123387 Right turbo outlet hose	$303.24	1
14	123388	Left turbo outlet hose	123388 Left turbo outlet hose	$303.24	1
15	154984	Exhaust Ring Gasket IN STOCK	154984 Exhaust Ring Gasket IN STOCK	$21.59 MSRP: ~~24.40~~ (11.5% off)	2
16	122461	Screw	122461 Screw	$105.11	6
17	128009	Screw	128009 Screw	$19.30 MSRP: ~~23.15~~ (16.6% off)	15
18	118251	Selflocking nut IN STOCK	118251 Selflocking nut IN STOCK	$19.81	15
19	128010	Washer	128010 Washer	$2.50 MSRP: ~~9.17~~ (72.7% off)	45
20	111743	EXHAUST BRACKET SPRING IN STOCK	111743 EXHAUST BRACKET SPRING IN STOCK	$41.93	15
21	114749	Spacer D8. 10 x 23 IN STOCK	114749 Spacer D8. 10 x 23 IN STOCK	$3.89 MSRP: ~~4.85~~ (19.8% off)	15
22	122561	Pipe from manifolds to W.G.	122561 Pipe from manifolds to W.G.	$915.69	1
23	154979	Gasket IN STOCK	154979 Gasket IN STOCK	$15.96 MSRP: ~~18.35~~ (13% off)	2
24	123421	Outlet pipe from WASTEGATE	123421 Outlet pipe from WASTEGATE	-	1	Enquire
25	154984	Exhaust Ring Gasket IN STOCK	154984 Exhaust Ring Gasket IN STOCK	$21.59 MSRP: ~~24.40~~ (11.5% off)	1
26	123003	Screw	123003 Screw	$71.46 MSRP: ~~80.62~~ (11.4% off)	4
27	123002	Screw	123002 Screw	$29.77 MSRP: ~~37.27~~ (20.1% off)	4
28	118251	Selflocking nut IN STOCK	118251 Selflocking nut IN STOCK	$19.81	8
29	122461	Screw	122461 Screw	$105.11	8
