Lay Shaft Gears

Ferrari 288 GTO

Find Your Part

Ferrari 288 GTO - Lay Shaft Gears

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
121732 Pinion (with crown and pinion complete) Enquire To Order
Photo Part No Description Price (each) Stock
10269950 THREADED PLUG $10.42 To Order
Photo Part No Description Price (each) Stock
122145 Toothed wheel for pulse $344.16 To Order
Photo Part No Description Price (each) Stock
122175 Gear reverse Enquire To Order
Photo Part No Description Price (each) Stock
122176 Gear 1st speed Enquire To Order
Photo Part No Description Price (each) Stock
122177 Gear 2nd speed Enquire To Order
Photo Part No Description Price (each) Stock
122178 Gear 3rd speed Enquire To Order
Photo Part No Description Price (each) Stock
122179 Gear 4th speed Enquire To Order
Photo Part No Description Price (each) Stock
122180 Gear 5th speed Enquire To Order
Photo Part No Description Price (each) Stock
184547 Sleeve for synchronizer $327.53 To Order
Photo Part No Description Price (each) Stock
106040 FLOATING RING FOR SYNCHRO. $367.87 To Order
Photo Part No Description Price (each) Stock
106042 Insert for synchronizer $10.47 To Order
Photo Part No Description Price (each) Stock
106043 Spring $6.87 To Order
Photo Part No Description Price (each) Stock
113412 Pin $19.21 To Order
Photo Part No Description Price (each) Stock
113412 Pin $19.21 To Order
Photo Part No Description Price (each) Stock
106039 Synchronizer body $636.59 To Order
Photo Part No Description Price (each) Stock
101636 Bearing, axle side $182.11 IN STOCK
Photo Part No Description Price (each) Stock
121822 ROLLER BEARING $399.50 To Order
Photo Part No Description Price (each) Stock
121819 BALL BEARING WITH CIRCLIP $551.67 IN STOCK
Photo Part No Description Price (each) Stock
121820 Roller Bearing $224.72 IN STOCK
Photo Part No Description Price (each) Stock
122113 Stop ring Enquire To Order
Photo Part No Description Price (each) Stock
104704 Roller race for 1st, 2nd, 3rd, speed and reverse gears $688.34 To Order
Photo Part No Description Price (each) Stock
101604 Roller cage for 1st 2nd 3rd speeds and reverse gears $21.01 To Order
Photo Part No Description Price (each) Stock
146230 Synchronizer with bushing $301.45 To Order
Photo Part No Description Price (each) Stock
122152 SPACER $176.51 To Order
Photo Part No Description Price (each) Stock
110175 Spacer $206.52 To Order
Photo Part No Description Price (each) Stock
122026 Spacer Enquire To Order
Photo Part No Description Price (each) Stock
122074 Spacer $50.63 To Order
Photo Part No Description Price (each) Stock
110175 Spacer $206.52 To Order
Photo Part No Description Price (each) Stock
122000 Bush for bearing $390.53 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
122077 Ditto, thickness mm. 1,6 $53.10 To Order
122078 Ditto, thickness mm. 1,8 $51.59 To Order
122079 Ditto, thickness mm. 2,2 $13.40 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
122076 Spacer thickness mm. 2 $13.40 To Order
Photo Part No Description Price (each) Stock
101611 BALL $0.81 To Order
View All

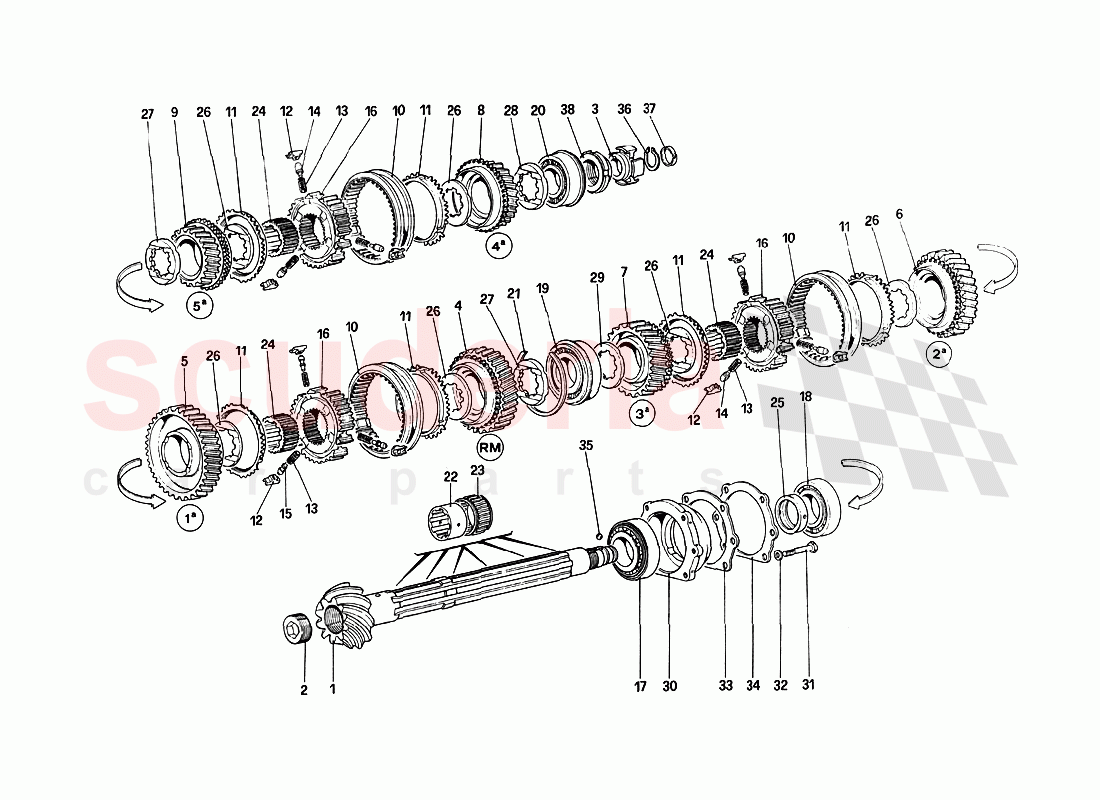

Lay Shaft Gears of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 122099
Crown wheel and pinion complete R 10/29 		- 1 Enquire
1 121732
Pinion (with crown and pinion complete)
With assembly no. 122099 		- 1 Enquire
2 10269950
THREADED PLUG 		$10.42 (67.4% off) 1
3 122145
Toothed wheel for pulse 		$344.16 1
4 122175
Gear reverse 		- 1 Enquire
5 122176
Gear 1st speed 		- 1 Enquire
6 122177
Gear 2nd speed 		- 1 Enquire
7 122178
Gear 3rd speed 		- 1 Enquire
8 122179
Gear 4th speed 		- 1 Enquire
9 122180
Gear 5th speed 		- 1 Enquire
10 184547
Sleeve for synchronizer 		$327.53 3
11 106040
FLOATING RING FOR SYNCHRO. 		$367.87 (55.2% off) 6
12 106042
Insert for synchronizer 		$10.47 (92.6% off) 9
13 106043
Spring 		$6.87 (66.7% off) 9
14 113412
Pin 		$19.21 (64.1% off) 6
15 113412
Pin 		$19.21 (64.1% off) 3
16 106039
Synchronizer body 		$636.59 3
17 101636
Bearing, axle side
IN STOCK 		$182.11 (4.5% off) 1
18 121822
ROLLER BEARING 		$399.50 1
19 121819
BALL BEARING WITH CIRCLIP
IN STOCK 		$551.67 1
20 121820
Roller Bearing
IN STOCK 		$224.72 (44.5% off) 1
21 122113
Stop ring 		- 1 Enquire
22 104704
Roller race for 1st, 2nd, 3rd, speed and reverse gears 		$688.34 (33.7% off) 6
23 101604
Roller cage for 1st 2nd 3rd speeds and reverse gears 		$21.01 (63.4% off) 6
24 146230
Synchronizer with bushing 		$301.45 (61.4% off) 3
25 122152
SPACER 		$176.51 1
26 110175
Spacer
size : 36-40-3.2 		$206.52 6
27 122026
Spacer 		- 2 Enquire
28 122074
Spacer 		$50.63 1
29 110175
Spacer
size : 36-40-3.2 		$206.52 1
30 122000
Bush for bearing 		$390.53 1
31 16044031
Screw 		$2.95 6
32 127496
WASHER 		$0.06 (80% off) 6
33 122077
Ditto, thickness mm. 1,6 		$53.10 1
33 122078
Ditto, thickness mm. 1,8 		$51.59 1
33 122079
Ditto, thickness mm. 2,2 		$13.40 1
33 122080
Ditto, thickness mm. 2,4 		$100.73 1
33 122076
Spacer thickness mm. 2 		$13.40 1
34 122076
Spacer thickness mm. 2 		$13.40 1
35 101611
BALL 		$0.81 1
