Fuel Pump and Pipes of Ferrari Ferrari 288 GTO

View All

Ferrari 288 GTO - Fuel Pump and Pipes

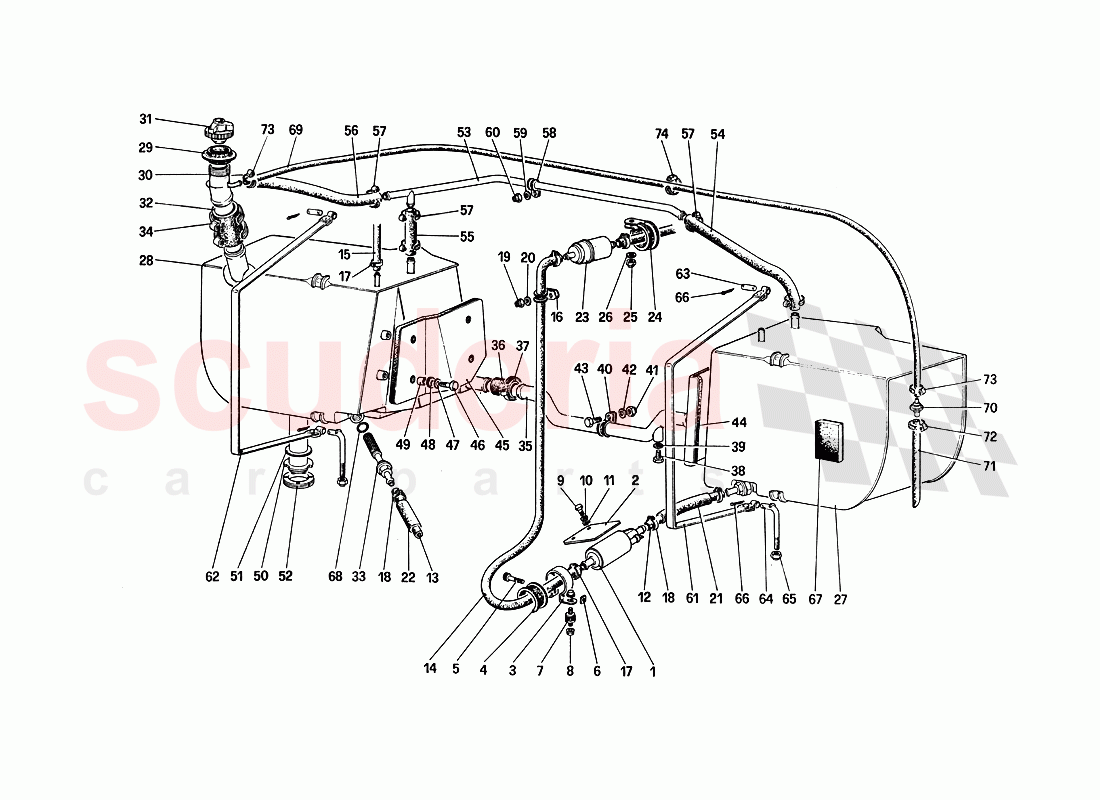

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	122089	Fuel pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124645	Protective shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123847	Clamp for pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123848	Protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14089311	Square nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113021	Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13831801	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12641701	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139869	Right pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139870	Left pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139868	Pipe from pump to filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123160	Fuel return pipe from pressure regulator to fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125090	Pipe protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125122	Pipe protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122088	Fuel filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113909	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123730	Right fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123731	Left fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101465	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124403	Filler neck	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122589	Cap for filler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114278	Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136593	Filter on tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12174790	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124688	Pipe, tanks connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114277	R.H. and L.H. hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000590	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10300771	Oil Outlet Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10278650	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106195	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124733	R.H. shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124734	LH. shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124830	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124832	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147792	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50088909	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149798	Sender for fuel level	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154802	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121435	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124699	Breather pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117973	R.H. breather pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116777	L.H. breather pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124718	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12641201	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124727	Right strap securing fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124729	Left strap securing fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103447	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213177	THREADED TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124379	Shim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116851	Pipe from filler neck to bleed valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120444	Valve for tanks ventilation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116770	Exhaust pipe from 3-way	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157990	Hose Retaining Clip D. 7 - 11 x 5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12119410	Clamp	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	122089	Fuel pump	122089 Fuel pump	-	2	Enquire
2	124645	Protective shield	124645 Protective shield	-	2	Enquire
3	123847	Clamp for pump	123847 Clamp for pump	-	2	Enquire
4	123848	Protection	123848 Protection	-	2	Enquire
5	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	14305521 ALLEN SCREW SOCKET HEAD M6 X 30	-	2	Enquire
6	14089311	Square nut	14089311 Square nut	-	2	Enquire
7	113021	Plug	113021 Plug	-	6	Enquire
8	13831801	NUT	13831801 NUT	-	12	Enquire
9	16285224	SCREW	16285224 SCREW	-	4	Enquire
10	12641701	Washer	12641701 Washer	-	4	Enquire
11	127494	WASHER	127494 WASHER	-	4	Enquire
12	139869	Right pipe	139869 Right pipe	-	1	Enquire
13	139870	Left pipe	139870 Left pipe	-	1	Enquire
14	139868	Pipe from pump to filter	139868 Pipe from pump to filter	-	2	Enquire
15	123160	Fuel return pipe from pressure regulator to fuel tank	123160 Fuel return pipe from pressure regulator to fuel tank	-	2	Enquire
16	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	4	Enquire
17	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	10	Enquire
18	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
20	127494	WASHER	127494 WASHER	-	4	Enquire
21	125090	Pipe protection	125090 Pipe protection	-	1	Enquire
22	125122	Pipe protection	125122 Pipe protection	-	1	Enquire
23	122088	Fuel filter	122088 Fuel filter	-	2	Enquire
24	113909	Clamp	113909 Clamp	-	2	Enquire
25	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
26	12646704	WASHER	12646704 WASHER	-	2	Enquire
27	123730	Right fuel tank	123730 Right fuel tank	-	1	Enquire
28	123731	Left fuel tank	123731 Left fuel tank	-	1	Enquire
29	101465	Gasket	101465 Gasket	-	1	Enquire
30	124403	Filler neck	124403 Filler neck	-	1	Enquire
31	122589	Cap for filler	122589 Cap for filler	-	1	Enquire
32	114278	Sleeve	114278 Sleeve	-	1	Enquire
33	136593	Filter on tank	136593 Filter on tank	-	2	Enquire
34	12174790	Clamp	12174790 Clamp	-	2	Enquire
35	124688	Pipe, tanks connection	124688 Pipe, tanks connection	-	1	Enquire
36	114277	R.H. and L.H. hose	114277 R.H. and L.H. hose	-	2	Enquire
37	13000590	SCREW COLLAR	13000590 SCREW COLLAR	-	4	Enquire
38	10300771	Oil Outlet Plug	10300771 Oil Outlet Plug	-	1	Enquire
39	10278650	Gasket	10278650 Gasket	-	1	Enquire
40	106195	BRACKET WITH SHEATH	106195 BRACKET WITH SHEATH	-	1	Enquire
41	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
42	12643724	WASHER	12643724 WASHER	-	1	Enquire
43	81591700	SCREW	81591700 SCREW	-	1	Enquire
44	124733	R.H. shield	124733 R.H. shield	-	1	Enquire
45	124734	LH. shield	124734 LH. shield	-	1	Enquire
46	124830	Screw	124830 Screw	-	8	Enquire
47	124832	Washer	124832 Washer	-	8	Enquire
48	147792	Gasket	147792 Gasket	-	8	Enquire
49	50088909	Bush	50088909 Bush	-	8	Enquire
50	149798	Sender for fuel level	149798 Sender for fuel level	-	1	Enquire
51	154802	GASKET	154802 GASKET	-	1	Enquire
52	121435	RING NUT	121435 RING NUT	-	1	Enquire
53	124699	Breather pipe	124699 Breather pipe	-	1	Enquire
54	117973	R.H. breather pipe	117973 R.H. breather pipe	-	1	Enquire
55	116777	L.H. breather pipe	116777 L.H. breather pipe	-	1	Enquire
56	124718	Pipe	124718 Pipe	-	1	Enquire
57	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	6	Enquire
58	320600	CLIP	320600 CLIP	-	2	Enquire
59	12641201	Washer	12641201 Washer	-	2	Enquire
60	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
61	124727	Right strap securing fuel tank	124727 Right strap securing fuel tank	-	1	Enquire
62	124729	Left strap securing fuel tank	124729 Left strap securing fuel tank	-	1	Enquire
63	103447	PIN	103447 PIN	-	2	Enquire
64	213177	THREADED TIE-ROD	213177 THREADED TIE-ROD	-	2	Enquire
65	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
66	264555	SPLIT PIN	264555 SPLIT PIN	-	6	Enquire
67	124379	Shim	124379 Shim	-	32	Enquire
68	122791	O-RING	122791 O-RING	-	2	Enquire
69	116851	Pipe from filler neck to bleed valve	116851 Pipe from filler neck to bleed valve	-	1	Enquire
70	120444	Valve for tanks ventilation	120444 Valve for tanks ventilation	-	1	Enquire
71	116770	Exhaust pipe from 3-way	116770 Exhaust pipe from 3-way	-	1	Enquire
72	157990	Hose Retaining Clip D. 7 - 11 x 5	157990 Hose Retaining Clip D. 7 - 11 x 5	-	1	Enquire
73	12119410	Clamp	12119410 Clamp	-	2	Enquire
74	103755	Clamp	103755 Clamp	-	1	Enquire
