Name: Outside Gearbox Controls
Rating: 4.1 (1 reviews)

Outside Gearbox Controls of Ferrari Ferrari 288 GTO

View All

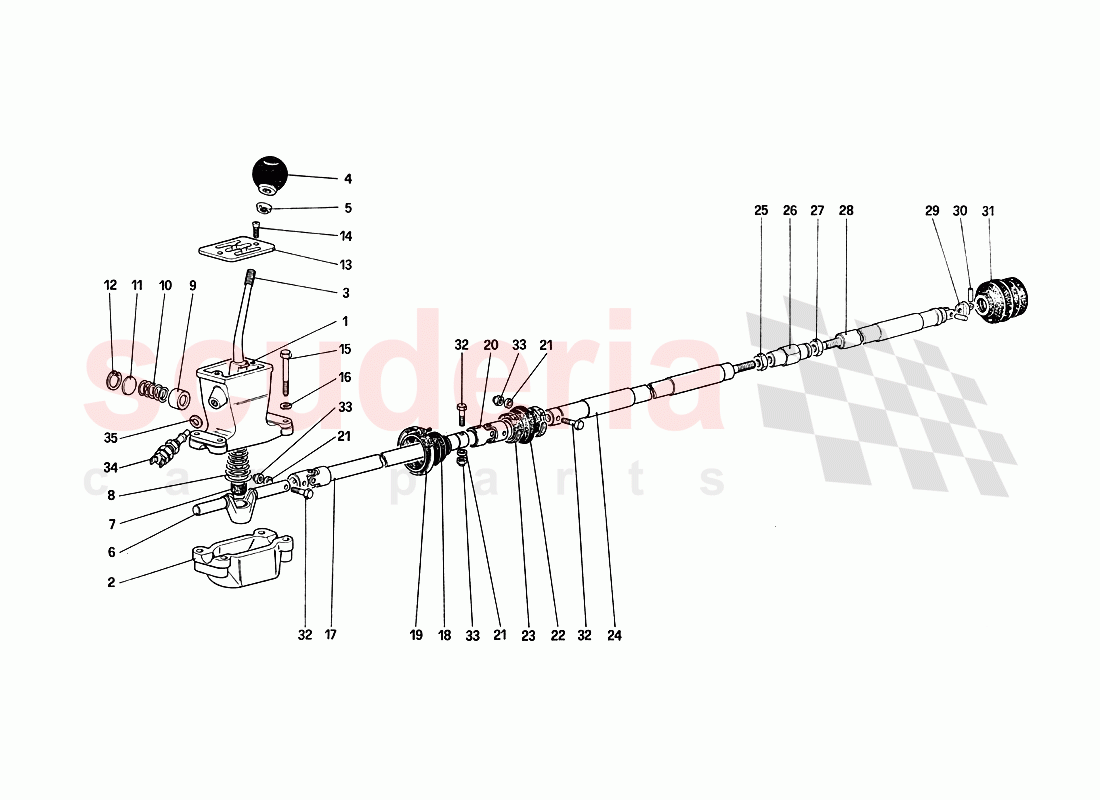

Ferrari 288 GTO - Outside Gearbox Controls

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	105438	Gearbox casing	Enquire	To Order
	135986	Gearbox casing, complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104315	Lower cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124598	Gearbox lever	$684.26	To Order

Photo	Part No	Description	Price (each)	Stock
	103301	Knob for gearshift lever	$118.50	To Order

Photo	Part No	Description	Price (each)	Stock
	108010	CHECKNUT	$25.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	119887	Pin with joint seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127446	BALL SEAT FOR JOINT	$28.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	115340	Center spring	$5.92	To Order

Photo	Part No	Description	Price (each)	Stock
	108824	Lever push rod	$44.44	To Order

Photo	Part No	Description	Price (each)	Stock
	115339	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103319	SPRING RETAINING DISC	$20.24	To Order

Photo	Part No	Description	Price (each)	Stock
	103326	SEEGER RING	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	148452	Speed selector	$853.61	To Order

Photo	Part No	Description	Price (each)	Stock
	101619	SCREW	$22.21	To Order

Photo	Part No	Description	Price (each)	Stock
	16136621	Screw	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122156	Front control rod	$270.98	To Order

Photo	Part No	Description	Price (each)	Stock
	106687	Rubber boot	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	10291490	Clamp	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	122160	Ball joint	$175.89	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122166	Bellows	$29.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14560187	Clamp (cable tie)	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	122161	Central control rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16103621	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	122164	Tie rod	$113.78	To Order

Photo	Part No	Description	Price (each)	Stock
	16103721	Locknut (threaded insert, left)	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	122165	Rear control rod	$533.52	To Order

Photo	Part No	Description	Price (each)	Stock
	122120	Joint	$92.00	To Order

Photo	Part No	Description	Price (each)	Stock
	13940070	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124593	Bellows	$88.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10978521	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	$722.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	115980A	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.53	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	105438	Gearbox casing	105438 Gearbox casing With unit no. 122155	-	1	Enquire
1	135986	Gearbox casing, complete	135986 Gearbox casing, complete	-	1	Enquire
2	104315	Lower cover	104315 Lower cover With unit no. 122155	-	1	Enquire
3	124598	Gearbox lever	124598 Gearbox lever	$684.26	1
4	103301	Knob for gearshift lever	103301 Knob for gearshift lever	$118.50 MSRP: ~~388.19~~ (69.5% off)	1
5	108010	CHECKNUT IN STOCK	108010 CHECKNUT IN STOCK	$25.59 MSRP: ~~29.30~~ (12.7% off)	1
6	119887	Pin with joint seat	119887 Pin with joint seat	-	1	Enquire
7	127446	BALL SEAT FOR JOINT IN STOCK	127446 BALL SEAT FOR JOINT IN STOCK	$28.96 MSRP: ~~37.64~~ (23.1% off)	1
8	115340	Center spring	115340 Center spring	$5.92	1
9	108824	Lever push rod	108824 Lever push rod	$44.44	1
10	115339	Spring	115339 Spring	-	1	Enquire
11	103319	SPRING RETAINING DISC	103319 SPRING RETAINING DISC	$20.24	1
12	103326	SEEGER RING IN STOCK	103326 SEEGER RING IN STOCK	$0.23 MSRP: ~~0.80~~ (71.3% off)	1
13	148452	Speed selector	148452 Speed selector	$853.61	1
14	101619	SCREW	101619 SCREW	$22.21	2
15	16136621	Screw	16136621 Screw	$1.36	4
16	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
17	122156	Front control rod	122156 Front control rod	$270.98	1
18	106687	Rubber boot	106687 Rubber boot	$5.48 MSRP: ~~18.80~~ (70.9% off)	1
19	10291490	Clamp	10291490 Clamp	$1.30	2
20	122160	Ball joint	122160 Ball joint	$175.89	1
21	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	3
22	122166	Bellows	122166 Bellows	$29.51	1
23	14560187	Clamp (cable tie)	14560187 Clamp (cable tie)	$0.11	2
24	122161	Central control rod	122161 Central control rod	-	1	Enquire
25	16103621	NUT	16103621 NUT	$0.41	1
26	122164	Tie rod	122164 Tie rod	$113.78	1
27	16103721	Locknut (threaded insert, left)	16103721 Locknut (threaded insert, left)	$1.22	1
28	122165	Rear control rod	122165 Rear control rod	$533.52	1
29	122120	Joint	122120 Joint	$92.00	1
30	13940070	Pin	13940070 Pin	-	2	Enquire
31	124593	Bellows	124593 Bellows	$88.06	1
32	10978521	SCREW	10978521 SCREW	$0.21	3
33	319201	FUEL FILLER PIPE ASSEMBLY IN STOCK	319201 FUEL FILLER PIPE ASSEMBLY IN STOCK	$722.05	3
34	115980A	SWITCH	115980A SWITCH	-	1	Enquire
35	84653800	WASHER IN STOCK	84653800 WASHER IN STOCK	$5.53	1
