Volante Trunk Casing and Mats of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Volante Trunk Casing and Mats

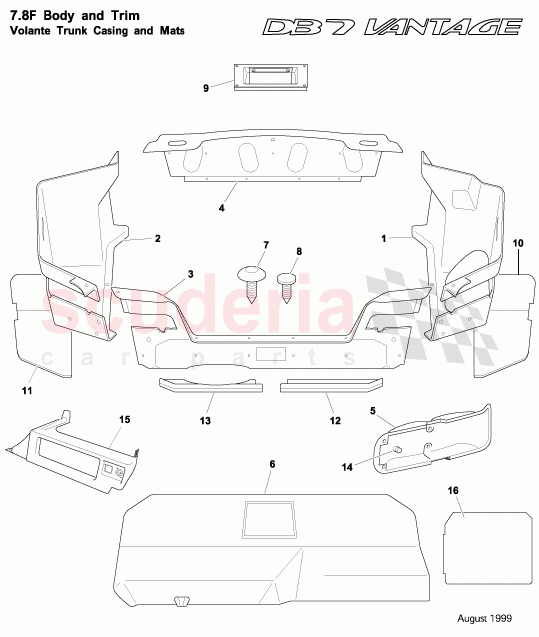

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83111290BAW	Carpet assy, trunk side - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83111291BAW	CARPET ASSY - TRUNK SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83122459ABW	CARPET ASSY - TRUNK FLOOR REAR	Enquire	To Order
	83111294ABW	CARPET ASSY - TRUNK FLOOR REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123788BBW	CARPET ASSY-REAR PANEL-TRUNK	Enquire	To Order
	83123533BAW	CARPET ASSY-REAR PANEL-TRUNK	Enquire	To Order
	83123788BBW	CARPET ASSY-REAR PANEL-TRUNK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83111296BAW	TRIM PANEL ASSY - TAIL LAMP RH	Enquire	To Order
	83111295BAW	TRIM PANEL ASSY - TAIL LAMP LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123509AAW	COVER ASSY-SPARE WHEEL WELL	Enquire	To Order
	83123841AA	LOAD FLOOR - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582503PK	FIRTREE FASTENER(20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83110940AA	FIRTREE BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6783776	AIR EXTRACTION-TRUNK ASSY VOLANTE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582613	UNDERLAY - CARPET RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582614	Underlay, carpet - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582615	UNDERLAY - CARPET REAR RH	Enquire	To Order
	8582616	UNDERLAY - CARPET REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83122457AA	UNDERLAY PACKER - REAR CARPET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83123891AB	ASSY BOOT LINER - BOOT FLOOR	Enquire	To Order
	37123985AA	H/LAMP APERTURE FOAM	Enquire	To Order
	83124086AC	ASSY BOOT LINER - BOOT FLOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80124251AA	CD AUTOCHANGER COVER ASSY	Enquire	To Order
	80124084AA	Cover, CD autochanger	Enquire	To Order
	83140695AA	Boot liner, mat (modified)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697595	SCREW M10 x 35 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order
	83140496AAW	Panel assy, boot side, RH, trimmed	Enquire	To Order
	83140497AAW	Panel assy, boot side, LH, trimmed	Enquire	To Order

...and 33 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83111290BAW	Carpet assy, trunk side - RH	83111290BAW Carpet assy, trunk side - RH	-	1	Enquire
2	83111291BAW	CARPET ASSY - TRUNK SIDE LH	83111291BAW CARPET ASSY - TRUNK SIDE LH	-	1	Enquire
3	83122459ABW	CARPET ASSY - TRUNK FLOOR REAR	83122459ABW CARPET ASSY - TRUNK FLOOR REAR Up to (V) 400999	-	1	Enquire
3	83111294ABW	CARPET ASSY - TRUNK FLOOR REAR	83111294ABW CARPET ASSY - TRUNK FLOOR REAR From (V) 401002	-	1	Enquire
4	83123788BBW	CARPET ASSY-REAR PANEL-TRUNK	83123788BBW CARPET ASSY-REAR PANEL-TRUNK From (V) 300556 Up to (V) 302252	-	1	Enquire
4	83123533BAW	CARPET ASSY-REAR PANEL-TRUNK	83123533BAW CARPET ASSY-REAR PANEL-TRUNK Up to (V) 300555	-	1	Enquire
4	83123788BBW	CARPET ASSY-REAR PANEL-TRUNK	83123788BBW CARPET ASSY-REAR PANEL-TRUNK From (V) 302253	-	1	Enquire
4	83111293BAW	CARPET ASSY - REAR PANEL TRUNK	83111293BAW CARPET ASSY - REAR PANEL TRUNK	-	1	Enquire
5	83111296BAW	TRIM PANEL ASSY - TAIL LAMP RH	83111296BAW TRIM PANEL ASSY - TAIL LAMP RH	-	1	Enquire
5	83111295BAW	TRIM PANEL ASSY - TAIL LAMP LH	83111295BAW TRIM PANEL ASSY - TAIL LAMP LH	-	1	Enquire
6	83123509AAW	COVER ASSY-SPARE WHEEL WELL	83123509AAW COVER ASSY-SPARE WHEEL WELL Up to (V) 400999	-	1	Enquire
6	83123841AA	LOAD FLOOR - BOOT	83123841AA LOAD FLOOR - BOOT From (V) 401002	-	1	Enquire
7	8582503PK	FIRTREE FASTENER(20)	8582503PK FIRTREE FASTENER(20) Trim to body	-	33	Enquire
8	83110940AA	FIRTREE BUTTON	83110940AA FIRTREE BUTTON Trim to body	-	16	Enquire
9	6783776	AIR EXTRACTION-TRUNK ASSY VOLANTE	6783776 AIR EXTRACTION-TRUNK ASSY VOLANTE	-	2	Enquire
10	8582613	UNDERLAY - CARPET RH	8582613 UNDERLAY - CARPET RH	-	1	Enquire
11	8582614	Underlay, carpet - LH	8582614 Underlay, carpet - LH	-	1	Enquire
12	8582615	UNDERLAY - CARPET REAR RH	8582615 UNDERLAY - CARPET REAR RH Up to (V) 400999	-	1	Enquire
12	8582616	UNDERLAY - CARPET REAR LH	8582616 UNDERLAY - CARPET REAR LH From (V) 401002	-	2	Enquire
13	83122457AA	UNDERLAY PACKER - REAR CARPET LH	83122457AA UNDERLAY PACKER - REAR CARPET LH	-	1	Enquire
14	83123891AB	ASSY BOOT LINER - BOOT FLOOR	83123891AB ASSY BOOT LINER - BOOT FLOOR From (V) 401002 Up to (V) 302252	-	1	Enquire
14	37123985AA	H/LAMP APERTURE FOAM	37123985AA H/LAMP APERTURE FOAM Boot lid harness retention	-	1	Enquire
14	83124086AC	ASSY BOOT LINER - BOOT FLOOR	83124086AC ASSY BOOT LINER - BOOT FLOOR From (V) 302253	-	1	Enquire
14	697552	RETAINER M5	697552 RETAINER M5 Light covers	-	8	Enquire
15	80124251AA	CD AUTOCHANGER COVER ASSY	80124251AA CD AUTOCHANGER COVER ASSY From (V) 302253	-	1	Enquire
15	80124084AA	Cover, CD autochanger	80124084AA Cover, CD autochanger From (V) 302253	-	1	Enquire
15	83140695AA	Boot liner, mat (modified)	83140695AA Boot liner, mat (modified) Zagato	-	1	Enquire
16	697595	SCREW M10 x 35 HEX FLANGE HEAD GRADE 8.8	697595 SCREW M10 x 35 HEX FLANGE HEAD GRADE 8.8 Zagato	-	1	Enquire
16	83140496AAW	Panel assy, boot side, RH, trimmed	83140496AAW Panel assy, boot side, RH, trimmed Zagato	-	1	Enquire
16	83140497AAW	Panel assy, boot side, LH, trimmed	83140497AAW Panel assy, boot side, LH, trimmed Zagato	-	1	Enquire
16	83140595AA	Underlay, carpet, boot rear, LH	83140595AA Underlay, carpet, boot rear, LH Zagato	-	1	Enquire
16	83140526AAW	Front boot carpet cover assy	83140526AAW Front boot carpet cover assy Zagato	-	1	Enquire
16	83140520AAW	Cover assy, boot floor	83140520AAW Cover assy, boot floor Zagato	-	1	Enquire
16	83140514AA	Liner assy, boot floor	83140514AA Liner assy, boot floor Zagato	-	1	Enquire
16	83140652AA	Washer, spacer, 112mm	83140652AA Washer, spacer, 112mm Zagato	-	1	Enquire
16	83140562AA	Foam block, boot, RH	83140562AA Foam block, boot, RH Zagato	-	1	Enquire
16	83140563AA	Foam block, boot, LH	83140563AA Foam block, boot, LH Zagato	-	1	Enquire
16	83140492AA	Cover, boot lock	83140492AA Cover, boot lock Zagato	-	1	Enquire
16	83140494AA	Tool tray, boot	83140494AA Tool tray, boot Zagato	-	1	Enquire
16	697645	SCREW-SELF DRILLING	697645 SCREW-SELF DRILLING Zagato	-	2	Enquire
16	697516PK	NUT-M6 HEX BLK (10)	697516PK NUT-M6 HEX BLK (10) Zagato	-	2	Enquire
16	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm Zagato	-	2	Enquire
16	697114	SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8	697114 SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8 Zagato	-	3	Enquire
16	697658	SCREW	697658 SCREW Zagato	-	3	Enquire
16	697516PK	NUT-M6 HEX BLK (10)	697516PK NUT-M6 HEX BLK (10) Zagato	-	4	Enquire
16	83140508AA	BRACKET SUPPORT - RH BOOT SIDE	83140508AA BRACKET SUPPORT - RH BOOT SIDE Zagato	-	4	Enquire
16	83140509AA	BRACKET SUPPORT - LH BOOT SIDE	83140509AA BRACKET SUPPORT - LH BOOT SIDE Zagato	-	4	Enquire
16	83140510AAW	ASSEMBLY BOOT BACKBOARD TRIMMED	83140510AAW ASSEMBLY BOOT BACKBOARD TRIMMED Zagato	-	4	Enquire
16	83140507AA	BRACKET SUPPORT - BOOT SIDE	83140507AA BRACKET SUPPORT - BOOT SIDE Zagato	-	4	Enquire
16	83140506AA	BRACKET - BOOT BACKBOARD	83140506AA BRACKET - BOOT BACKBOARD Zagato	-	4	Enquire
16	697570	SCREW No8 x 19 FLANGE HEAD BLACK	697570 SCREW No8 x 19 FLANGE HEAD BLACK Zagato	-	4	Enquire
16	3484293	PAD-LOCATION	3484293 PAD-LOCATION Zagato	-	4	Enquire
16	699230	SPRING CLIP	699230 SPRING CLIP Zagato	-	4	Enquire
16	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE Zagato	-	5	Enquire
16	3481437	PAD	3481437 PAD Zagato	-	6	Enquire
16	697514	WASHER OVAL 1 x 1/2 x 7/32	697514 WASHER OVAL 1 x 1/2 x 7/32 Zagato	-	8	Enquire
16	7282573	SPACER BUMPER	7282573 SPACER BUMPER Zagato	-	8	Enquire
16	83123927AA	BOOT LINER - MAT 450X540X2MM	83123927AA BOOT LINER - MAT 450X540X2MM	-	1	Enquire
16	AA608045	Screw, flg, No 8 x 1/2"	AA608045 Screw, flg, No 8 x 1/2"	-	2	Enquire
16	697669	FASTENER RECEPTACLE DZUS 336 200 190	697669 FASTENER RECEPTACLE DZUS 336 200 190	-	2	Enquire
16	83123514AA	Catch, fastener	83123514AA Catch, fastener	-	2	Enquire
16	697520	RETAINER WASHER-DZUS	697520 RETAINER WASHER-DZUS	-	2	Enquire
16	699216	RIVET-PLASTIC EXPANSION	699216 RIVET-PLASTIC EXPANSION	-	5	Enquire
