Bonnet of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Bonnet

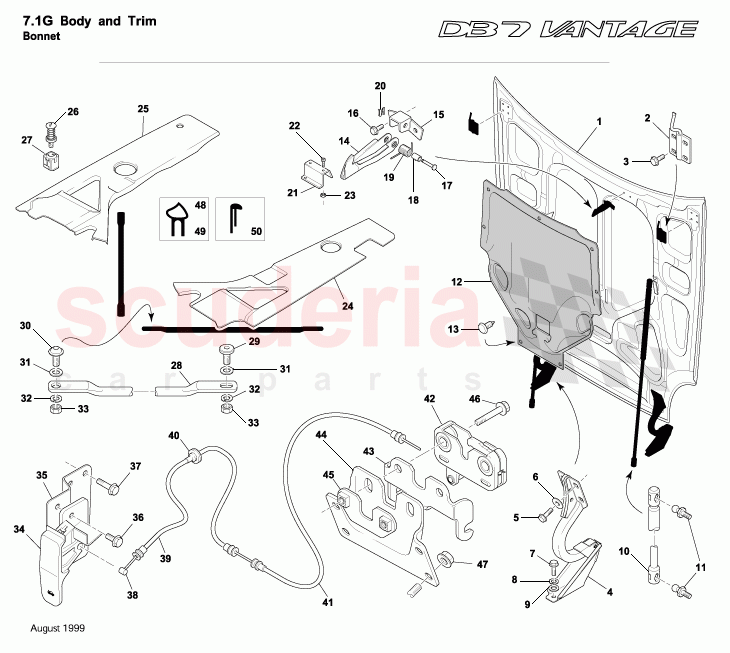

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64140080AA	Bonnet assy, Zagato	Enquire	To Order
	64125117AA	Bonnet assy, V12, spares	Enquire	To Order
	64125267AB	BONNET ASSEMBLY GT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6484536	ASSY STRIKER-BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6480766	BONNET HINGE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697728	SCREW-S/STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697807	Screw, hex hd M8 x 16 - black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695652	WASHER M8 SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697806	Washer, plain, M8 large 0D	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64124014AA	GAS STRUT BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12640101AA	Ball Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85121478AD	BONNET LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8582503PK	FIRTREE FASTENER(20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6483162	HOOK-BONNET S/CATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482482	BRACKET-BONNET SAFETY CATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697632	SCREW-M6 x 30 FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482483	PIVOT PIN SAFETY CATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64123942AA	BEARING SPACER - BONNET HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482489	SPRING SAFETY CATCH - BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482490	CLIP SAFETY 3/16inSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482487	BRACKET SAFETY CATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699106	SCREW M4 x 10 HEX SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697431	NUT M4 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	78122232AA	PANEL - ENGINE BAY RH RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	78123455AA	PANEL-ENGINE BAY LH LHD MANUAL	Enquire	To Order
	78122233AA	PANEL - ENGINE BAY LH RHD	Enquire	To Order
	78122230AA	PANEL - ENGINE BAY RH LHD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	699107	STUD-DZUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697669	FASTENER RECEPTACLE DZUS 336 200 190	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698987	SCREW FLG M10x20 BTN SKT HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697578	SCREW M10 x 25 FLANGE TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698987	SCREW FLG M10x20 BTN SKT HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697258	WASHER M10 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697406	WASHER M10 SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697322	NUT M10 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6486197	LEVER-BONNET RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482492	BRACKET HANDLE RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697118	SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482500	CABLE BONNET RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

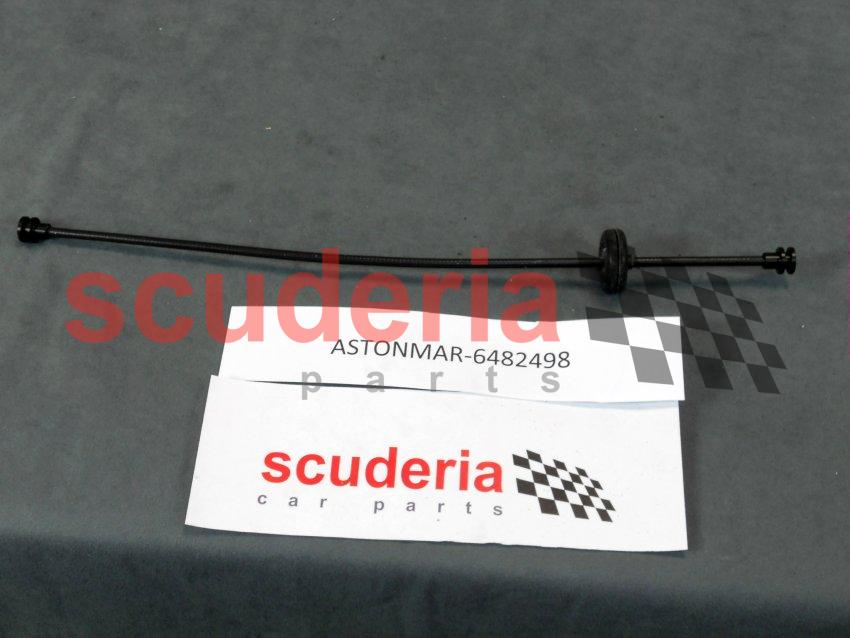

	6482498	Assy Sleeve Cable LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

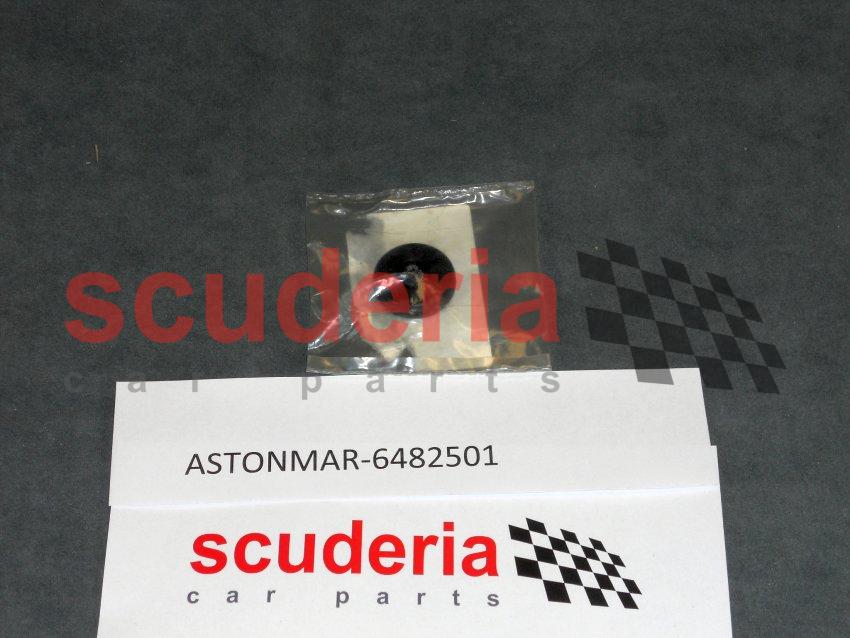

	6482501	Grommet	Enquire	To Order
	3790075	Cable Tie, 290mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

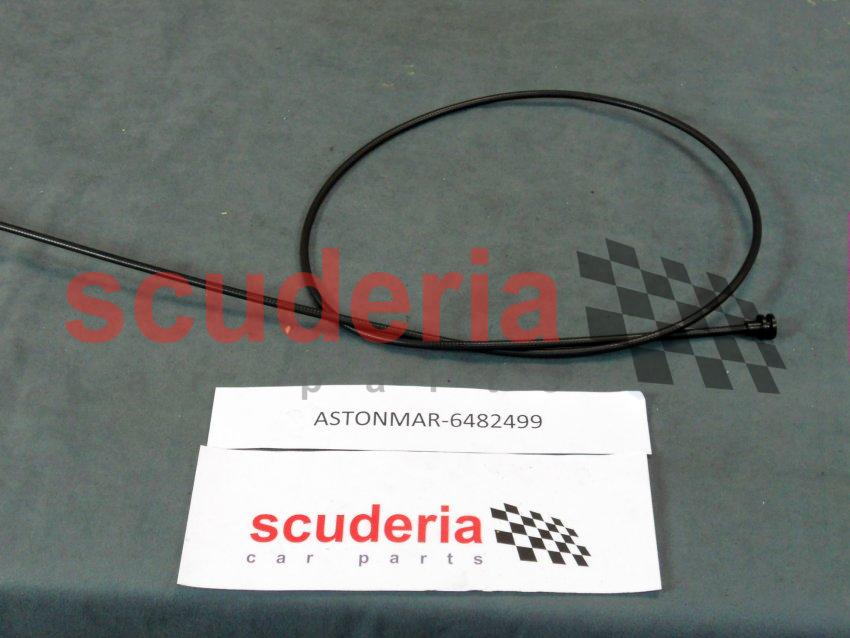

	6482499	Assy Sleeve Cable LH to RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482493	ASSY LATCH - BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482497	BRKT-CABLE END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6483192	BONNET LATCH MTG BRACKET RH	Enquire	To Order
	6483193	BONNET LATCH MTG BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6482494	PLATE LATCH FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697807	Screw, hex hd M8 x 16 - black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697516PK	NUT-M6 HEX BLK (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7790054	SEAL - BONNET REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7783284	SEAL-SIDE BONNET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383563	ASSY-RETAINER WEATHERSTRIP RH	Enquire	To Order
	8383564	ASSY-RETAINER WEATHERSTRIP LH	Enquire	To Order
	64125312AB	BONNET VENT GRILLE RH GT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	64140080AA	Bonnet assy, Zagato	64140080AA Bonnet assy, Zagato Zagato/DBAR1	-	1	Enquire
1	64125117AA	Bonnet assy, V12, spares	64125117AA Bonnet assy, V12, spares Alternative	-	1	Enquire
1	64125267AB	BONNET ASSEMBLY GT	64125267AB BONNET ASSEMBLY GT GT	-	1	Enquire
1	64121941AB	BONNET ASSEMBLY-V12	64121941AB BONNET ASSEMBLY-V12	-	1	Enquire
2	6484536	ASSY STRIKER-BONNET	6484536 ASSY STRIKER-BONNET	-	2	Enquire
3	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	8	Enquire
4	6480766	BONNET HINGE ASSY	6480766 BONNET HINGE ASSY	-	2	Enquire
5	697728	SCREW-S/STEEL	697728 SCREW-S/STEEL	-	8	Enquire
6	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	8	Enquire
7	697807	Screw, hex hd M8 x 16 - black	697807 Screw, hex hd M8 x 16 - black	-	4	Enquire
8	695652	WASHER M8 SPRING	695652 WASHER M8 SPRING	-	4	Enquire
9	697806	Washer, plain, M8 large 0D	697806 Washer, plain, M8 large 0D	-	4	Enquire
10	64124014AA	GAS STRUT BONNET	64124014AA GAS STRUT BONNET	-	2	Enquire
11	1R12640101AA	Ball Stud	1R12640101AA Ball Stud	-	4	Enquire
12	85121478AD	BONNET LINER	85121478AD BONNET LINER	-	1	Enquire
13	8582503PK	FIRTREE FASTENER(20)	8582503PK FIRTREE FASTENER(20) Part of bonnet liner	-	7	Enquire
14	6483162	HOOK-BONNET S/CATCH	6483162 HOOK-BONNET S/CATCH	-	1	Enquire
15	6482482	BRACKET-BONNET SAFETY CATCH	6482482 BRACKET-BONNET SAFETY CATCH	-	1	Enquire
16	697632	SCREW-M6 x 30 FLG	697632 SCREW-M6 x 30 FLG	-	4	Enquire
17	6482483	PIVOT PIN SAFETY CATCH	6482483 PIVOT PIN SAFETY CATCH	-	1	Enquire
18	64123942AA	BEARING SPACER - BONNET HOOK	64123942AA BEARING SPACER - BONNET HOOK	-	1	Enquire
19	6482489	SPRING SAFETY CATCH - BONNET	6482489 SPRING SAFETY CATCH - BONNET	-	1	Enquire
20	6482490	CLIP SAFETY 3/16inSHAFT	6482490 CLIP SAFETY 3/16inSHAFT	-	1	Enquire
21	6482487	BRACKET SAFETY CATCH	6482487 BRACKET SAFETY CATCH	-	1	Enquire
22	699106	SCREW M4 x 10 HEX SOCKET	699106 SCREW M4 x 10 HEX SOCKET	-	2	Enquire
23	697431	NUT M4 NYLOC	697431 NUT M4 NYLOC	-	2	Enquire
24	78122232AA	PANEL - ENGINE BAY RH RHD	78122232AA PANEL - ENGINE BAY RH RHD RHD	-	1	Enquire
25	78123455AA	PANEL-ENGINE BAY LH LHD MANUAL	78123455AA PANEL-ENGINE BAY LH LHD MANUAL LHD	-	1	Enquire
25	78122233AA	PANEL - ENGINE BAY LH RHD	78122233AA PANEL - ENGINE BAY LH RHD RHD	-	1	Enquire
25	78122230AA	PANEL - ENGINE BAY RH LHD	78122230AA PANEL - ENGINE BAY RH LHD LHD	-	1	Enquire
25	78122231AA	PANEL - ENGINE BAY LH LHD	78122231AA PANEL - ENGINE BAY LH LHD LHD	-	1	Enquire
25	4180153	BUFFER	4180153 BUFFER	-	2	Enquire
26	699107	STUD-DZUS	699107 STUD-DZUS	-	2	Enquire
27	697669	FASTENER RECEPTACLE DZUS 336 200 190	697669 FASTENER RECEPTACLE DZUS 336 200 190	-	4	Enquire
28	698987	SCREW FLG M10x20 BTN SKT HD	698987 SCREW FLG M10x20 BTN SKT HD	-	1	Enquire
29	697578	SCREW M10 x 25 FLANGE TORX	697578 SCREW M10 x 25 FLANGE TORX	-	2	Enquire
30	698987	SCREW FLG M10x20 BTN SKT HD	698987 SCREW FLG M10x20 BTN SKT HD	-	2	Enquire
31	697258	WASHER M10 PLAIN FORM A	697258 WASHER M10 PLAIN FORM A	-	2	Enquire
32	697406	WASHER M10 SPRING	697406 WASHER M10 SPRING	-	2	Enquire
33	697322	NUT M10 HEX	697322 NUT M10 HEX	-	2	Enquire
34	6486197	LEVER-BONNET RELEASE	6486197 LEVER-BONNET RELEASE	-	1	Enquire
35	6482492	BRACKET HANDLE RELEASE	6482492 BRACKET HANDLE RELEASE	-	1	Enquire
36	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	2	Enquire
37	697118	SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	697118 SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE	-	3	Enquire
38	6482500	CABLE BONNET RELEASE	6482500 CABLE BONNET RELEASE	-	1	Enquire
39	6482498	Assy Sleeve Cable LH	6482498 Assy Sleeve Cable LH	-	2	Enquire
40	6482501	Grommet	6482501 Grommet Part of cable sleeve assy	-	1	Enquire
40	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm	-	6	Enquire
41	6482499	Assy Sleeve Cable LH to RH	6482499 Assy Sleeve Cable LH to RH	-	2	Enquire
42	6482493	ASSY LATCH - BONNET	6482493 ASSY LATCH - BONNET	-	2	Enquire
43	6482497	BRKT-CABLE END	6482497 BRKT-CABLE END	-	2	Enquire
44	6483192	BONNET LATCH MTG BRACKET RH	6483192 BONNET LATCH MTG BRACKET RH	-	1	Enquire
44	6483193	BONNET LATCH MTG BRACKET LH	6483193 BONNET LATCH MTG BRACKET LH	-	1	Enquire
45	6482494	PLATE LATCH FIXING	6482494 PLATE LATCH FIXING	-	2	Enquire
46	697807	Screw, hex hd M8 x 16 - black	697807 Screw, hex hd M8 x 16 - black	-	8	Enquire
47	697516PK	NUT-M6 HEX BLK (10)	697516PK NUT-M6 HEX BLK (10)	-	8	Enquire
48	7790054	SEAL - BONNET REAR	7790054 SEAL - BONNET REAR	-	1	Enquire
49	7783284	SEAL-SIDE BONNET	7783284 SEAL-SIDE BONNET	-	2	Enquire
50	8383563	ASSY-RETAINER WEATHERSTRIP RH	8383563 ASSY-RETAINER WEATHERSTRIP RH Zagato	-	1	Enquire
50	8383564	ASSY-RETAINER WEATHERSTRIP LH	8383564 ASSY-RETAINER WEATHERSTRIP LH Zagato	-	1	Enquire
50	64125312AB	BONNET VENT GRILLE RH GT	64125312AB BONNET VENT GRILLE RH GT GT	-	1	Enquire
50	64125311AB	BONNET VENT GRILLE LH GT	64125311AB BONNET VENT GRILLE LH GT GT	-	1	Enquire
50	7783393	SEAL ASSY- BONNET FRONT	7783393 SEAL ASSY- BONNET FRONT	-	1	Enquire
50	6482485	PLUG	6482485 PLUG	-	1	Enquire
