Aston Martin DB7 Vantage - Facia and Trim

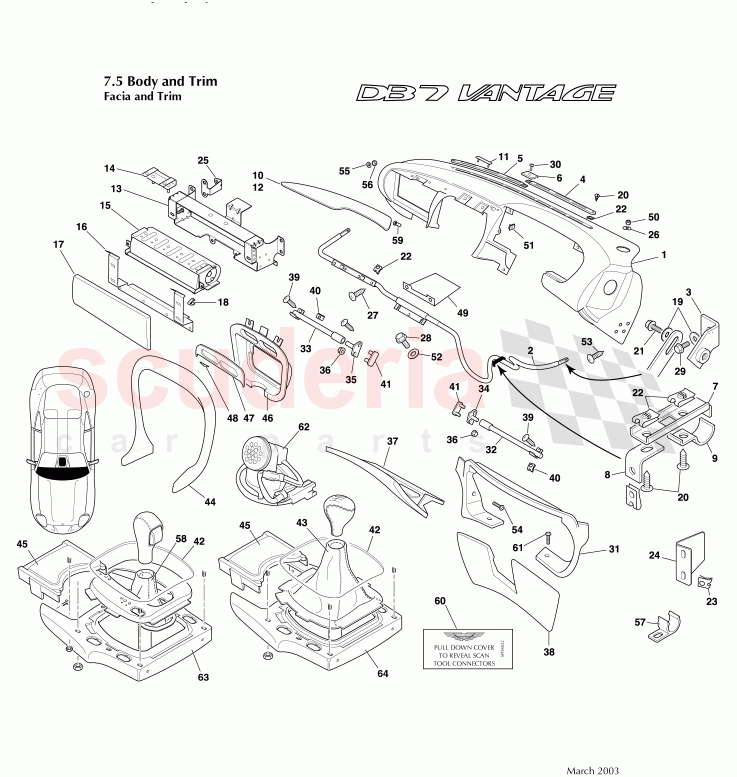

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8383343	PANEL ASSY FRONT TRIMMED RHD	Enquire	To Order
	8383345	PANEL ASSY FRONT TRIMMED LHD	Enquire	To Order
	69121512AAW	ASSY FACIA COMPLETE RHD EURO	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6982872	TUBE COMP ASSY FACIA SUPRT RHD	Enquire	To Order
	6983872	TUBE ASSY FACIA SUPPORT LHD	Enquire	To Order
	6982875	BRACKET ASSY FACIA SUPPORT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982876	BRACKET ASSY FACIA SUPPORT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69124168AB	WINDSCREEN DEMIST FINISHER RH (SOFT FEEL)	Enquire	To Order
	69124168AB	WINDSCREEN DEMIST FINISHER RH (SOFT FEEL)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69124167AB	WINDSCREEN DEMIST FINISHER LH (SOFT FEEL)	Enquire	To Order
	69124167AB	WINDSCREEN DEMIST FINISHER LH (SOFT FEEL)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983879	Cover plate, demist finisher joint	Enquire	To Order
	69124169AB	COVER PLATE DEMIST FINISHER (SOFT FEEL)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982879	BRACKET FACIA SUPPT DRIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982880	BRACKET FACIA DRIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983178	CLAMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87121532AA	Facia veneer panel assy	Enquire	To Order
	87121533AA	Facia veneer panel assy	Enquire	To Order
	80123509AA	NUT - PLASTIC M4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	97123872AA	V.I.N. plate, Australian compliance plate	Enquire	To Order
	9784089	V.I.N. plate	Enquire	To Order
	697579	RIVET CSK HD ALLY 3.2DIA x 7.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123975AA	BRACKET - VENEER FIXING	Enquire	To Order
	80123362AA	FRICTION BUSH-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983909	CARRIER ASY PASSENGR AIRBAG RHD	Enquire	To Order
	6983910	CARRIER ASY PASSENGR AIRBAG LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983912	ASSY MTG BRACKET AIR BAG ECU ZP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6985518	AIRBAG MODULE- PASSENGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983907	MOUNTING FRAME DEPLOYMENT DOOR RHD	Enquire	To Order
	6983908	MOUNTING FRAME DEPLOYMENT DOOR LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383913	DOOR DEPLOY ASSY RHD	Enquire	To Order
	8383914	DOOR DEPLOYMENT ASSY LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6983906	FASTENER-DEPLOYMENT DOOR- AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697585	SCREW No10 x 25 CSK HD AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697587	NUT SPRING U TYPE 10x(0.9-2.0)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697588	NUT SPRING U TYPE 8x(0.81-0.96)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982898	BRACKET-FACIA END LH	Enquire	To Order
	6982899	BRACKET-FACIA END RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	2580991	ASSY-AIRBAG STUD PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697514	WASHER OVAL 1 x 1/2 x 7/32	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700333	SCREW No10x19 S.T. FLANGED AB BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697620	SCREW 10-32 UNF x3/8 PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697554	FIR TREE BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69121528AA	Finisher assy, instrument pack	Enquire	To Order
	83124059AB	ASSY FINISHER INSTRUMENT PACK (SOFT FEEL)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6984573	Tube assy, lower - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6984574	ASSY-LWR TUBE BOLSTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982904	ASSY PIVOT - KNEE BOLSTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982905	ASSY PIVOT - KNEE BOLSTER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383812	TRIMMED ASSY-BOLSTER -PASSENGER LHD	Enquire	To Order
	83111898AAW	ASSY TRIM PASS UNDER SCUTTLE RHD	Enquire	To Order
	83111899AAW	ASSY TRIM PASS UNDER SCUTTLE LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8383674	UNDERSCUTTLE COMP ASSY TRIMMED DRV LHD	Enquire	To Order
	8383810	ASSY COMP BOLSTER DRIVER LHD TRIMMED	Enquire	To Order
	8383673	UNDERSCUTTLE COMP ASSY TRIMMED DRV RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697594	SCREW No10 x 5/8 PAN HD AB S.T.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697587	NUT SPRING U TYPE 10x(0.9-2.0)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6982914	ASSY STUD PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87122984AA	Finisher, top panel, veneered - auto/touchtronic	Enquire	To Order
	87122985AA	Finisher, top panel, veneered -auto/touchtronic	Enquire	To Order
	87122980AA	VENEER - FINISHER TOP PANEL RHD -REFERENCE DRAWING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80121198AAW	GEARSHIFT TRIM ASSY - MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8382921	CONSOLE SURROUND COMP ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697123	WASHER 1/4 PLAIN FORM A	Enquire	To Order
	697441	WASHER M6 PLAIN `A'	Enquire	To Order
	699117	WASHER PLAIN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80121195AA	Panel assy, aircon surround	Enquire	To Order
	83124094AB	FRONT PANEL ASSEMBLY AIRCON SURROUND (SOFT FEEL)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87121423AA	VENEER AIR VENT SURROUND -REF DRG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8090018	CONSOLE BADGE- ASTON MARTIN	Enquire	To Order
	699853	BALLOU SCREW BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982083	DEFLECTOR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697457	NUT M5 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697621	SPRING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697622	WASHER .20 PLAIN .20 X .75 OD X .04 T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697584	SCREW No10 x 16 FLANGE `B' BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699109	SCREW No8 x 19mm RSD C/SUNK HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697457	NUT M5 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783291	Clip, knee bolster pivot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123553AAW	GAITER ASSY -AUTO TOUCH TRONIC	Enquire	To Order
	80121358AAW	GAITER ASSY - AUTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123362AA	FRICTION BUSH-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9784614	Label, scan tool connectors	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697624	SCREW No8 x 25 RSD CSK HEAD BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8972290	IN CAR SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123552AB	SUBSTRATE CONSOLE VENEER - TOUCHTRONIC	Enquire	To Order
	80121194AB	SUBSTRATE - CONSOLE VENEER (AUTO)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80121422AB	SUBSTRATE - CONSOLE VENEER (MAN)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8383343	PANEL ASSY FRONT TRIMMED RHD	8383343 PANEL ASSY FRONT TRIMMED RHD RHD	-	1	Enquire
1	8383345	PANEL ASSY FRONT TRIMMED LHD	8383345 PANEL ASSY FRONT TRIMMED LHD LHD	-	1	Enquire
1	69121512AAW	ASSY FACIA COMPLETE RHD EURO	69121512AAW ASSY FACIA COMPLETE RHD EURO RHD	-	1	Enquire
1	69121513AAW	ASSY FACIA COMPLETE LHD EURO	69121513AAW ASSY FACIA COMPLETE LHD EURO LHD	-	1	Enquire
2	6982872	TUBE COMP ASSY FACIA SUPRT RHD	6982872 TUBE COMP ASSY FACIA SUPRT RHD RHD	-	1	Enquire
2	6983872	TUBE ASSY FACIA SUPPORT LHD	6983872 TUBE ASSY FACIA SUPPORT LHD LHD	-	1	Enquire
2	6982875	BRACKET ASSY FACIA SUPPORT RH	6982875 BRACKET ASSY FACIA SUPPORT RH	-	1	Enquire
3	6982876	BRACKET ASSY FACIA SUPPORT LH	6982876 BRACKET ASSY FACIA SUPPORT LH	-	1	Enquire
4	69124168AB	WINDSCREEN DEMIST FINISHER RH (SOFT FEEL)	69124168AB WINDSCREEN DEMIST FINISHER RH (SOFT FEEL) Up to (V) 302252	-	1	Enquire
4	69124168AB	WINDSCREEN DEMIST FINISHER RH (SOFT FEEL)	69124168AB WINDSCREEN DEMIST FINISHER RH (SOFT FEEL) From (V) 302253	-	1	Enquire
5	69124167AB	WINDSCREEN DEMIST FINISHER LH (SOFT FEEL)	69124167AB WINDSCREEN DEMIST FINISHER LH (SOFT FEEL) Up to (V) 302252	-	1	Enquire
5	69124167AB	WINDSCREEN DEMIST FINISHER LH (SOFT FEEL)	69124167AB WINDSCREEN DEMIST FINISHER LH (SOFT FEEL) From (V) 302253	-	1	Enquire
6	6983879	Cover plate, demist finisher joint	6983879 Cover plate, demist finisher joint Up to (V) 302252	-	1	Enquire
6	69124169AB	COVER PLATE DEMIST FINISHER (SOFT FEEL)	69124169AB COVER PLATE DEMIST FINISHER (SOFT FEEL) From (V) 302253	-	1	Enquire
7	6982879	BRACKET FACIA SUPPT DRIVER	6982879 BRACKET FACIA SUPPT DRIVER	-	2	Enquire
8	6982880	BRACKET FACIA DRIVER	6982880 BRACKET FACIA DRIVER	-	2	Enquire
9	6983178	CLAMP BRACKET	6983178 CLAMP BRACKET	-	2	Enquire
10	87121532AA	Facia veneer panel assy	87121532AA Facia veneer panel assy RHD	-	1	Enquire
10	87121533AA	Facia veneer panel assy	87121533AA Facia veneer panel assy LHD	-	1	Enquire
10	80123509AA	NUT - PLASTIC M4	80123509AA NUT - PLASTIC M4	-	4	Enquire
11	97123872AA	V.I.N. plate, Australian compliance plate	97123872AA V.I.N. plate, Australian compliance plate	-	1	Enquire
11	9784089	V.I.N. plate	9784089 V.I.N. plate	-	1	Enquire
11	697579	RIVET CSK HD ALLY 3.2DIA x 7.9	697579 RIVET CSK HD ALLY 3.2DIA x 7.9	-	2	Enquire
12	80123975AA	BRACKET - VENEER FIXING	80123975AA BRACKET - VENEER FIXING	-	1	Enquire
12	80123362AA	FRICTION BUSH-BLACK	80123362AA FRICTION BUSH-BLACK	-	1	Enquire
13	6983909	CARRIER ASY PASSENGR AIRBAG RHD	6983909 CARRIER ASY PASSENGR AIRBAG RHD RHD	-	1	Enquire
13	6983910	CARRIER ASY PASSENGR AIRBAG LHD	6983910 CARRIER ASY PASSENGR AIRBAG LHD LHD	-	1	Enquire
14	6983912	ASSY MTG BRACKET AIR BAG ECU ZP	6983912 ASSY MTG BRACKET AIR BAG ECU ZP	-	1	Enquire
15	6985518	AIRBAG MODULE- PASSENGER	6985518 AIRBAG MODULE- PASSENGER	-	1	Enquire
16	6983907	MOUNTING FRAME DEPLOYMENT DOOR RHD	6983907 MOUNTING FRAME DEPLOYMENT DOOR RHD RHD	-	1	Enquire
16	6983908	MOUNTING FRAME DEPLOYMENT DOOR LHD	6983908 MOUNTING FRAME DEPLOYMENT DOOR LHD LHD	-	1	Enquire
17	8383913	DOOR DEPLOY ASSY RHD	8383913 DOOR DEPLOY ASSY RHD RHD	-	1	Enquire
17	8383914	DOOR DEPLOYMENT ASSY LHD	8383914 DOOR DEPLOYMENT ASSY LHD LHD	-	1	Enquire
18	6983906	FASTENER-DEPLOYMENT DOOR- AIRBAG	6983906 FASTENER-DEPLOYMENT DOOR- AIRBAG	-	4	Enquire
19	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	-	4	Enquire
20	697585	SCREW No10 x 25 CSK HD AB S.T.	697585 SCREW No10 x 25 CSK HD AB S.T.	-	2	Enquire
21	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	697133 SCREW M8 x 20 HEX HEAD GRD 8.8 Tube to A pillar bracket	-	4	Enquire
22	697587	NUT SPRING U TYPE 10x(0.9-2.0)	697587 NUT SPRING U TYPE 10x(0.9-2.0)	-	16	Enquire
23	697588	NUT SPRING U TYPE 8x(0.81-0.96)	697588 NUT SPRING U TYPE 8x(0.81-0.96)	-	6	Enquire
24	6982898	BRACKET-FACIA END LH	6982898 BRACKET-FACIA END LH RHD	-	1	Enquire
24	6982899	BRACKET-FACIA END RH	6982899 BRACKET-FACIA END RH LHD	-	1	Enquire
25	2580991	ASSY-AIRBAG STUD PLATE	2580991 ASSY-AIRBAG STUD PLATE	-	1	Enquire
26	697514	WASHER OVAL 1 x 1/2 x 7/32	697514 WASHER OVAL 1 x 1/2 x 7/32	-	8	Enquire
27	700333	SCREW No10x19 S.T. FLANGED AB BLACK	700333 SCREW No10x19 S.T. FLANGED AB BLACK	-	9	Enquire
28	697620	SCREW 10-32 UNF x3/8 PAN HEAD	697620 SCREW 10-32 UNF x3/8 PAN HEAD Tube assy to air con unit	-	2	Enquire
29	697133	SCREW M8 x 20 HEX HEAD GRD 8.8	697133 SCREW M8 x 20 HEX HEAD GRD 8.8 Tube to A pillar bracket	-	4	Enquire
30	697554	FIR TREE BUTTON	697554 FIR TREE BUTTON Demist finisher	-	1	Enquire
31	69121528AA	Finisher assy, instrument pack	69121528AA Finisher assy, instrument pack Up to (V) 302252	-	1	Enquire
31	83124059AB	ASSY FINISHER INSTRUMENT PACK (SOFT FEEL)	83124059AB ASSY FINISHER INSTRUMENT PACK (SOFT FEEL) From (V) 302253	-	1	Enquire
32	6984573	Tube assy, lower - RH	6984573 Tube assy, lower - RH	-	1	Enquire
33	6984574	ASSY-LWR TUBE BOLSTER LH	6984574 ASSY-LWR TUBE BOLSTER LH	-	1	Enquire
34	6982904	ASSY PIVOT - KNEE BOLSTER RH	6982904 ASSY PIVOT - KNEE BOLSTER RH	-	1	Enquire
35	6982905	ASSY PIVOT - KNEE BOLSTER LH	6982905 ASSY PIVOT - KNEE BOLSTER LH	-	1	Enquire
36	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	4	Enquire
37	8383812	TRIMMED ASSY-BOLSTER -PASSENGER LHD	8383812 TRIMMED ASSY-BOLSTER -PASSENGER LHD USA/CDN	-	1	Enquire
37	83111898AAW	ASSY TRIM PASS UNDER SCUTTLE RHD	83111898AAW ASSY TRIM PASS UNDER SCUTTLE RHD RHD	-	1	Enquire
37	83111899AAW	ASSY TRIM PASS UNDER SCUTTLE LHD	83111899AAW ASSY TRIM PASS UNDER SCUTTLE LHD LHD	-	1	Enquire
38	8383674	UNDERSCUTTLE COMP ASSY TRIMMED DRV LHD	8383674 UNDERSCUTTLE COMP ASSY TRIMMED DRV LHD LHD, not USA/CDN	-	1	Enquire
38	8383810	ASSY COMP BOLSTER DRIVER LHD TRIMMED	8383810 ASSY COMP BOLSTER DRIVER LHD TRIMMED USA/CDN	-	1	Enquire
38	8383673	UNDERSCUTTLE COMP ASSY TRIMMED DRV RHD	8383673 UNDERSCUTTLE COMP ASSY TRIMMED DRV RHD RHD	-	1	Enquire
39	697594	SCREW No10 x 5/8 PAN HD AB S.T.	697594 SCREW No10 x 5/8 PAN HD AB S.T.	-	2	Enquire
40	697587	NUT SPRING U TYPE 10x(0.9-2.0)	697587 NUT SPRING U TYPE 10x(0.9-2.0)	-	2	Enquire
41	6982914	ASSY STUD PLATE	6982914 ASSY STUD PLATE	-	2	Enquire
42	87122984AA	Finisher, top panel, veneered - auto/touchtronic	87122984AA Finisher, top panel, veneered - auto/touchtronic RHD Volante From (V) 300556	-	1	Enquire
42	87122985AA	Finisher, top panel, veneered -auto/touchtronic	87122985AA Finisher, top panel, veneered -auto/touchtronic LHD Volante From (V) 300556	-	1	Enquire
42	87122980AA	VENEER - FINISHER TOP PANEL RHD -REFERENCE DRAWING	87122980AA VENEER - FINISHER TOP PANEL RHD -REFERENCE DRAWING RHD Coupe From (V) 300556	-	1	Enquire
42	8785849	VENEER-AIR VENT	8785849 VENEER-AIR VENT LHD Coupe From (V) 300556	-	1	Enquire
42	87122986AA	Finisher, top panel, veneered - manual	87122986AA Finisher, top panel, veneered - manual RHD Volante	-	1	Enquire
42	87122987AA	Finisher, top panel, veneered - manual	87122987AA Finisher, top panel, veneered - manual LHD Volante	-	1	Enquire
42	87122982AA	VENEER - FINISHER TOP PANEL RHD -REFERENCE DRAWING	87122982AA VENEER - FINISHER TOP PANEL RHD -REFERENCE DRAWING RHD Coupe	-	1	Enquire
42	87122983AA	VENEER - FINISHER TOP PANEL LHD -REFERENCE DRAWING	87122983AA VENEER - FINISHER TOP PANEL LHD -REFERENCE DRAWING LHD Coupe	-	1	Enquire
43	80121198AAW	GEARSHIFT TRIM ASSY - MANUAL	80121198AAW GEARSHIFT TRIM ASSY - MANUAL	-	1	Enquire
44	8382921	CONSOLE SURROUND COMP ASSY	8382921 CONSOLE SURROUND COMP ASSY	-	1	Enquire
45	697123	WASHER 1/4 PLAIN FORM A	697123 WASHER 1/4 PLAIN FORM A Use selectively as packing for ashtray	-	-	Enquire
45	697441	WASHER M6 PLAIN `A'	697441 WASHER M6 PLAIN `A' Use selectively as packing for ashtray	-	-	Enquire
45	699117	WASHER PLAIN	699117 WASHER PLAIN Use selectively as packing for ashtray	-	-	Enquire
45	80121189AA	ASHTRAY COMP ASSY	80121189AA ASHTRAY COMP ASSY	-	1	Enquire
46	80121195AA	Panel assy, aircon surround	80121195AA Panel assy, aircon surround Up to (V) 302252	-	1	Enquire
46	83124094AB	FRONT PANEL ASSEMBLY AIRCON SURROUND (SOFT FEEL)	83124094AB FRONT PANEL ASSEMBLY AIRCON SURROUND (SOFT FEEL) From (V) 302253	-	1	Enquire
47	87121423AA	VENEER AIR VENT SURROUND -REF DRG	87121423AA VENEER AIR VENT SURROUND -REF DRG	-	1	Enquire
48	8090018	CONSOLE BADGE- ASTON MARTIN	8090018 CONSOLE BADGE- ASTON MARTIN	-	1	Enquire
48	699853	BALLOU SCREW BACK	699853 BALLOU SCREW BACK	-	2	Enquire
49	8982083	DEFLECTOR SHIELD	8982083 DEFLECTOR SHIELD	-	1	Enquire
50	697457	NUT M5 HEX	697457 NUT M5 HEX	-	8	Enquire
51	697621	SPRING NUT	697621 SPRING NUT	-	4	Enquire
52	697622	WASHER .20 PLAIN .20 X .75 OD X .04 T	697622 WASHER .20 PLAIN .20 X .75 OD X .04 T	-	2	Enquire
53	697584	SCREW No10 x 16 FLANGE `B' BLACK	697584 SCREW No10 x 16 FLANGE `B' BLACK	-	2	Enquire
54	699109	SCREW No8 x 19mm RSD C/SUNK HD	699109 SCREW No8 x 19mm RSD C/SUNK HD	-	2	Enquire
55	697286	Washer M6 Large OD	697286 Washer M6 Large OD	-	4	Enquire
56	697457	NUT M5 HEX	697457 NUT M5 HEX	-	2	Enquire
57	3783291	Clip, knee bolster pivot	3783291 Clip, knee bolster pivot	-	6	Enquire
58	80123553AAW	GAITER ASSY -AUTO TOUCH TRONIC	80123553AAW GAITER ASSY -AUTO TOUCH TRONIC Volante From (V) 300556	-	1	Enquire
58	80121358AAW	GAITER ASSY - AUTO	80121358AAW GAITER ASSY - AUTO	-	1	Enquire
59	80123362AA	FRICTION BUSH-BLACK	80123362AA FRICTION BUSH-BLACK	-	5	Enquire
60	9784614	Label, scan tool connectors	9784614 Label, scan tool connectors USA/CDN Fitted to knee bolster	-	1	Enquire
61	697624	SCREW No8 x 25 RSD CSK HEAD BLACK	697624 SCREW No8 x 25 RSD CSK HEAD BLACK	-	2	Enquire
62	8972290	IN CAR SENSOR	8972290 IN CAR SENSOR	-	1	Enquire
63	80123552AB	SUBSTRATE CONSOLE VENEER - TOUCHTRONIC	80123552AB SUBSTRATE CONSOLE VENEER - TOUCHTRONIC	-	1	Enquire
63	80121194AB	SUBSTRATE - CONSOLE VENEER (AUTO)	80121194AB SUBSTRATE - CONSOLE VENEER (AUTO)	-	1	Enquire
64	80121422AB	SUBSTRATE - CONSOLE VENEER (MAN)	80121422AB SUBSTRATE - CONSOLE VENEER (MAN)	-	1	Enquire
