Aston Martin DB7 Vantage - Volante Roof and Upper Trim

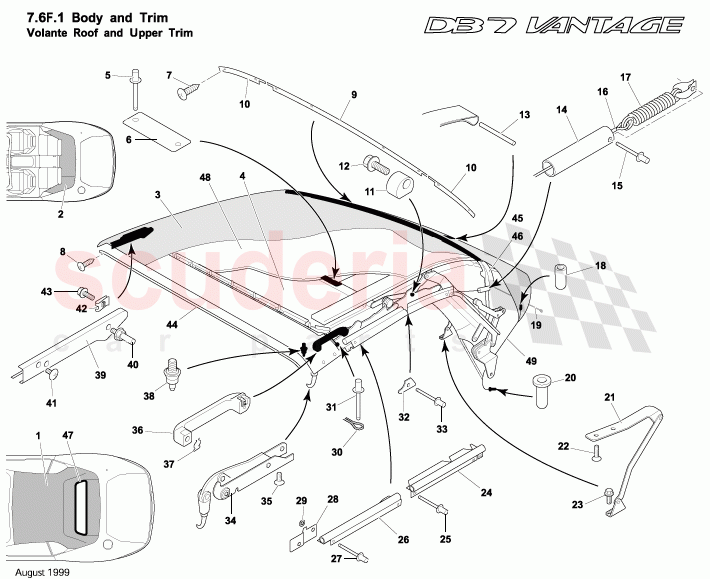

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	93110874BAW	ASSEMBLY - COMPLETE CONVERTIBLE HOOD	Enquire	To Order
	93100529BAW	ASSY COVER (MOHAIR) OUTER	Enquire	To Order
	9389695	TENSION WIRE ASSY RR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88111770BAW	TONNEAU COVER -HAARTZ TWILLFAST II	Enquire	To Order
	88123912BAW	TONNEAU COVER - LEATHER/PIPED	Enquire	To Order
	88111772BAW	TONNEAU COVER -EVERFLEX	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	12008	Calico	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83140144ABW	Headlining assy, quilted	Enquire	To Order
	83140174ABW	Headlining assy, ribbed	Enquire	To Order
	93100548BAW	ASSY HOOD HEADLINING (ALCANTARA)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692205	POP-RIVET 1/8 x3/8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389749	WEBBING FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

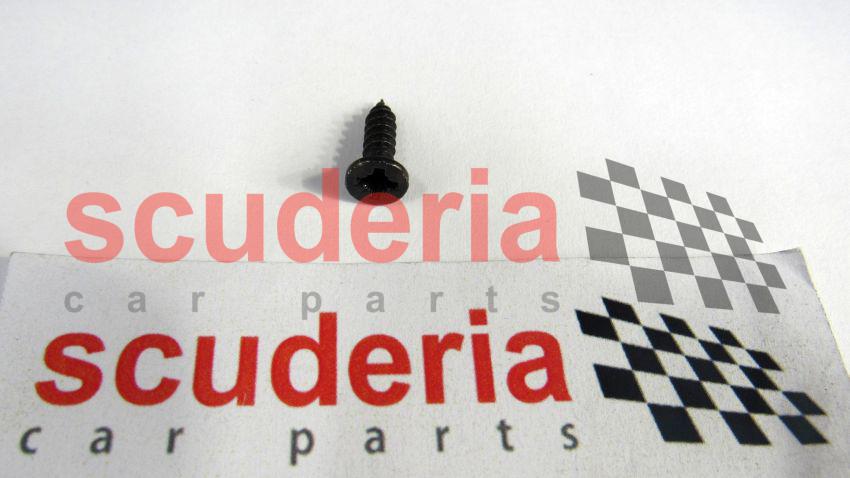

	696578	SCREW No6 x 1/2inCSK POZI GRD 4 8 ZINC PLT BLACK PASSIVATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	696578	SCREW No6 x 1/2inCSK POZI GRD 4 8 ZINC PLT BLACK PASSIVATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389513	RAIL RETAINING H/LINING RR CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389514	RAIL RETAINING H/LINING RR OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389552	CAM ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697078	Screw, flg, M8 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389748	ROD STRAP INSERT 70mm long	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389670	WIRE TUBE TENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697066	POP RIVET 3-2X11	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389671	SIDE TENSION WIRE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389669	WIRE SPRING TENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	696652	End tip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389665	TENSION WIRE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389880	ASSY B/LIGHT SUPPORT BRACKET RH	Enquire	To Order
	9389838	CAP SPRING WIRE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389881	ASSY BACKLIGHT SUPPT BRACKET LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699165	SCREW M6x12 CSK GED 4 8 BLACK CROSS RECS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389550	DEFLECTOR WIND REAR REWORK RH	Enquire	To Order
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389551	DEFLECTOR WIND REAR REWORK LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389548	DEFLECTOR WIND FRONT REWORK RH	Enquire	To Order
	698489	POP RIVET 3.2x6.35 ALUM DOMED - BLACK TAPD 44 BS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389549	DEFLECTOR WIND FRONT REWORK LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389560	WIRE GUIDE TENSION RH	Enquire	To Order
	698490	POP RIVET -AL-DOMED 1/8x0.310 - BLACK DEFLECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389561	WIRE GUIDE TENSION LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6300000102	WASHER No6 PLAIN CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389669	WIRE SPRING TENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389558	SPACE PLATE CANTRAIL RH	Enquire	To Order
	697066	POP RIVET 3-2X11	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389559	SPACE PLATE CANTRAIL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389580	ASY CLOSING LATCH RH	Enquire	To Order
	698489	POP RIVET 3.2x6.35 ALUM DOMED - BLACK TAPD 44 BS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389581	ASY CLOSING LATCH LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389612	ASSY HANDLE CLOSING LATCH RH	Enquire	To Order
	692345	SCREW M5 x 10 CSK POZI M/C ZINC PLTD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389613	ASSY HANDLE CLOSING LATCH LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389571	CIRCLIP (LATCH)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389543	PIN BEARING FRT SHORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389554	HANDLE COVER REWORK RH	Enquire	To Order
	9389555	HANDLE COVER REWORK LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9386253	PIVOT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697080	SCREW M6x8 BTN FLG GRD 10 9 BLACK COVER TO LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697436	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	695158	SCREW M6 x12 HEX FLG GRD 8.8 ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

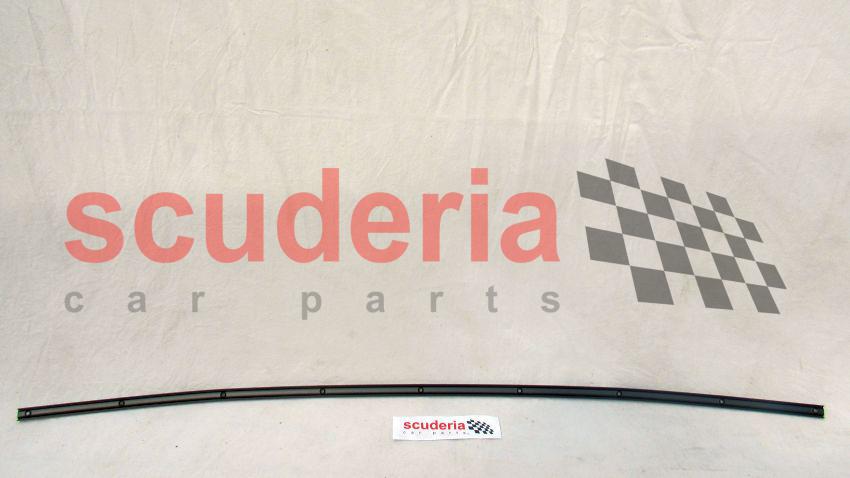

	9389535	MOULDING ROOF FRONT	Enquire	To Order
	93124876BA	INSERT - REAR BOW RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	93124877BA	INSERT - REAR BOW LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697079	SCREW NO 8x5/8 POZI BLACK PAN HEAD CLOSING LATCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9389502	Backlight assembly - volante	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	696042	Foam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83140153ABW	Header assy rear, trimmed, complete	Enquire	To Order
	83140158ABW	Cantrail assy, trimmed complete, RH	Enquire	To Order
	83140159ABW	Cantrail assy, trimmed complete, LH	Enquire	To Order

...and 38 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	93110874BAW	ASSEMBLY - COMPLETE CONVERTIBLE HOOD	93110874BAW ASSEMBLY - COMPLETE CONVERTIBLE HOOD State material required	-	1	Enquire
1	93100529BAW	ASSY COVER (MOHAIR) OUTER	93100529BAW ASSY COVER (MOHAIR) OUTER	-	1	Enquire
1	9389695	TENSION WIRE ASSY RR	9389695 TENSION WIRE ASSY RR	-	1	Enquire
2	88111770BAW	TONNEAU COVER -HAARTZ TWILLFAST II	88111770BAW TONNEAU COVER -HAARTZ TWILLFAST II	-	1	Enquire
2	88123912BAW	TONNEAU COVER - LEATHER/PIPED	88123912BAW TONNEAU COVER - LEATHER/PIPED	-	1	Enquire
2	88111772BAW	TONNEAU COVER -EVERFLEX	88111772BAW TONNEAU COVER -EVERFLEX	-	1	Enquire
2	88111771BAW	TONNEAU COVER -LEATHER	88111771BAW TONNEAU COVER -LEATHER	-	1	Enquire
3	12008	Calico	12008 Calico	-	1	Enquire
4	83140144ABW	Headlining assy, quilted	83140144ABW Headlining assy, quilted Zagato	-	1	Enquire
4	83140174ABW	Headlining assy, ribbed	83140174ABW Headlining assy, ribbed Zagato	-	1	Enquire
4	93100548BAW	ASSY HOOD HEADLINING (ALCANTARA)	93100548BAW ASSY HOOD HEADLINING (ALCANTARA)	-	1	Enquire
5	692205	POP-RIVET 1/8 x3/8	692205 POP-RIVET 1/8 x3/8	-	8	Enquire
6	9389749	WEBBING FIXING PLATE	9389749 WEBBING FIXING PLATE	-	4	Enquire
7	696578	SCREW No6 x 1/2inCSK POZI GRD 4 8 ZINC PLT BLACK PASSIVATE	696578 SCREW No6 x 1/2inCSK POZI GRD 4 8 ZINC PLT BLACK PASSIVATE	-	8	Enquire
8	696578	SCREW No6 x 1/2inCSK POZI GRD 4 8 ZINC PLT BLACK PASSIVATE	696578 SCREW No6 x 1/2inCSK POZI GRD 4 8 ZINC PLT BLACK PASSIVATE	-	9	Enquire
9	9389513	RAIL RETAINING H/LINING RR CENTRE	9389513 RAIL RETAINING H/LINING RR CENTRE	-	1	Enquire
10	9389514	RAIL RETAINING H/LINING RR OUTER	9389514 RAIL RETAINING H/LINING RR OUTER	-	2	Enquire
11	9389552	CAM ADJUSTER	9389552 CAM ADJUSTER	-	2	Enquire
12	697078	Screw, flg, M8 x 20	697078 Screw, flg, M8 x 20	-	2	Enquire
13	9389748	ROD STRAP INSERT 70mm long	9389748 ROD STRAP INSERT 70mm long	-	2	Enquire
14	9389670	WIRE TUBE TENSION	9389670 WIRE TUBE TENSION	-	2	Enquire
15	697066	POP RIVET 3-2X11	697066 POP RIVET 3-2X11	-	2	Enquire
16	9389671	SIDE TENSION WIRE ASSY	9389671 SIDE TENSION WIRE ASSY	-	2	Enquire
17	9389669	WIRE SPRING TENSION	9389669 WIRE SPRING TENSION	-	2	Enquire
18	696652	End tip	696652 End tip	-	2	Enquire
19	9389665	TENSION WIRE ASSY	9389665 TENSION WIRE ASSY	-	2	Enquire
20	9389880	ASSY B/LIGHT SUPPORT BRACKET RH	9389880 ASSY B/LIGHT SUPPORT BRACKET RH	-	1	Enquire
20	9389838	CAP SPRING WIRE TOP	9389838 CAP SPRING WIRE TOP	-	1	Enquire
21	9389881	ASSY BACKLIGHT SUPPT BRACKET LH	9389881 ASSY BACKLIGHT SUPPT BRACKET LH	-	1	Enquire
22	699165	SCREW M6x12 CSK GED 4 8 BLACK CROSS RECS	699165 SCREW M6x12 CSK GED 4 8 BLACK CROSS RECS	-	4	Enquire
23	9389550	DEFLECTOR WIND REAR REWORK RH	9389550 DEFLECTOR WIND REAR REWORK RH	-	1	Enquire
23	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
24	9389551	DEFLECTOR WIND REAR REWORK LH	9389551 DEFLECTOR WIND REAR REWORK LH	-	1	Enquire
25	9389548	DEFLECTOR WIND FRONT REWORK RH	9389548 DEFLECTOR WIND FRONT REWORK RH	-	1	Enquire
25	698489	POP RIVET 3.2x6.35 ALUM DOMED - BLACK TAPD 44 BS	698489 POP RIVET 3.2x6.35 ALUM DOMED - BLACK TAPD 44 BS	-	8	Enquire
26	9389549	DEFLECTOR WIND FRONT REWORK LH	9389549 DEFLECTOR WIND FRONT REWORK LH	-	1	Enquire
27	9389560	WIRE GUIDE TENSION RH	9389560 WIRE GUIDE TENSION RH	-	1	Enquire
27	698490	POP RIVET -AL-DOMED 1/8x0.310 - BLACK DEFLECTORS	698490 POP RIVET -AL-DOMED 1/8x0.310 - BLACK DEFLECTORS	-	4	Enquire
28	9389561	WIRE GUIDE TENSION LH	9389561 WIRE GUIDE TENSION LH	-	1	Enquire
29	6300000102	WASHER No6 PLAIN CHROME	6300000102 WASHER No6 PLAIN CHROME	-	2	Enquire
30	9389669	WIRE SPRING TENSION	9389669 WIRE SPRING TENSION	-	2	Enquire
31	9389558	SPACE PLATE CANTRAIL RH	9389558 SPACE PLATE CANTRAIL RH	-	1	Enquire
31	697066	POP RIVET 3-2X11	697066 POP RIVET 3-2X11	-	2	Enquire
32	9389559	SPACE PLATE CANTRAIL LH	9389559 SPACE PLATE CANTRAIL LH	-	1	Enquire
33	9389580	ASY CLOSING LATCH RH	9389580 ASY CLOSING LATCH RH	-	1	Enquire
33	698489	POP RIVET 3.2x6.35 ALUM DOMED - BLACK TAPD 44 BS	698489 POP RIVET 3.2x6.35 ALUM DOMED - BLACK TAPD 44 BS	-	2	Enquire
34	9389581	ASY CLOSING LATCH LH	9389581 ASY CLOSING LATCH LH	-	1	Enquire
35	9389612	ASSY HANDLE CLOSING LATCH RH	9389612 ASSY HANDLE CLOSING LATCH RH	-	1	Enquire
35	692345	SCREW M5 x 10 CSK POZI M/C ZINC PLTD	692345 SCREW M5 x 10 CSK POZI M/C ZINC PLTD	-	4	Enquire
36	9389613	ASSY HANDLE CLOSING LATCH LH	9389613 ASSY HANDLE CLOSING LATCH LH	-	1	Enquire
37	9389571	CIRCLIP (LATCH)	9389571 CIRCLIP (LATCH)	-	2	Enquire
38	9389543	PIN BEARING FRT SHORT	9389543 PIN BEARING FRT SHORT	-	2	Enquire
39	9389554	HANDLE COVER REWORK RH	9389554 HANDLE COVER REWORK RH	-	1	Enquire
39	9389555	HANDLE COVER REWORK LH	9389555 HANDLE COVER REWORK LH	-	1	Enquire
40	9386253	PIVOT PIN	9386253 PIVOT PIN	-	2	Enquire
41	697080	SCREW M6x8 BTN FLG GRD 10 9 BLACK COVER TO LATCH	697080 SCREW M6x8 BTN FLG GRD 10 9 BLACK COVER TO LATCH	-	2	Enquire
42	697436	SPEED NUT	697436 SPEED NUT	-	2	Enquire
43	695158	SCREW M6 x12 HEX FLG GRD 8.8 ZINC PLATED	695158 SCREW M6 x12 HEX FLG GRD 8.8 ZINC PLATED	-	2	Enquire
44	9389535	MOULDING ROOF FRONT	9389535 MOULDING ROOF FRONT	-	1	Enquire
44	93124876BA	INSERT - REAR BOW RH	93124876BA INSERT - REAR BOW RH	-	1	Enquire
45	93124877BA	INSERT - REAR BOW LH	93124877BA INSERT - REAR BOW LH	-	1	Enquire
46	697079	SCREW NO 8x5/8 POZI BLACK PAN HEAD CLOSING LATCH COVER	697079 SCREW NO 8x5/8 POZI BLACK PAN HEAD CLOSING LATCH COVER	-	2	Enquire
47	9389502	Backlight assembly - volante	9389502 Backlight assembly - volante	-	1	Enquire
48	696042	Foam	696042 Foam	-	1	Enquire
49	83140153ABW	Header assy rear, trimmed, complete	83140153ABW Header assy rear, trimmed, complete Zagato	-	1	Enquire
49	83140158ABW	Cantrail assy, trimmed complete, RH	83140158ABW Cantrail assy, trimmed complete, RH Zagato	-	1	Enquire
49	83140159ABW	Cantrail assy, trimmed complete, LH	83140159ABW Cantrail assy, trimmed complete, LH Zagato	-	1	Enquire
49	83140148ABW	ASSEMBLY COMPLETE FRONT HEADER	83140148ABW ASSEMBLY COMPLETE FRONT HEADER Zagato	-	1	Enquire
49	83140151AAW	Trim panel, front header	83140151AAW Trim panel, front header Zagato	-	1	Enquire
49	83140128AAW	B post assy complete, RH	83140128AAW B post assy complete, RH Zagato	-	1	Enquire
49	83140129AAW	B post assy complete, LH	83140129AAW B post assy complete, LH Zagato	-	1	Enquire
49	83140136AAW	C post assy complete, RH	83140136AAW C post assy complete, RH Zagato	-	1	Enquire
49	83140137AAW	C post assy complete, LH	83140137AAW C post assy complete, LH Zagato	-	1	Enquire
49	83140155AAW	Trim panel, rear header	83140155AAW Trim panel, rear header Zagato	-	1	Enquire
49	83140162AAW	Trim panel cantrail, RH	83140162AAW Trim panel cantrail, RH Zagato	-	1	Enquire
49	83140163AAW	Trim panel cantrail, LH	83140163AAW Trim panel cantrail, LH Zagato	-	1	Enquire
49	83140134AAW	Trim panel, B post, RH	83140134AAW Trim panel, B post, RH Zagato	-	1	Enquire
49	83140135AAW	Trim panel, B post, LH	83140135AAW Trim panel, B post, LH Zagato	-	1	Enquire
49	83140142AAW	Trim panel, C post, RH	83140142AAW Trim panel, C post, RH Zagato	-	1	Enquire
49	83140143AAW	Trim panel, C post, LH	83140143AAW Trim panel, C post, LH Zagato	-	1	Enquire
49	83140149AB	ASSEMBLY FRONT HEADER	83140149AB ASSEMBLY FRONT HEADER Zagato	-	1	Enquire
49	83140154AB	Header assy, rear	83140154AB Header assy, rear Zagato	-	1	Enquire
49	83140160AB	CANTRAIL ASSEMBLY RH	83140160AB CANTRAIL ASSEMBLY RH Zagato	-	1	Enquire
49	83140161AB	CANTRAIL ASSEMBLY LH	83140161AB CANTRAIL ASSEMBLY LH Zagato	-	1	Enquire
49	83140130AA	ASSEMBLY B POST RH	83140130AA ASSEMBLY B POST RH Zagato	-	1	Enquire
49	83140131AA	ASSEMBLY B POST LH	83140131AA ASSEMBLY B POST LH Zagato	-	1	Enquire
49	83140138AA	ASSEMBLY C POST RH	83140138AA ASSEMBLY C POST RH Zagato	-	1	Enquire
49	83140139AA	ASSEMBLY C POST LH	83140139AA ASSEMBLY C POST LH Zagato	-	1	Enquire
49	697468	SCREW/WASHER No8 x19 PAN HD AB	697468 SCREW/WASHER No8 x19 PAN HD AB Zagato	-	2	Enquire
49	1R12834052AA	PLATE - REINFORCED COAT HOOK	1R12834052AA PLATE - REINFORCED COAT HOOK Zagato	-	2	Enquire
49	697571	NUT LOKUT	697571 NUT LOKUT Zagato	-	2	Enquire
49	8384823	SNAPSAC	8384823 SNAPSAC Zagato	-	2	Enquire
49	1R12834074AAW	COAT HOOK - TRIMMED	1R12834074AAW COAT HOOK - TRIMMED Zagato	-	2	Enquire
49	700106	SCREW No6x13 S/TAPP	700106 SCREW No6x13 S/TAPP Zagato	-	2	Enquire
49	83110940AA	FIRTREE BUTTON	83110940AA FIRTREE BUTTON Zagato	-	2	Enquire
49	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree Zagato	-	4	Enquire
49	697645	SCREW-SELF DRILLING	697645 SCREW-SELF DRILLING Zagato	-	6	Enquire
49	83124911BAW	Header rail, convertible	83124911BAW Header rail, convertible USA	-	1	Enquire
49	93111432BA	STUD-TONNEAU FIXING	93111432BA STUD-TONNEAU FIXING	-	-	Enquire
49	698086	DURABLE DOT RIVET COMPLETE	698086 DURABLE DOT RIVET COMPLETE	-	-	Enquire
49	93125642BA	TORSIONAL SPRING HOOD WIRE RH	93125642BA TORSIONAL SPRING HOOD WIRE RH	-	1	Enquire
49	93125643BA	TORSIOANAL SPRING HOOD WIRE LH	93125643BA TORSIOANAL SPRING HOOD WIRE LH	-	1	Enquire
49	9389837	SPRING WIRE	9389837 SPRING WIRE	-	1	Enquire
49	93100592	EDGE RETAINER - SIDE SHORT RT ANGLE	93100592 EDGE RETAINER - SIDE SHORT RT ANGLE	-	2	Enquire
49	9389925	EDGE RETAINER REAR LONG	9389925 EDGE RETAINER REAR LONG	-	2	Enquire
