Rear Bumper (Non Federal)

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Rear Bumper (Non Federal)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
72140089AA ASSEMBLY REAR BUMPER - EURO Enquire To Order
72150120AA ASSEMBLY REAR BUMPER - EURO Enquire To Order
72121443AB REAR BUMPER COMPLETE ASSY Enquire To Order
Photo Part No Description Price (each) Stock
7282564 MOULDING INFILL REAR BUMPER RH Enquire To Order
Photo Part No Description Price (each) Stock
7282565 MOULDING INFILL REAR BUMPER LH Enquire To Order
Photo Part No Description Price (each) Stock
7282566 BUSH-BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
697516PK NUT-M6 HEX BLK (10) Enquire To Order
Photo Part No Description Price (each) Stock
697141PK NUT-M8 NYLOC(PACK 10 Enquire To Order
Photo Part No Description Price (each) Stock
697322 NUT M10 HEX Enquire To Order
Photo Part No Description Price (each) Stock
697535 NUT M24 HEX THIN Enquire To Order
Photo Part No Description Price (each) Stock
697502 RIVET POP AL DOMED 3.2 x 3.2 Enquire To Order
Photo Part No Description Price (each) Stock
697507PK SCREW-M6x16 BTNHD(10 Enquire To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
703200 SCREW M10x25 HEX FLG CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
697485 WASHER M6 PLAIN FORM C Enquire To Order
Photo Part No Description Price (each) Stock
697501 WASHER-SCREW RETAIN RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
72121490AA STAY SIDE SUPPORT REAR APRON RH Enquire To Order
72121491AA STAY SIDE SUPPORT REAR APRON LH Enquire To Order
Photo Part No Description Price (each) Stock
7284680 INSERT THREADED - STRUT MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
7282570 STRUT ASSY BUMPER SUPPORT RH Enquire To Order
7282571 STRUT ASSY BUMPER SUPPORT LH Enquire To Order
Photo Part No Description Price (each) Stock
7782572 FOAM STRIP REAR BUMPER 1030x15x5mm Enquire To Order
Photo Part No Description Price (each) Stock
697536 WASHER M24 PLAIN FORM A Enquire To Order
Photo Part No Description Price (each) Stock
697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL Enquire To Order
Photo Part No Description Price (each) Stock
7282573 SPACER BUMPER Enquire To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
7290100 COVER-REAR BUMPER FIXINGS Enquire To Order
Photo Part No Description Price (each) Stock
78140464AA FOAM STRIP - REAR BUMPER TO TONNEAU RH Enquire To Order
78140465AA FOAM STRIP - REAR BUMPER TO TONNEAU LH Enquire To Order
78150090AA FOAM STRIP - REAR BUMPER TO TONNEAU RH Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

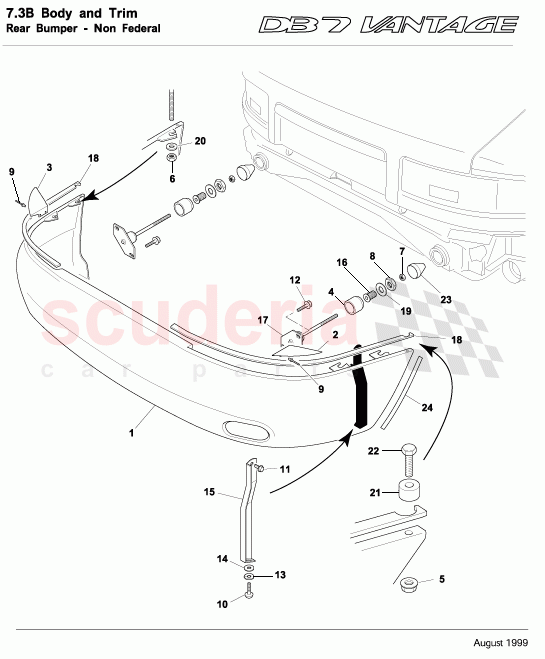

Rear Bumper (Non Federal) of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 72140089AA
ASSEMBLY REAR BUMPER - EURO
Zagato 		- 1 Enquire
1 72150120AA
ASSEMBLY REAR BUMPER - EURO
DBAR1 		- 1 Enquire
1 72121443AB
REAR BUMPER COMPLETE ASSY 		- 1 Enquire
2 7282564
MOULDING INFILL REAR BUMPER RH 		- 1 Enquire
3 7282565
MOULDING INFILL REAR BUMPER LH 		- 1 Enquire
4 7282566
BUSH-BUMPER MOUNTING 		- 2 Enquire
5 697516PK
NUT-M6 HEX BLK (10) 		- 4 Enquire
6 697141PK
NUT-M8 NYLOC(PACK 10 		- 4 Enquire
7 697322
NUT M10 HEX 		- 2 Enquire
8 697535
NUT M24 HEX THIN 		- 2 Enquire
9 697502
RIVET POP AL DOMED 3.2 x 3.2 		- 4 Enquire
10 697507PK
SCREW-M6x16 BTNHD(10 		- 2 Enquire
11 700606
Screw, M6 x 12, Hex Flange Head 		- 2 Enquire
12 703200
SCREW M10x25 HEX FLG CHROME FREE 		- 4 Enquire
13 697485
WASHER M6 PLAIN FORM C 		- 2 Enquire
14 697501
WASHER-SCREW RETAIN RUBBER 		- 8 Enquire
15 72121490AA
STAY SIDE SUPPORT REAR APRON RH 		- 1 Enquire
15 72121491AA
STAY SIDE SUPPORT REAR APRON LH 		- 1 Enquire
16 7284680
INSERT THREADED - STRUT MOUNTING 		- 2 Enquire
17 7282570
STRUT ASSY BUMPER SUPPORT RH 		- 1 Enquire
17 7282571
STRUT ASSY BUMPER SUPPORT LH 		- 1 Enquire
18 7782572
FOAM STRIP REAR BUMPER 1030x15x5mm 		- 2 Enquire
19 697536
WASHER M24 PLAIN FORM A 		- 2 Enquire
20 697134
WASHER M8 X 25 X 1.8 PLAIN ZINC YELL 		- 4 Enquire
21 7282573
SPACER BUMPER 		- 8 Enquire
22 703265
Screw, M6 x 16, Hex Flange Head 		- 2 Enquire
23 7290100
COVER-REAR BUMPER FIXINGS 		- 2 Enquire
24 78140464AA
FOAM STRIP - REAR BUMPER TO TONNEAU RH
Zagato 		- 1 Enquire
24 78140465AA
FOAM STRIP - REAR BUMPER TO TONNEAU LH
Zagato 		- 1 Enquire
24 78150090AA
FOAM STRIP - REAR BUMPER TO TONNEAU RH
DBAR1 		- 1 Enquire
24 78150091AA
FOAM STRIP - REAR BUMPER TO TONNEAU LH
DBAR1 		- 1 Enquire
24 78122934AA
PROTECTION STRIP REAR APRON RH 		- 1 Enquire
24 78122933AA
PROTECTION STRIP REAR APRON LH 		- 1 Enquire
