Rear Seats and Belts of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Rear Seats and Belts

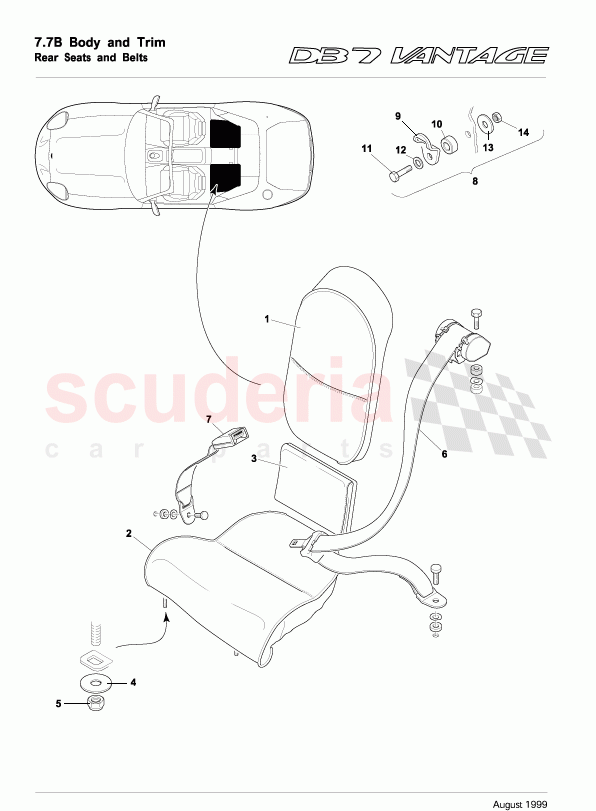

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	74125831BAW	Squab assy, upper, complete - rear seat, LH	Enquire	To Order
	74125832BAW	Squab assy, upper, complete - rear seat RH	Enquire	To Order
	74125790AAW	Squab assy, upper, complete - rear seat	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	74125848BAW	Cushion assy complete, rear seat, RH - Premium ICE	Enquire	To Order
	74125849BAW	Cushion assy complete, rear seat, LH - Premium ICE	Enquire	To Order
	74121536AAW	ASSY COMPLETE REAR CUSHION RH	Enquire	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	74125283AAW	Squab assy lower, rear seat - complete	Enquire	To Order
	74125817BAW	Squab assy lower, rear seat - complete, RH	Enquire	To Order
	74125867BAW	Squab assy lower, rear seat - complete, LH	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3782038	WASHER 11/16in.od x 1/4in.id x 0.080in.t	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697470	NUT M5 NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084511	SEAT BELT REAR CONV	Enquire	To Order
	8084509	SEAT BELT REAR COUPE USA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697563	Adhesive, Plexus A0420	Enquire	To Order
	8084512	SEAT BELT BUCKLE RR CONVERTIBLE	Enquire	To Order
	8084510	SEAT BELT BUCKLE REAR USA	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8085842	CHILD TETHER KIT ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084911	BRKT-BELT ANCHORAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084912	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12833737AA	BOLT 1 3/4x5/16 UNC	Enquire	To Order
	8084913	BOLT-STAINLESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084914	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	74124388ABW	Cushion assy complete, rear, sports seat, RH	Enquire	To Order
	74124389ABW	Cushion assy complete, rear, sports seat, LH	Enquire	To Order
	74124380ABW	Squab assy complete, rear upper, sports seat	Enquire	To Order

...and 44 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	74125310BAW	Rear seat assy complete, RH	74125310BAW Rear seat assy complete, RH Volante USA From (V) 303448	-	1	Enquire
-	74125309BAW	Rear seat assy complete, LH	74125309BAW Rear seat assy complete, LH Volante USA From (V) 303448	-	1	Enquire
-	74125286AAW	Rear seat assy complete, RH	74125286AAW Rear seat assy complete, RH Coupe USA From (V) 303448	-	1	Enquire
-	74125287AAW	Rear seat assy complete, LH	74125287AAW Rear seat assy complete, LH Coupe USA From (V) 303448	-	1	Enquire
-	74121598BAW	Rear seat assy complete, RH	74121598BAW Rear seat assy complete, RH Volante Japan only	-	1	Enquire
-	74121599BAW	Rear seat assy complete, LH	74121599BAW Rear seat assy complete, LH Volante Japan only	-	1	Enquire
-	74121578BAW	Rear seat assy complete, RH	74121578BAW Rear seat assy complete, RH Volante Not Japan	-	1	Enquire
-	74121579BAW	Rear seat assy complete, LH	74121579BAW Rear seat assy complete, LH Volante Not Japan	-	1	Enquire
-	74121548AAW	Rear seat assy complete, RH	74121548AAW Rear seat assy complete, RH Coupe Japan only	-	1	Enquire
-	74121549AAW	Rear seat assy complete, LH	74121549AAW Rear seat assy complete, LH Coupe Japan only	-	1	Enquire
-	74121534AAW	ASSY COMPLETE REAR SEAT RH	74121534AAW ASSY COMPLETE REAR SEAT RH Coupe Not Japan	-	1	Enquire
-	74121535AAW	ASSY COMPLETE REAR SEAT LH	74121535AAW ASSY COMPLETE REAR SEAT LH Coupe Not Japan	-	1	Enquire
1	74125831BAW	Squab assy, upper, complete - rear seat, LH	74125831BAW Squab assy, upper, complete - rear seat, LH Volante Anniversary LE	-	1	Enquire
1	74125832BAW	Squab assy, upper, complete - rear seat RH	74125832BAW Squab assy, upper, complete - rear seat RH Volante Anniversary LE	-	1	Enquire
1	74125790AAW	Squab assy, upper, complete - rear seat	74125790AAW Squab assy, upper, complete - rear seat Coupe Anniversary LE	-	2	Enquire
1	74121590BAW	ASSY COMPLETE REAR SQUAB UPPER RH	74121590BAW ASSY COMPLETE REAR SQUAB UPPER RH Volante	-	1	Enquire
1	74121591BAW	ASSY COMPLETE REAR SQUAB UPPER LH	74121591BAW ASSY COMPLETE REAR SQUAB UPPER LH Volante	-	1	Enquire
1	74123946AAW	COMPLETE REAR SQUAB UPPER	74123946AAW COMPLETE REAR SQUAB UPPER Coupe	-	2	Enquire
2	74125848BAW	Cushion assy complete, rear seat, RH - Premium ICE	74125848BAW Cushion assy complete, rear seat, RH - Premium ICE Volante Not Japan Anniversary LE	-	1	Enquire
2	74125849BAW	Cushion assy complete, rear seat, LH - Premium ICE	74125849BAW Cushion assy complete, rear seat, LH - Premium ICE Volante Not Japan Anniversary LE	-	1	Enquire
2	74121536AAW	ASSY COMPLETE REAR CUSHION RH	74121536AAW ASSY COMPLETE REAR CUSHION RH Coupe Not Japan Up to (V) 303447	-	1	Enquire
2	74121537AAW	ASSY COMPLETE REAR CUSHION LH	74121537AAW ASSY COMPLETE REAR CUSHION LH Coupe Not Japan Up to (V) 303447	-	1	Enquire
2	74125464AAW	ASSY COMPLETE REAR CUSHION RH	74125464AAW ASSY COMPLETE REAR CUSHION RH Coupe Not Japan From (V) 303448	-	1	Enquire
2	74125465AAW	ASSY COMPLETE REAR CUSHION LH	74125465AAW ASSY COMPLETE REAR CUSHION LH Coupe Not Japan From (V) 303448	-	1	Enquire
2	74125797AAW	Cushion assy complete, rear seat, RH - Premium ICE	74125797AAW Cushion assy complete, rear seat, RH - Premium ICE Coupe Not Japan Anniversary LE	-	1	Enquire
2	74125795AAW	Cushion assy complete, rear seat, LH - Premium ICE	74125795AAW Cushion assy complete, rear seat, LH - Premium ICE Coupe Not Japan Anniversary LE	-	1	Enquire
2	74125804BAW	Cushion assy complete, rear seat RH	74125804BAW Cushion assy complete, rear seat RH Volante Japan Anniversary LE	-	1	Enquire
2	74125803BAW	Cushion assy complete, rear seat LH	74125803BAW Cushion assy complete, rear seat LH Volante Japan Anniversary LE	-	1	Enquire
2	74125316BAW	Cushion assy complete, rear seat RH	74125316BAW Cushion assy complete, rear seat RH Volante USA From (V) 303448	-	1	Enquire
2	74125315BAW	Cushion assy complete, rear seat LH	74125315BAW Cushion assy complete, rear seat LH Volante USA From (V) 303448	-	1	Enquire
2	74125824BAW	Cushion assy complete, rear seat RH	74125824BAW Cushion assy complete, rear seat RH Volante USA Anniversary LE	-	1	Enquire
2	74125823BAW	Cushion assy complete, rear seat LH	74125823BAW Cushion assy complete, rear seat LH Volante USA Anniversary LE	-	1	Enquire
2	74121600BBW	Cushion assy complete, rear seat RH	74121600BBW Cushion assy complete, rear seat RH Volante Japan only	-	1	Enquire
2	74121601BBW	Cushion assy complete, rear seat LH	74121601BBW Cushion assy complete, rear seat LH Volante Japan only	-	1	Enquire
2	74125840BAW	Cushion assy complete, rear seat RH	74125840BAW Cushion assy complete, rear seat RH Volante Japan only	-	1	Enquire
2	74125841BAW	Cushion assy complete, rear seat LH	74125841BAW Cushion assy complete, rear seat LH Volante Japan only	-	1	Enquire
2	74121580BAW	ASSY COMPLETE REAR CUSHION RH	74121580BAW ASSY COMPLETE REAR CUSHION RH Volante Not Japan	-	1	Enquire
2	74121581BAW	ASSY COMPLETE REAR CUSHION LH	74121581BAW ASSY COMPLETE REAR CUSHION LH Volante Not Japan	-	1	Enquire
2	74121550AAW	ASSY COMPLETE REAR CUSHION (JAPAN) RH	74121550AAW ASSY COMPLETE REAR CUSHION (JAPAN) RH Coupe Japan only	-	1	Enquire
2	74121551AAW	Cushion assy complete, rear seat - LH	74121551AAW Cushion assy complete, rear seat - LH Coupe Japan only	-	1	Enquire
3	74125283AAW	Squab assy lower, rear seat - complete	74125283AAW Squab assy lower, rear seat - complete Volante USA From (V) 303448	-	2	Enquire
3	74125817BAW	Squab assy lower, rear seat - complete, RH	74125817BAW Squab assy lower, rear seat - complete, RH Volante USA Anniversary LE	-	1	Enquire
3	74125867BAW	Squab assy lower, rear seat - complete, LH	74125867BAW Squab assy lower, rear seat - complete, LH Volante USA Anniversary LE	-	1	Enquire
3	74125818BAW	Squab assy lower, rear seat - complete, RH	74125818BAW Squab assy lower, rear seat - complete, RH Volante ROW Anniversary LE	-	1	Enquire
3	74125869BAW	Squab assy lower, rear seat - complete, LH	74125869BAW Squab assy lower, rear seat - complete, LH Volante ROW Anniversary LE	-	1	Enquire
3	74125269AAW	Squab assy lower, rear seat - complete	74125269AAW Squab assy lower, rear seat - complete Coupe USA From (V) 303448	-	2	Enquire
3	74125812AAW	Squab assy lower, rear seat - complete	74125812AAW Squab assy lower, rear seat - complete Coupe USA Anniversary LE	-	2	Enquire
3	74125811AAW	Squab assy lower, rear seat - complete	74125811AAW Squab assy lower, rear seat - complete Coupe ROW Anniversary LE	-	2	Enquire
3	74123962BAW	Squab assy lower, rear seat - complete	74123962BAW Squab assy lower, rear seat - complete Volante	-	2	Enquire
3	74123951AAW	COMPLETE REAR SQUAB LOWER	74123951AAW COMPLETE REAR SQUAB LOWER Coupe	-	2	Enquire
4	3782038	WASHER 11/16in.od x 1/4in.id x 0.080in.t	3782038 WASHER 11/16in.od x 1/4in.id x 0.080in.t	-	8	Enquire
5	697470	NUT M5 NYLOC	697470 NUT M5 NYLOC	-	4	Enquire
6	8084511	SEAT BELT REAR CONV	8084511 SEAT BELT REAR CONV	-	2	Enquire
6	8084509	SEAT BELT REAR COUPE USA	8084509 SEAT BELT REAR COUPE USA	-	2	Enquire
7	697563	Adhesive, Plexus A0420	697563 Adhesive, Plexus A0420 Leather retention	-	-	Enquire
7	8084512	SEAT BELT BUCKLE RR CONVERTIBLE	8084512 SEAT BELT BUCKLE RR CONVERTIBLE	-	2	Enquire
7	8084510	SEAT BELT BUCKLE REAR USA	8084510 SEAT BELT BUCKLE REAR USA	-	2	Enquire
7	7483194	VELCRO HOOKS	7483194 VELCRO HOOKS	-	6	Enquire
8	8085842	CHILD TETHER KIT ASY	8085842 CHILD TETHER KIT ASY CDN/AUS only	-	1	Enquire
9	8084911	BRKT-BELT ANCHORAGE	8084911 BRKT-BELT ANCHORAGE CDN/AUS only	-	2	Enquire
10	8084912	SPACER	8084912 SPACER CDN/AUS only	-	2	Enquire
11	1R12833737AA	BOLT 1 3/4x5/16 UNC	1R12833737AA BOLT 1 3/4x5/16 UNC CDN/AUS only, early cars	-	2	Enquire
11	8084913	BOLT-STAINLESS	8084913 BOLT-STAINLESS CDN/AUS only	-	2	Enquire
12	8084914	WASHER	8084914 WASHER CDN/AUS only	-	2	Enquire
13	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL CDN/AUS only	-	2	Enquire
14	74124388ABW	Cushion assy complete, rear, sports seat, RH	74124388ABW Cushion assy complete, rear, sports seat, RH Coupe Optional From (V) 303448	-	1	Enquire
14	74124389ABW	Cushion assy complete, rear, sports seat, LH	74124389ABW Cushion assy complete, rear, sports seat, LH Coupe Optional From (V) 303448	-	1	Enquire
14	74124380ABW	Squab assy complete, rear upper, sports seat	74124380ABW Squab assy complete, rear upper, sports seat Coupe Optional From (V) 303448	-	1	Enquire
14	74125273AAW	Squab assy complete, rear lower, sports seat	74125273AAW Squab assy complete, rear lower, sports seat Coupe Optional From (V) 303448	-	1	Enquire
14	74124374ABW	Seat assy complete, sports, rear, RH	74124374ABW Seat assy complete, sports, rear, RH Coupe Optional From (V) 303448	-	1	Enquire
14	74124375ABW	Seat assy complete, sports, rear, LH	74124375ABW Seat assy complete, sports, rear, LH Coupe Optional From (V) 303448	-	1	Enquire
14	74124786BAW	Squab assy, complete, rear upper, RH, perforated	74124786BAW Squab assy, complete, rear upper, RH, perforated Volante Optional	-	1	Enquire
14	74124787BAW	Squab assy, complete, rear upper, LH, perforated	74124787BAW Squab assy, complete, rear upper, LH, perforated Volante Optional	-	1	Enquire
14	74124804BAW	Rear seat assy, perf, complete, RH- premium ICE	74124804BAW Rear seat assy, perf, complete, RH- premium ICE Volante Optional	-	1	Enquire
14	74124805BAW	Rear seat assy, perf, complete, LH- premium ICE	74124805BAW Rear seat assy, perf, complete, LH- premium ICE Volante Optional	-	1	Enquire
14	74124806BAW	Cushion assy, perf, complete, RH- premium ICE	74124806BAW Cushion assy, perf, complete, RH- premium ICE Volante Optional	-	1	Enquire
14	74124807BAW	Cushion assy, perf, complete, LH- premium ICE	74124807BAW Cushion assy, perf, complete, LH- premium ICE Volante Optional	-	1	Enquire
14	74124774BAW	Rear seat assy, perforated, complete, RH	74124774BAW Rear seat assy, perforated, complete, RH Volante Optional	-	1	Enquire
14	74124775BAW	Rear seat assy, perforated, complete, LH	74124775BAW Rear seat assy, perforated, complete, LH Volante Optional	-	1	Enquire
14	74124780BAW	Cushion assy, perforated, complete, RH	74124780BAW Cushion assy, perforated, complete, RH Volante Optional	-	1	Enquire
14	74124781BAW	Cushion assy, perforated, complete, LH	74124781BAW Cushion assy, perforated, complete, LH Volante Optional	-	1	Enquire
14	74124776AAW	Squab assy, complete, rear lower, perforated	74124776AAW Squab assy, complete, rear lower, perforated Volante Optional	-	2	Enquire
14	74124398AAW	Cushion assy complete, rear, sports seat, RH Japan	74124398AAW Cushion assy complete, rear, sports seat, RH Japan Coupe Optional	-	1	Enquire
14	74124403AAW	Cushion assy complete, rear, sports seat, LH Japan	74124403AAW Cushion assy complete, rear, sports seat, LH Japan Coupe Optional	-	1	Enquire
14	74124388AAW	Cushion assy complete, rear, sports seat, RH	74124388AAW Cushion assy complete, rear, sports seat, RH Coupe Optional	-	1	Enquire
14	74124389AAW	Cushion assy complete, rear, sports seat, LH	74124389AAW Cushion assy complete, rear, sports seat, LH Coupe Optional	-	1	Enquire
14	74124498AAW	Squab assy complete, rear lower, sports seat	74124498AAW Squab assy complete, rear lower, sports seat Coupe Optional	-	1	Enquire
14	74124376AAW	Seat assy complete, sports, rear, RH Japan	74124376AAW Seat assy complete, sports, rear, RH Japan Coupe Optional	-	1	Enquire
14	74124377AAW	Seat assy complete, sports, rear, LH Japan	74124377AAW Seat assy complete, sports, rear, LH Japan Coupe Optional	-	1	Enquire
14	74124812AAW	Rear seat assy, perforated, complete, RH	74124812AAW Rear seat assy, perforated, complete, RH Coupe Optional	-	1	Enquire
14	74124813AAW	Rear seat assy, perforated, complete, LH	74124813AAW Rear seat assy, perforated, complete, LH Coupe Optional	-	1	Enquire
14	74124818AAW	ASSY COMPLETE REAR CUSHION RH	74124818AAW ASSY COMPLETE REAR CUSHION RH Coupe Optional	-	1	Enquire
14	74124819AAW	ASSY COMPLETE REAR CUSHION LH	74124819AAW ASSY COMPLETE REAR CUSHION LH Coupe Optional	-	1	Enquire
14	74124374AAW	Seat assy complete, sports, rear, RH	74124374AAW Seat assy complete, sports, rear, RH Coupe Optional	-	1	Enquire
14	74124375AAW	Seat assy complete, sports, rear, LH	74124375AAW Seat assy complete, sports, rear, LH Coupe Optional	-	1	Enquire
14	74124814AAW	Squab assy, complete, rear upper, perforated	74124814AAW Squab assy, complete, rear upper, perforated Coupe Optional	-	2	Enquire
14	74124497AAW	Squab assy, complete, rear lower, perforated	74124497AAW Squab assy, complete, rear lower, perforated Coupe Optional	-	2	Enquire
14	8084915	NUT 3/16in UNC HEX ST/STEEL	8084915 NUT 3/16in UNC HEX ST/STEEL CDN/AUS only	-	2	Enquire
14	74125702AAW	Cushion assy complete, rear, GT seat, RH	74125702AAW Cushion assy complete, rear, GT seat, RH GT Japan	-	1	Enquire
14	74124498AAW	Squab assy complete, rear lower, sports seat	74124498AAW Squab assy complete, rear lower, sports seat GT Japan	-	1	Enquire
14	74125700AAW	Seat assy complete, GT, rear, RH	74125700AAW Seat assy complete, GT, rear, RH GT Japan	-	1	Enquire
14	74125701AAW	Seat assy complete, GT, rear, LH	74125701AAW Seat assy complete, GT, rear, LH GT Japan	-	1	Enquire
14	74125452AAW	Squab assy complete, rear lower, GT seat	74125452AAW Squab assy complete, rear lower, GT seat GT USA	-	1	Enquire
14	74125450AAW	Seat assy complete, GT, rear, RH	74125450AAW Seat assy complete, GT, rear, RH GT USA	-	1	Enquire
14	74125451AAW	Seat assy complete, GT, rear, LH	74125451AAW Seat assy complete, GT, rear, LH GT USA	-	1	Enquire
14	80125025AA	Label, isofix	80125025AA Label, isofix Coupe	-	1	Enquire
14	74125444AAW	ASSEMBLY COMPLETE REAR CUSHION RH - GT	74125444AAW ASSEMBLY COMPLETE REAR CUSHION RH - GT GT	-	1	Enquire
14	74125445AAW	ASSEMBLY COMPLETE REAR CUSHION LH - GT	74125445AAW ASSEMBLY COMPLETE REAR CUSHION LH - GT GT	-	1	Enquire
14	74125440AAW	Squab assy complete, rear upper, GT seat	74125440AAW Squab assy complete, rear upper, GT seat GT	-	1	Enquire
14	74125443AAW	Squab assy complete, rear lower, GT seat	74125443AAW Squab assy complete, rear lower, GT seat GT	-	1	Enquire
14	74125438AAW	Seat assy complete, GT, rear, RH	74125438AAW Seat assy complete, GT, rear, RH GT	-	1	Enquire
14	74125439AAW	Seat assy complete, GT, rear, LH	74125439AAW Seat assy complete, GT, rear, LH GT	-	1	Enquire
